Sawing- and Drilling Plant KALTENBACH HDM 1400 und WBX 1215

Control: CNC
Description:
SAWING- AND DRILLING PLANT
sawing of U-steel, l-beams, wide flange beams as well as 90° angle steel.
during the base setting of the machine with a cutting length of approx. 940 up to 1200mm a double cut will be performed.
punch marking and signing is possible.

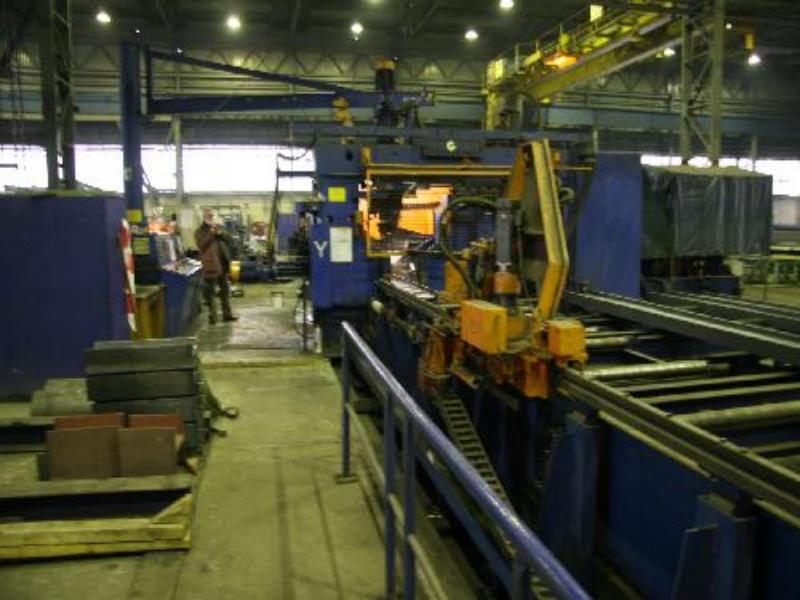

the plant consists out of:

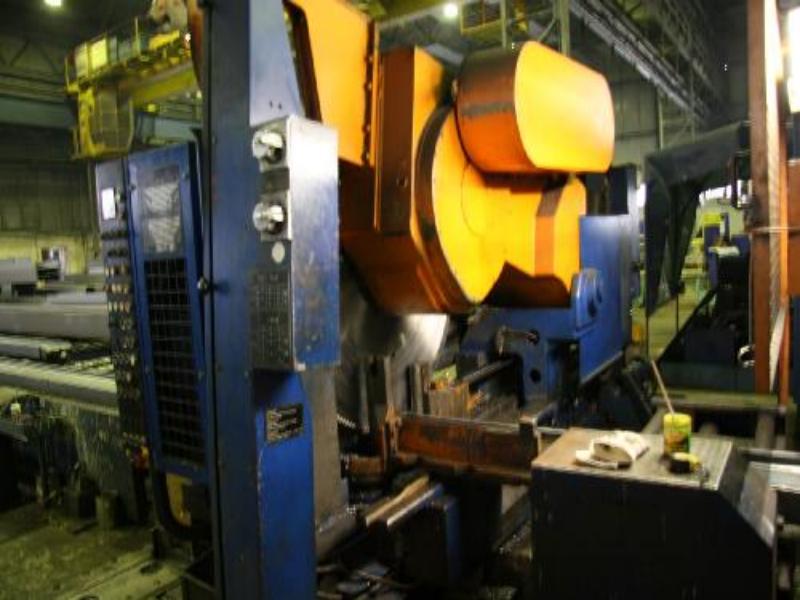

sawing plant type: HDM 1400, weight: 9,5t

boring plant type: WBX 1215, weight: 9t

roll race way & feed roller and stretching block Type : T 13 total weight: ca. 8t

sign stamping machine: Type: SP- CNC ,weight: 0,7t

measuring wagen: make: Wagner WMS 1003 , weight: 1 t

working area: W/H= max.1200 x 450mm

Metering capacity relating to: HDM sawing plant: 100 up to 20300 mm;

WPX boring plant: 0 up to 18100 mm

angle adjustment: 70° left up to 47° right.

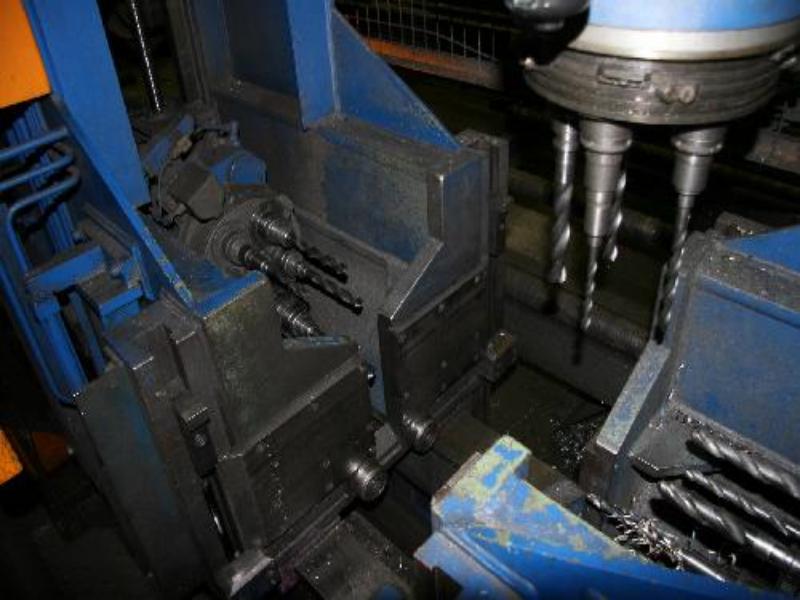

Number of boring spindles: 15 (3x5)

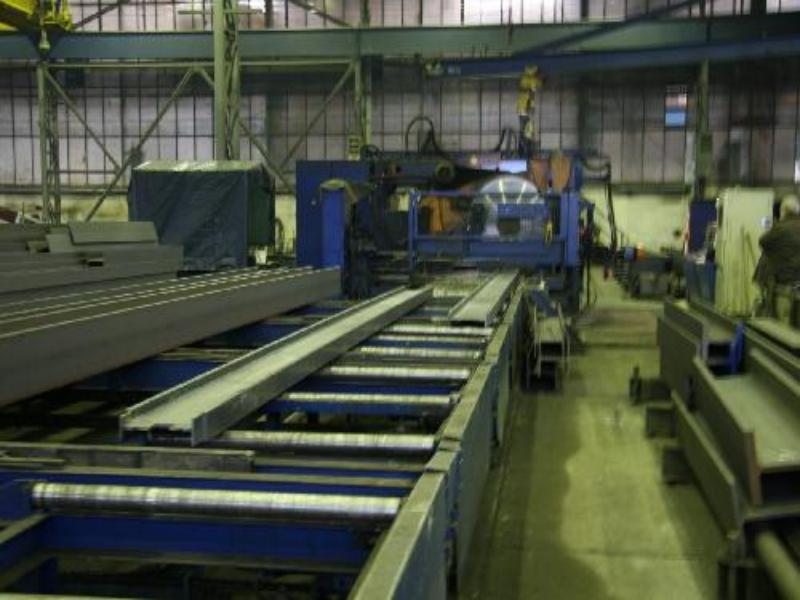

roller conveyor x band width (feeding side-roller conveyor) 19500 mm

roller conveyor length (removal side- roller conveyor) 18300 mm

working range:

90° angle steel simple cut 250 mm

U-steel simple cut 400 mm

TT beams simple cut 600mm wide flange beam, double cut 1200x450mm

further working ranges to 75°, 60°, 50°, 45° beams on request.

The lenght of the machine is 36 m.

Machine is ready for transportation!

Documents available!

technical details:

work piece width 1200 mm

workpiece height 450 mm

bore diameter 10 - 40 mm
