Parte de la subasta used machines of the pharmacy and cosmetics sector

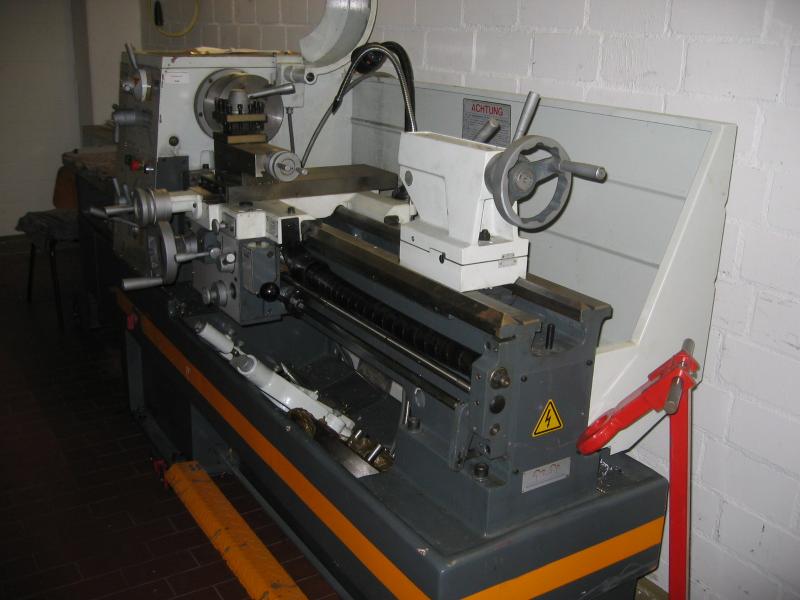

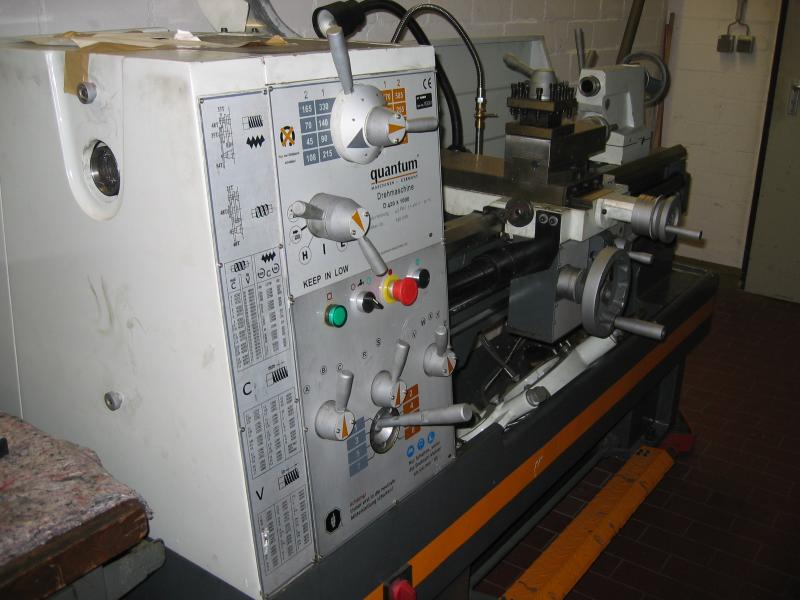

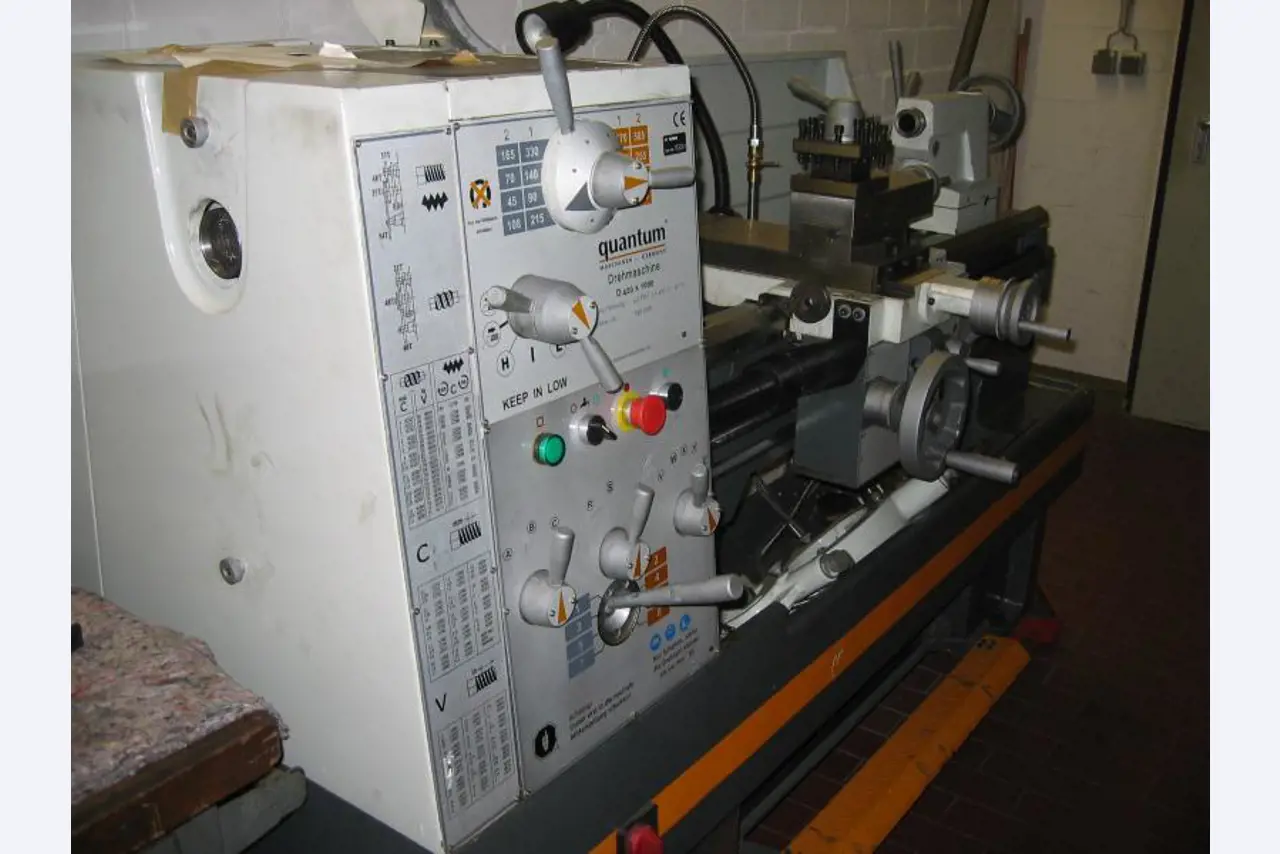

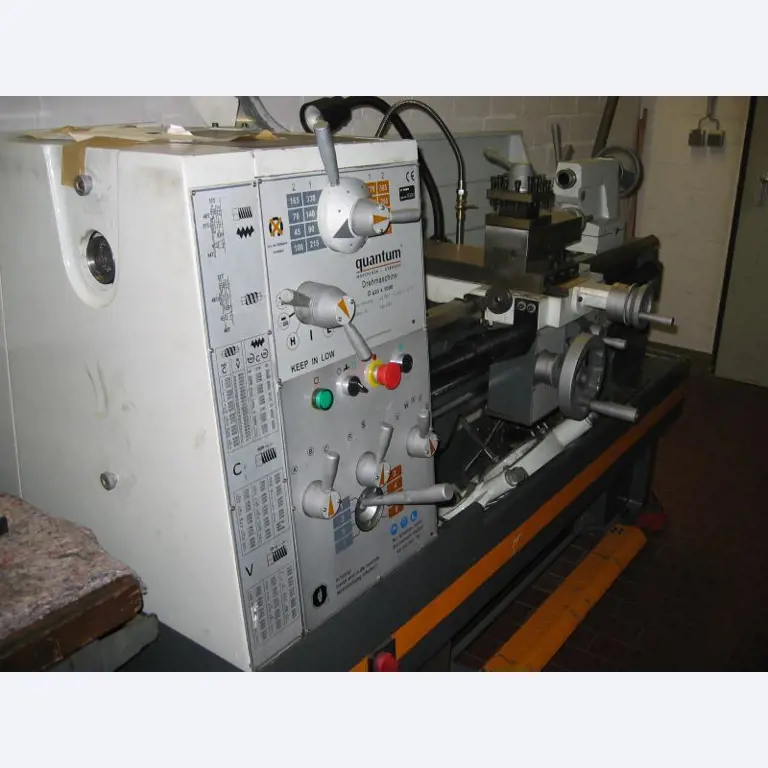

Lead and screw cutting lathe Quantum Quantum D 420 x 1000
Subasta #11476-Z001 (08230-24060)
Esta subasta ha terminado.
Detalles
Fabricante
Quantum
Tipo
Quantum D 420 x 1000
Año de construcción
2005
Descripción
height of centers 210 mm
distance between centers 1000 mm
diametre of swivel 420 mm
turning diametre above craddle 255 mm
swivel diemetre wihout bed-gantry 590 mm
length of bed insert 240 mm
spindle bore 52 mm
spindle receive Camlock D 1 - 6“
spindle cone MK 6
numbers of spindle, 16 steps, 45 - 1800 min-1
metrical thread (39) 0,2 - 14 mm/U
thread inch (45) 72 - 2 Gg/1“
module thread (18) 0,3 - 3,5 MP
trapeze thread (21) 8 - 44 DP
longitudinal feed 0,05 - 1,7 mm/U.
cross feed 0,025-0,85mm/U.
travel way top craddle 135 mm
travel way cross slide 230 mm
tailstock cone MK 4
tailstock pivoted vice 120 mm
main engine 50 Hz; 4,5 kW/ 400 V
cooling implementation 100 W
dimensions (l x wx h) 1940 x 850 x 1320 mm
net weight 1570 kg
distance between centers 1000 mm
diametre of swivel 420 mm
turning diametre above craddle 255 mm
swivel diemetre wihout bed-gantry 590 mm
length of bed insert 240 mm
spindle bore 52 mm
spindle receive Camlock D 1 - 6“
spindle cone MK 6
numbers of spindle, 16 steps, 45 - 1800 min-1
metrical thread (39) 0,2 - 14 mm/U
thread inch (45) 72 - 2 Gg/1“
module thread (18) 0,3 - 3,5 MP
trapeze thread (21) 8 - 44 DP
longitudinal feed 0,05 - 1,7 mm/U.
cross feed 0,025-0,85mm/U.
travel way top craddle 135 mm
travel way cross slide 230 mm
tailstock cone MK 4
tailstock pivoted vice 120 mm
main engine 50 Hz; 4,5 kW/ 400 V
cooling implementation 100 W
dimensions (l x wx h) 1940 x 850 x 1320 mm
net weight 1570 kg
Ubicación
- Hamburg
