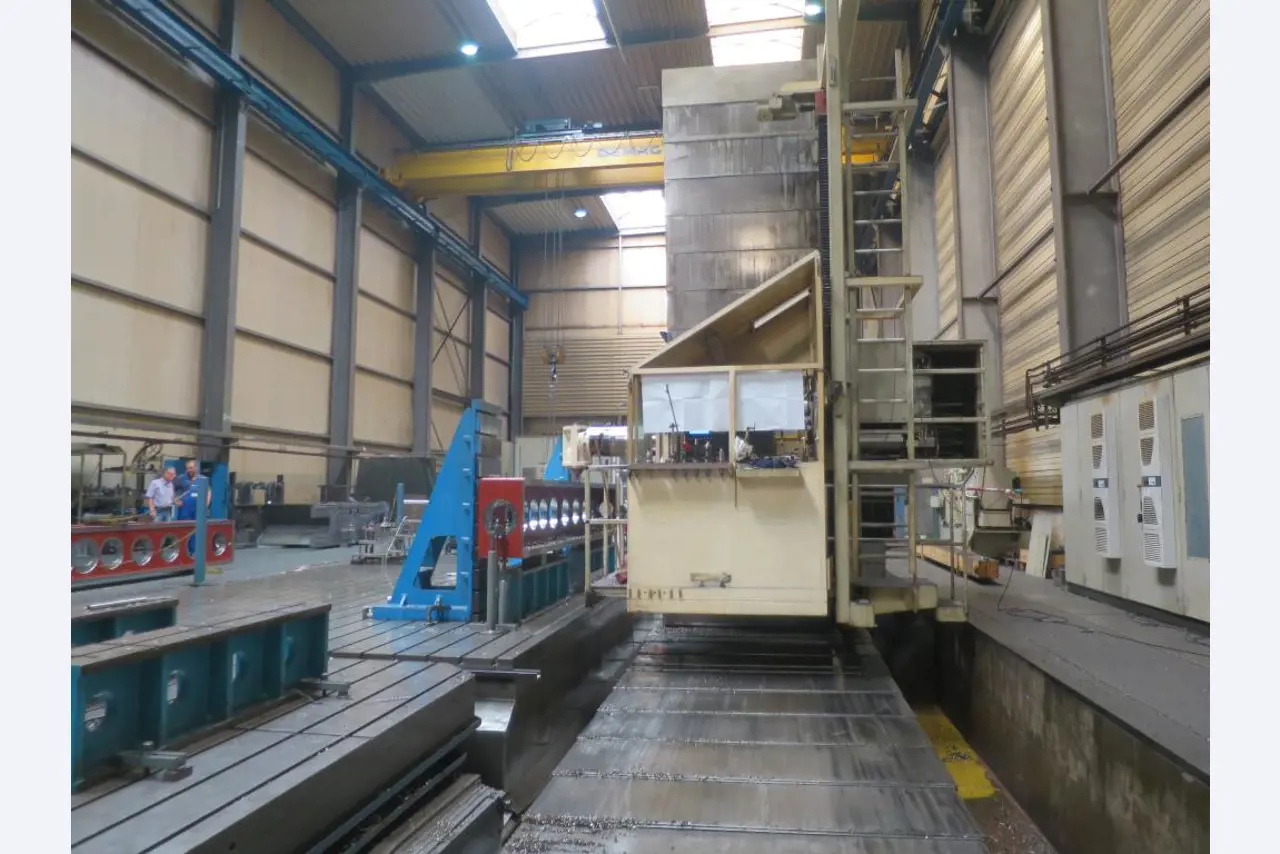

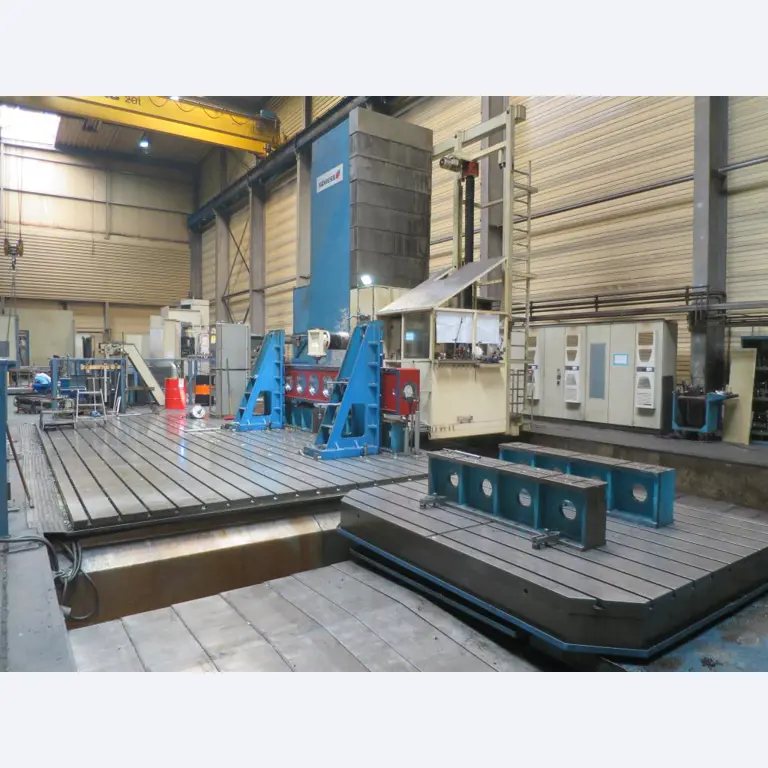

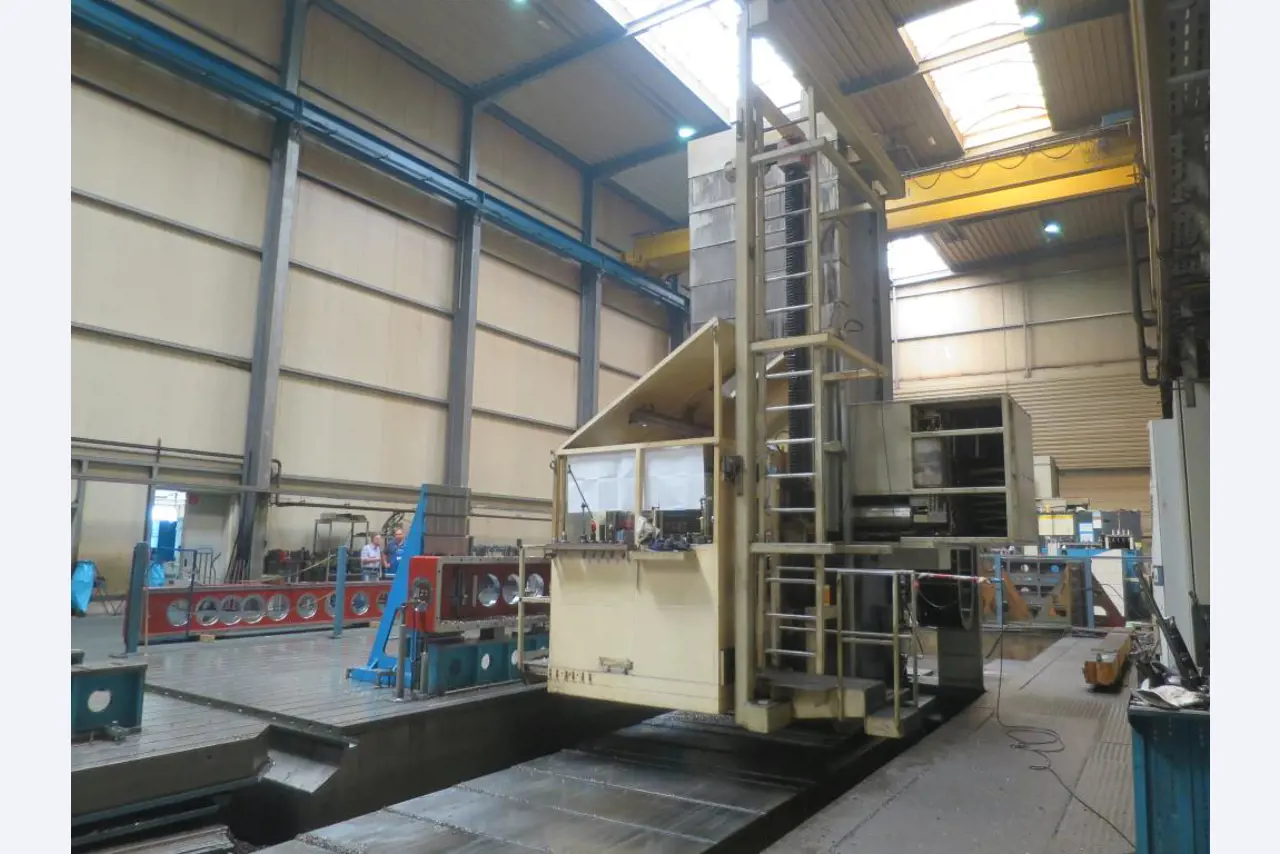

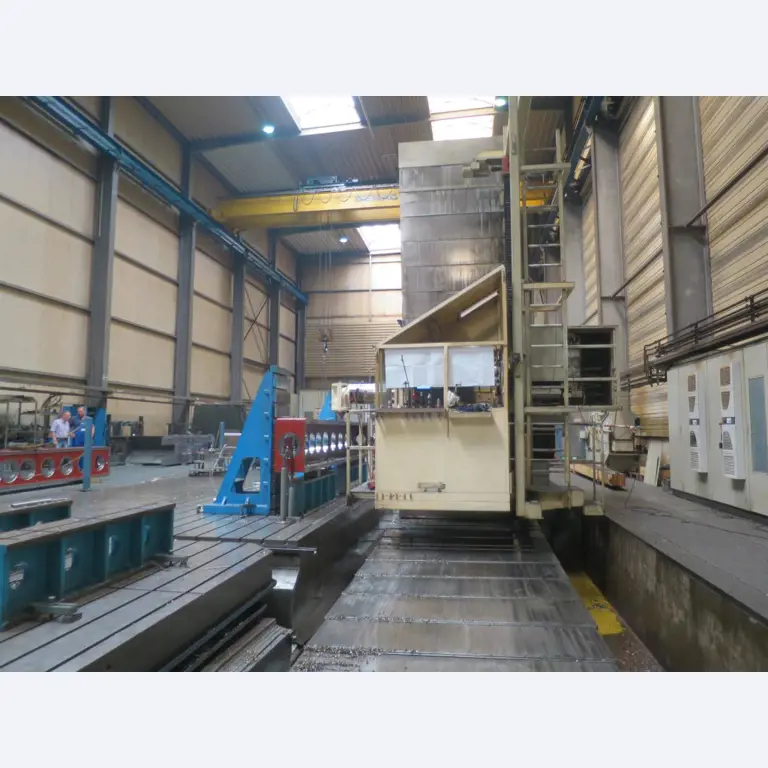

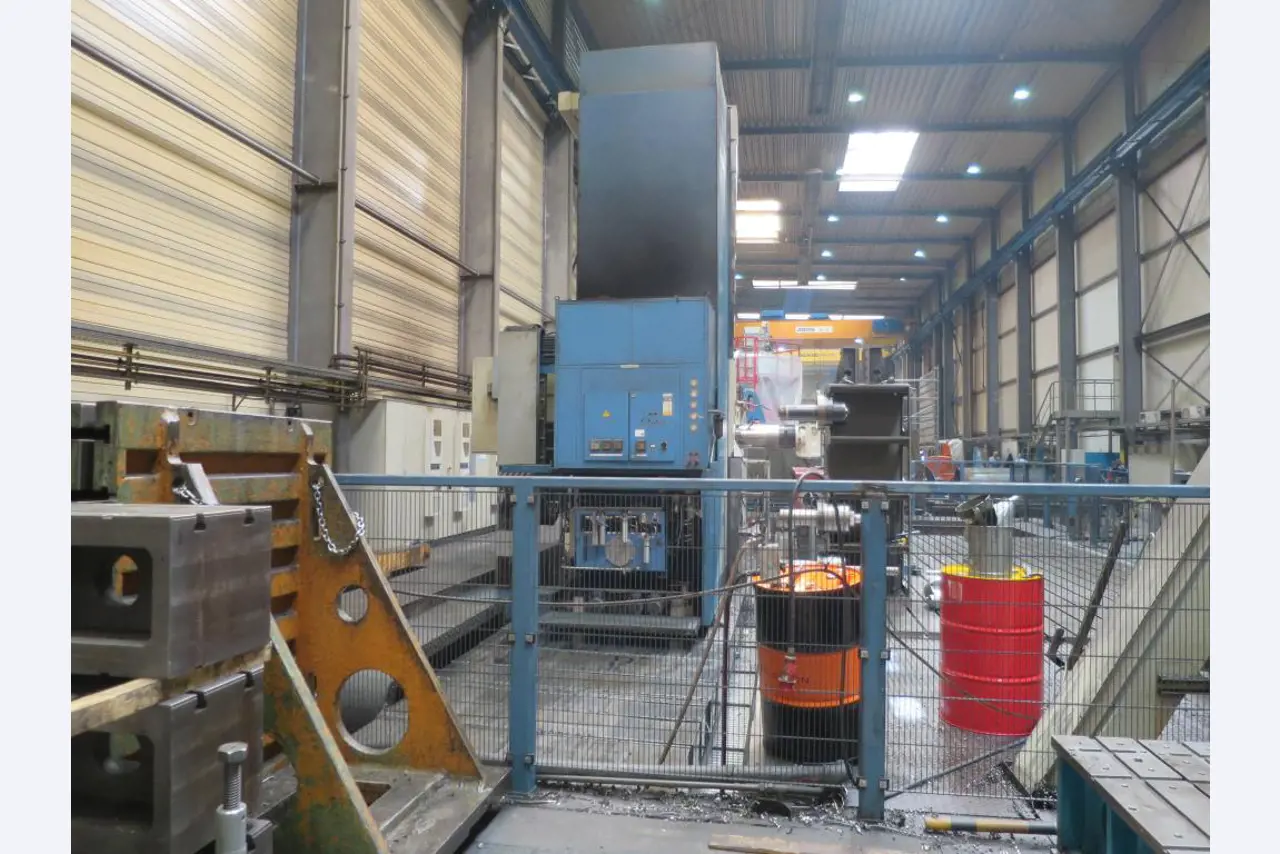

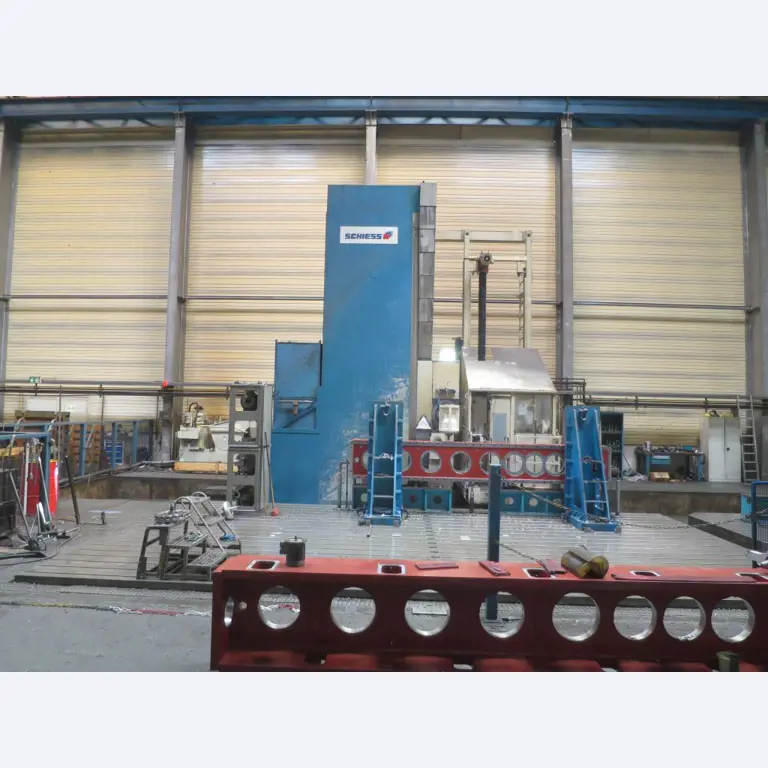

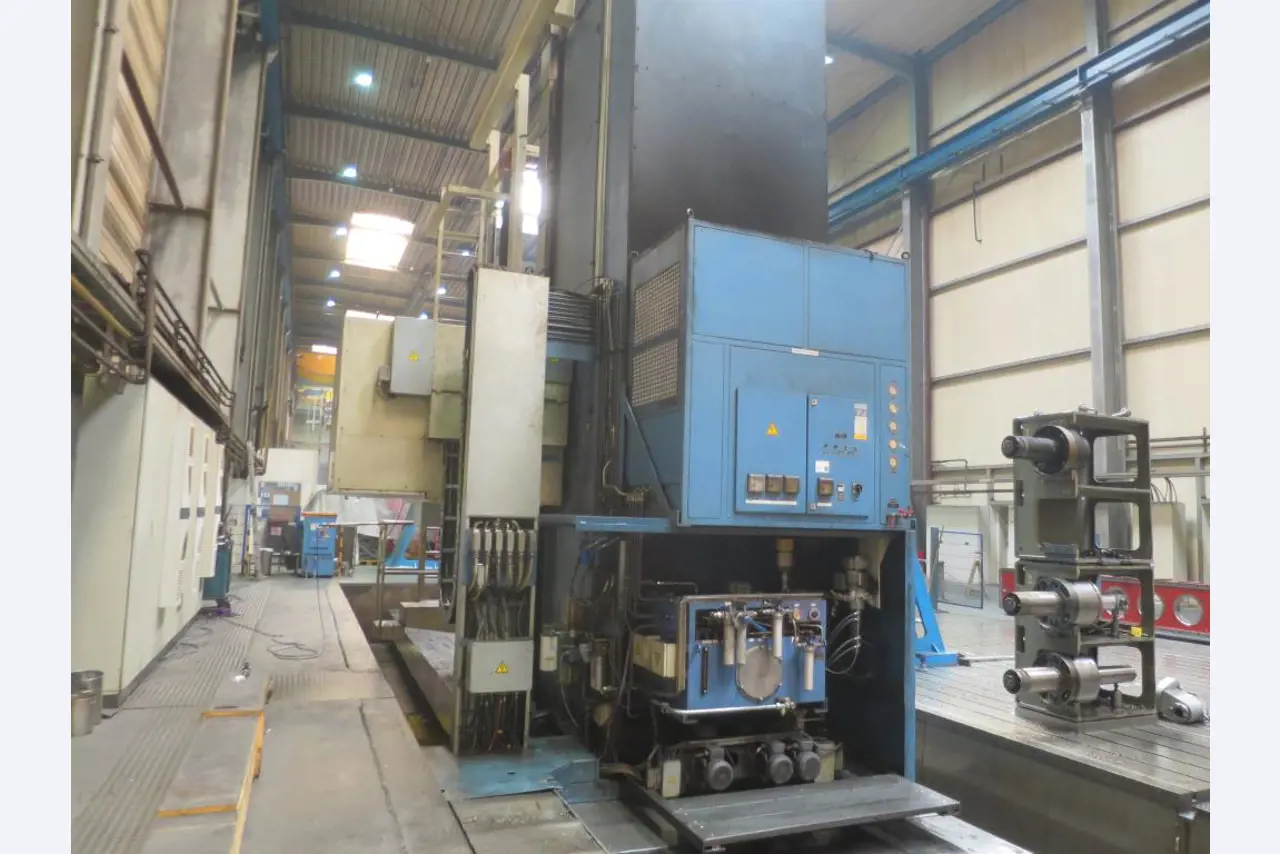

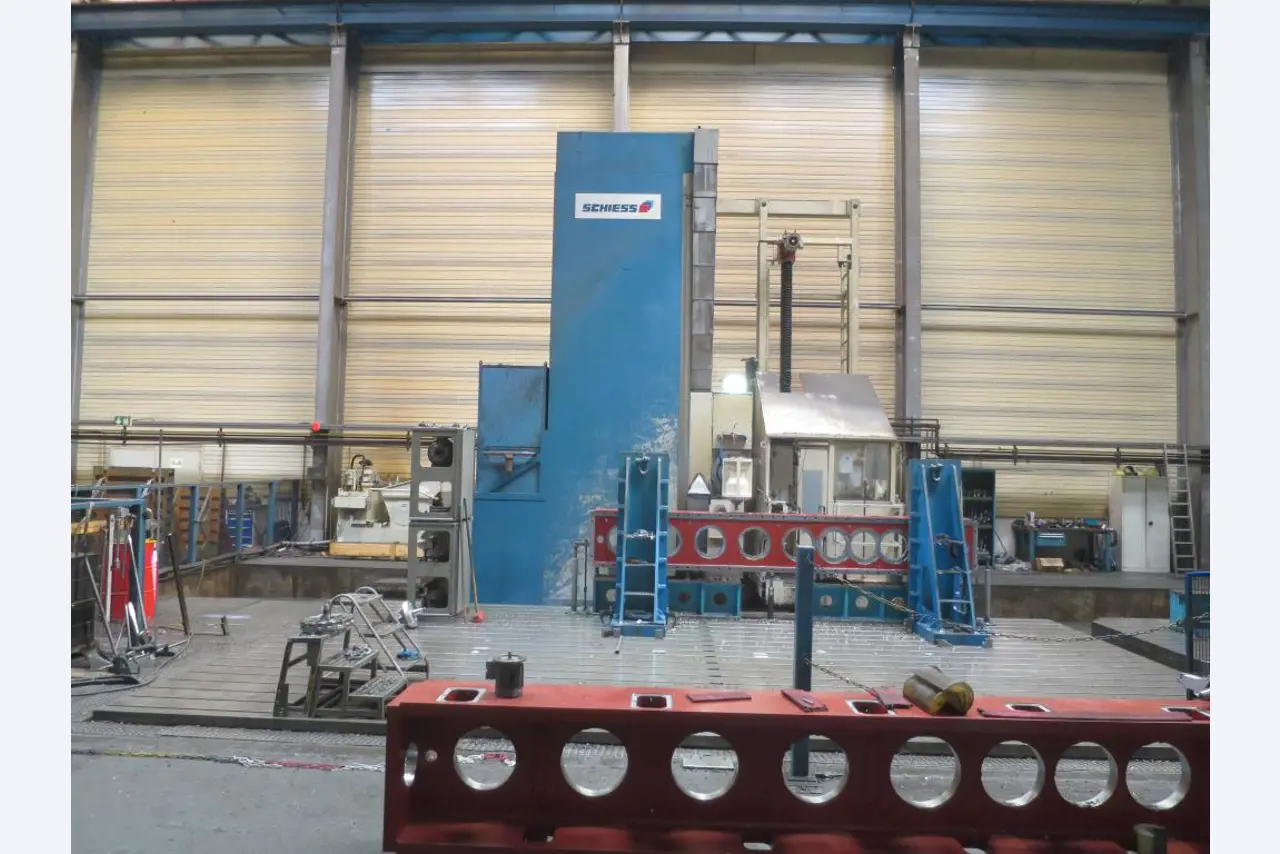

CNC horizontal boring and milling machine Schiess FB-P 360/1250

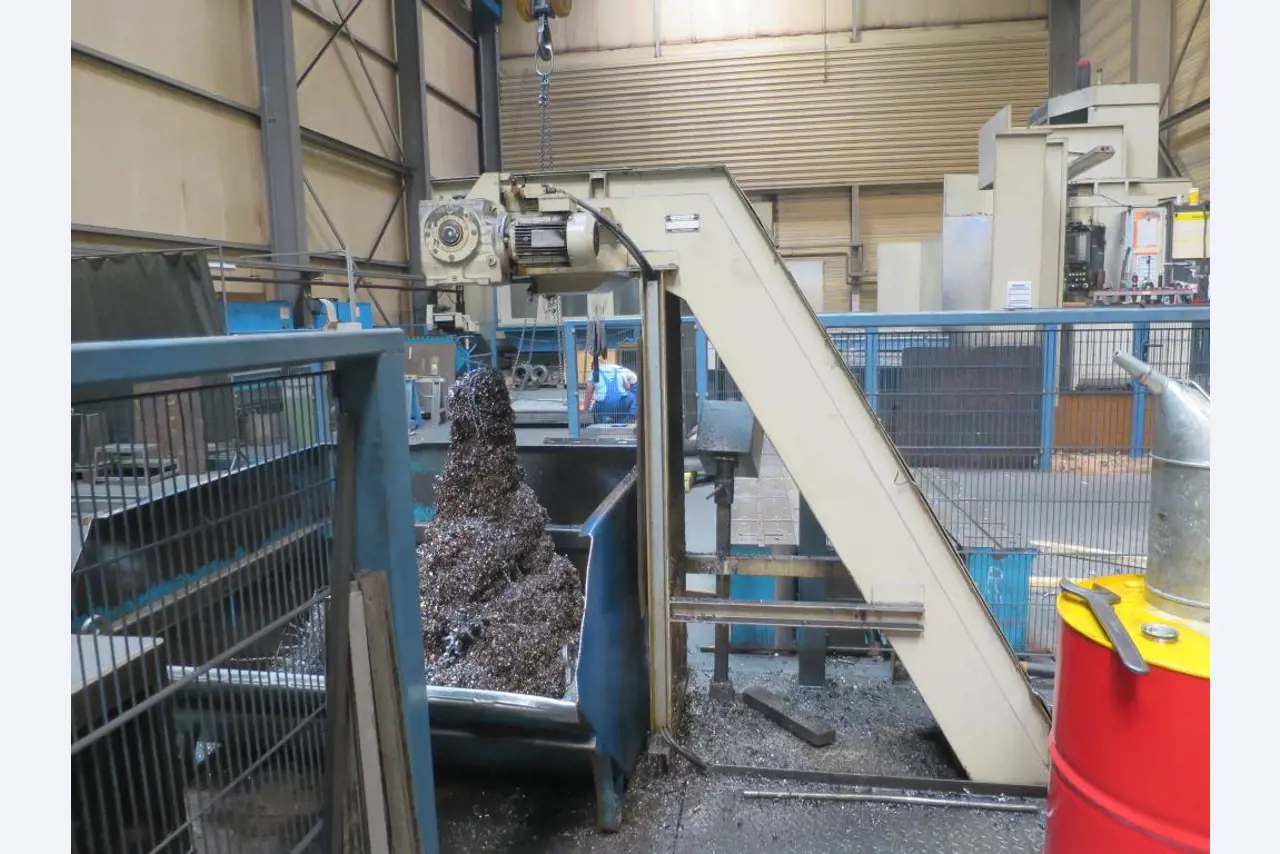

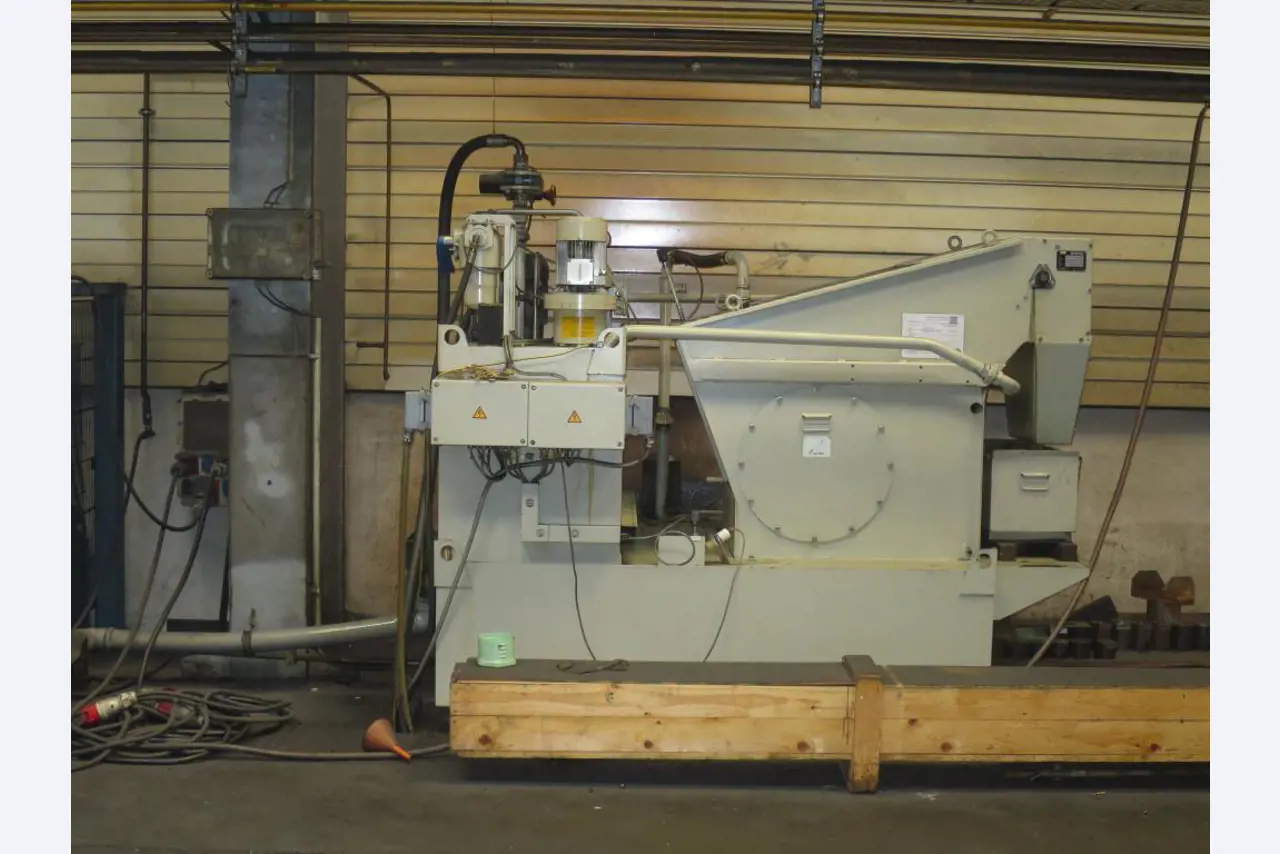

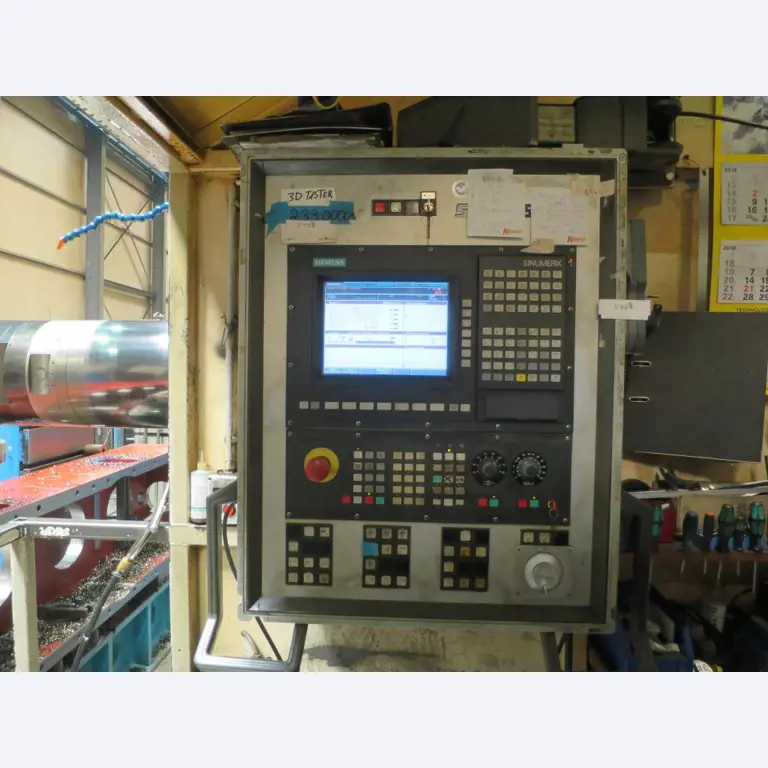

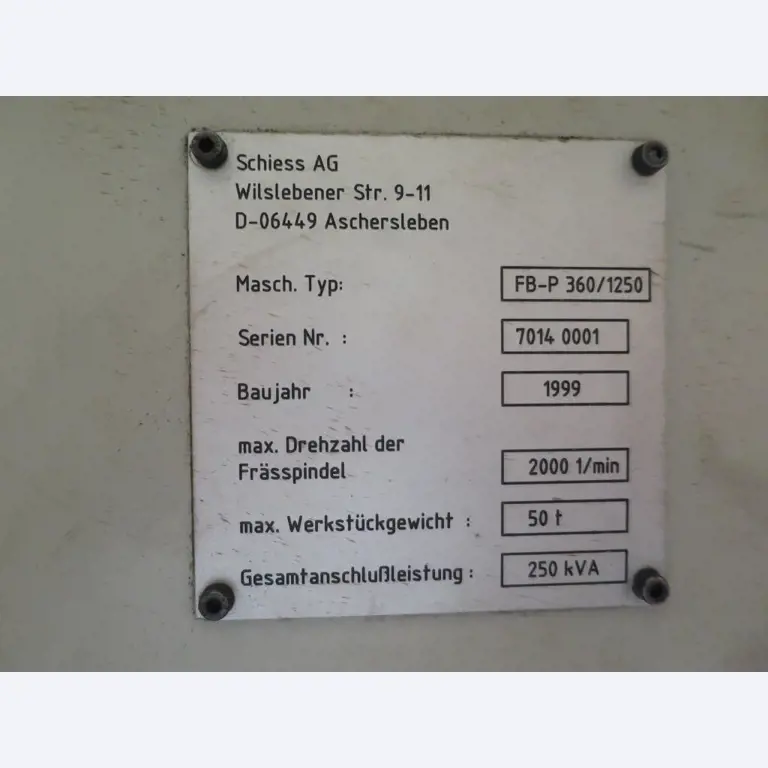

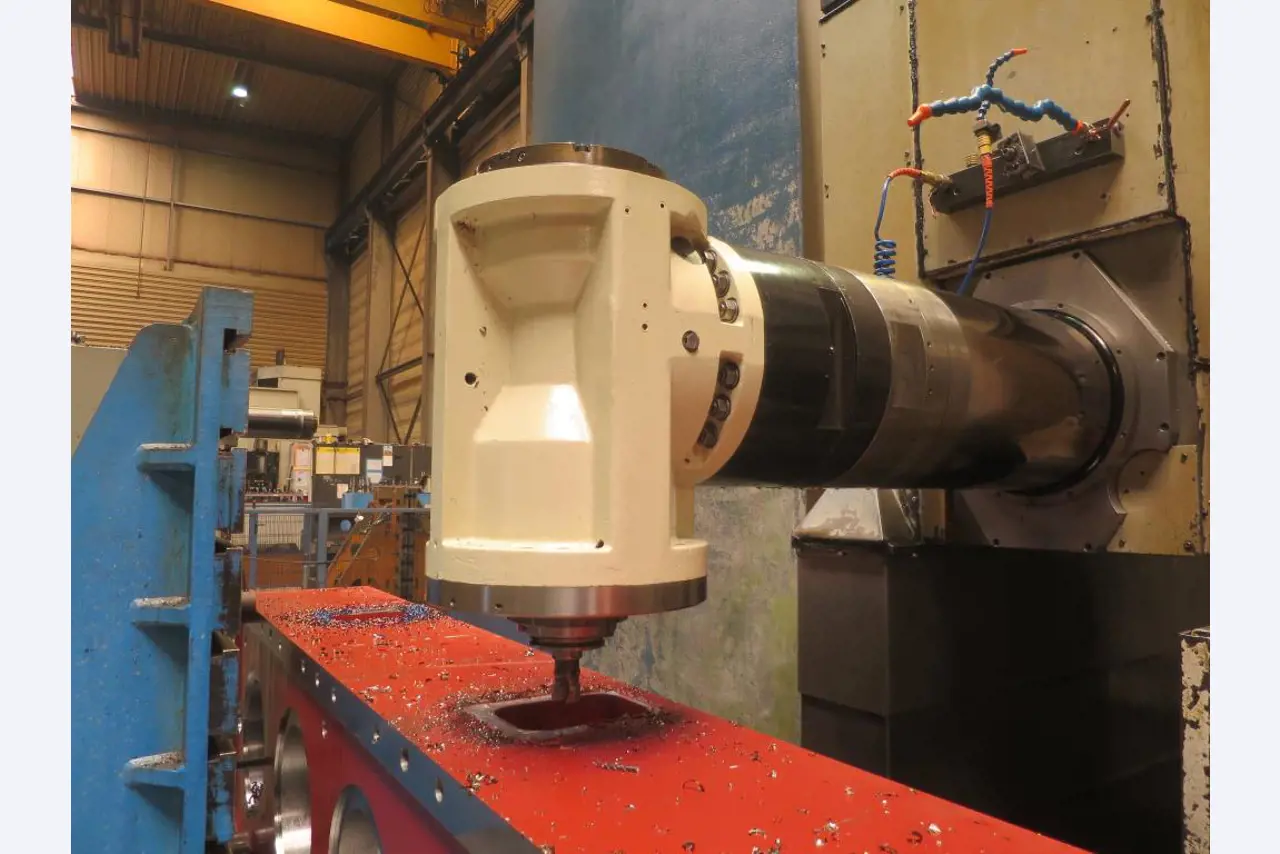

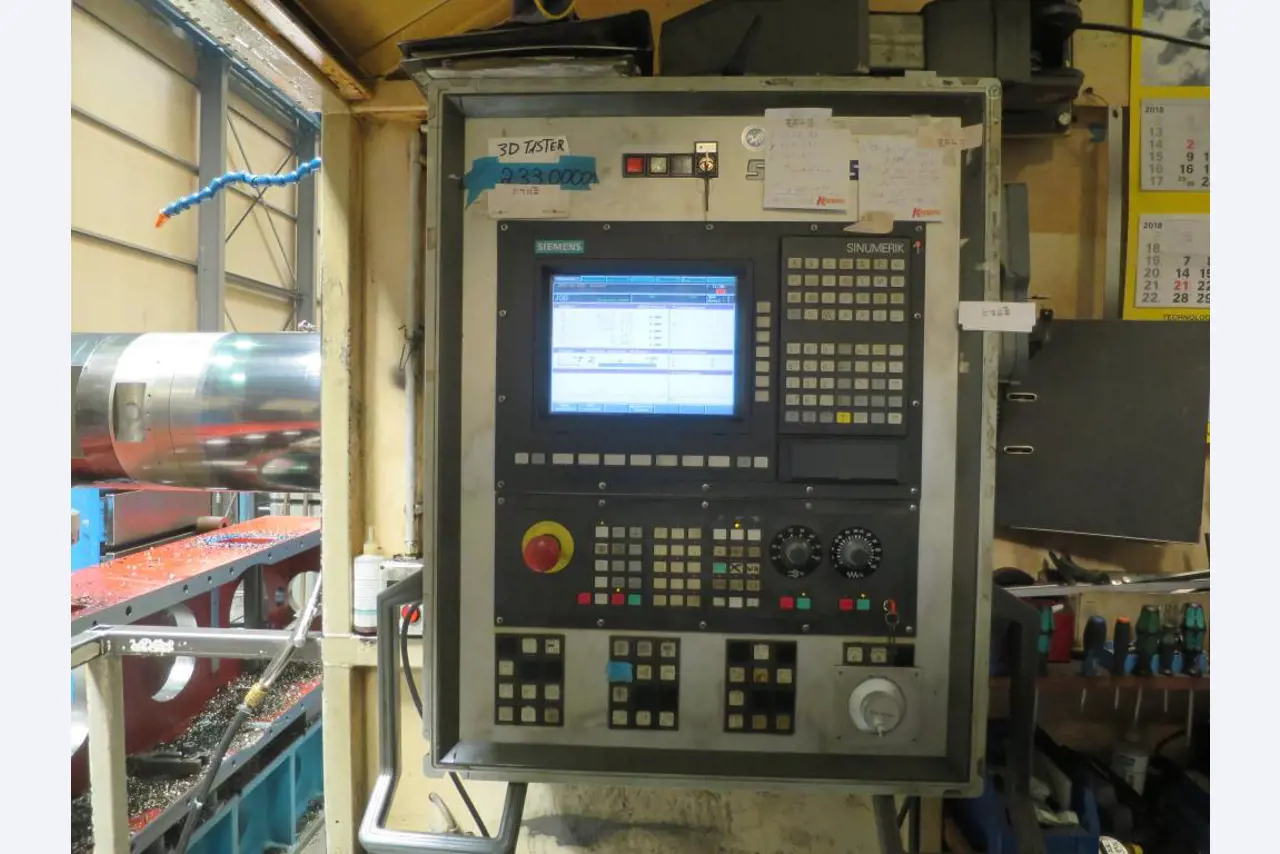

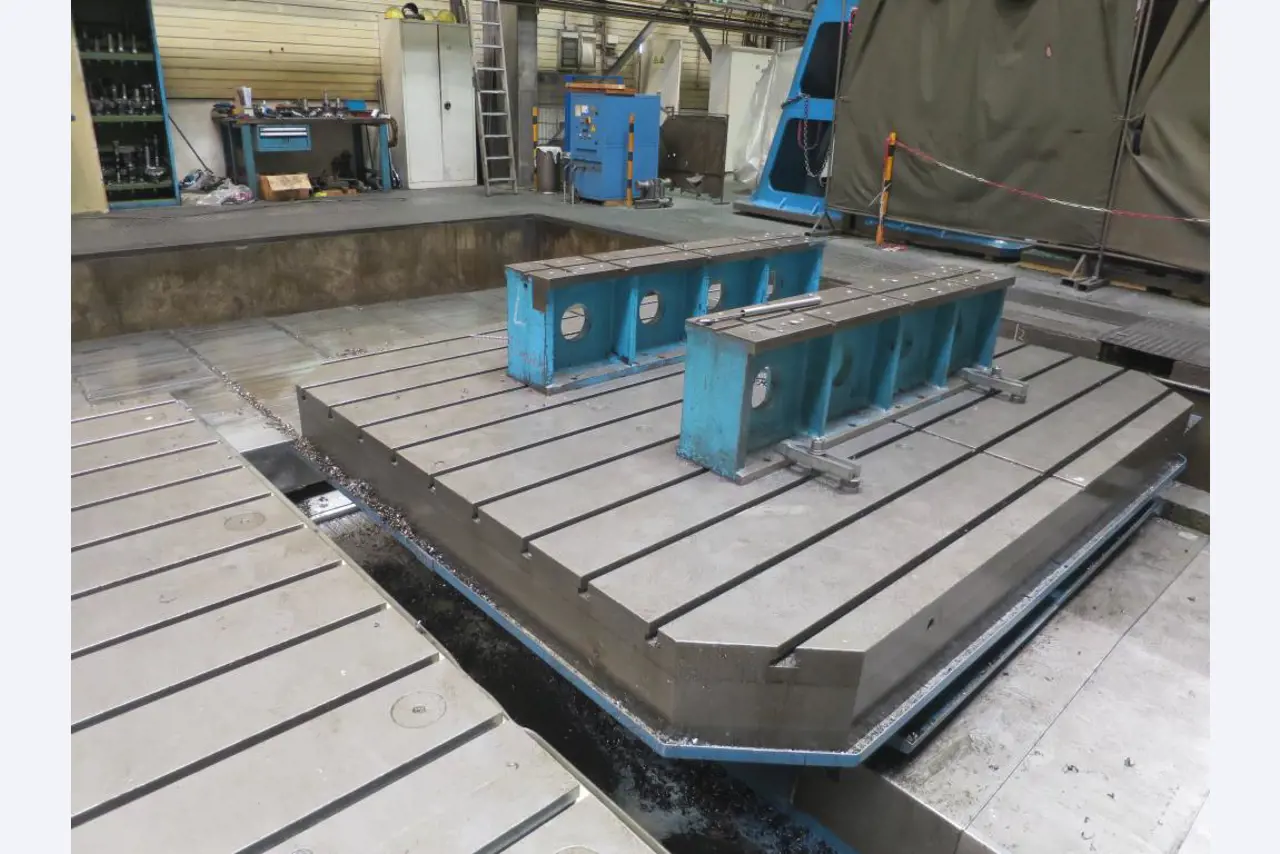

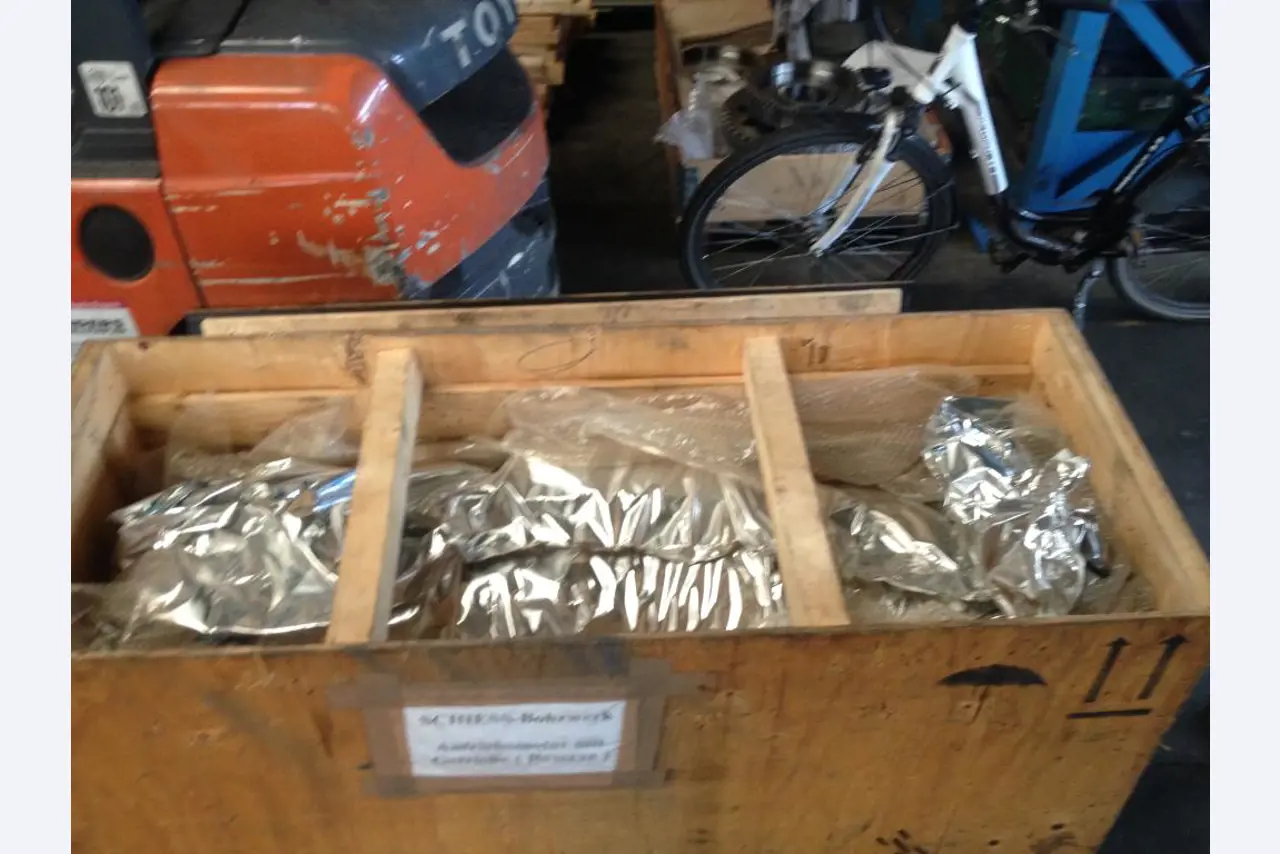

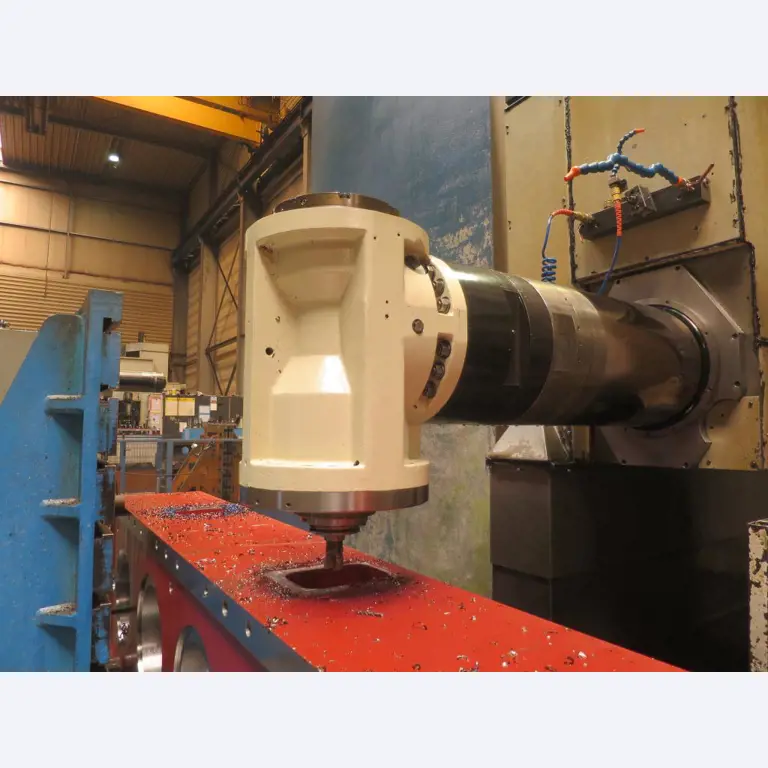

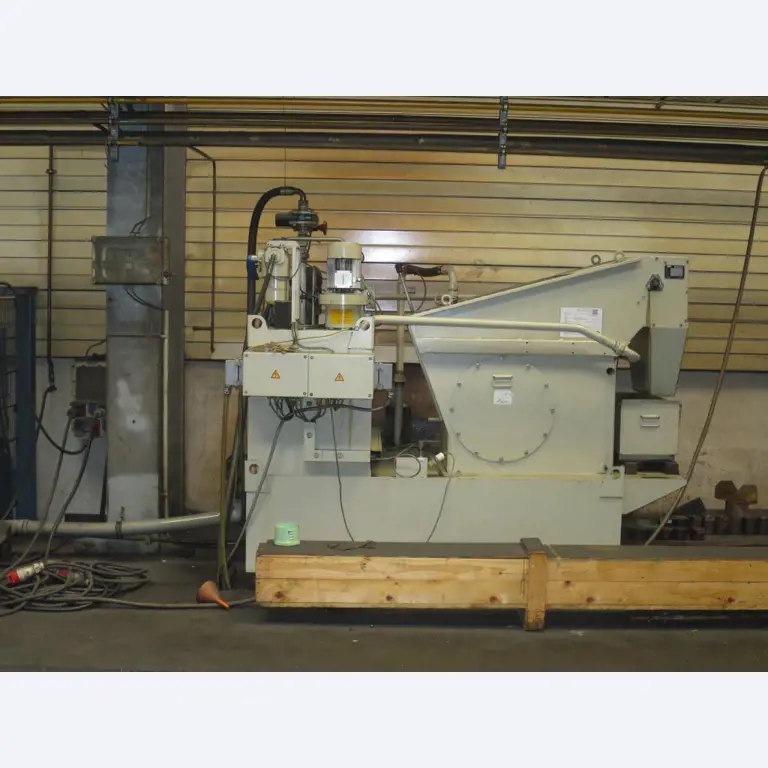

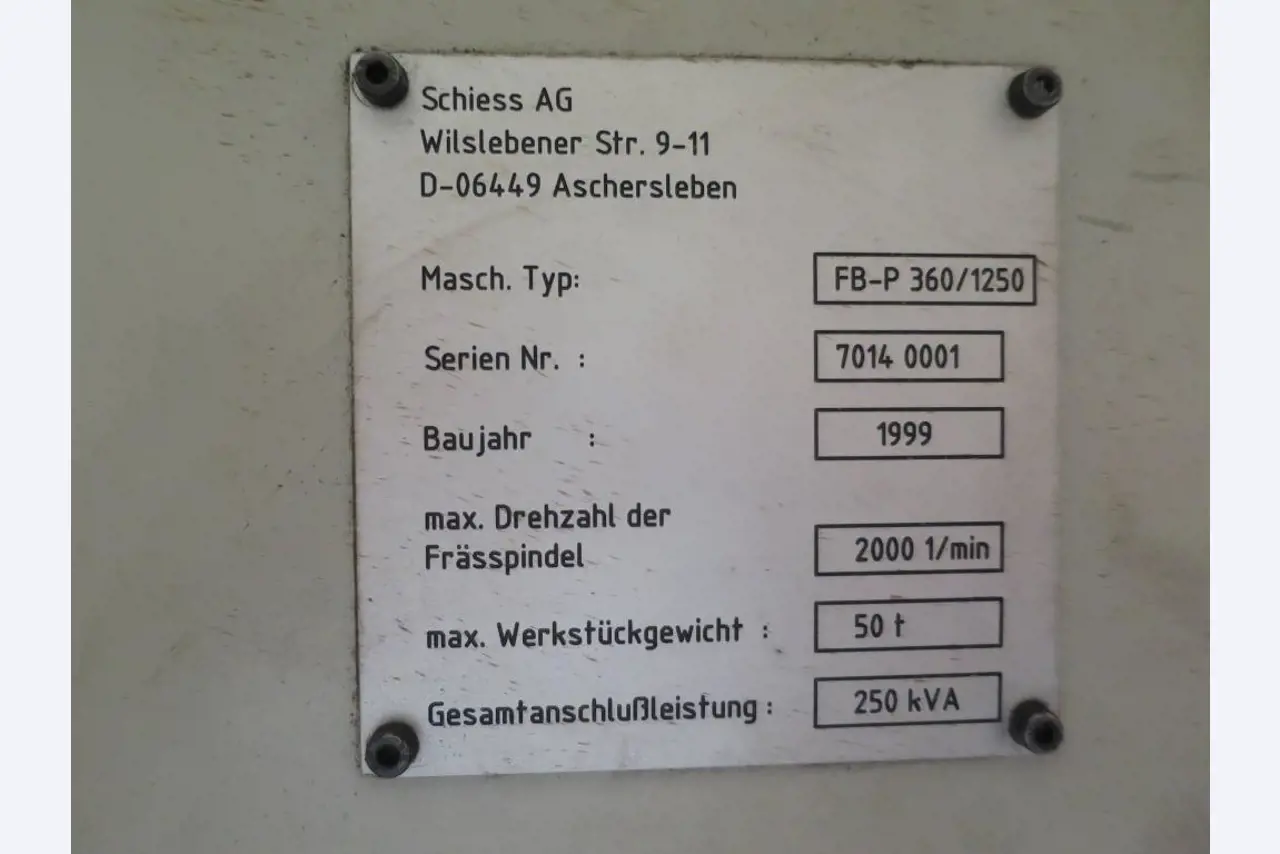

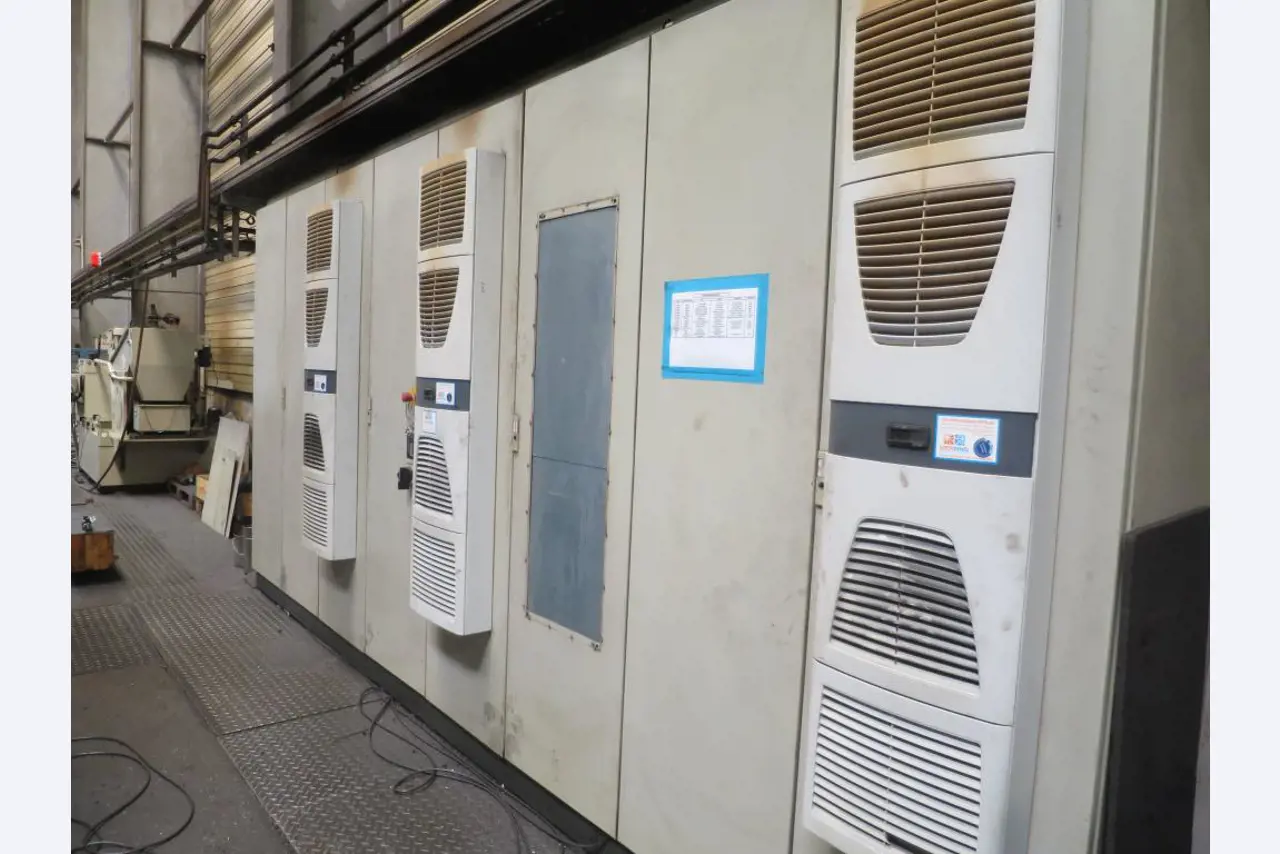

man. 1999, serial no. 70140001, connected load 250 kVA, range of motion: X (column adjustment) 12,000 mm, Y (headstock adjustment) 4,500 mm, W (support sleeve adjustment) 1,250 mm, C (swivelling of head) 0 - 360°, V (longitudinal bed adjustment) 2,000 mm, B (rotary bed adjustment) 0 - 360°, max. bed load 50,000 kg, bed clamping plate 2,750 x 3,250 mm, fixed table 9,000 x 5,000 mm, groove width 28 mm, groove distance 250 mm, spindle Ø 360 mm, max. spindle speed 2,000 rpm, spindle power 70 kW, autom. head change (requires manual positioning), coolant system, internal coolant supply, 60 bar, external coolant supply 2 bar, chip conveyor, switchgear cabinet system (air-conditioned), control system, make Siemens, type Sinumerik 840 C, equipment: straight boring/milling head (SK50), extended spindle head, L 520 mm, 90° angle head (C360), adapter head f. angle heads (SK30/40/50), 90° angle head (SK50 to SK30), 90° angle head (SK50 to SK40), 90° angle head (SK50 to SK50), note: RAM conversion from 2 motors to 1 motor, 1 spare RAM available

Further information can be found in the data sheet
