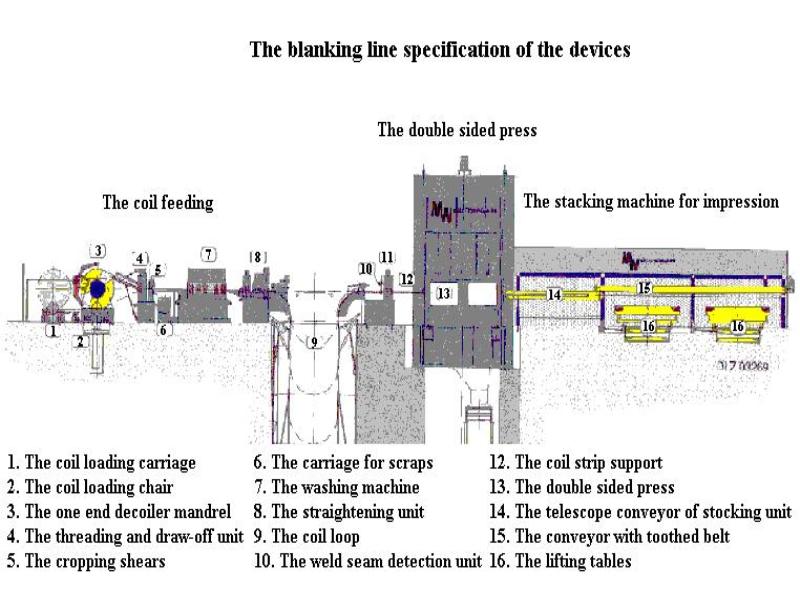

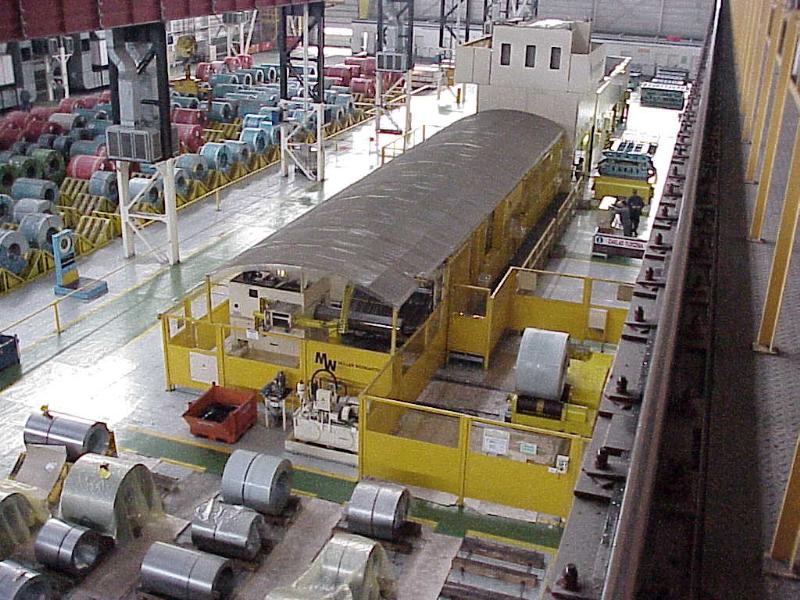

Blanking line Müller Weingarten

• Automatic blanking process
• Option of sheet cutting at selected angles
• 4 turn-over tables
• Basic memory - 300 types of patterns
• Coil inner diameter: from 508 up to 610
• Coil weight: 20 Ton
• Wide range of semi-finished product cutting from a circle
- sheet width: 350 ÷ 2000 mm
- sheet length: 250 ÷ 3800 mm
- sheet thickness: 0.5 ÷ 3.5 mm
• Length of line 47 m

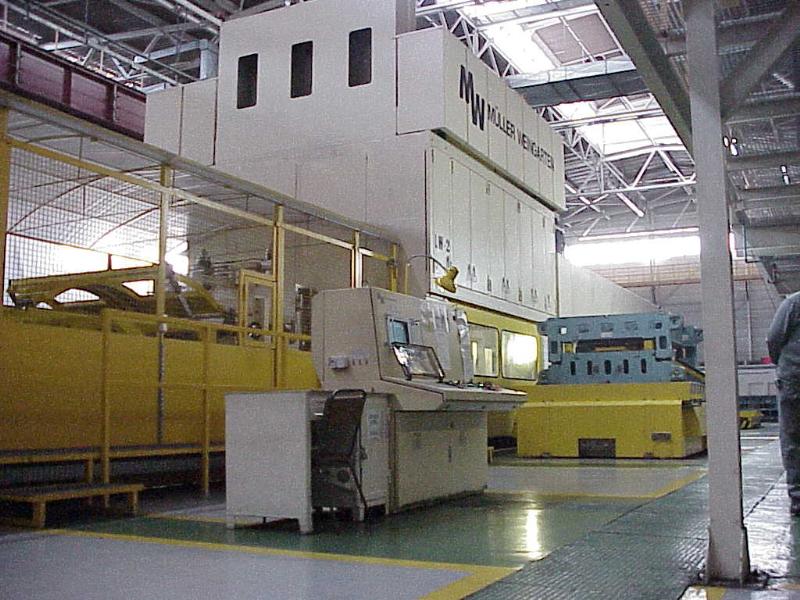

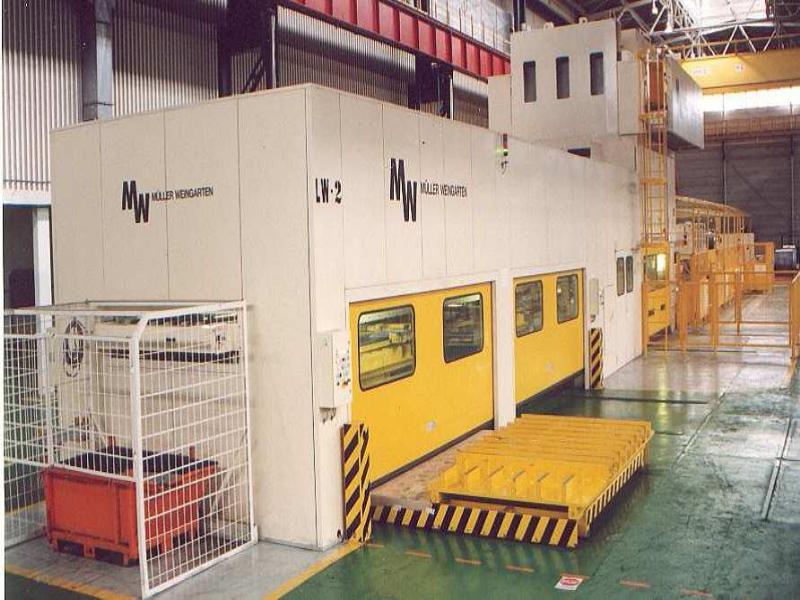

Press
• Capacity 4000 kN
• Length of stroke 250 mm
• Die height 1100 mm
• Slide adjustment 300 mm
• Slide area length x width 4000 x 2500 mm
• Bolster area length x width 4000 x 2500 mm
• Number of strokes (idle run) 18-80 per min.


Equipment (spare parts)

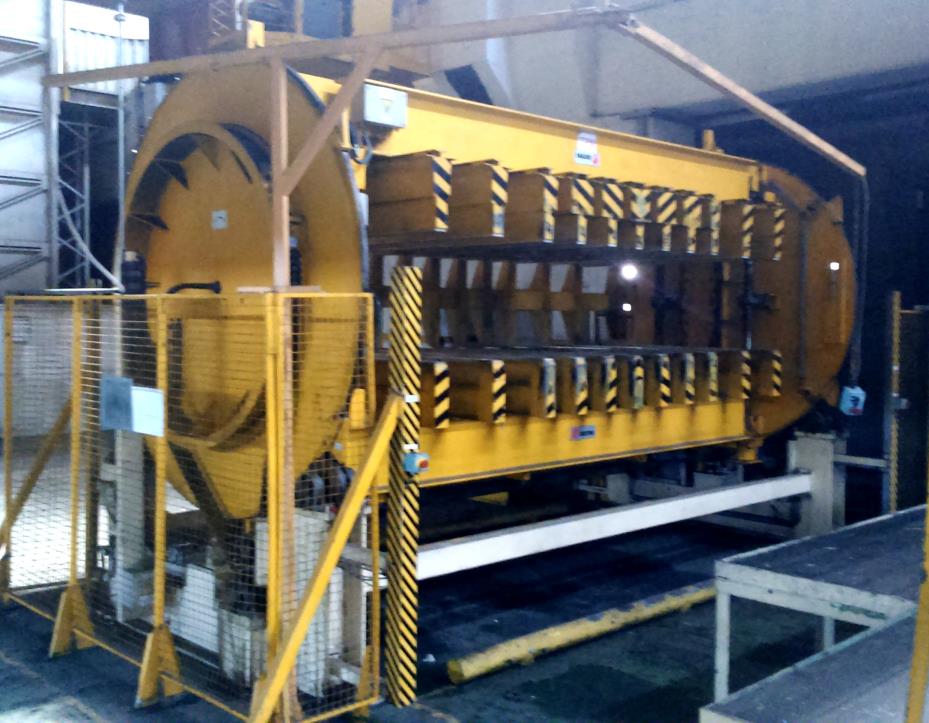

Turn-over, Fagor, Pack Turn-over 4000x2000, rok prod. 1998.

The types and parameters of cutting material:
Cold-rolled steel sheet.
Cold-rolled steel sheet with higher strength.
Hot-rolled steel sheet.
Hot-rolled steel sheet with higher strength:
uncoated,
coated:
– electro-galvanized,
– electro-galvanized and coated with organic layer,
– cell galvanized.
Max. tensile strength of 450 N/mm2


Properties of material
Min. yield strength Thickness of sheet
150 N/mm2 - up to 1.2 mm
200 N/mm2 - from 1.2 mm up to 2.0 mm
250 N/mm2 - above 2.0 mm

Coil cross-section: - 350 - 1000 mm for thickness from 0.5 up to 3.5 mm
- 350 - 2000 mm for thickness from 0.5 up to 2.0 mm
Coil outer diameter: - 600 - 2000 mm.
Coil inner diameter: - from 508 up to 610 mm.
Coil weight max: - max 20 t

The line was installed in 1998 and was operated till 2011.
The line was tested in 2012.

The Bidder who has received the adjudication under reserve will be bound up with his offer within 21 days.
