Part of the Auction Machines for production of aluminium, PVC and wood profiles

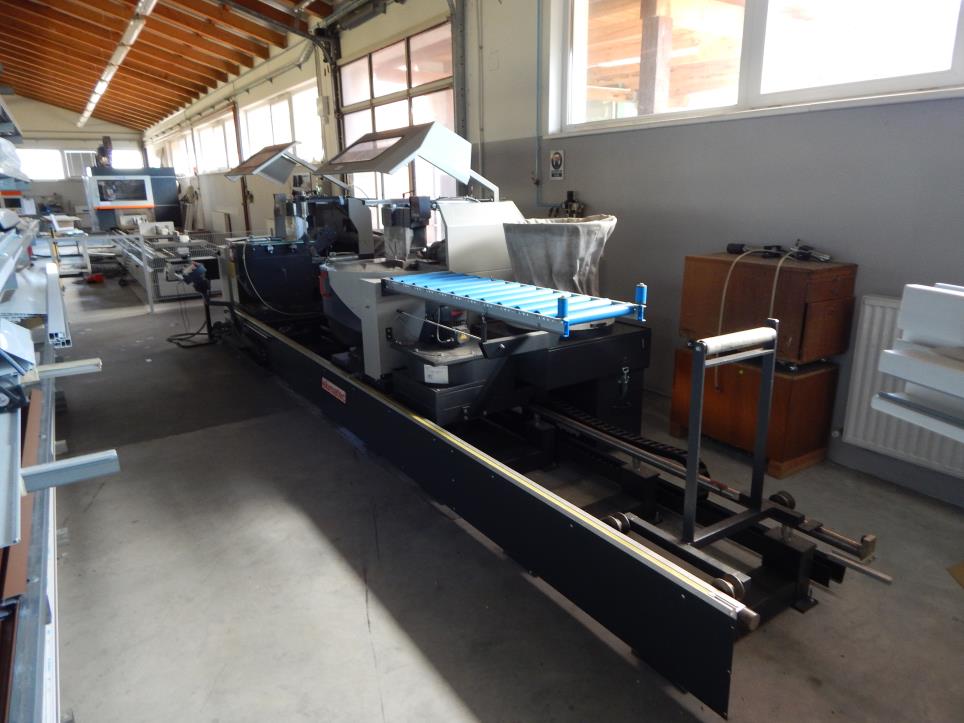

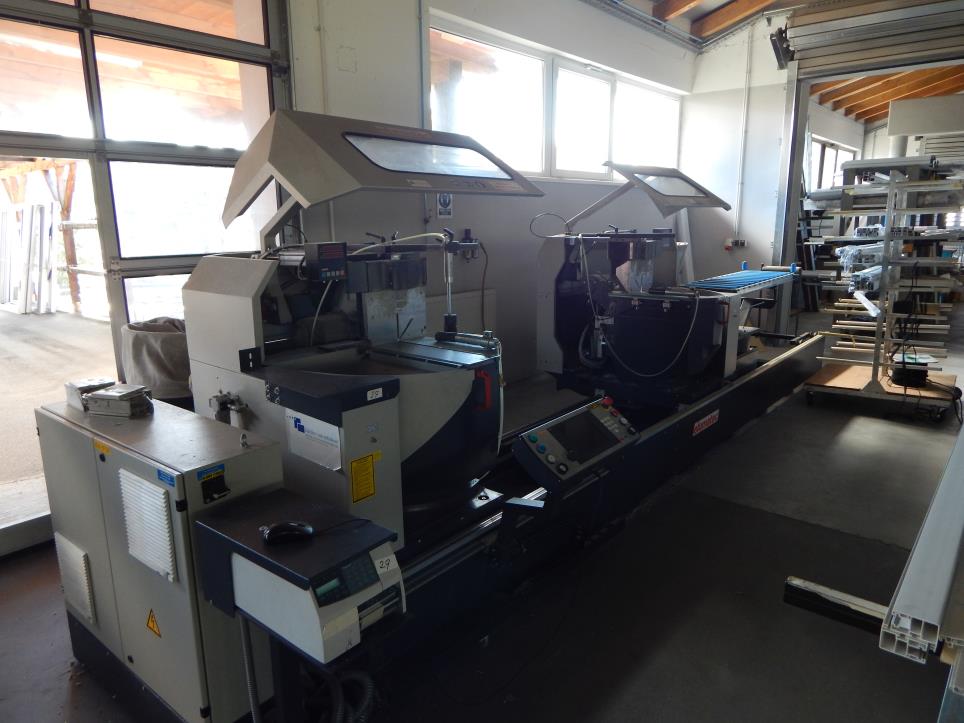

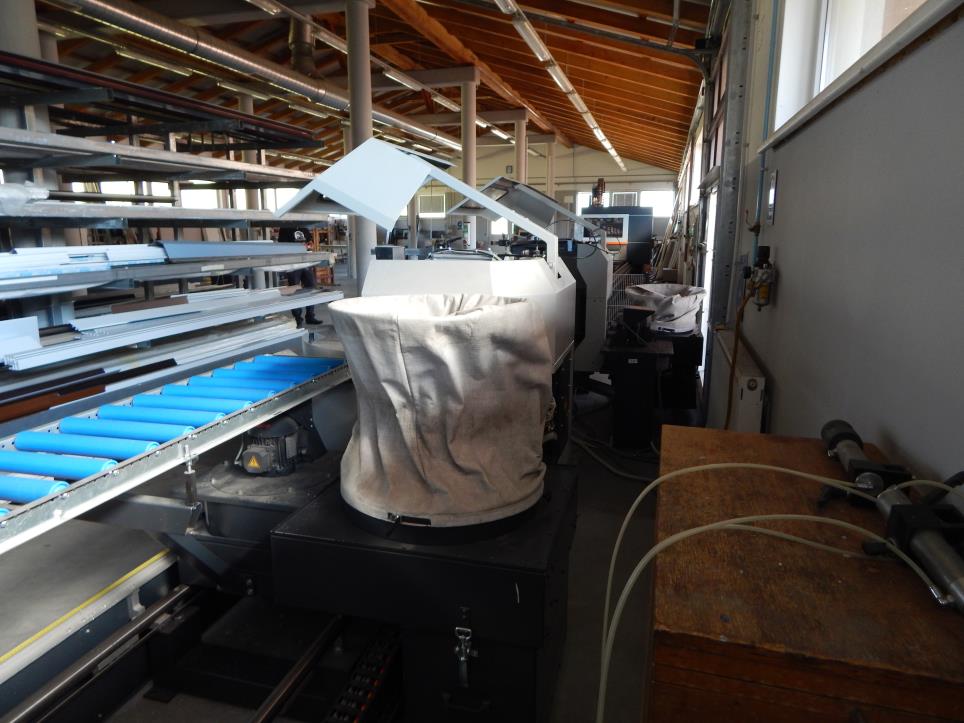

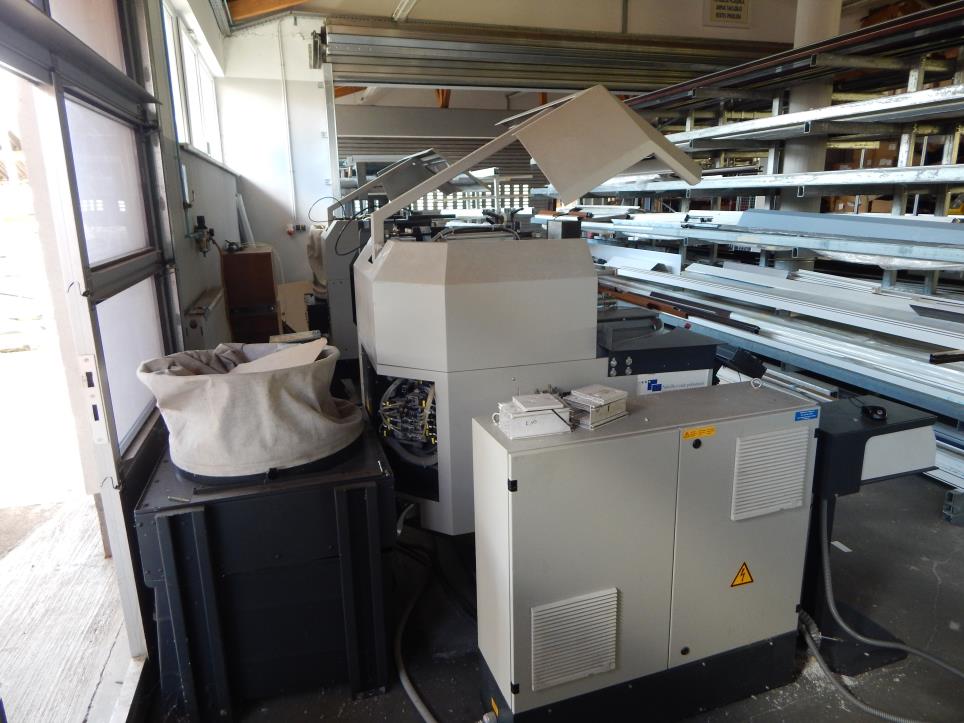

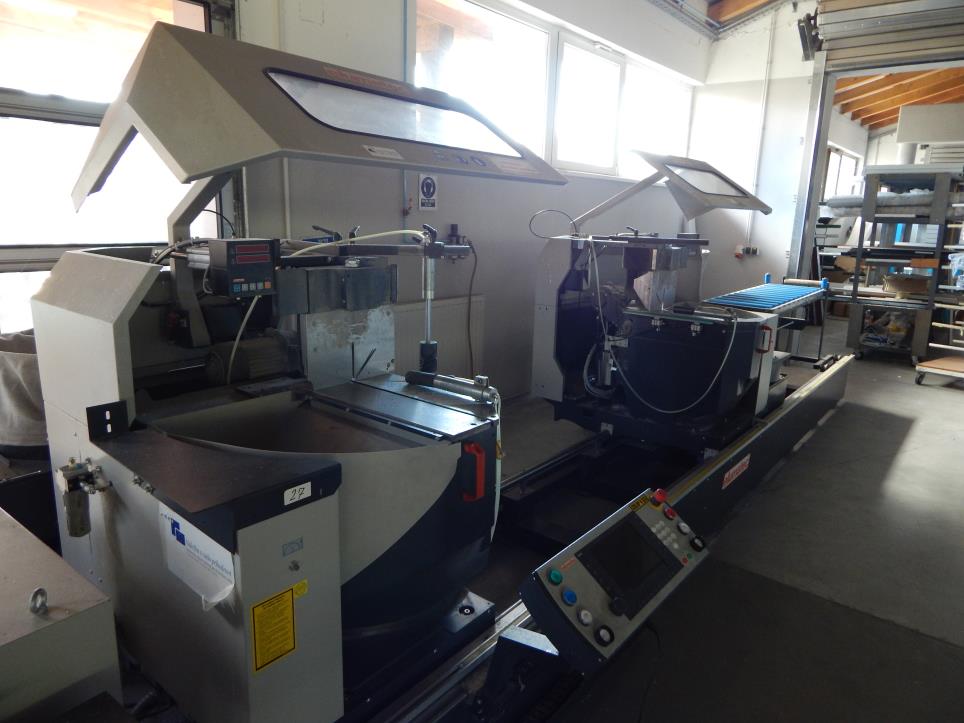

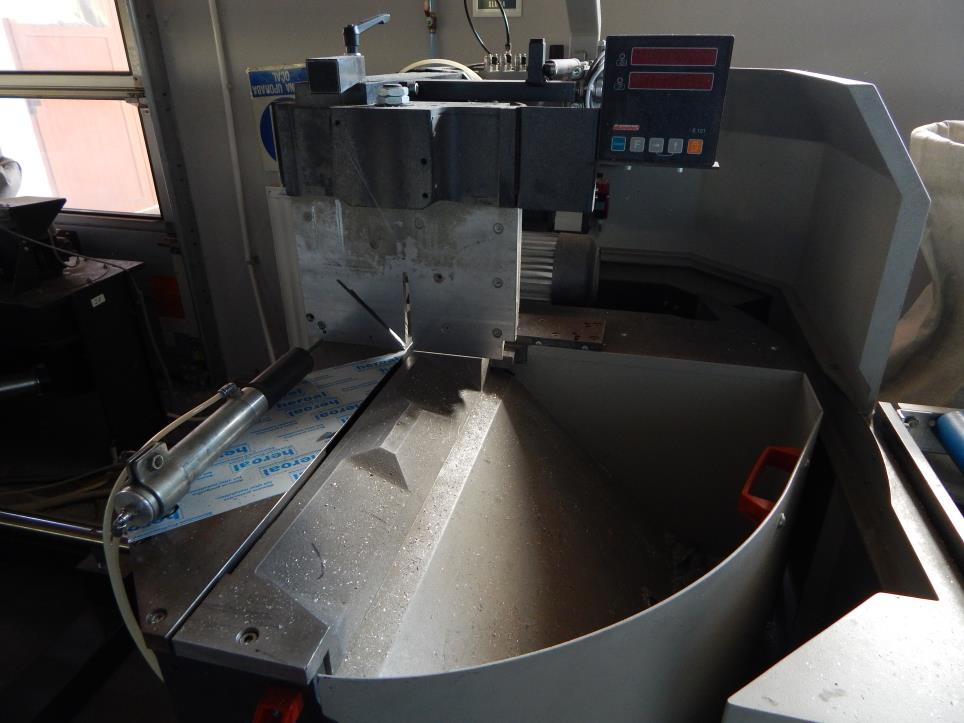

Double mitre saw Elumatec DG 244/01
Auction #13646-23
This auction has ended.
Details
Product Type
Elumatec
Type
DG 244/01
Construction Year
2008
Description
Minimum cutting length at 90° 375 mm
Minimum cutting length tilted at 45° 375 mm
Pivoting range inwards, pneumatically, 90° – 45°
(manually up to 22.5° inwards and up to 140° outwards with digital display)
Tilting range inwards, pneumatically, 90° – 45°
(intermediate angles manually adjustable with digital read-out display and turret stop)
Saw blade diameter 550 mm
Saw blade speed 2,250 rpm
Power supply 230 / 400 V, 3~, 50 Hz
Power output per motor 4 kW
Compressed air supply 7 bar
Air consumption per working cycle 40 l without spraying, 64 l with spraying
Cutting length variants
4,500 mm
6,000 mm
7,500 mm
The machine data comply the data sheets and are not guaranteed.
Minimum cutting length tilted at 45° 375 mm
Pivoting range inwards, pneumatically, 90° – 45°
(manually up to 22.5° inwards and up to 140° outwards with digital display)
Tilting range inwards, pneumatically, 90° – 45°
(intermediate angles manually adjustable with digital read-out display and turret stop)
Saw blade diameter 550 mm
Saw blade speed 2,250 rpm
Power supply 230 / 400 V, 3~, 50 Hz
Power output per motor 4 kW
Compressed air supply 7 bar
Air consumption per working cycle 40 l without spraying, 64 l with spraying
Cutting length variants
4,500 mm
6,000 mm
7,500 mm
The machine data comply the data sheets and are not guaranteed.
Location
- Volicina, Slowenien
Parts of this page have been machine translated. The German original text applies.
