Part of the Auction Machines for production of aluminium, PVC and wood profiles

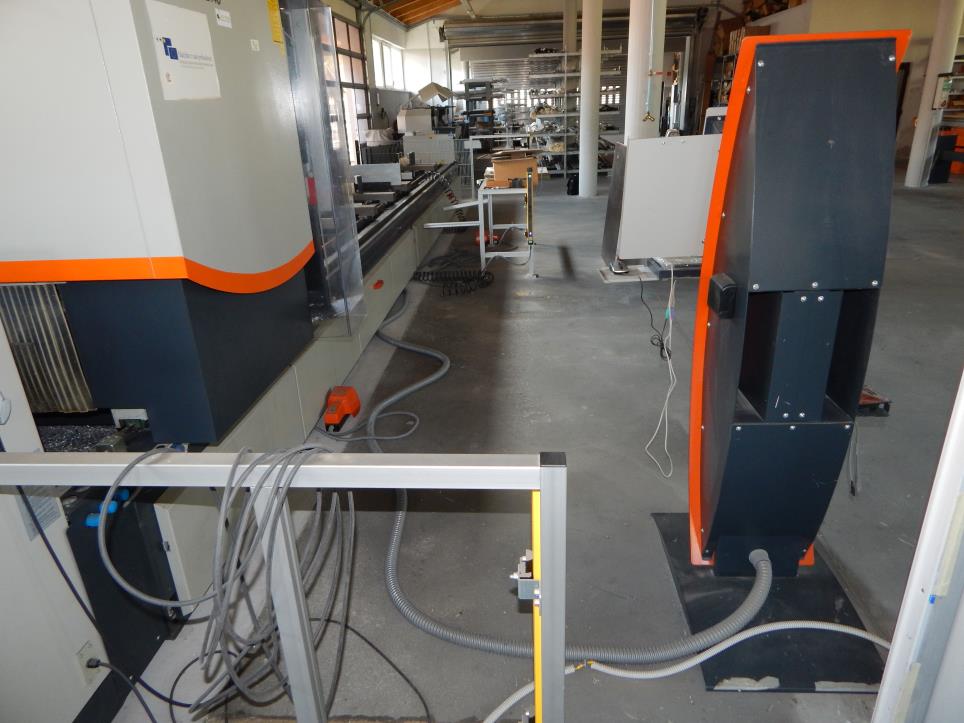

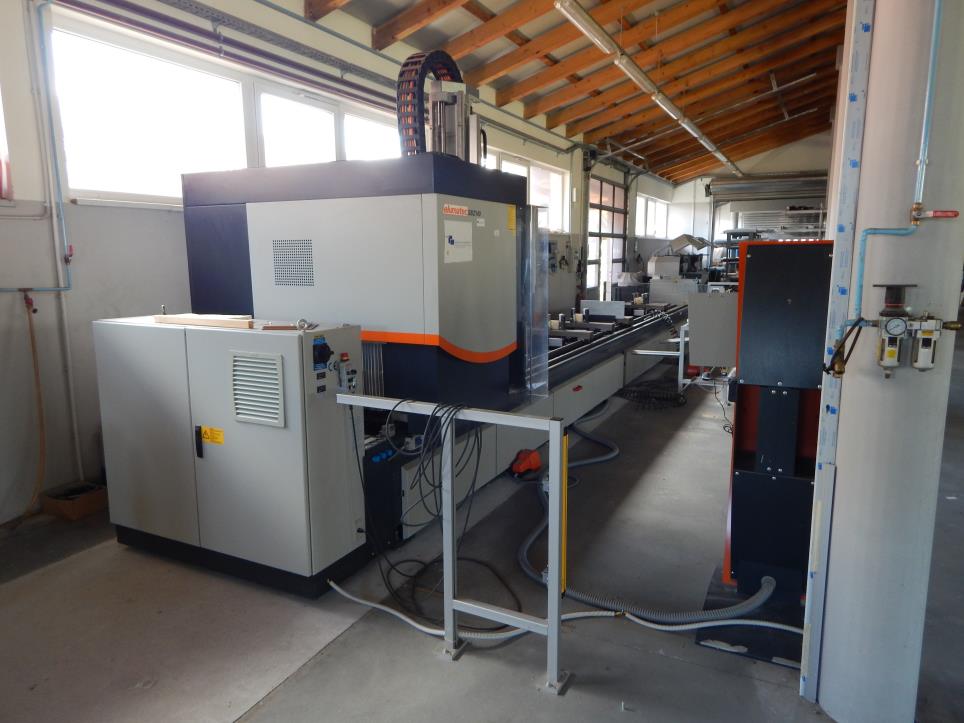

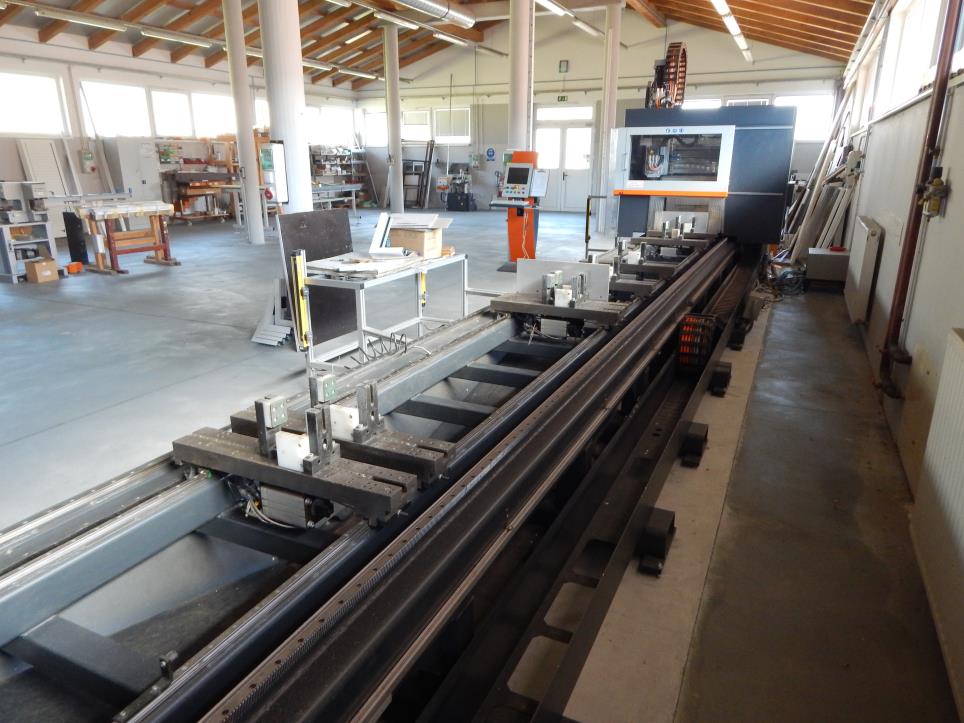

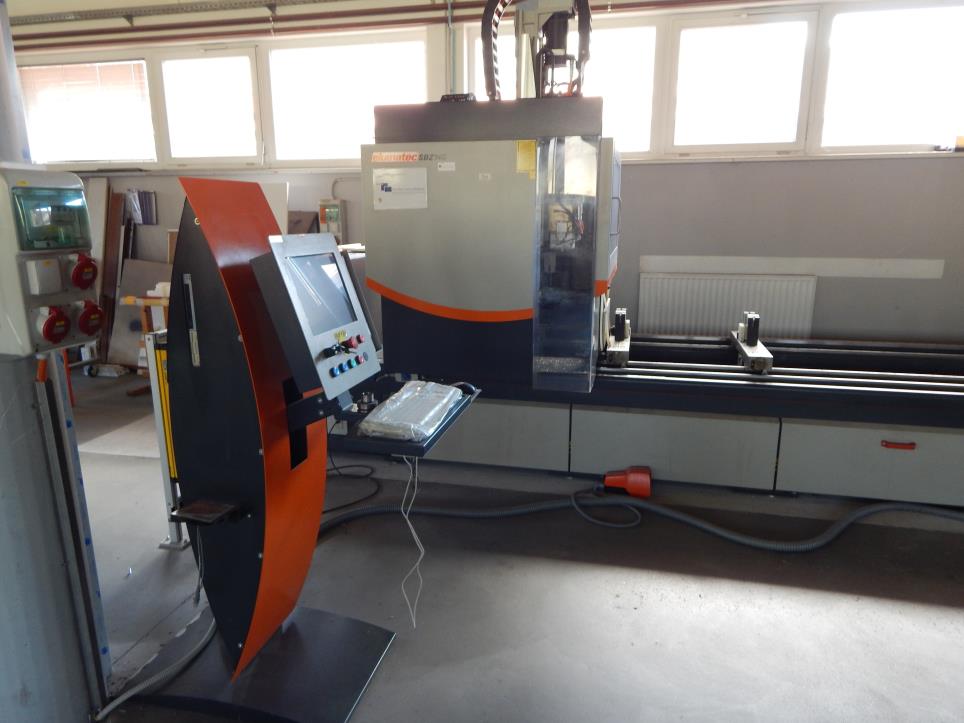

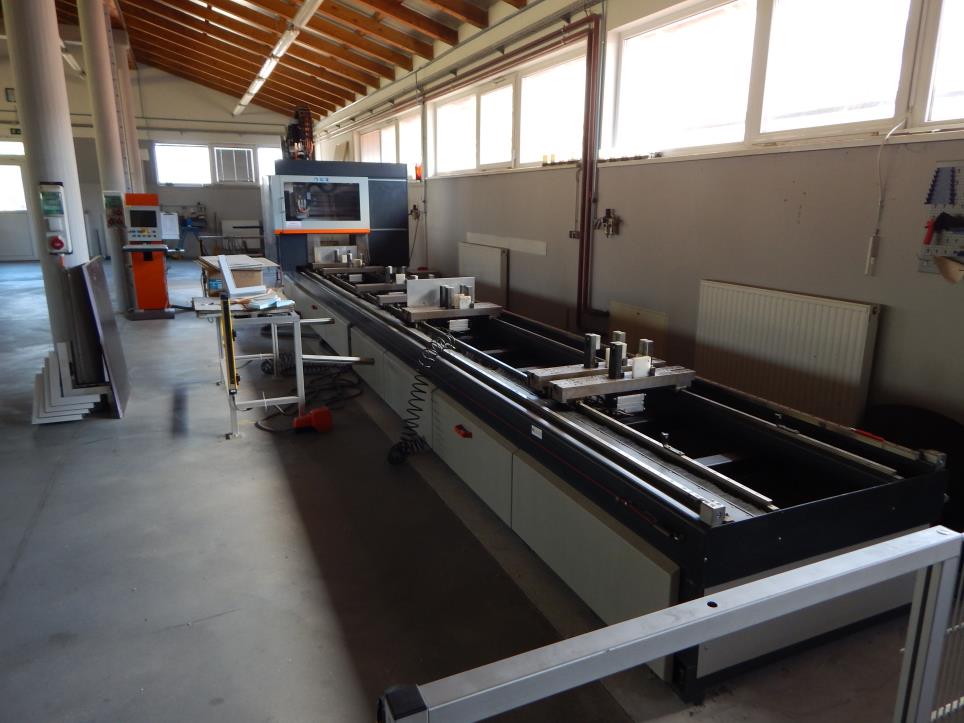

Profile machining centre with 2 Advanced multiple light beam safety devices Elumatec SBZ 140
Auction #13646-24
This auction has ended.
Details
Product Type
Elumatec
Type
SBZ 140
Construction Year
2008
Description
Traverse path X-axis, 4,200 mm, 6,400 mm, 7,600 mm, 9,700 mm (additional lengths on request)
Vmax. 65 m/min.
Traverse path Y-axis, 850 mm, Vmax. 60 m/min.
Traverse path Z-axis, 650 mm, Vmax. 60 m/min.
Pivoting angle A-axis, 0° – 180°; freely programmable in 1/10° steps
Spindle speed 24,000 rpm max.
Spindle power output 8.5 kW
Tool changer for 8 tools, additional tool positions on request
Compressed air supply 7 bar
Power supply 400 V, 3~, 50 Hz, 35 A
Air consumption per minute, approx. 180 l with spraying

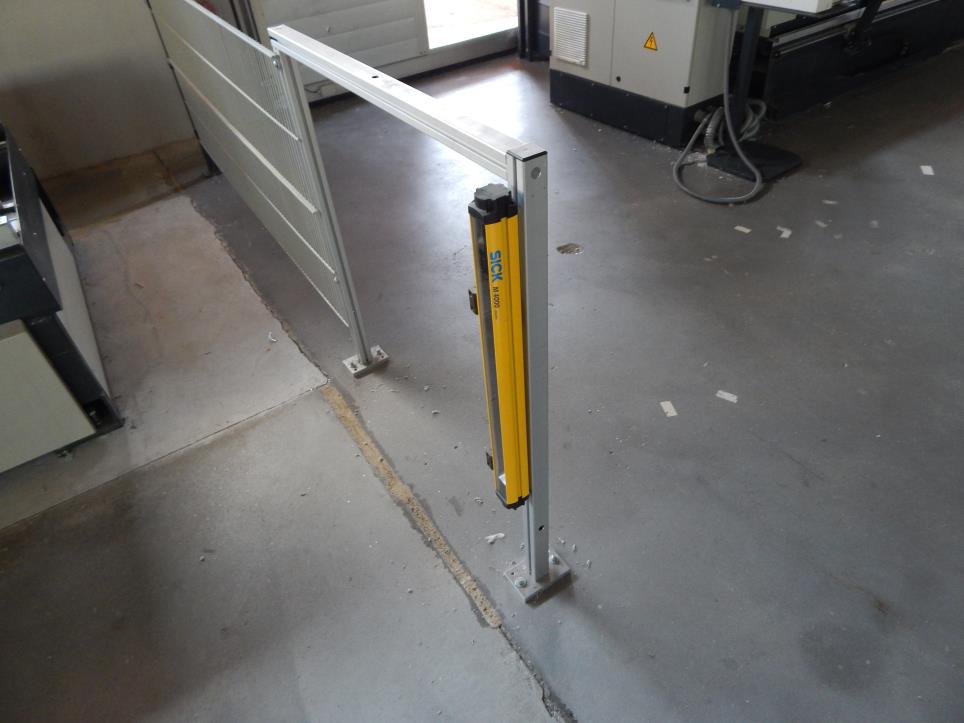

2 pieces advanced multiple light beam safety devices
Man.: Sick
Type: M4000
YOC.: 2008
Exit monitoring function, 2 muting sensors in hazardous area
Improved diagnostics; data recorder, muting error history
2-, 3-, or 4-beam systems
2- or 4-beam active/ passive systems
(A/P) 14 or 30 mm resolution systems (Advanced Curtain)
Muting in combination with the UE403 switching amplifier
External device monitoring (EDM), restart interlock (RES), application diagnostic output (ADO), SDL interface
The machine data comply the data sheets and are not guaranteed.
Vmax. 65 m/min.
Traverse path Y-axis, 850 mm, Vmax. 60 m/min.
Traverse path Z-axis, 650 mm, Vmax. 60 m/min.
Pivoting angle A-axis, 0° – 180°; freely programmable in 1/10° steps
Spindle speed 24,000 rpm max.
Spindle power output 8.5 kW
Tool changer for 8 tools, additional tool positions on request
Compressed air supply 7 bar
Power supply 400 V, 3~, 50 Hz, 35 A
Air consumption per minute, approx. 180 l with spraying
2 pieces advanced multiple light beam safety devices
Man.: Sick
Type: M4000
YOC.: 2008
Exit monitoring function, 2 muting sensors in hazardous area
Improved diagnostics; data recorder, muting error history
2-, 3-, or 4-beam systems
2- or 4-beam active/ passive systems
(A/P) 14 or 30 mm resolution systems (Advanced Curtain)
Muting in combination with the UE403 switching amplifier
External device monitoring (EDM), restart interlock (RES), application diagnostic output (ADO), SDL interface
The machine data comply the data sheets and are not guaranteed.
Location
- Volicina, Slowenien
Parts of this page have been machine translated. The German original text applies.
