Part of the Auction Machines for production of aluminium, PVC and wood profiles

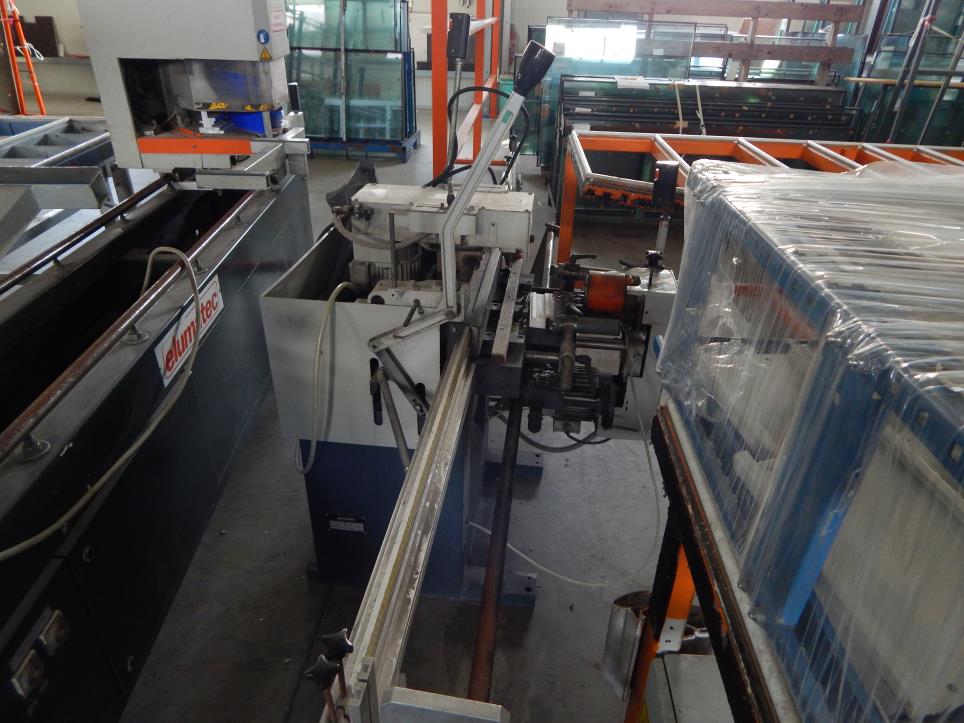

Router and triple spindle drill Elumatec GF 171/00
Auction #13646-57
This auction has ended.
Details
Product Type
Elumatec
Type
GF 171/00
Construction Year
2001
Description
Horizontal cutting range using a stop 300 x 120 mm
Horizontal cutting range using a copy template 285 x 110 mm
Clamping range for profiles, with boring unit 150 x 130 mm
Travel 105 mm
Power supply 230 / 400 V, 3~, 50 Hz
Router motor power output 0.74 kW
Spindle speed 12,000 rpm
Drill motor power output 1.05 kW
Drill spindle speed 750 rpm
Compressed air supply 7 bar
Air consumption per work cycle 12 l
Length 780 mm, depth 930 mm, height 1,545 mm, weight 230 kg
The machine data comply the data sheets and are not guaranteed.
Horizontal cutting range using a copy template 285 x 110 mm
Clamping range for profiles, with boring unit 150 x 130 mm
Travel 105 mm
Power supply 230 / 400 V, 3~, 50 Hz
Router motor power output 0.74 kW
Spindle speed 12,000 rpm
Drill motor power output 1.05 kW
Drill spindle speed 750 rpm
Compressed air supply 7 bar
Air consumption per work cycle 12 l
Length 780 mm, depth 930 mm, height 1,545 mm, weight 230 kg
The machine data comply the data sheets and are not guaranteed.
Location
- Volicina, Slowenien
