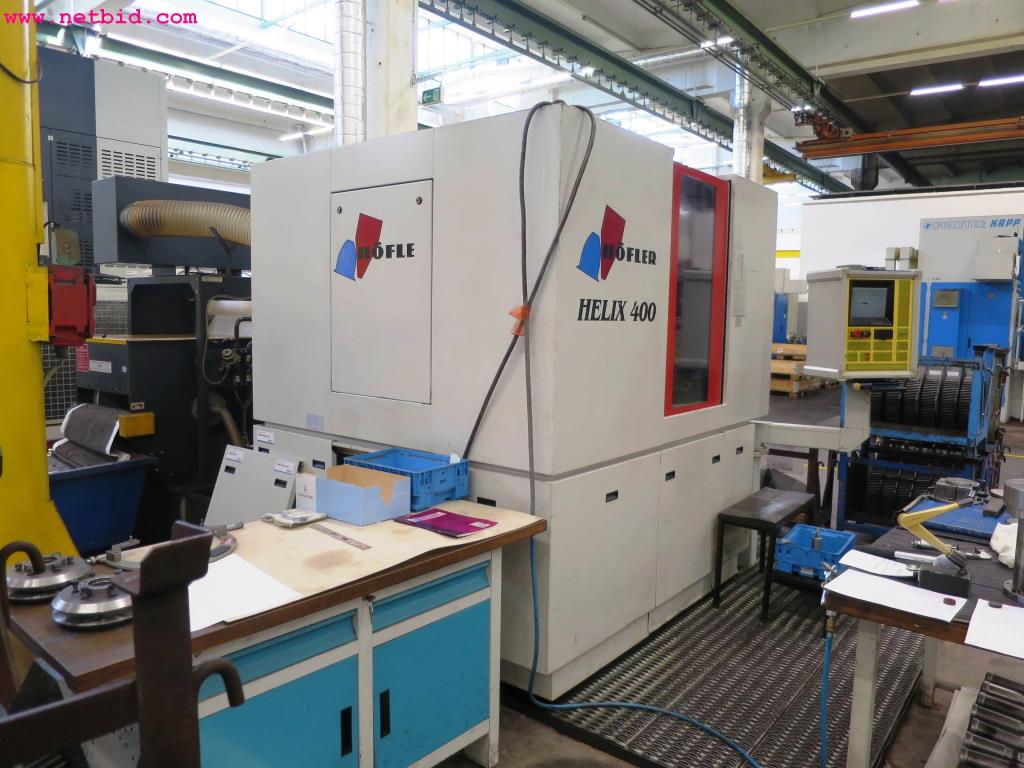

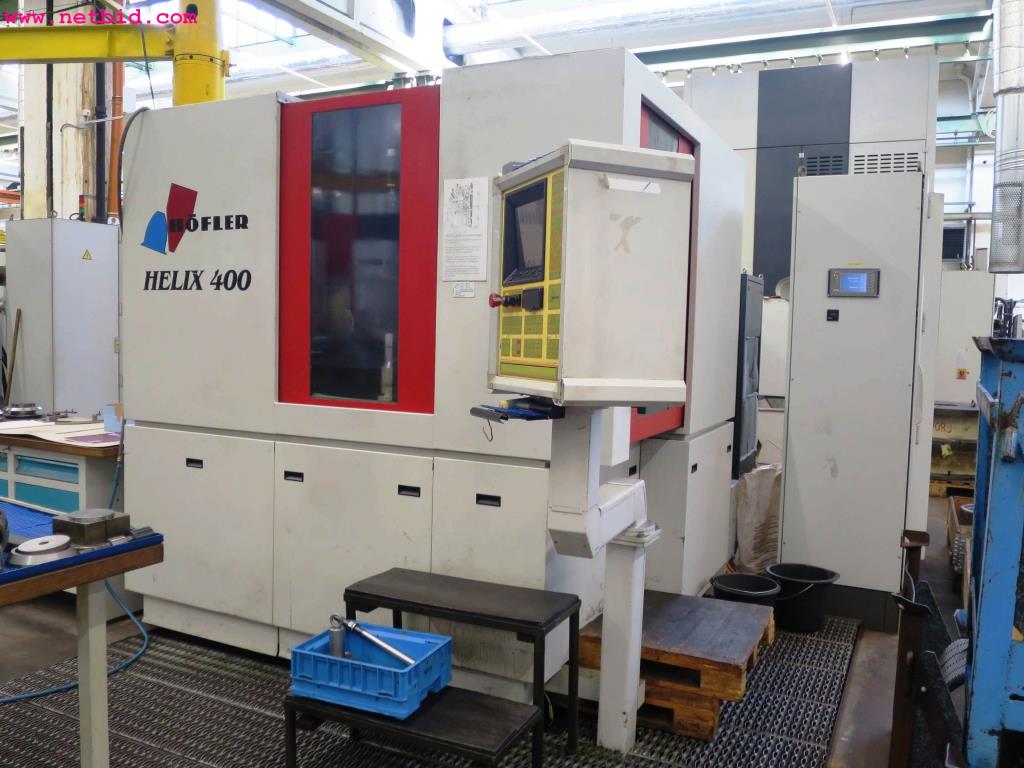

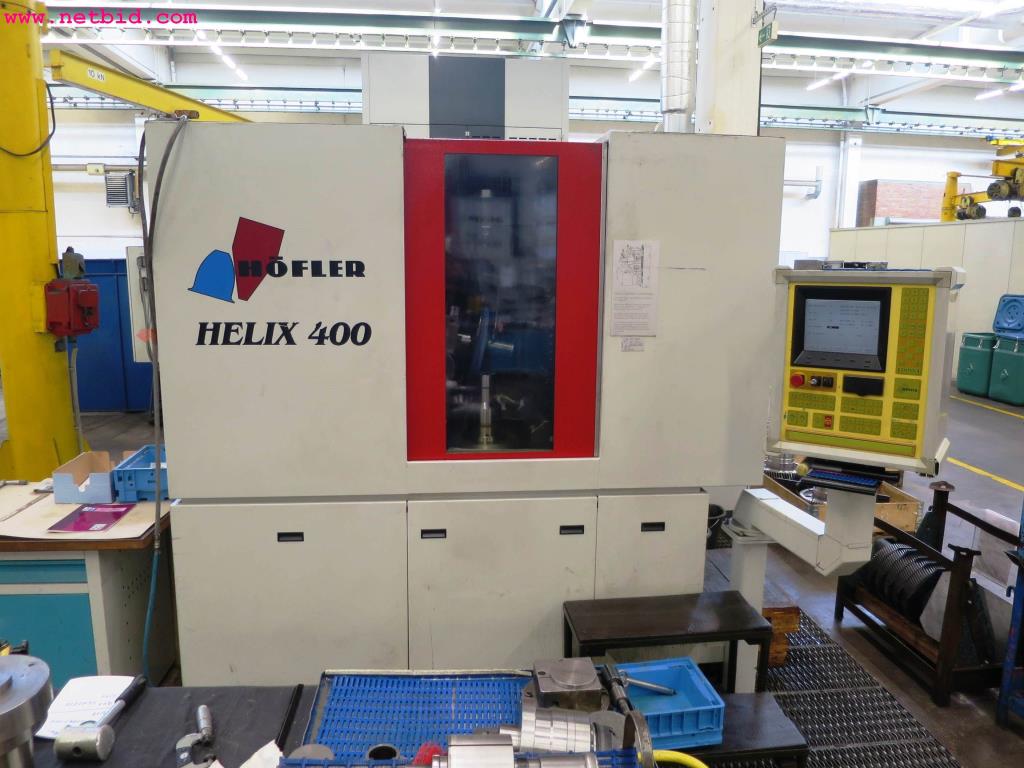

CNC tooth flank grinding machine Höfler Helix 400

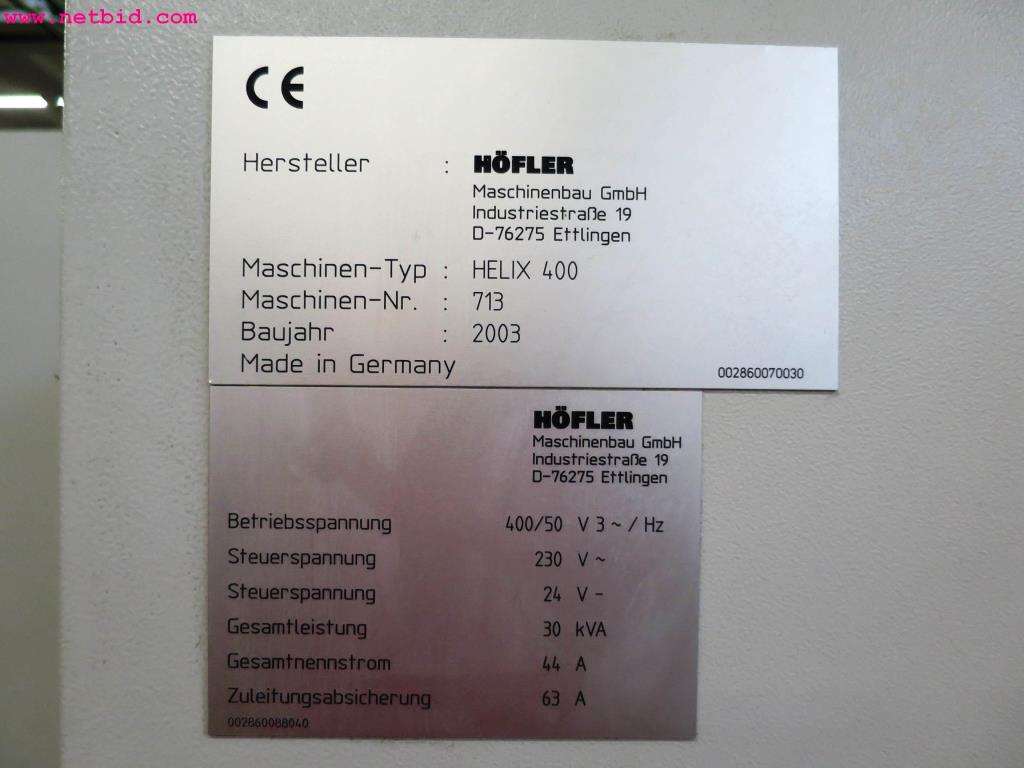

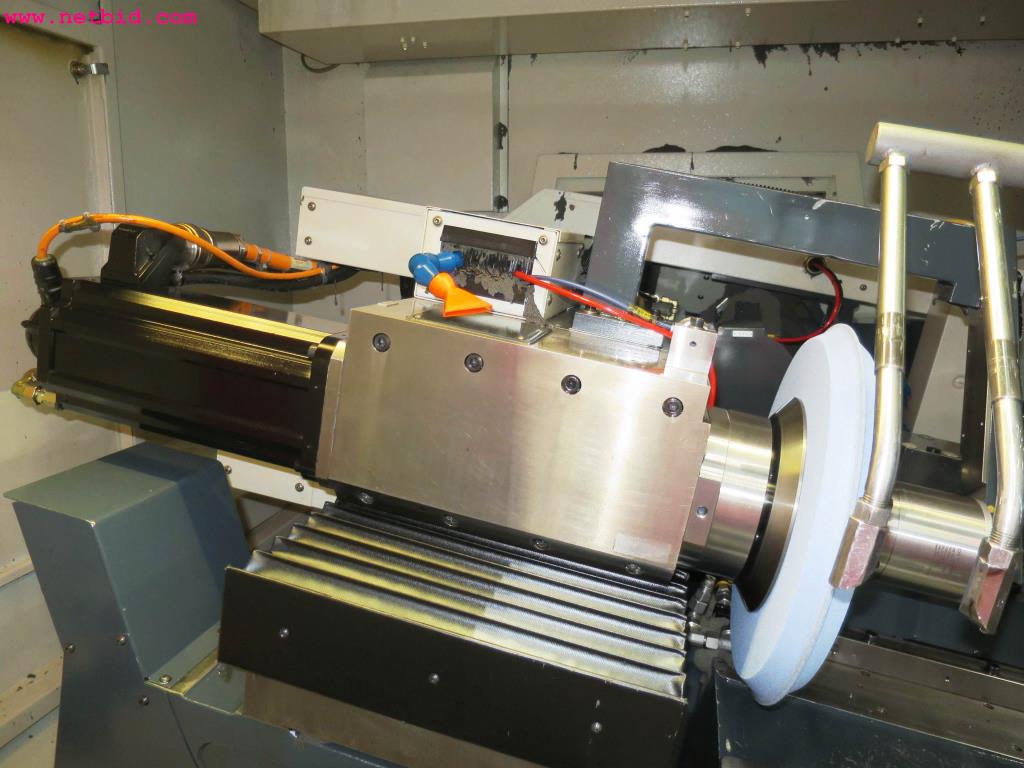

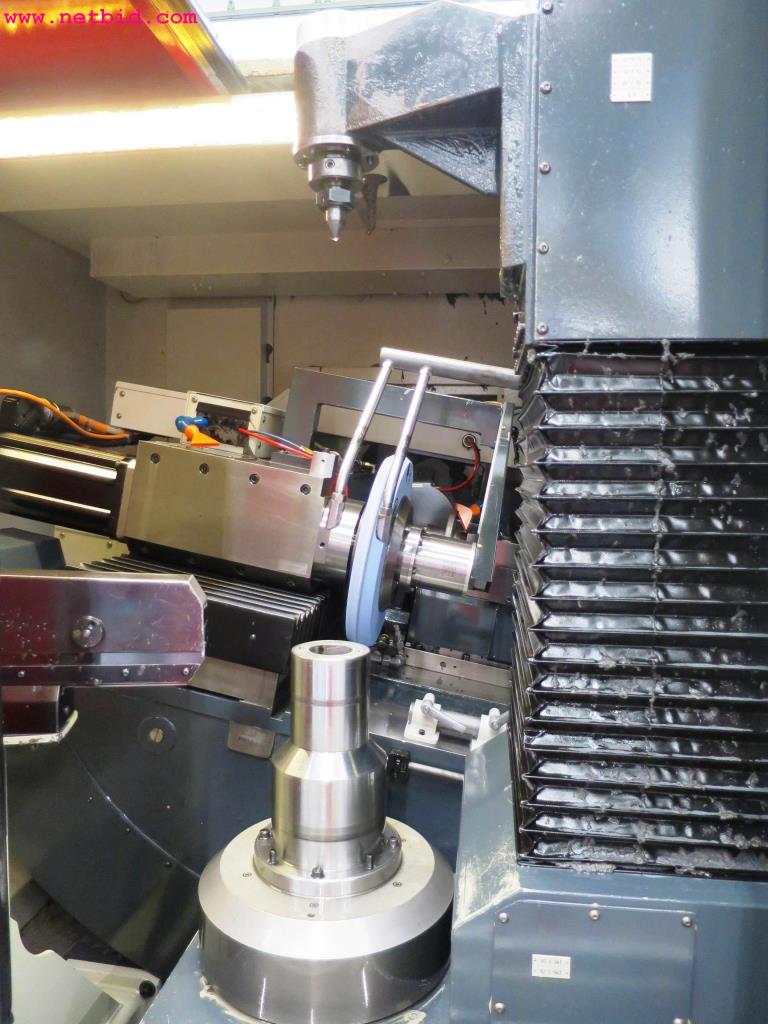

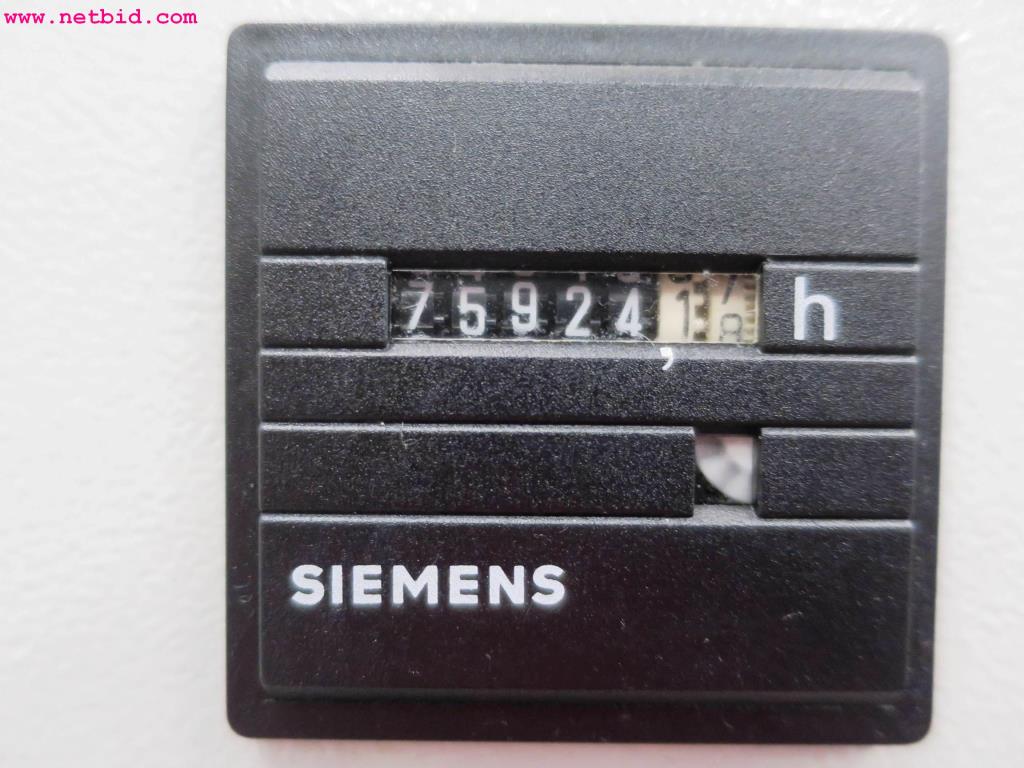

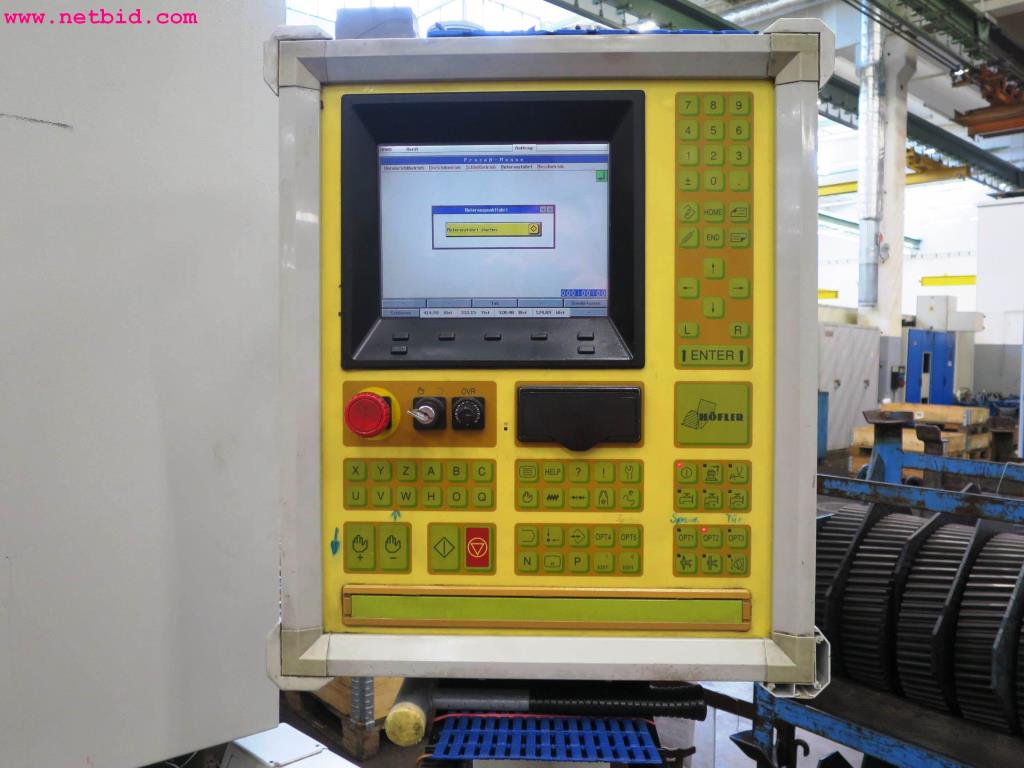

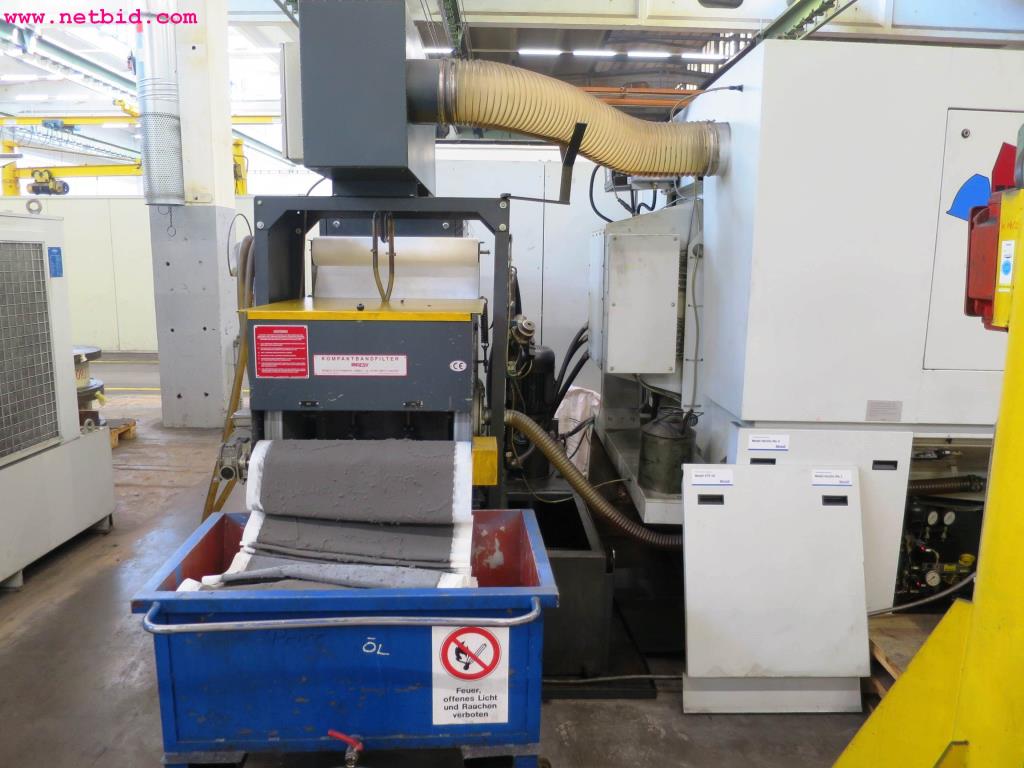

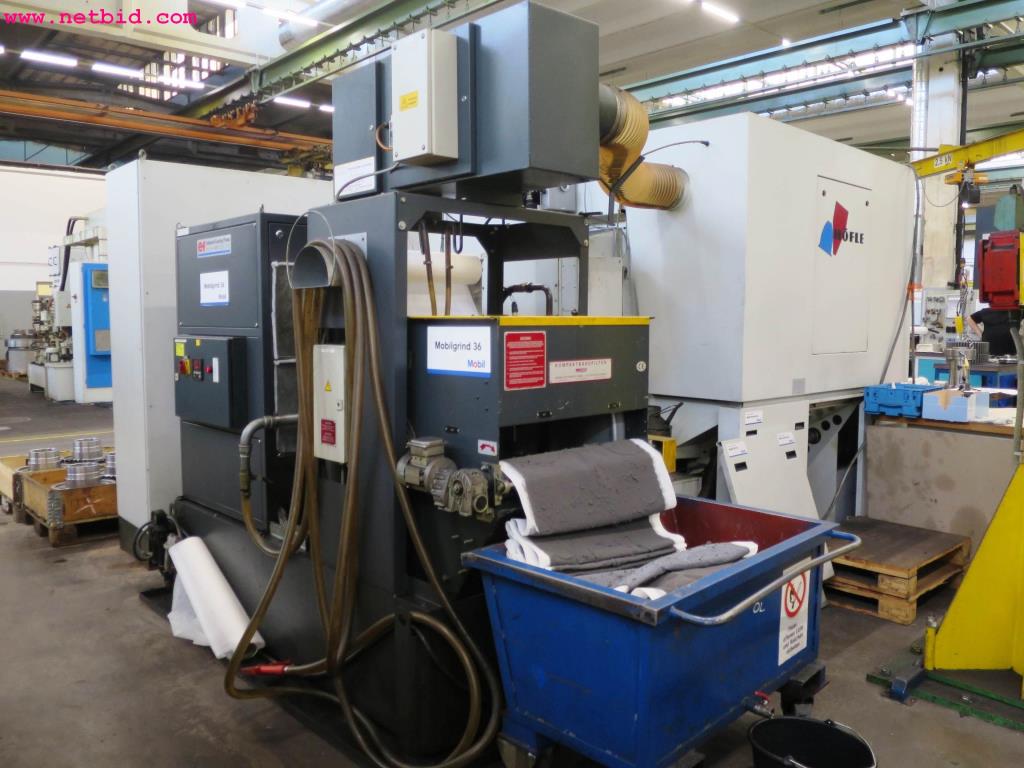

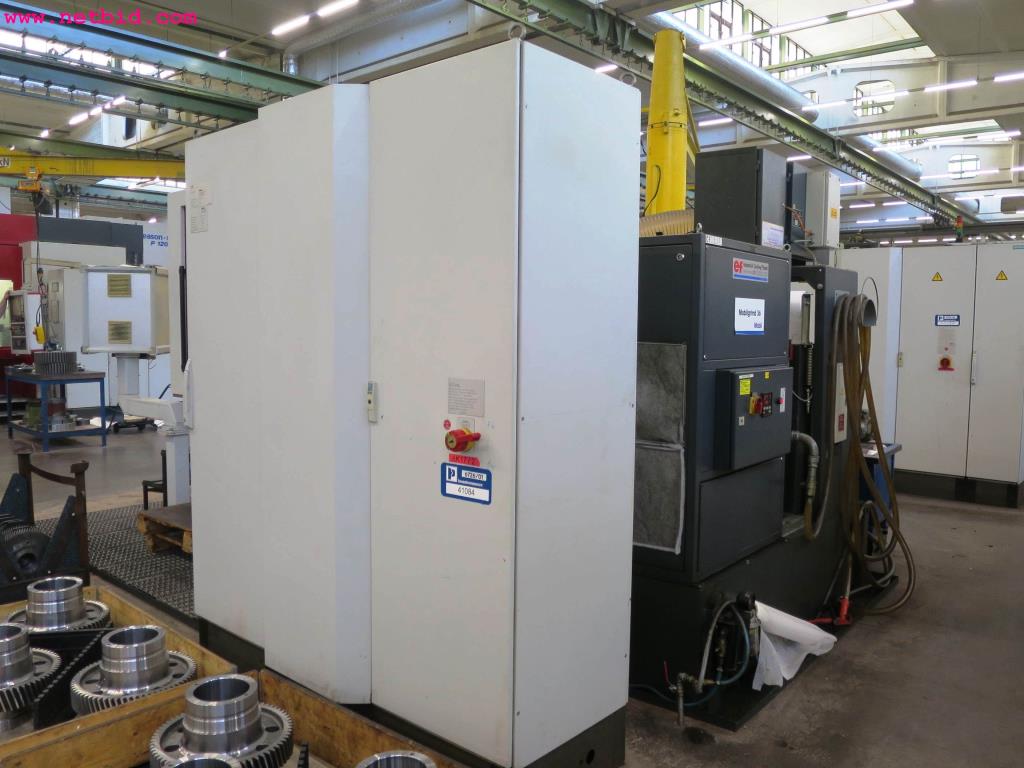

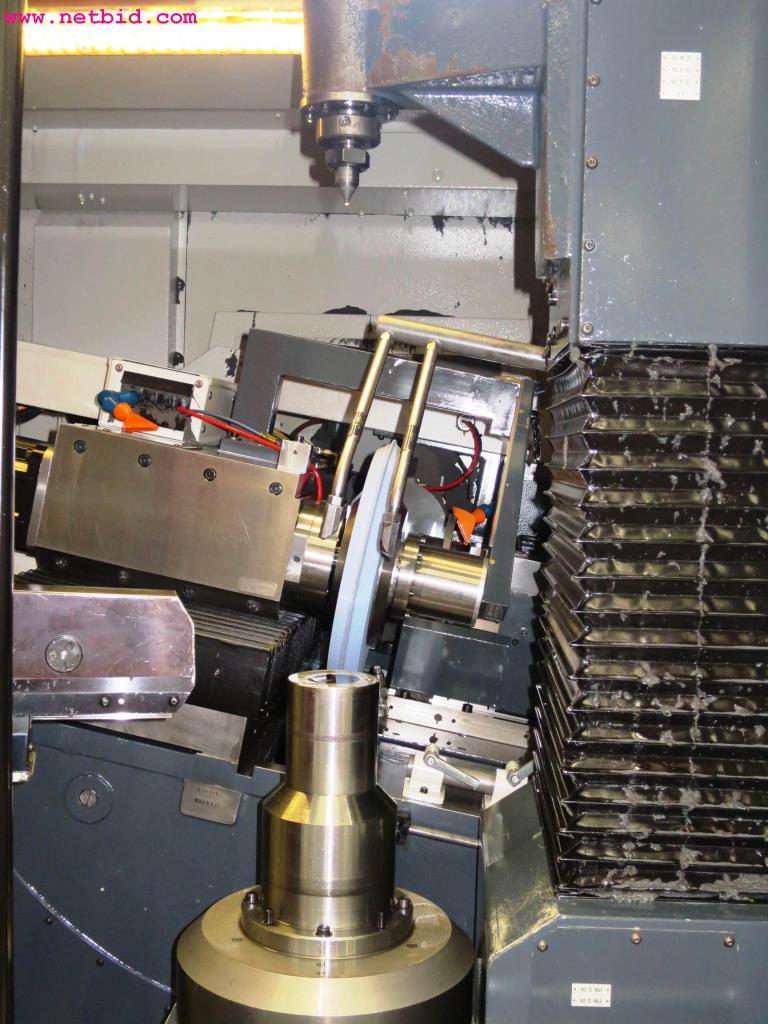

serial no. 713, machine weight 10,000 kg, connected load 30 kVA, drive power of grinding wheel 15 kW, grinding spindle speed 0 - 5,400 rpm, dressing spindle speed 0 - 5,400 rpm, counterholder, highest/lowest clamping position 745/325 mm, max. workpiece Ø 400 mm, max. bed load 100 kg, workpiece specifications - external toothing: max. tip circle Ø (da) 400 mm, min. root circle Ø (df) 20 mm, number of teeth freely selectable, max. profile height 35 mm, min. - max. modulus 1 - 10 mm, max. helix angle 45°, tool specifications - external toothing: max. external Ø of grinding wheel 400 mm, dressable, max. grinding wheel Ø at shoulder 212 mm, dressable, max. grinding wheel width 30 (20/35/40/45) mm, grinding spindle speed 0 - 1,400 rpm, dressing wheel Ø 160 mm, coolant fluid cooling/filtering system, make ef/Resy, control system, make Höfler, hour meter reading: 75,924
