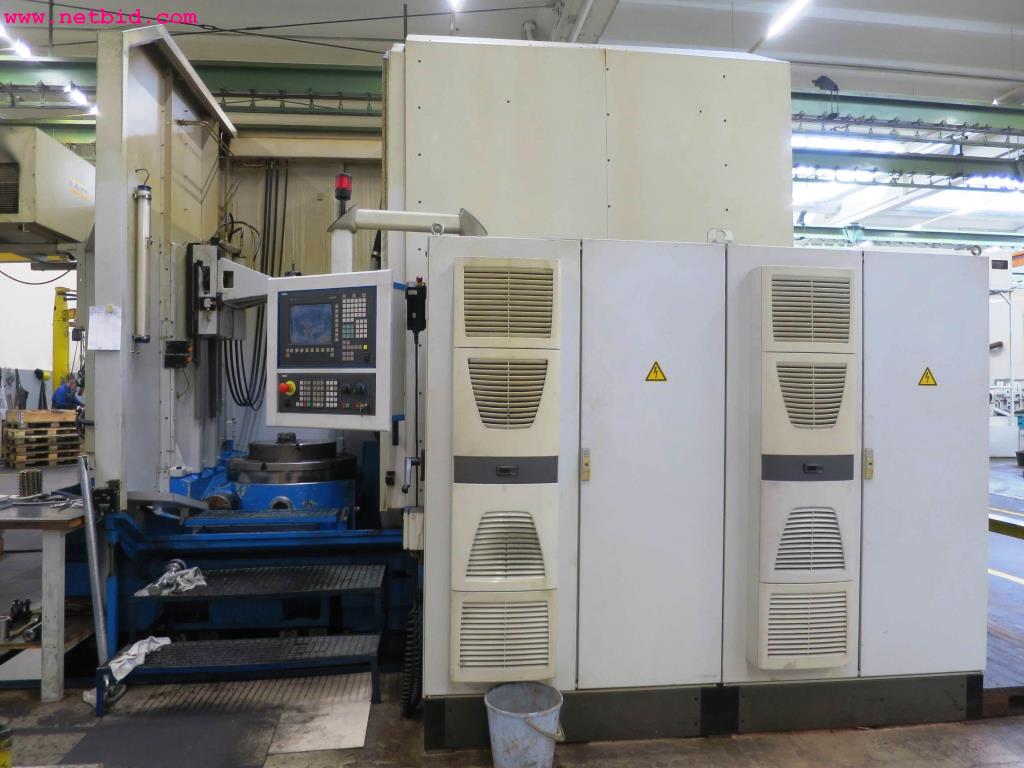

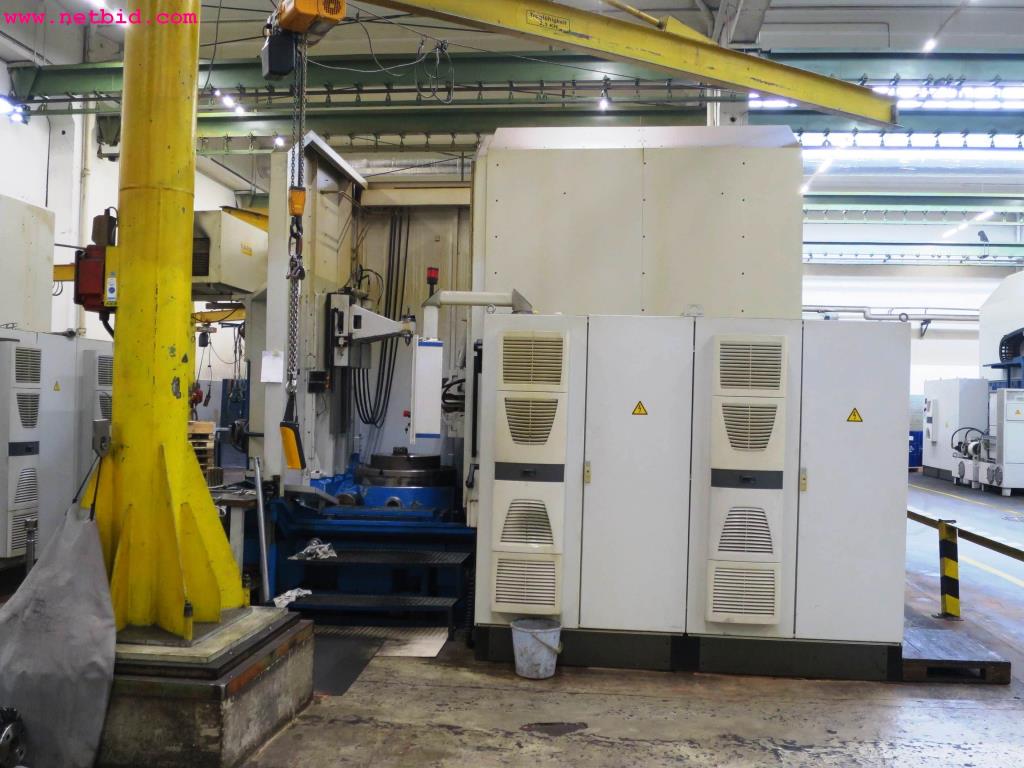

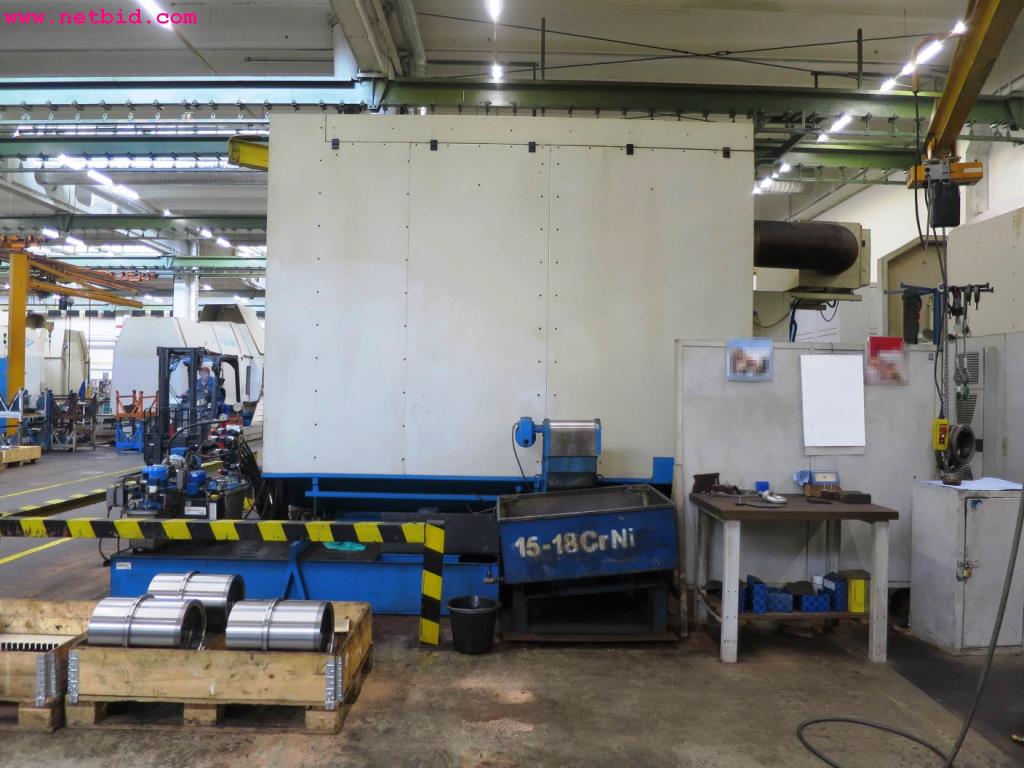

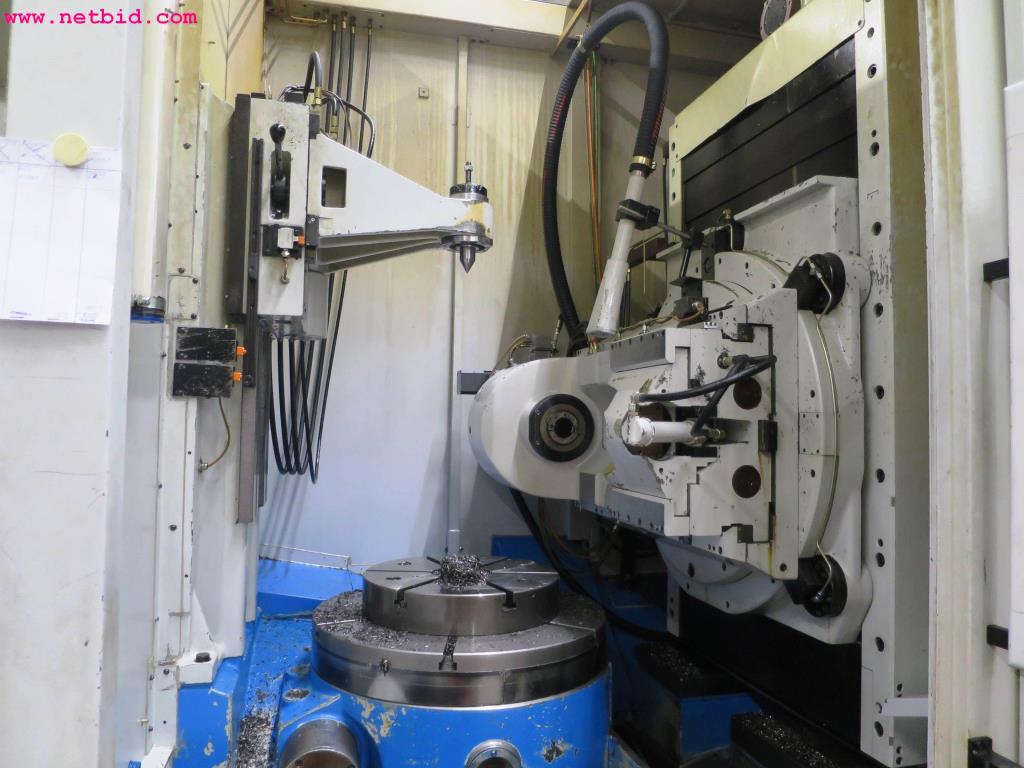

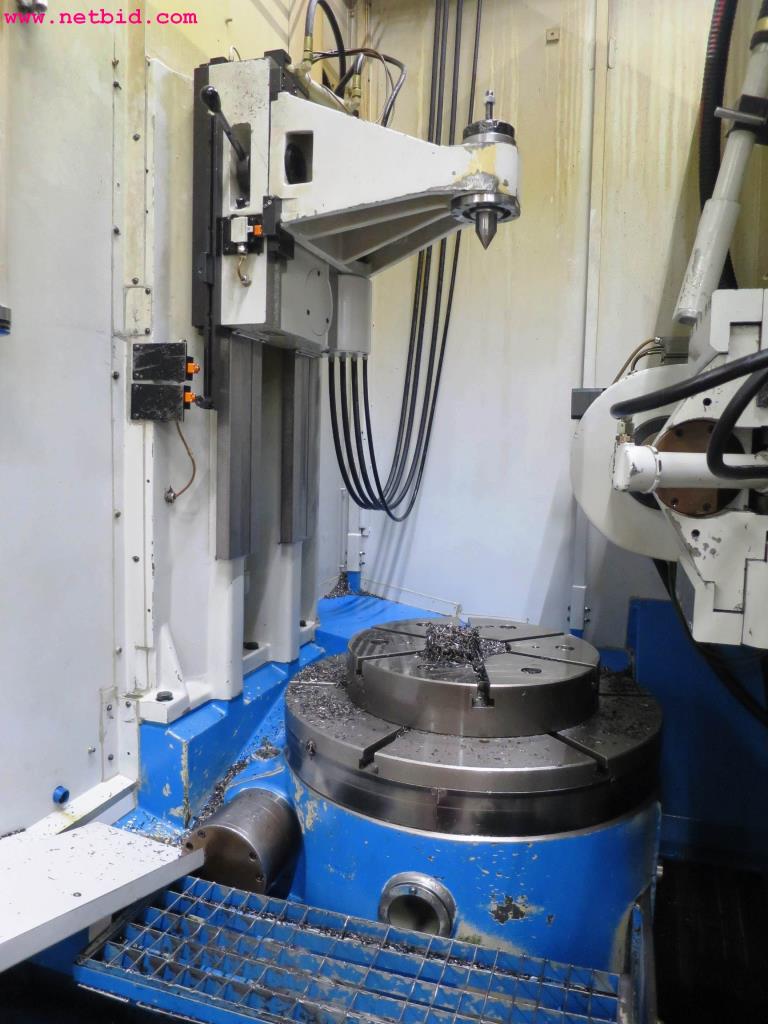

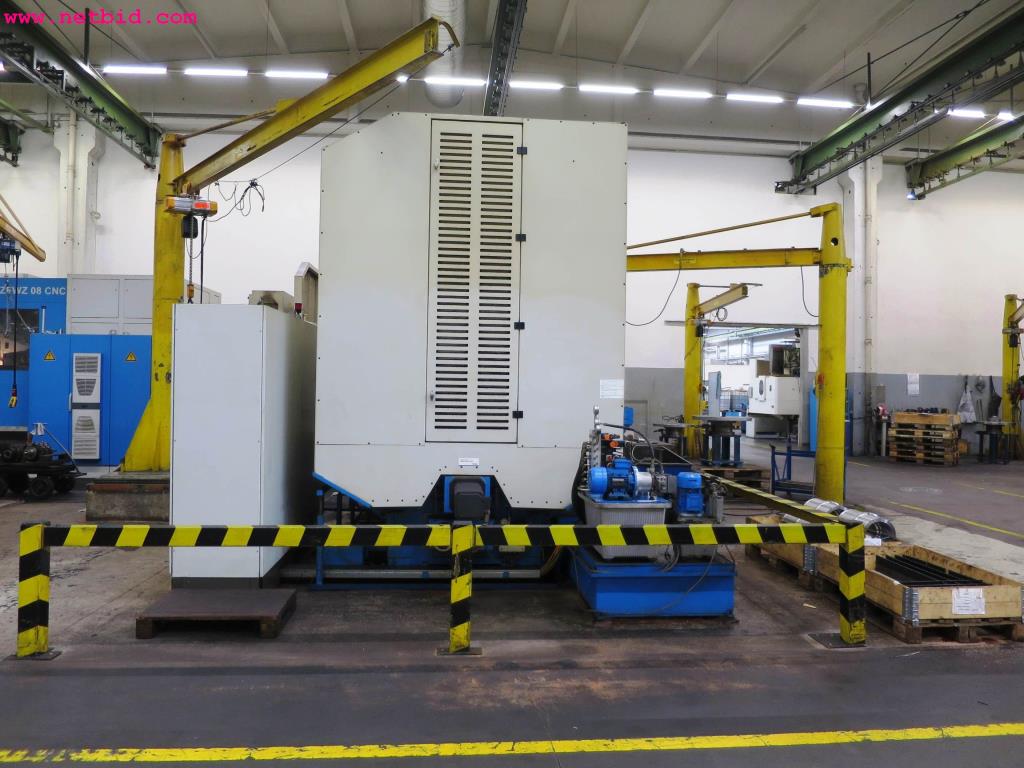

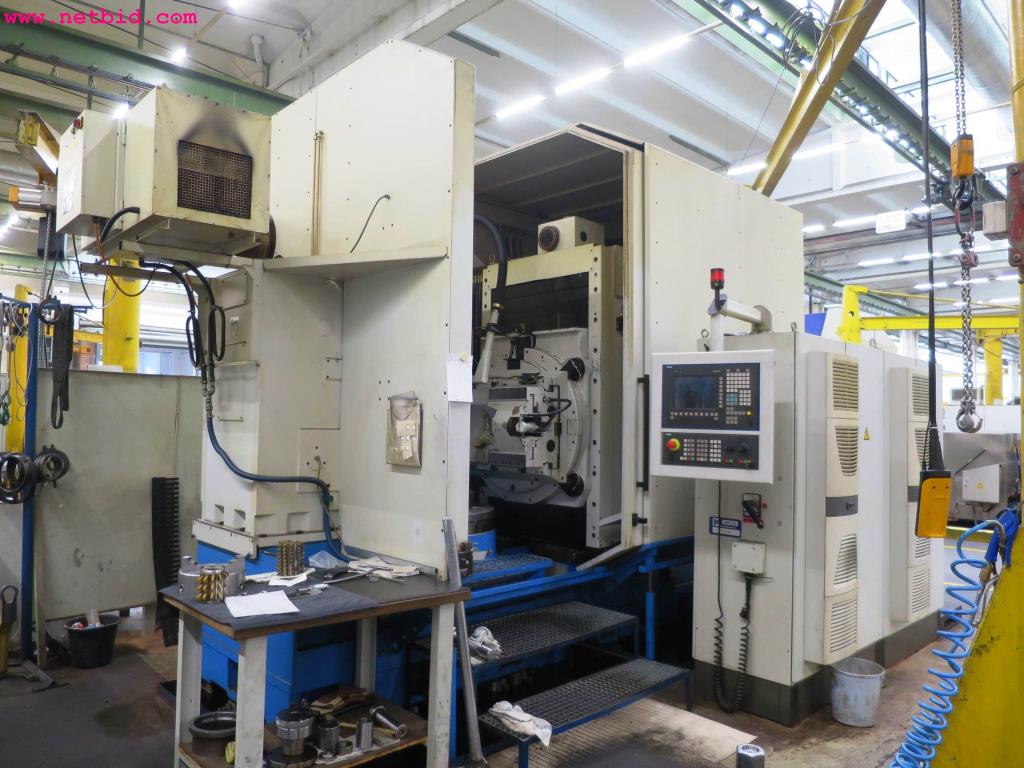

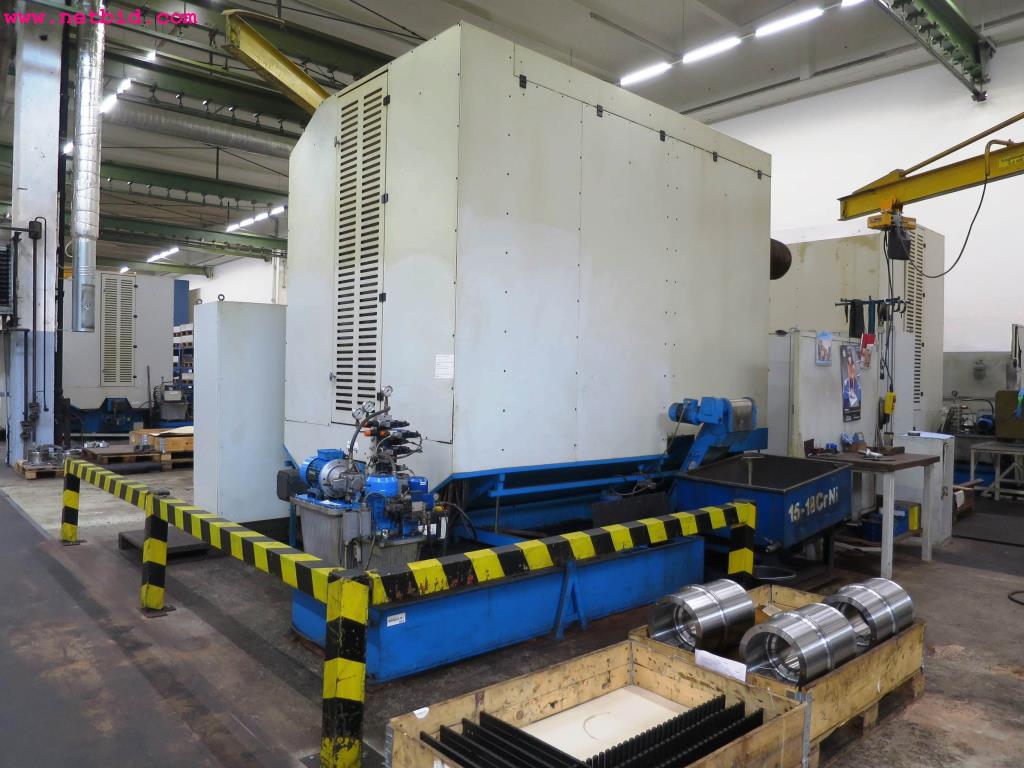

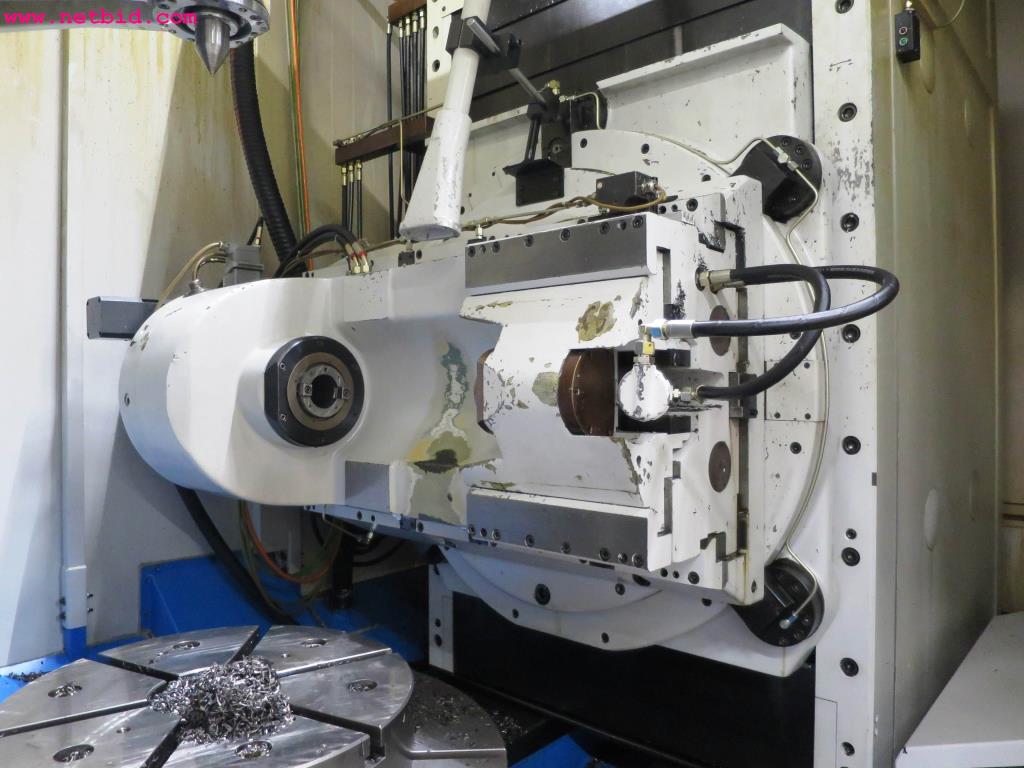

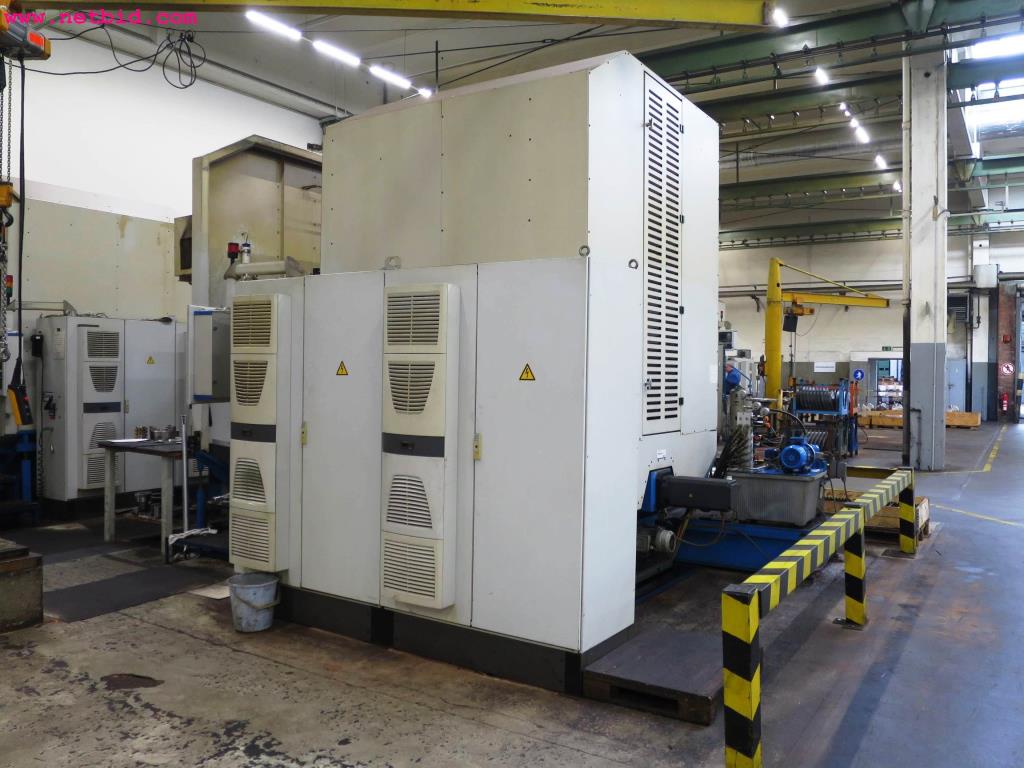

CNC gear hobbing machine WMW Modul ZFWZ 08 CNC

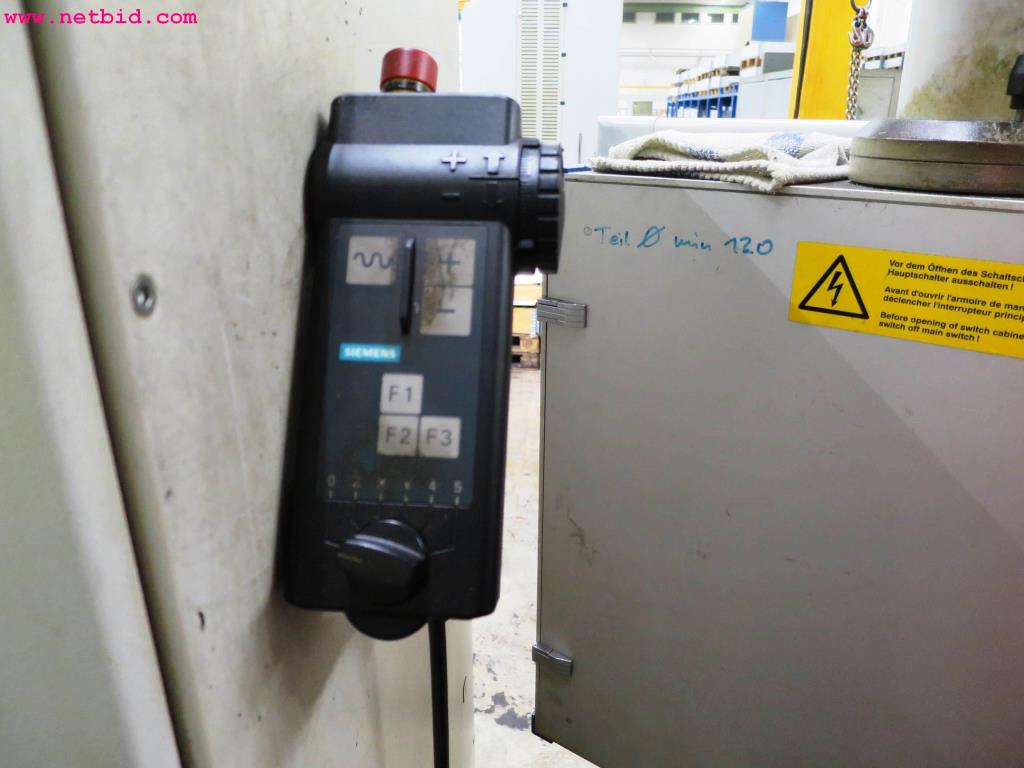

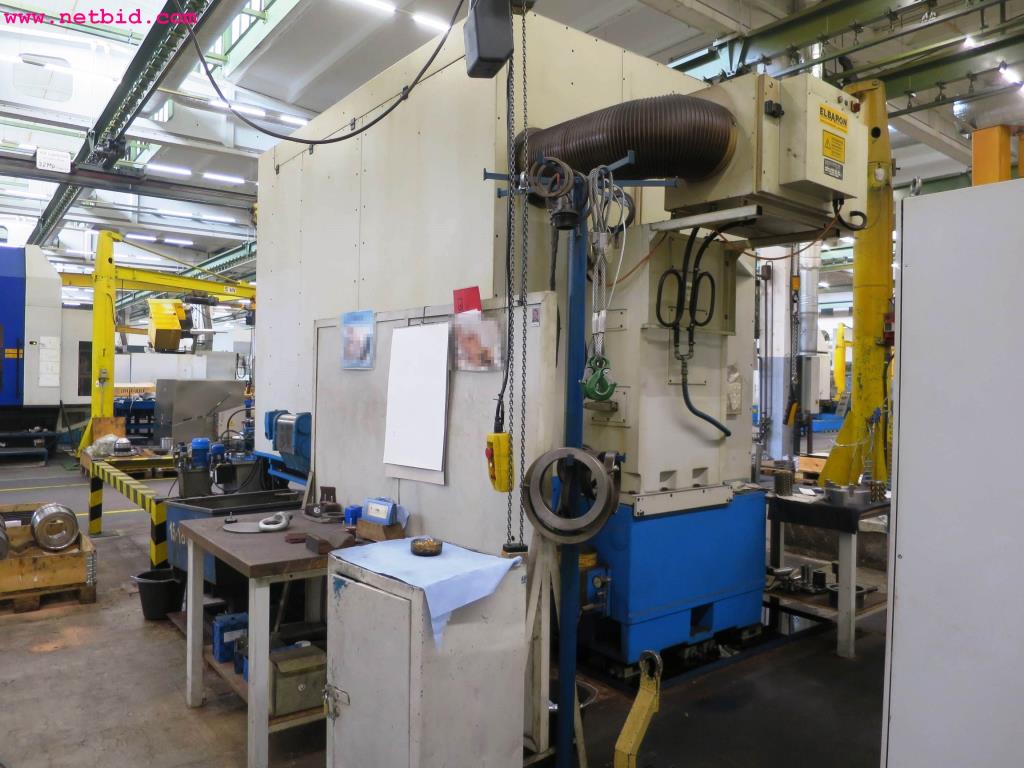

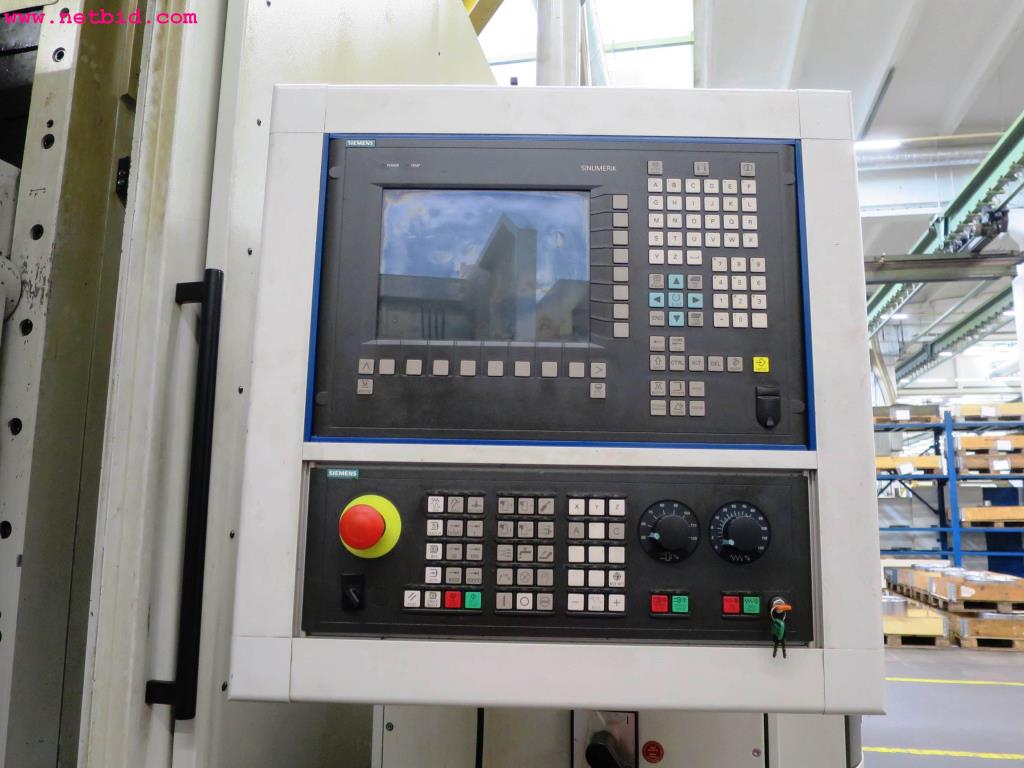

(retrofit 2006; SerWeMa), serial no. 205202, machine weight 16,000 kg, connected load kVA, max. workpiece Ø 800 mm, max. modulus f. hobbing cutters 14 mm, max. axial feed travel 560 mm, max. tangential feed travel 220 mm, max. radial feed travel 480 mm, max. gear helix angle 45°, min. no. of milled teeth 6, max. milling cutter Ø 300 mm, max. milling cutter length 320 mm, Ø of clamping surface 800 mm, max. bed load 5,000 kg, Ø of bed centering unit 275, H 7/230 mm, depth of bed centering unit w. removed hydr. workpiece clamping unit 85/345 mm, min./max. distance between milling cutter center and clamping surface of bed 300/860 mm, min./max. distance between milling cutter center and bed center 100/580 mm, end support bore Ø 90, H6 mm, slaving cone f. cutter arbor 50, speed of milling cutter infinitely variable 20 - 350 rpm, feed specifications: tangential, infinitely variable 0.1 - 5 mm/part rotation, axial, infinitely variable 0.1 - 10 mm/part rotation, radial, infinitely variable 0.1 - 2 mm/part rotation, coolant system, magnetic chip conveyor, oil mist extraction/filtering system, make Elbaron, control system, make Siemens, type Sinumerik 840 D
