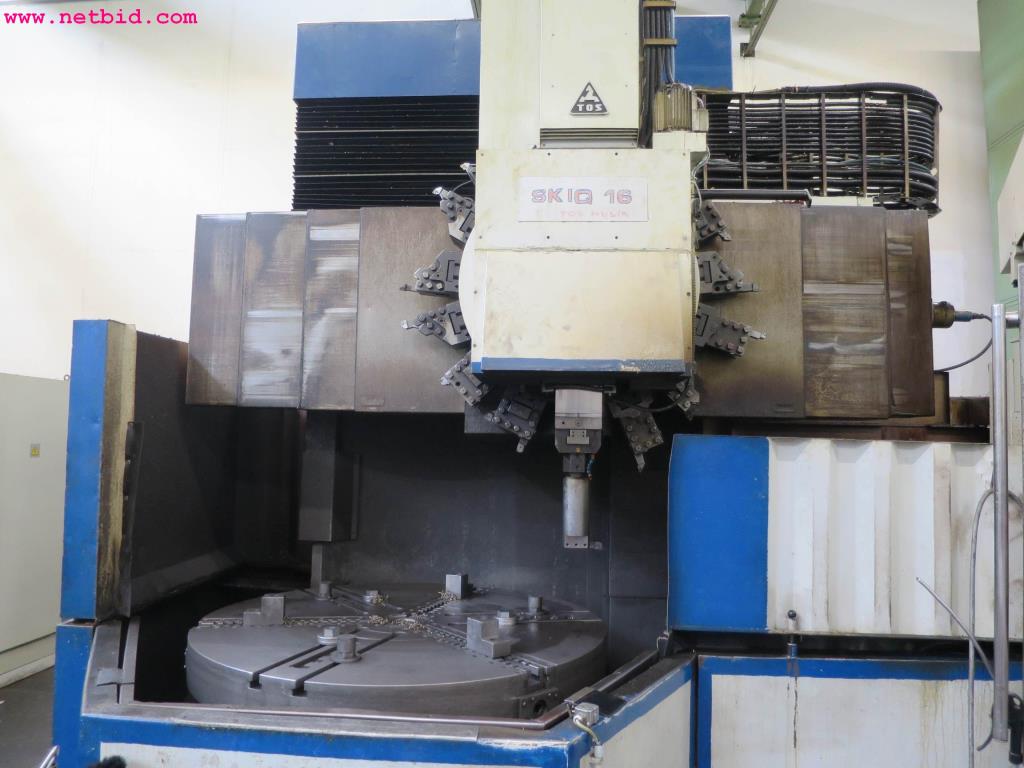

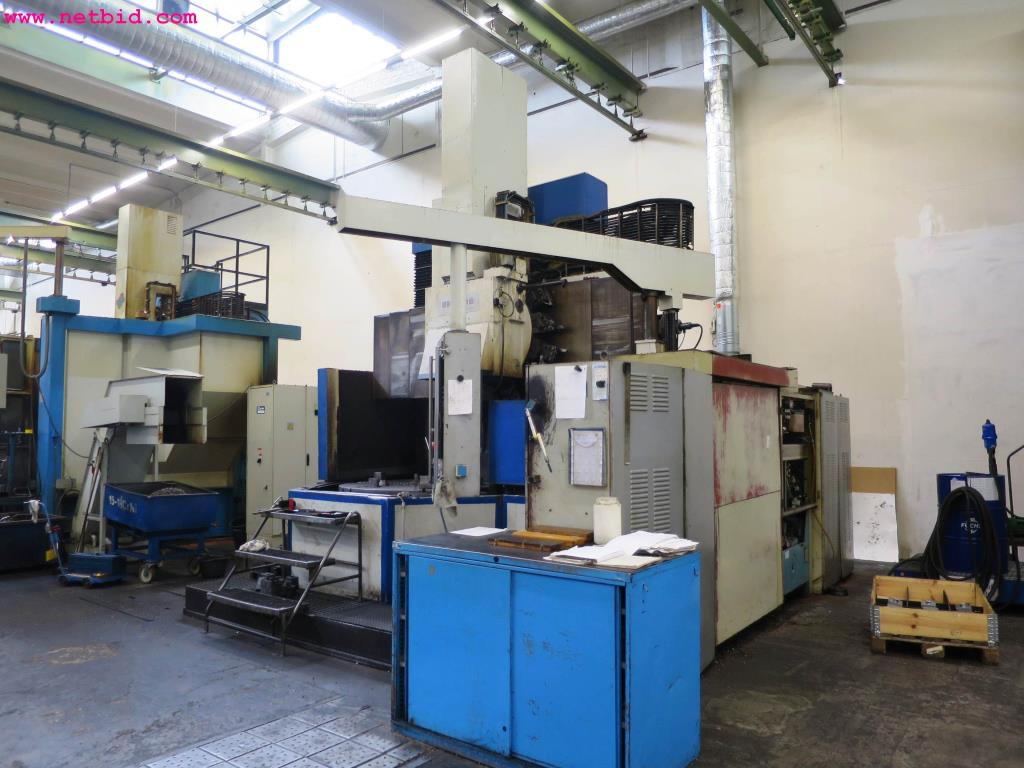

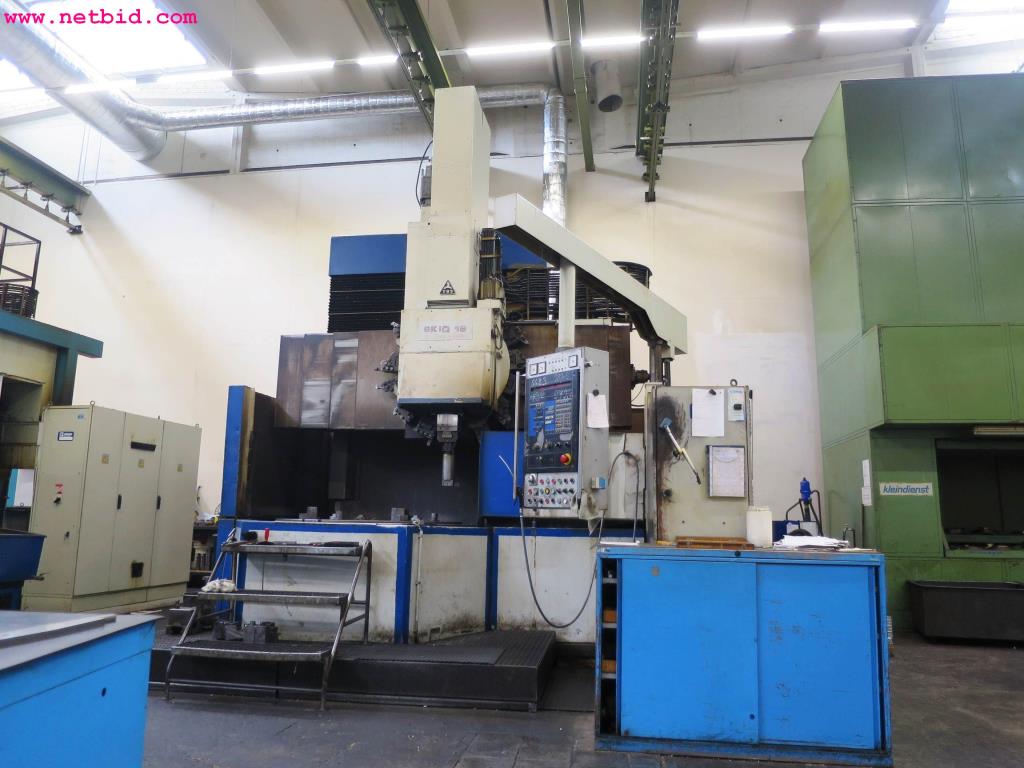

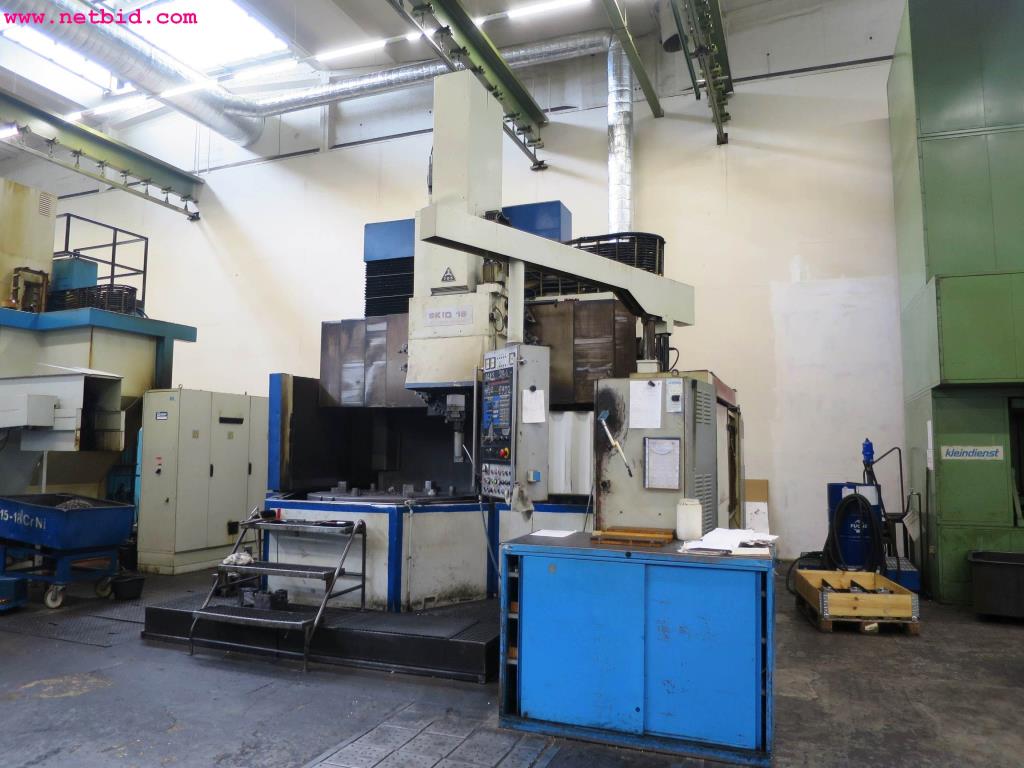

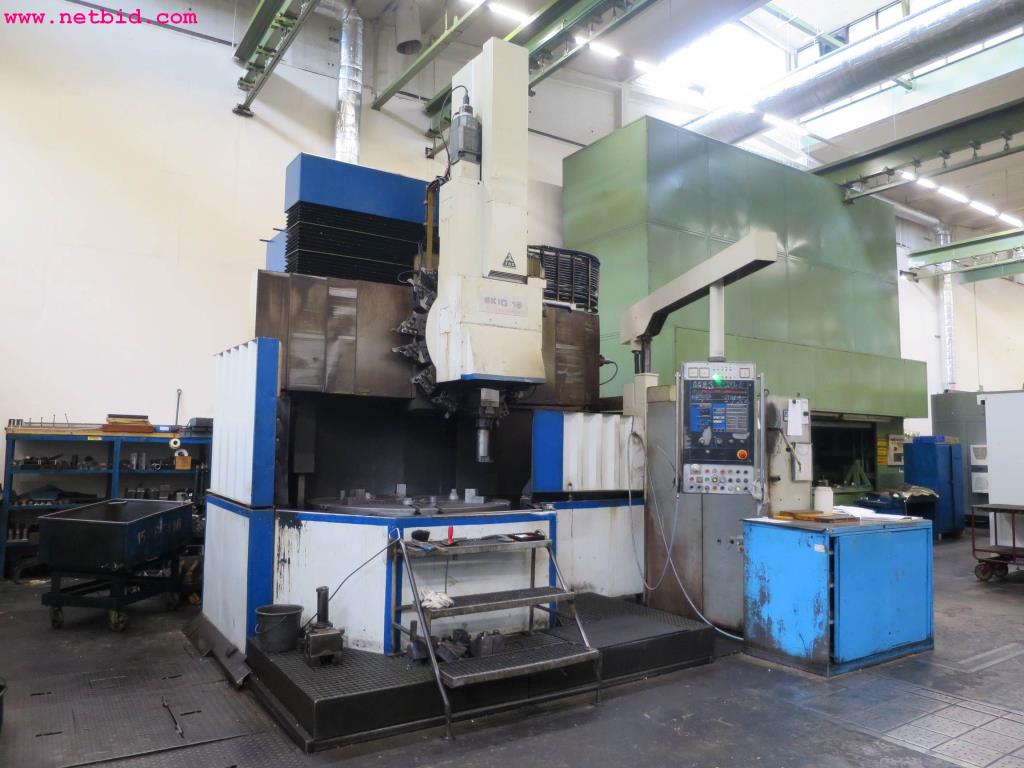

CNC vertical turning and boring mill Toshulin SKIQ 16 CNC B
Auction #13959-23
This auction has ended.
Details
Product Type
Toshulin
Type
SKIQ 16 CNC B
Construction Year
1997
Description

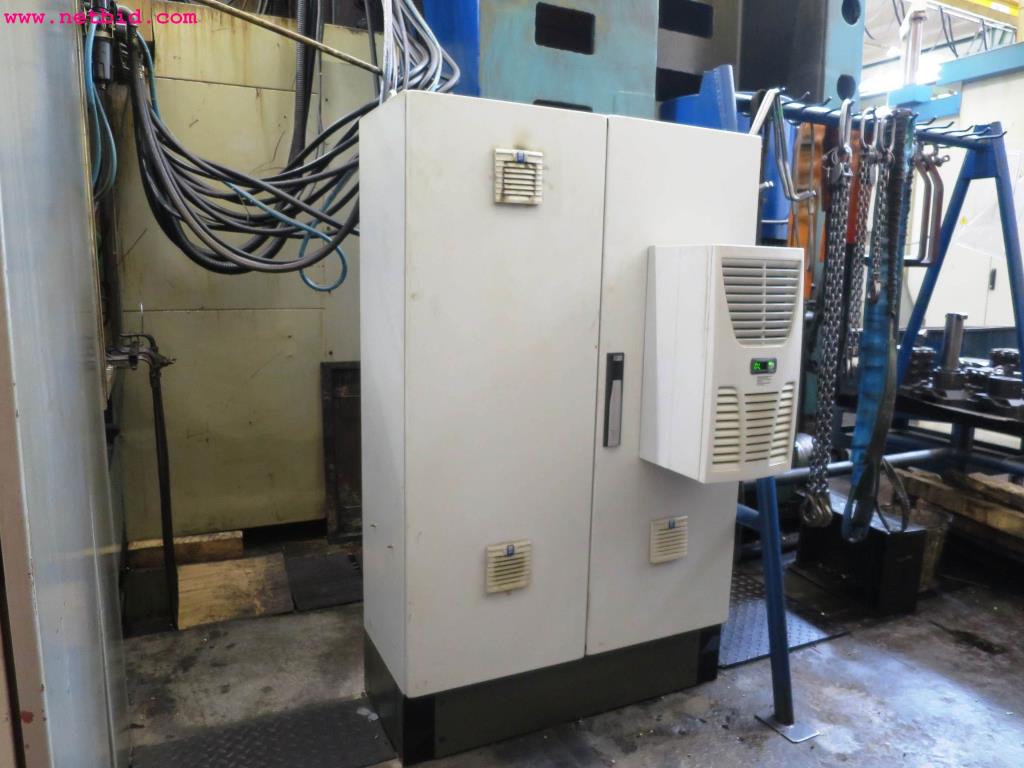

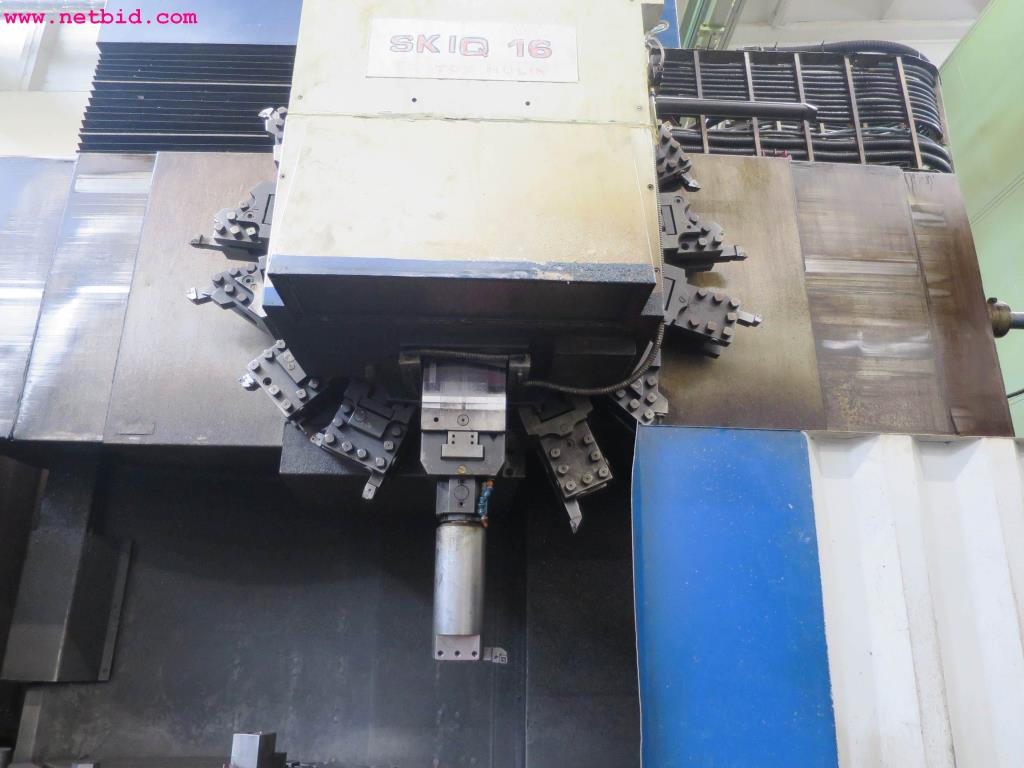

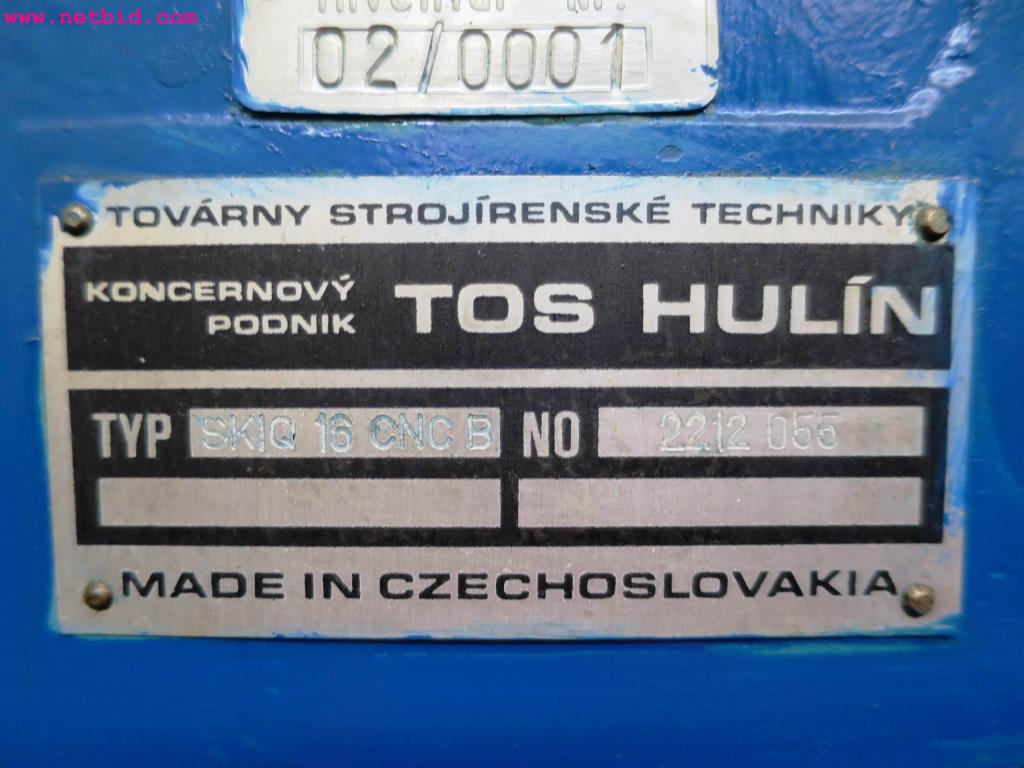

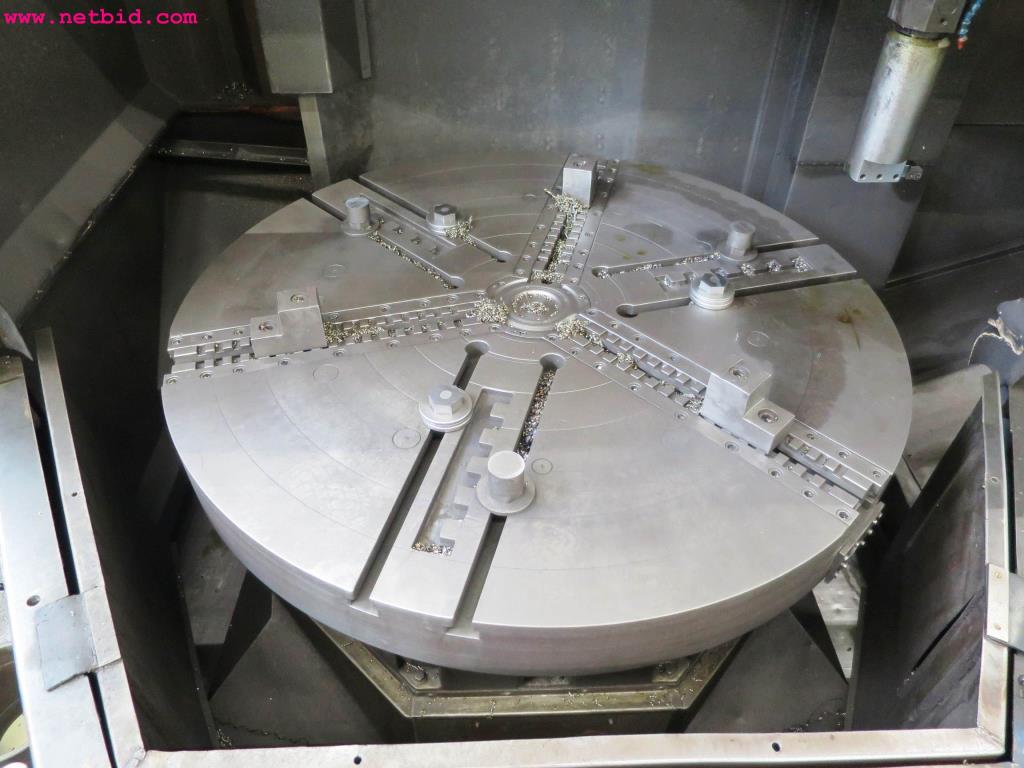

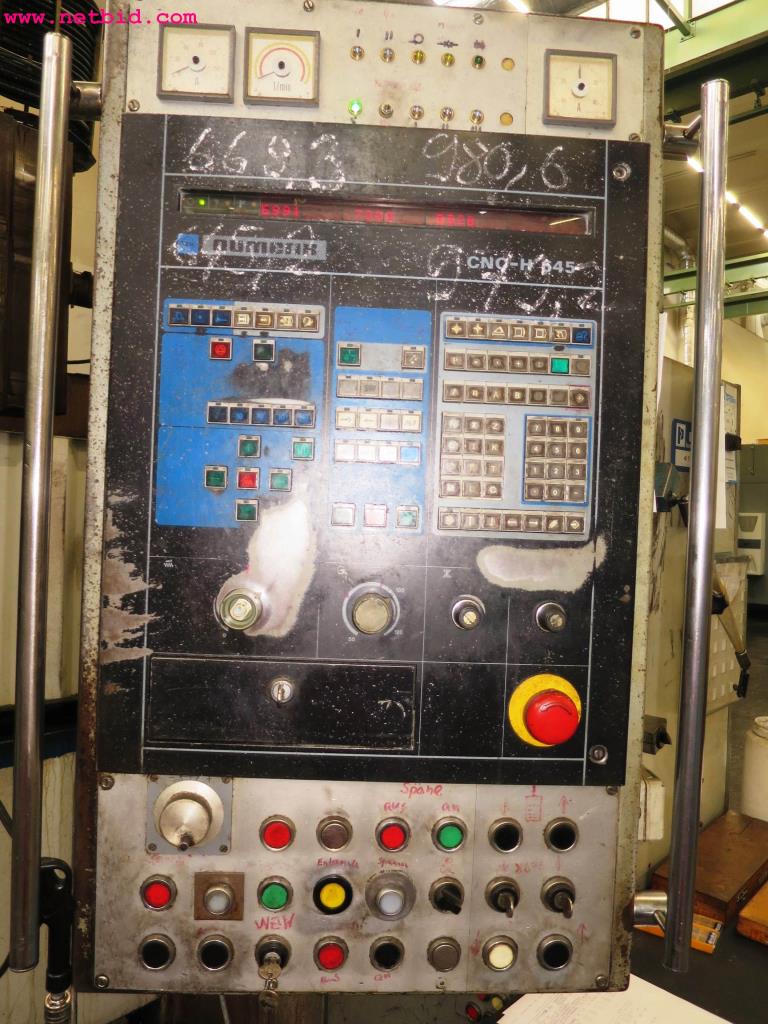

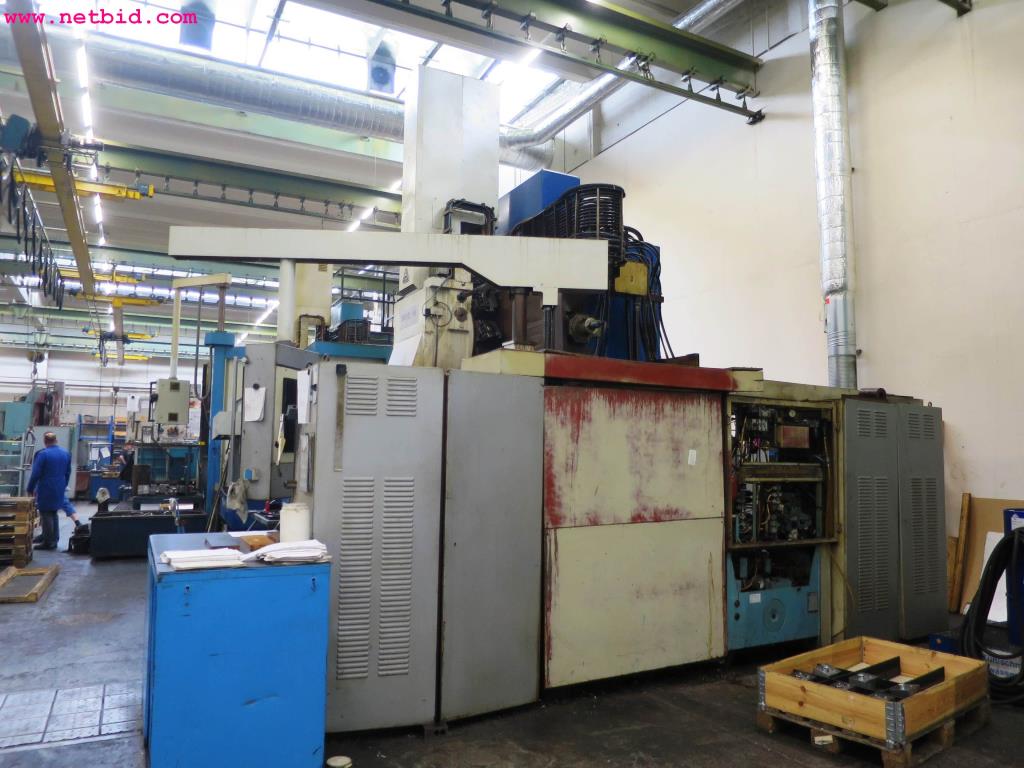

serial no. 2212055, machine weight 27,200 kg, connected load 63 kVA, max. turning Ø 1,800 mm, max. workpiece height 1,275 mm, max. workpiece weight 16,000 kg, max. crossrail stroke 800 mm, max. cutting force 50,000 N, max. height between clamping plate and slider 1,510 mm, max. distance between face plate and clamping surface of turret head 1,270 mm, diameter of clamping plate 1,600 mm, table speed 200 rpm, rapid feed 8,000 mm/min, feed infinitely adjustable from 1 - 999 mm/revolution, power main drive 40 kW, 15-station tool turret, coolant unit, hydraulic unit, switchgear cabinet system, control system, make Siemens Numerik, type CNC H645
Location
- 16928 Pritzwalk, Freyensteiner Chaussee 15
