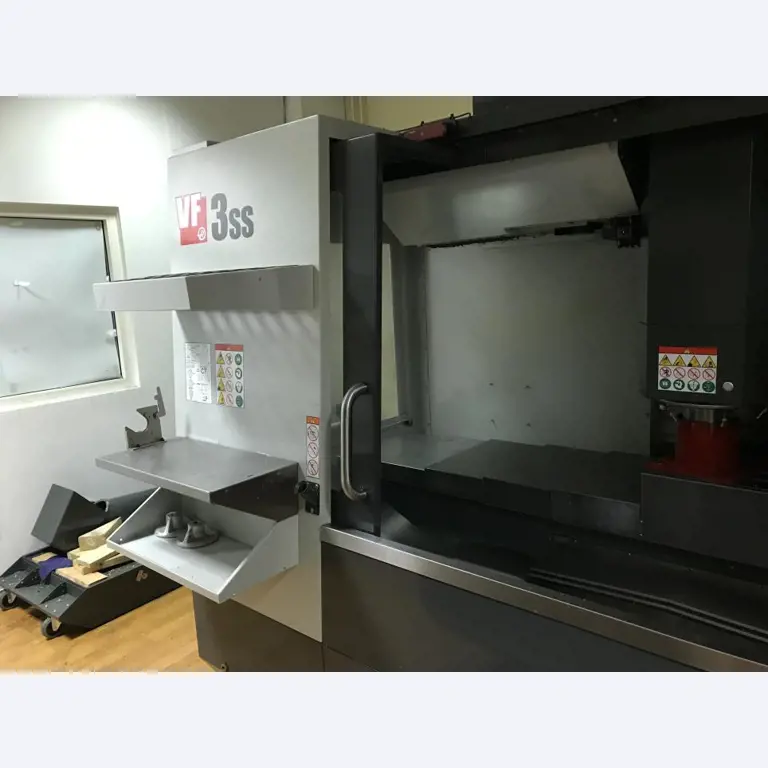

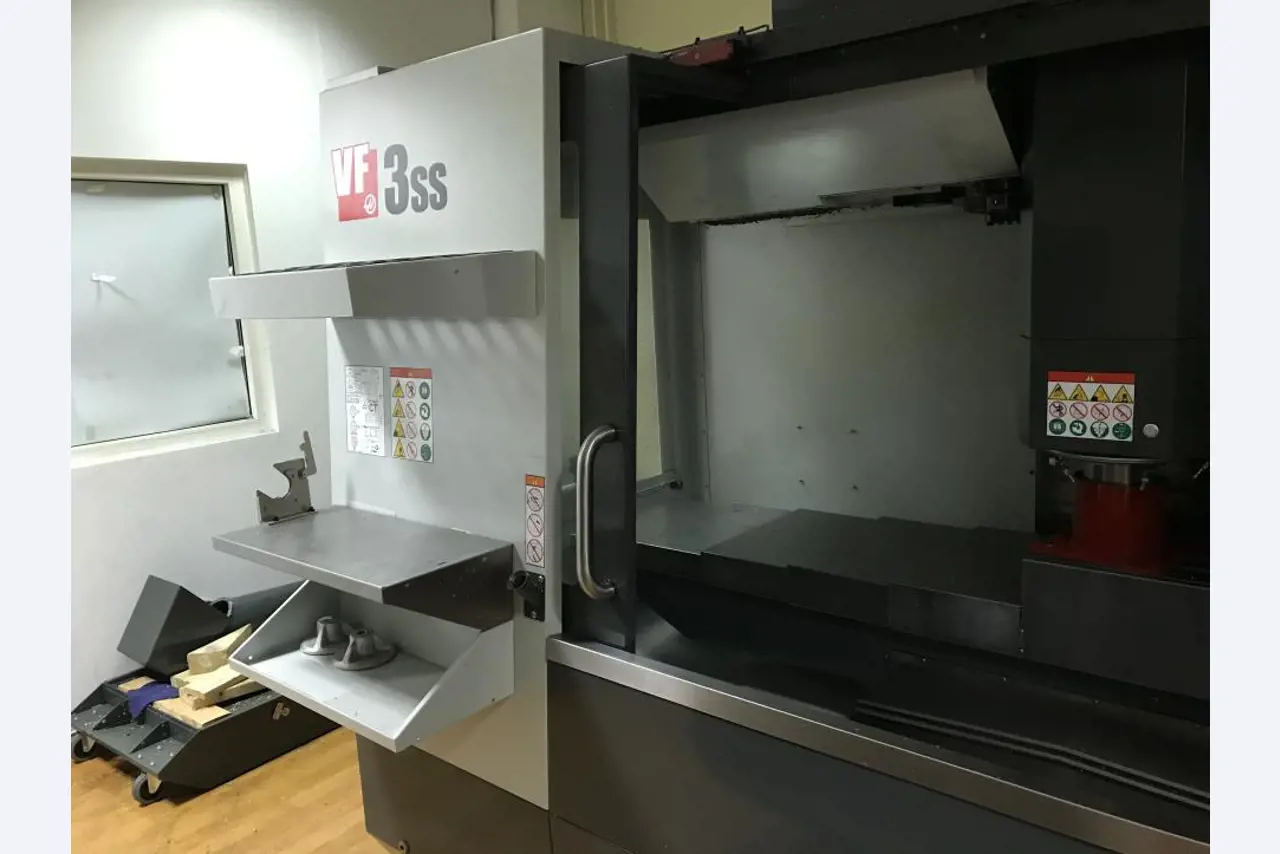

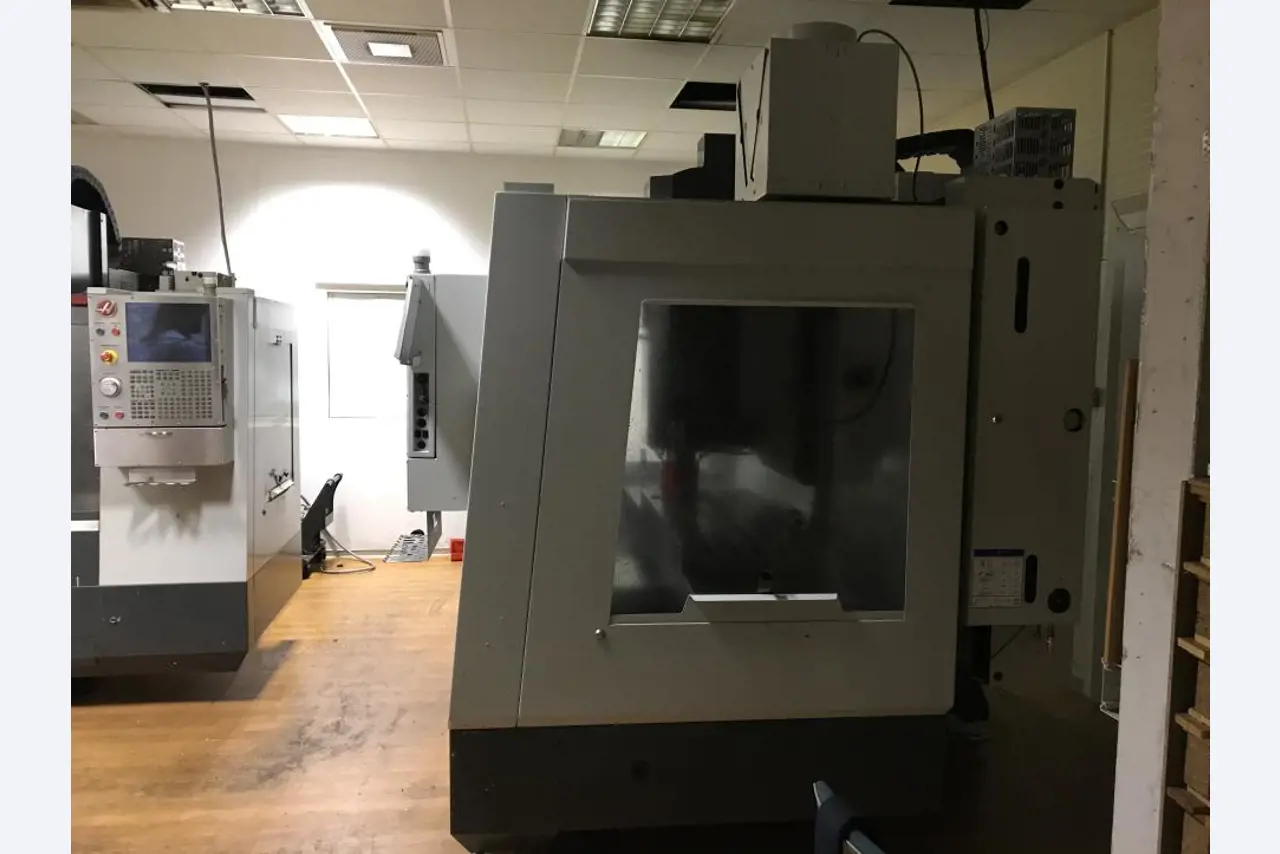

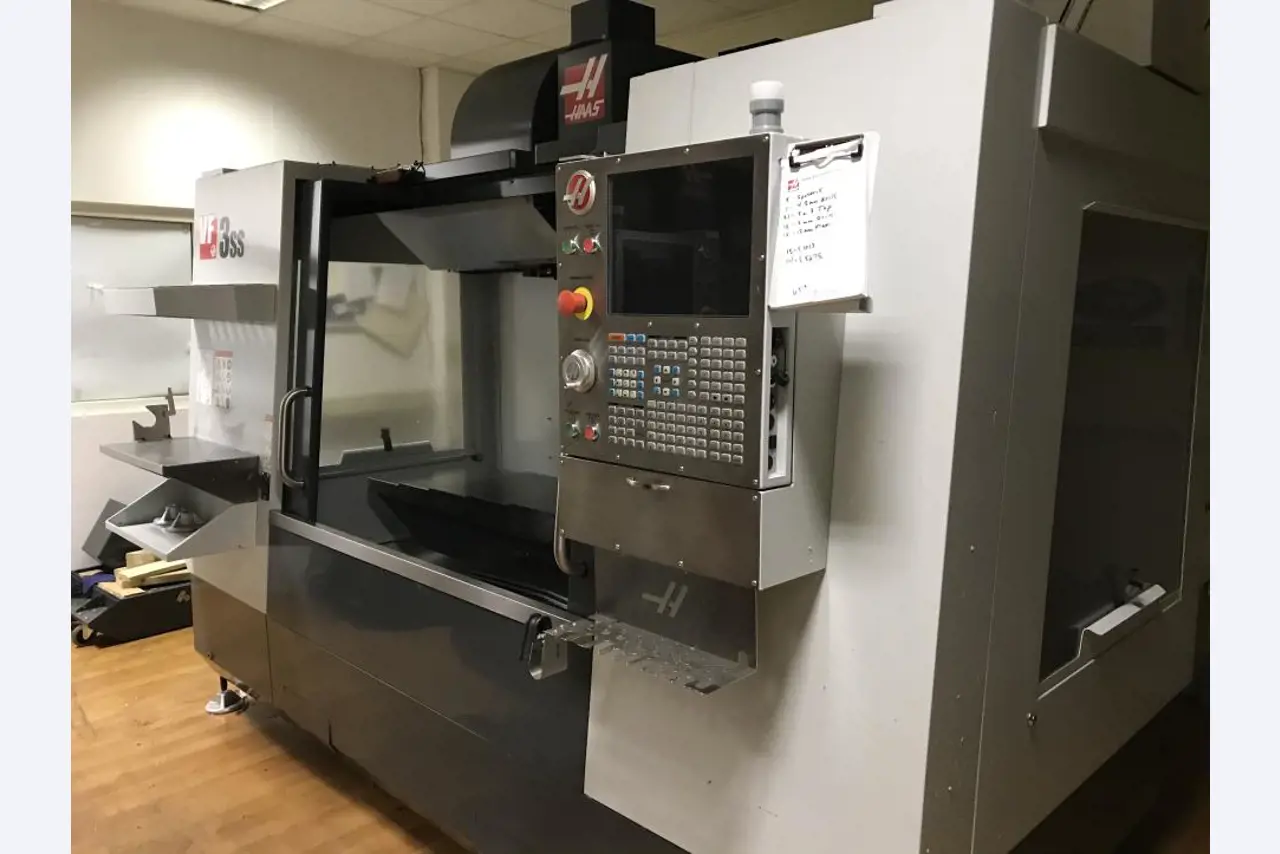

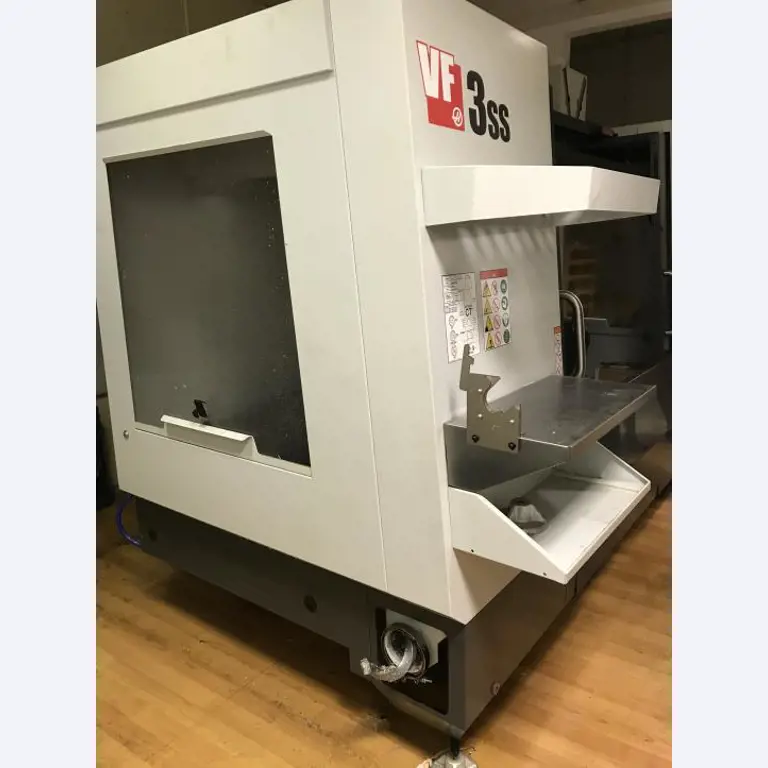

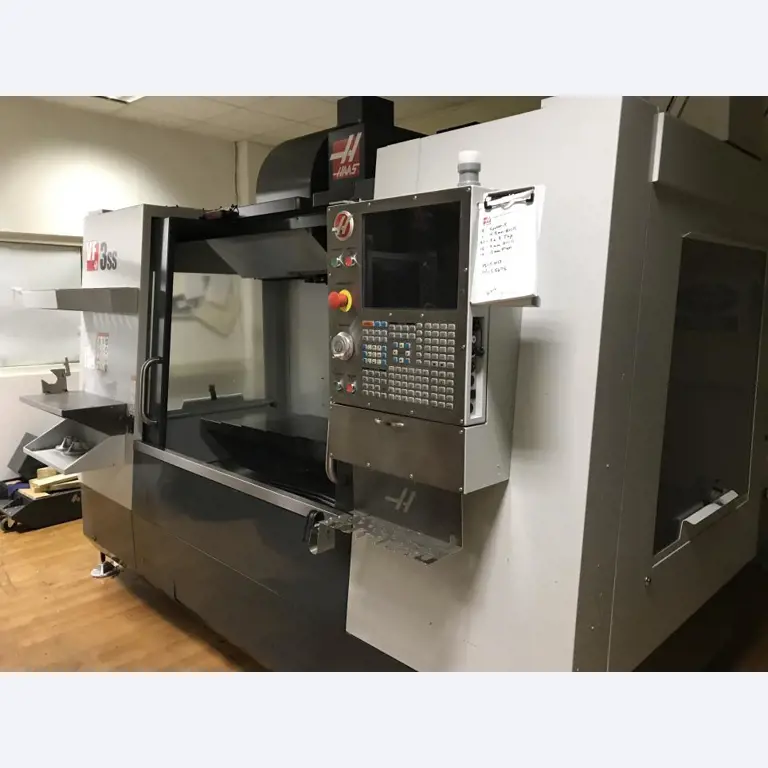

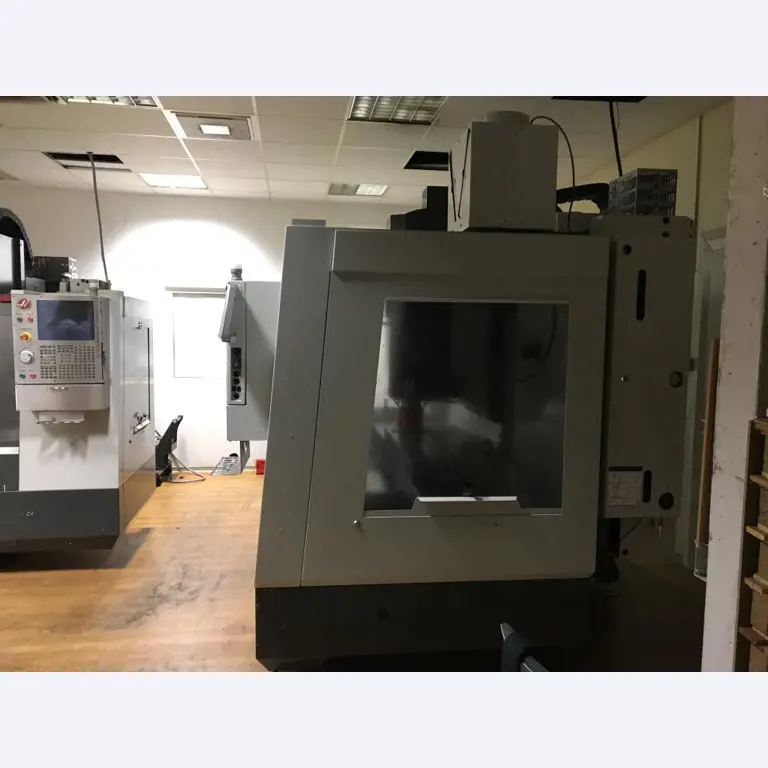

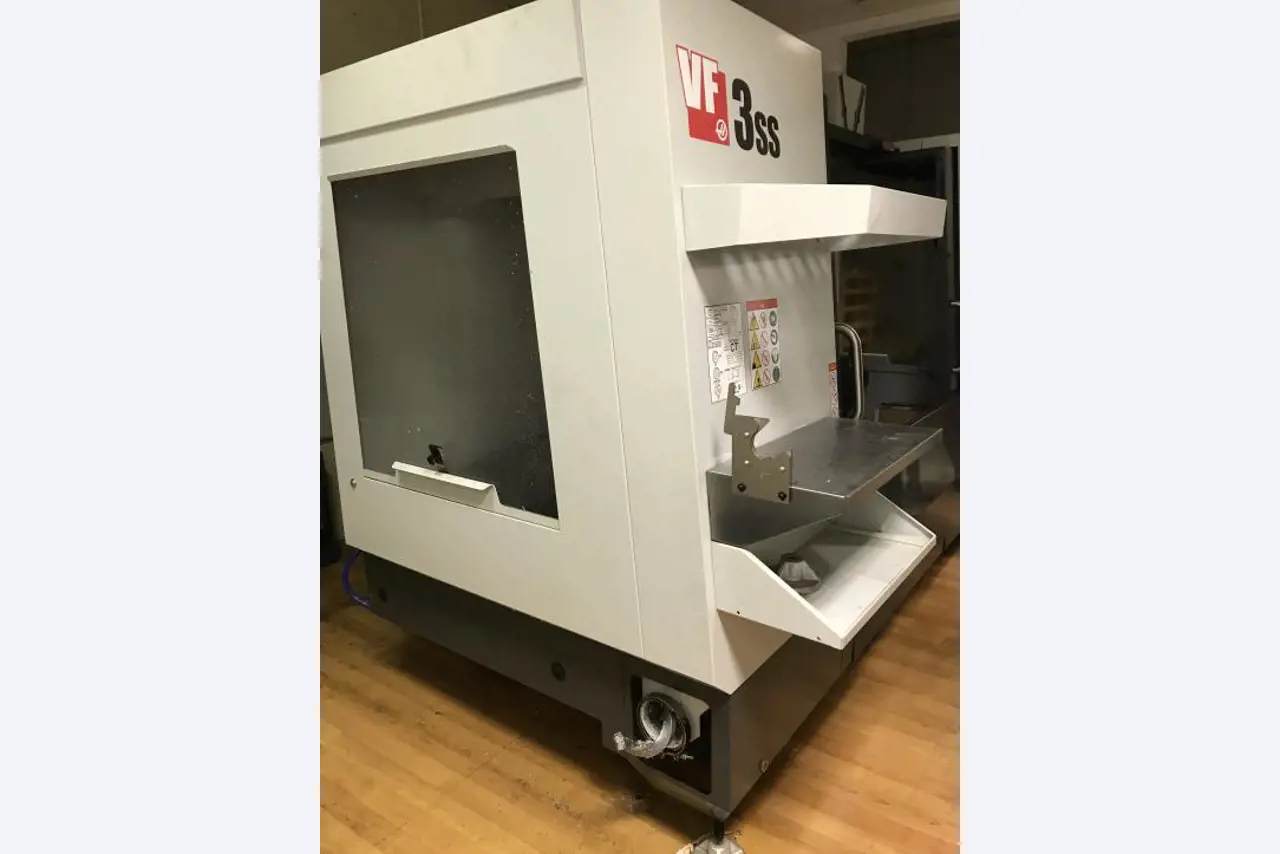

Super-Speed vertical machining center Haas VF-3SS

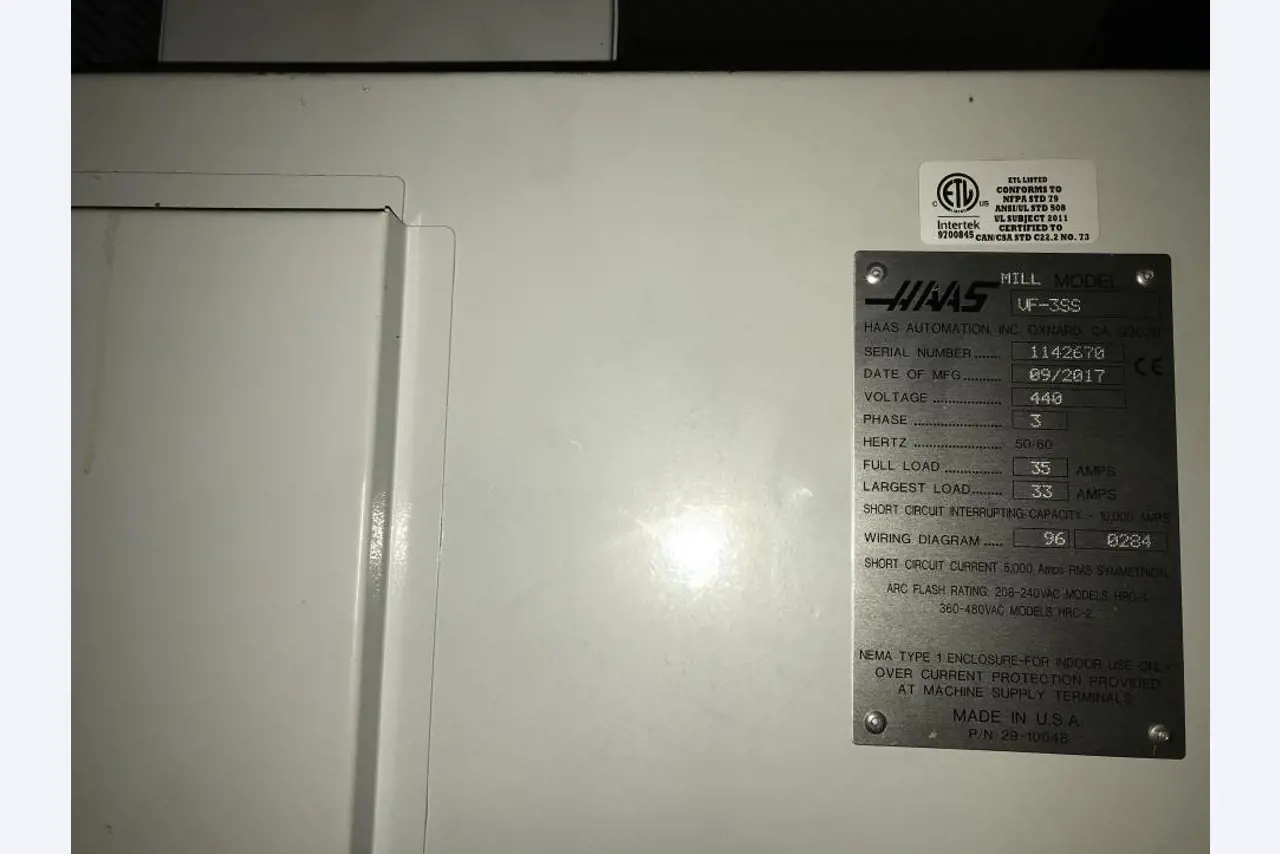

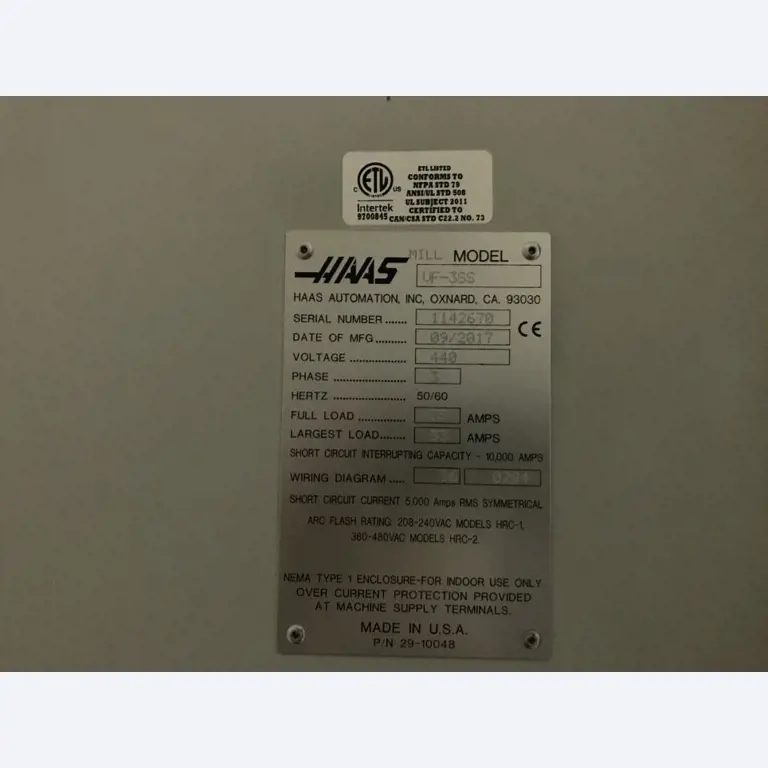

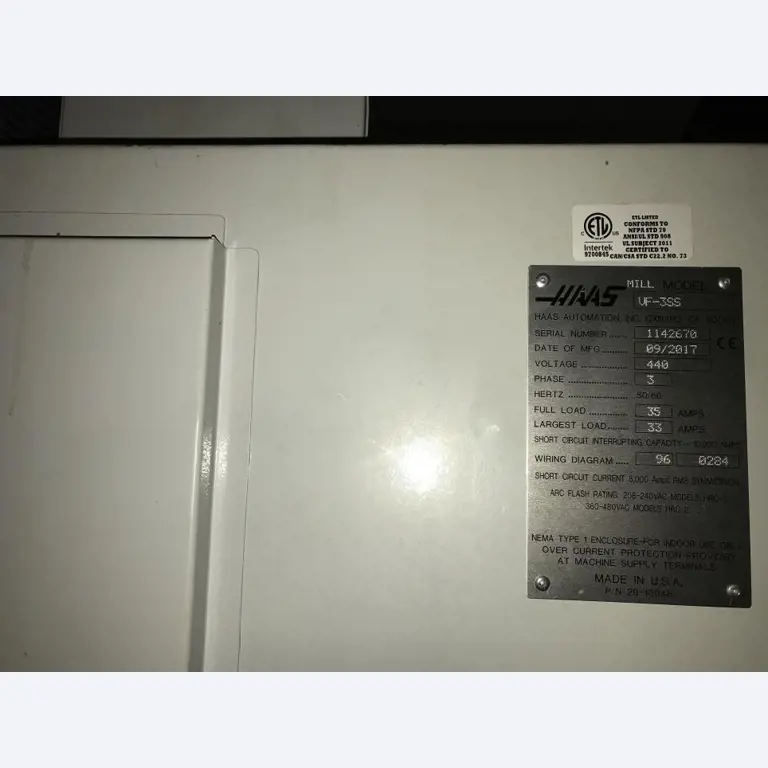

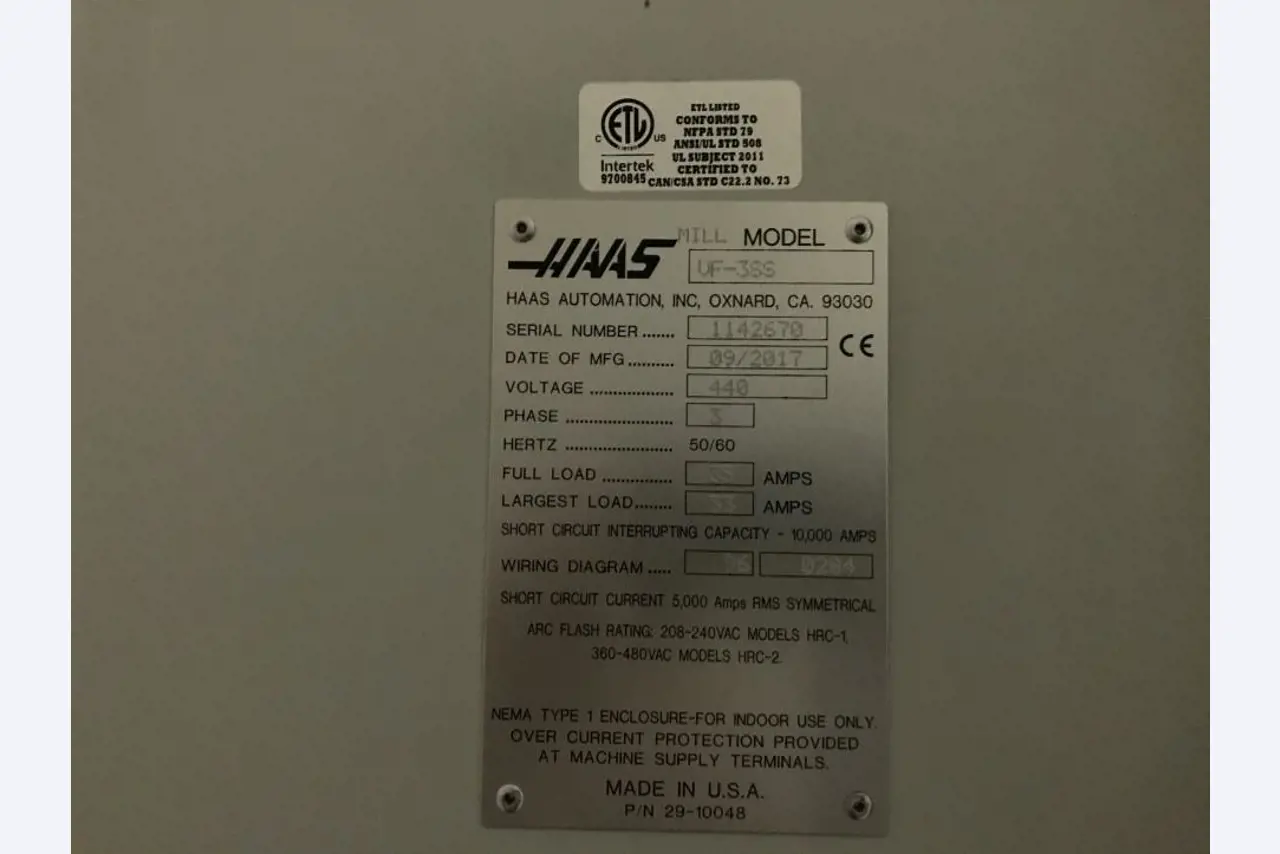

SN: 114670/CT

Operating time: 4481:50:47
Cycle Start Time: 2606:50:04
Feed Cutting Time: 2127:43:34
Date: 24.05.2020

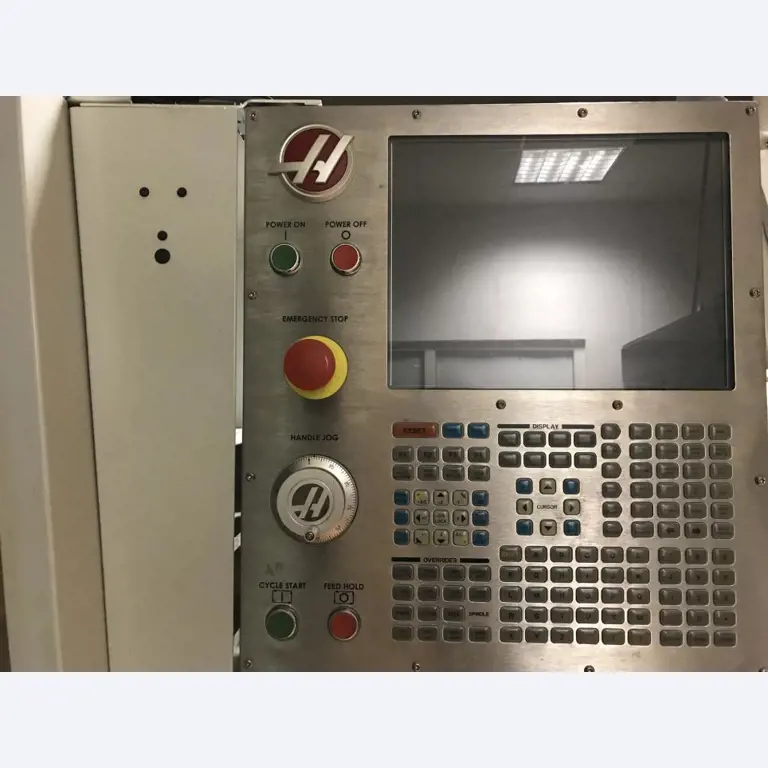

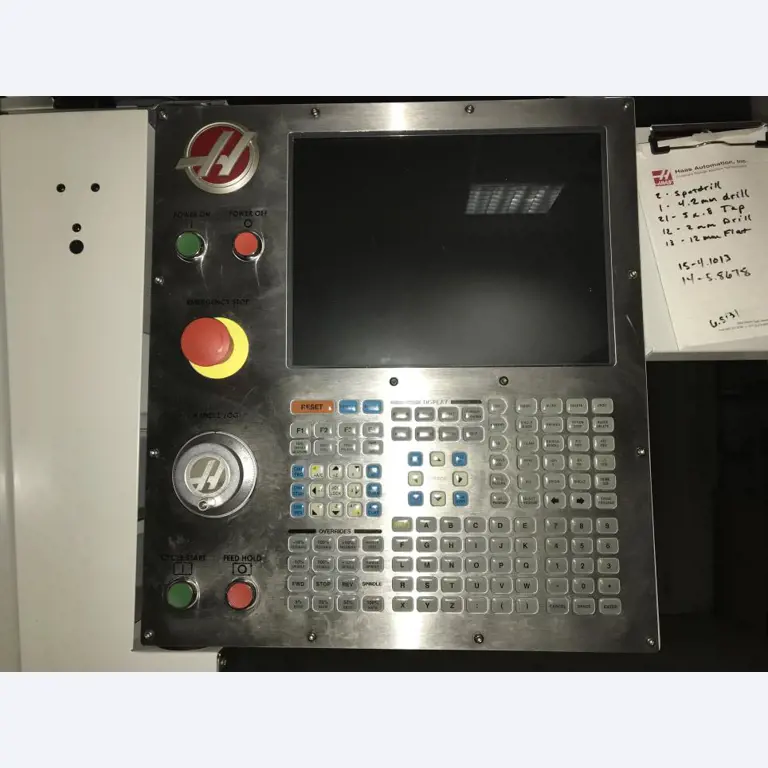

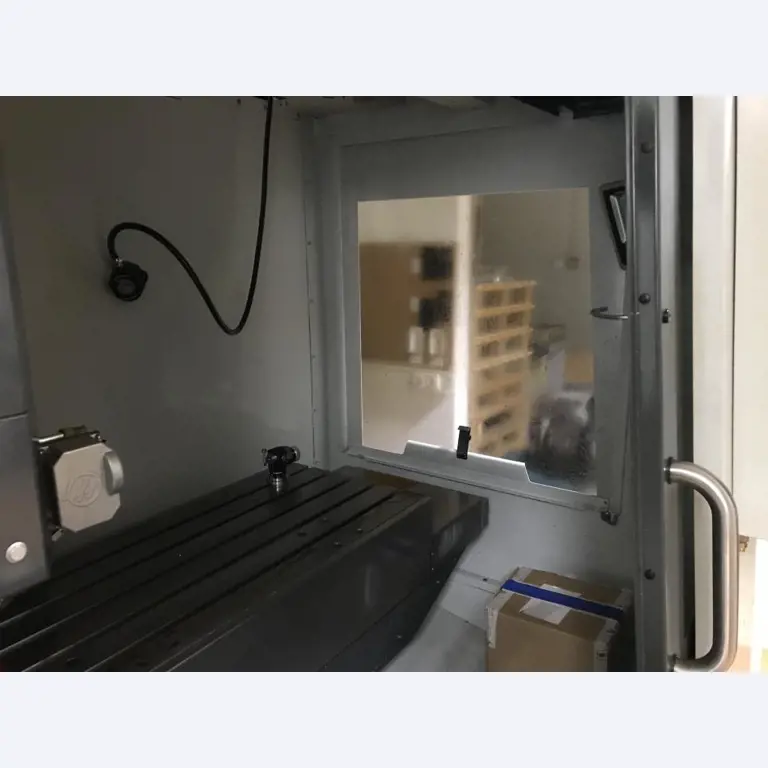

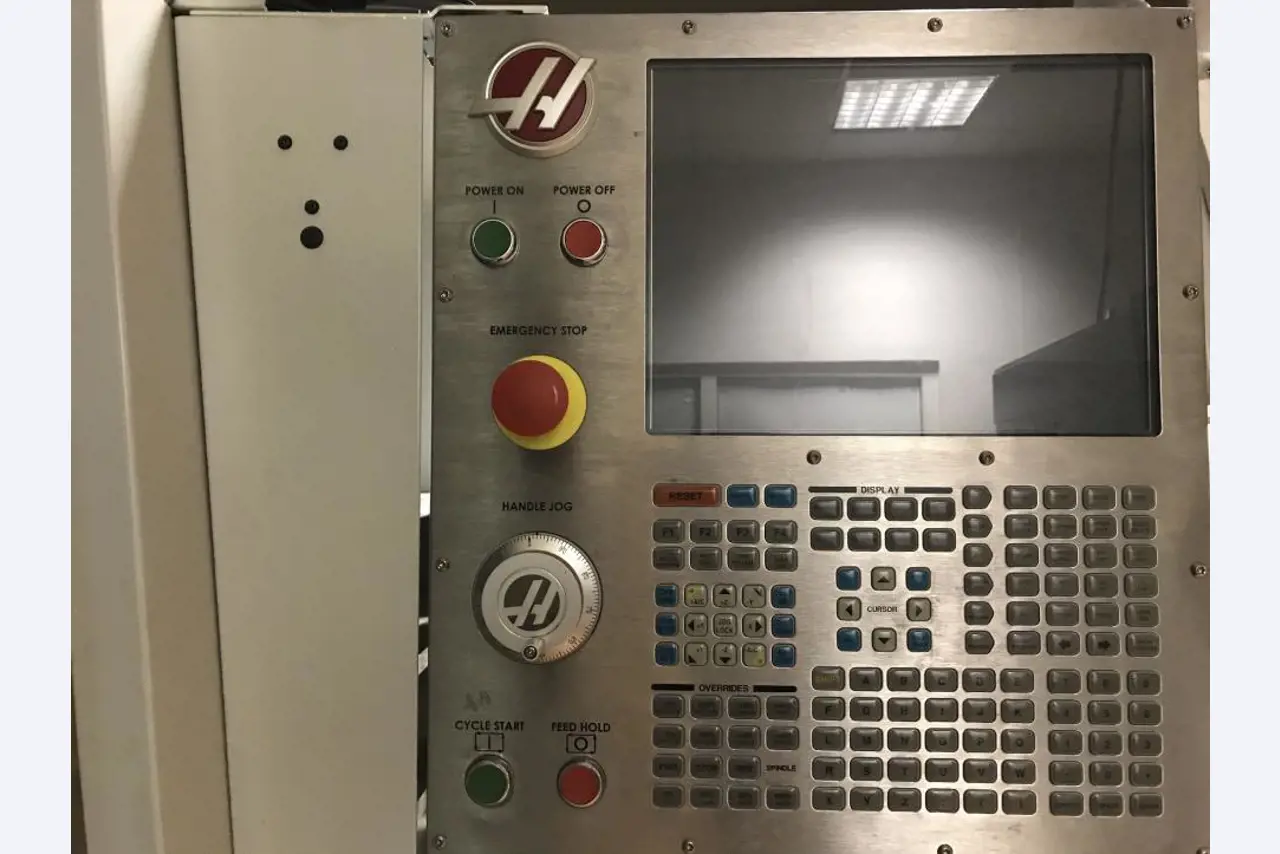

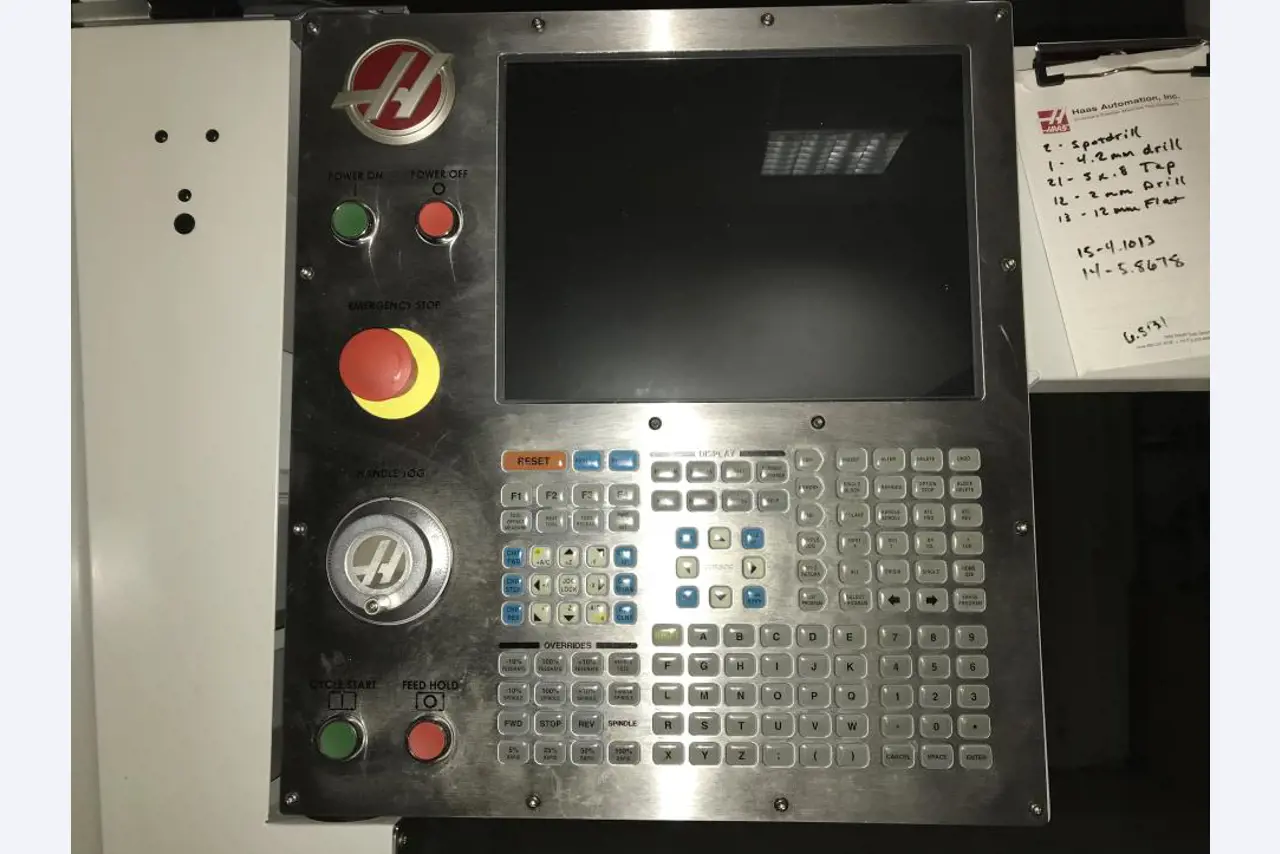

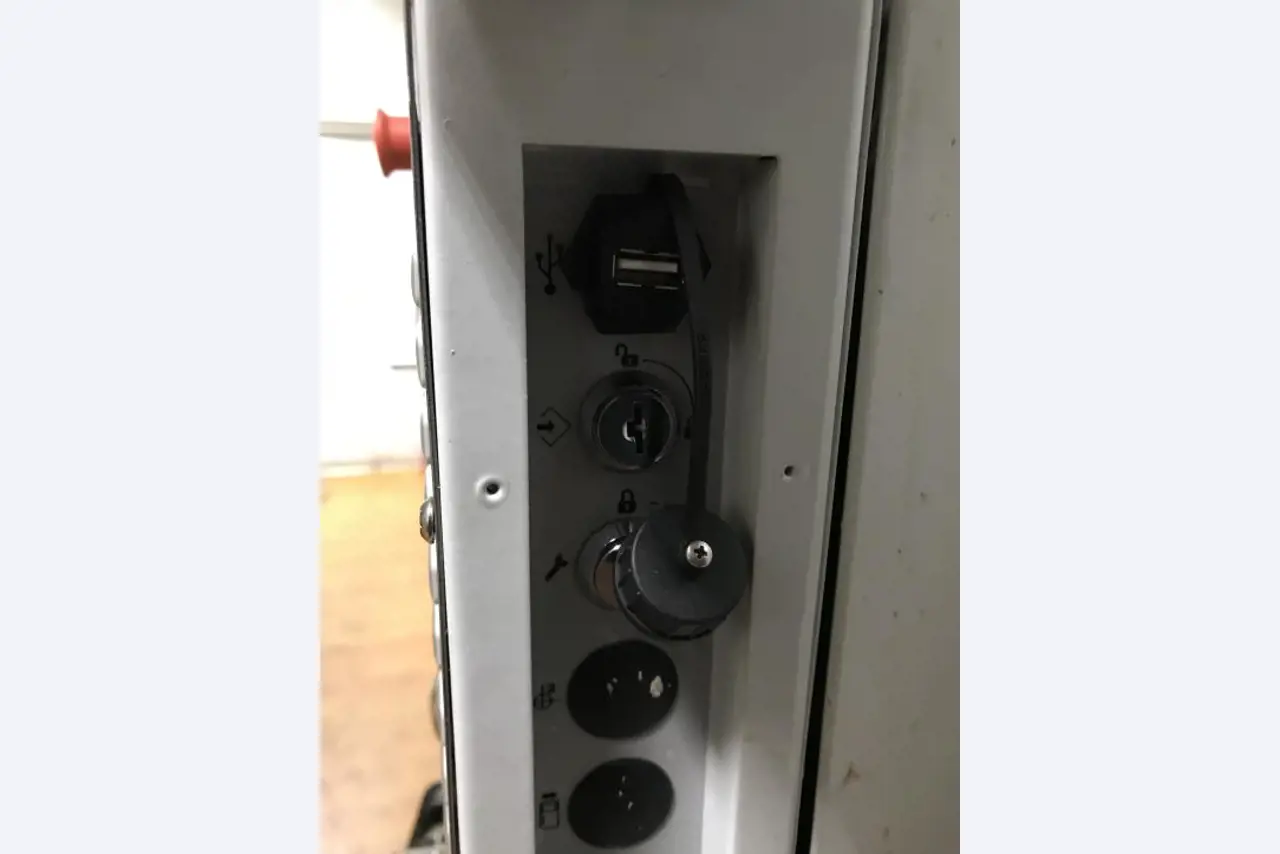

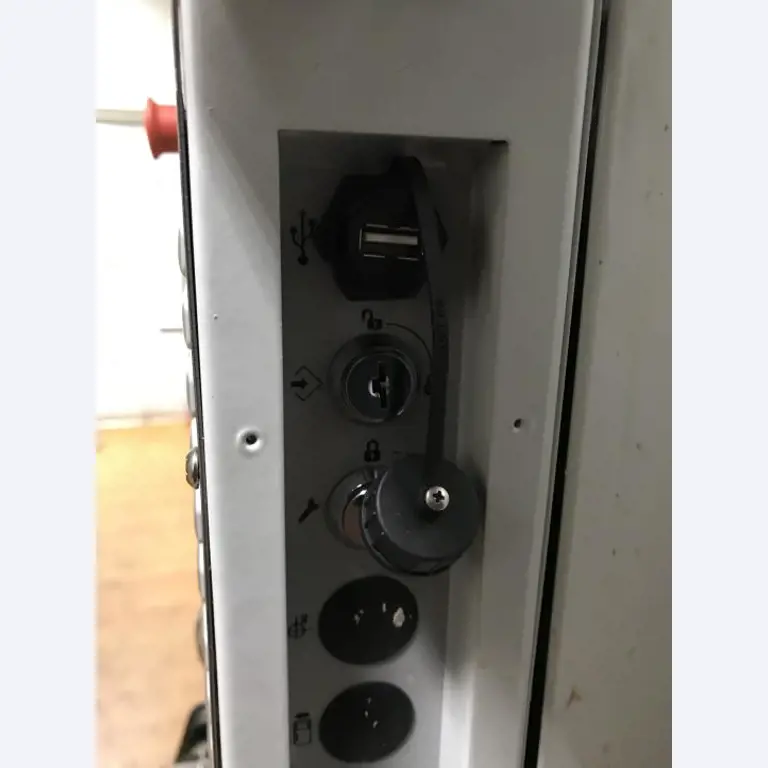

1 CONTROL SYSTEM: HAAS, 15”LCD, 1 GB, USB 2 WORKING TABLE SIZE: 1219 X 457 MM
3 MAX. TABLE LOAD CAPACITY: 794 KGS
4 SPINDLE NOSE TO TABLE: 107-742 MM
5 X/Y/Z STROKE 1016/508/635 MM
6 X/Y/Z STROKE RAPID TRAVERSE:
35.6/35.6/35.6 M/MIN 7 SPINDLE MOTOR 22.4 KW Max. torque 122 Nm

8 SPINDLE SPEED 12,000 RPM (DIRECT-DIRVEN TYPE)
9 SPINDLE NOSE BT40

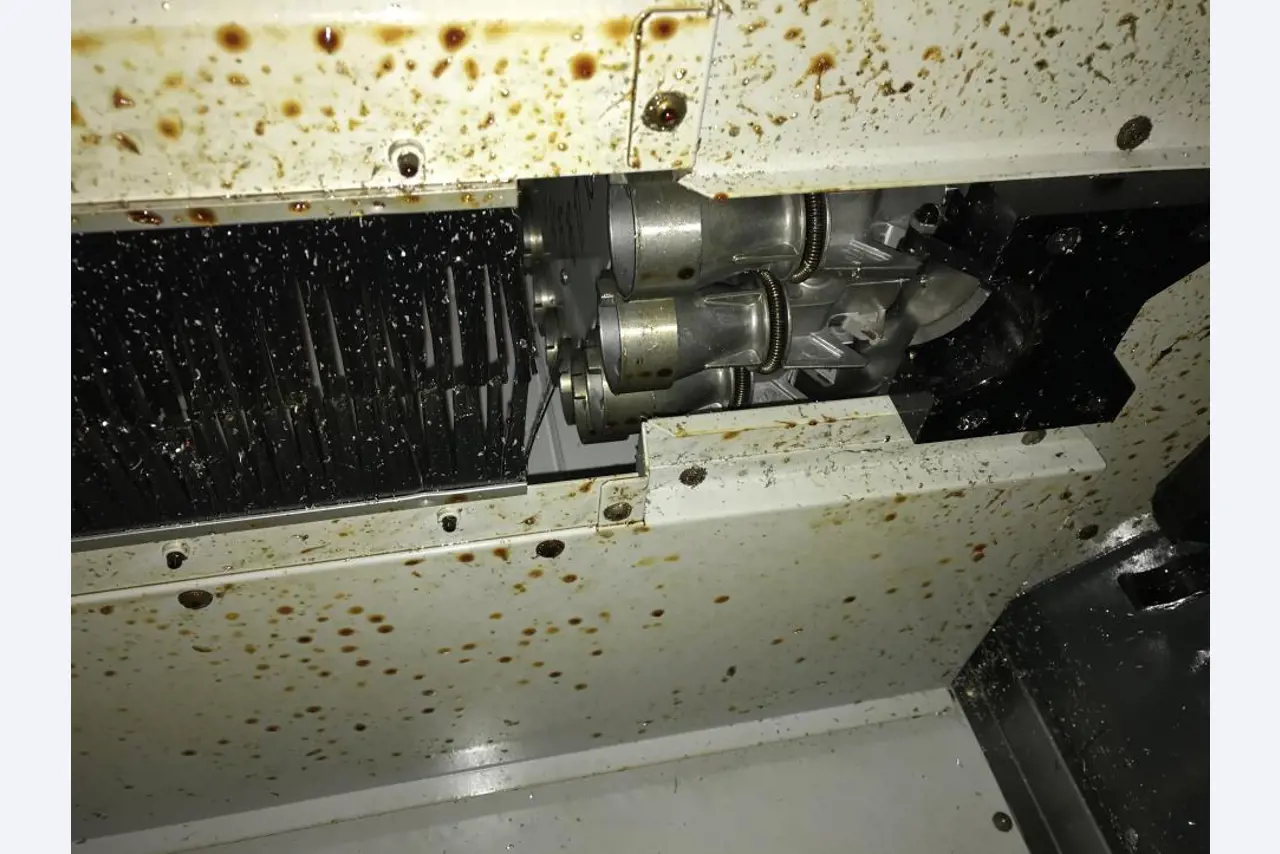

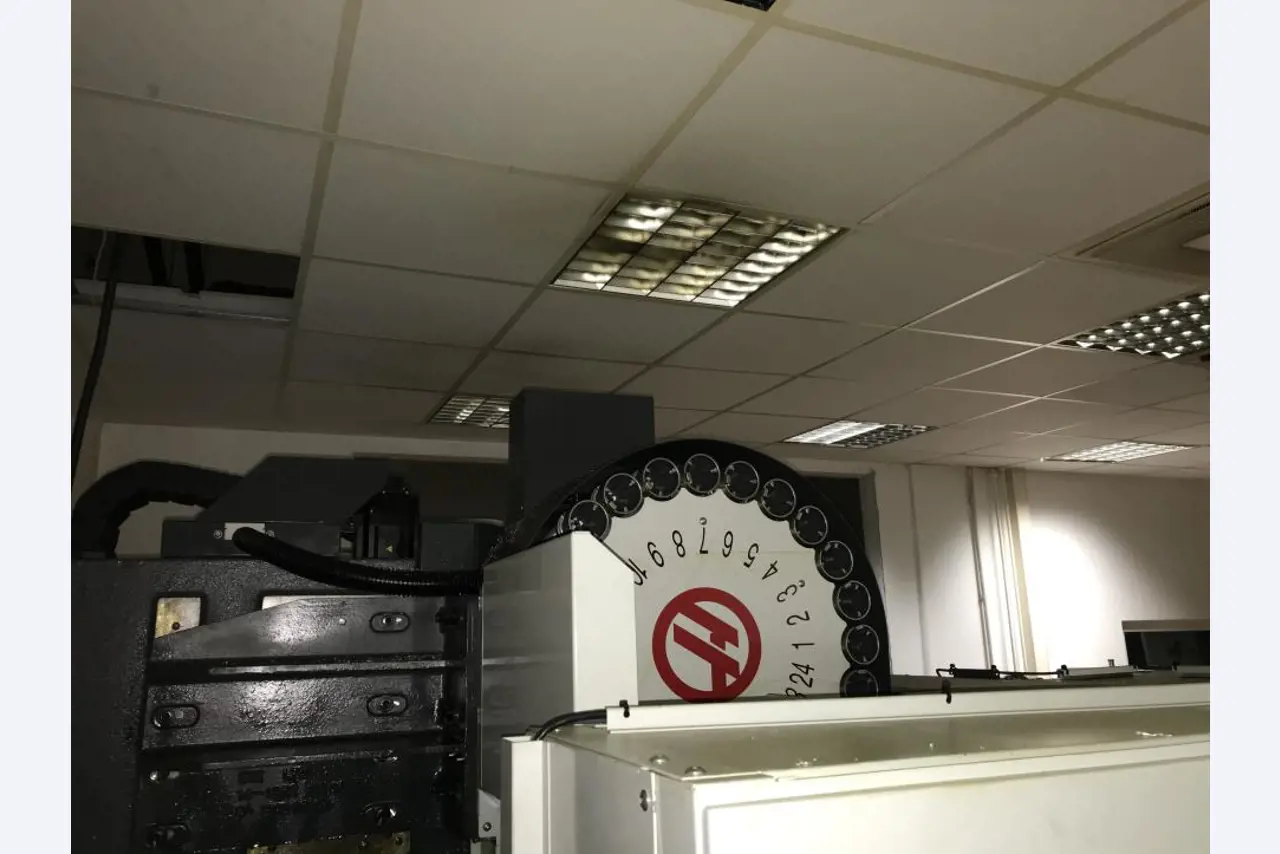

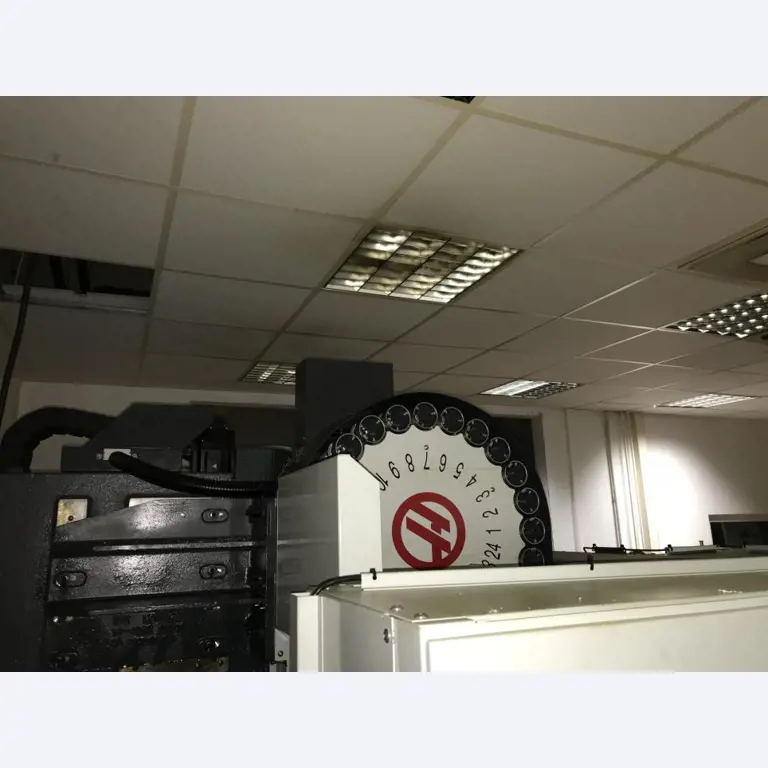

10 ATC CAPACITY 30+1 TOOLS – „High-Speed”
11 COOLANT UNIT WITH TANK 208L
12 FULL SPLASH GUARD
13 RIGID TAPPING
14 MANUAL PULSE GENERATOR

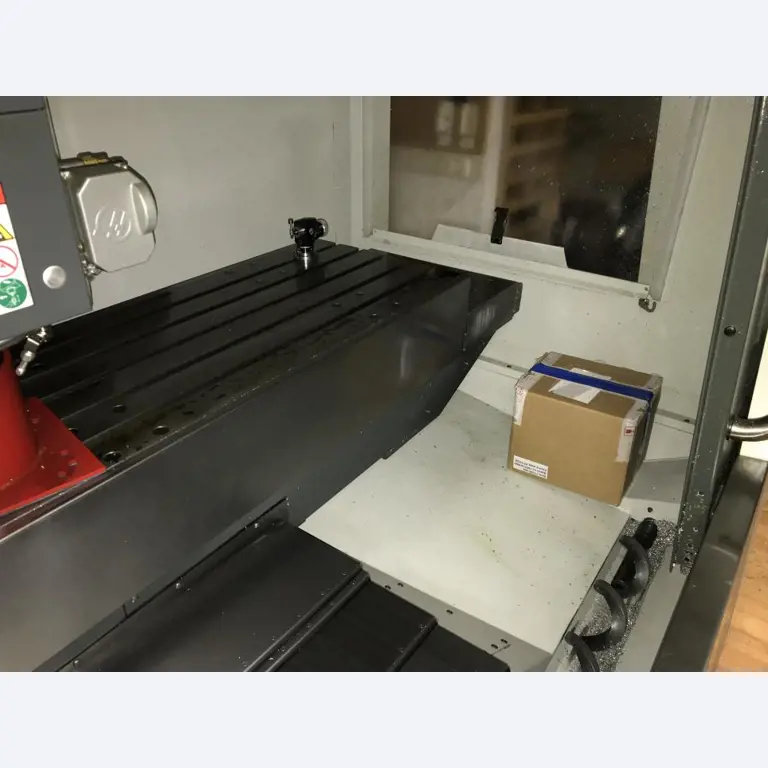

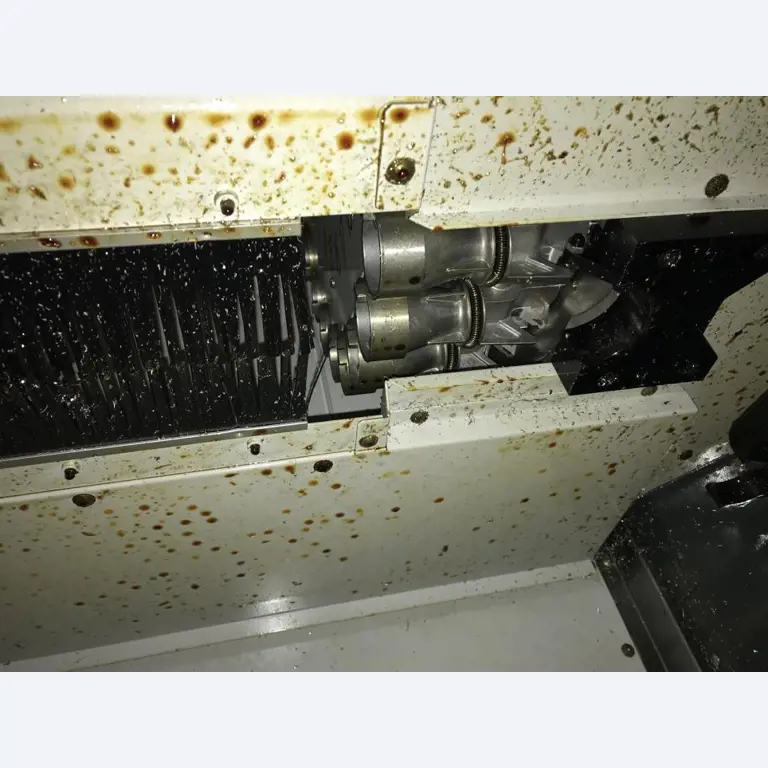

15 AUGER CHIP SCREWS
16 CTS W/H PRESSURE 20 BAR

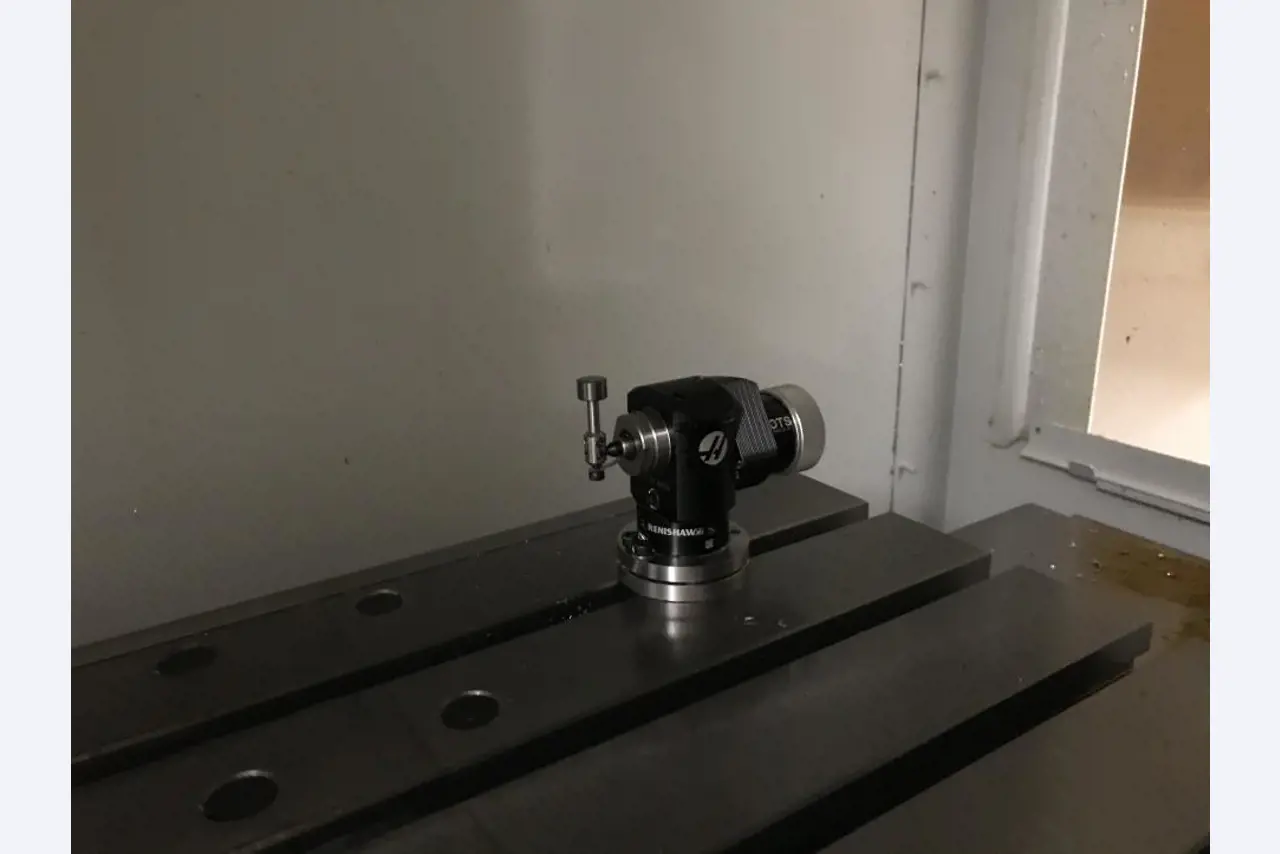

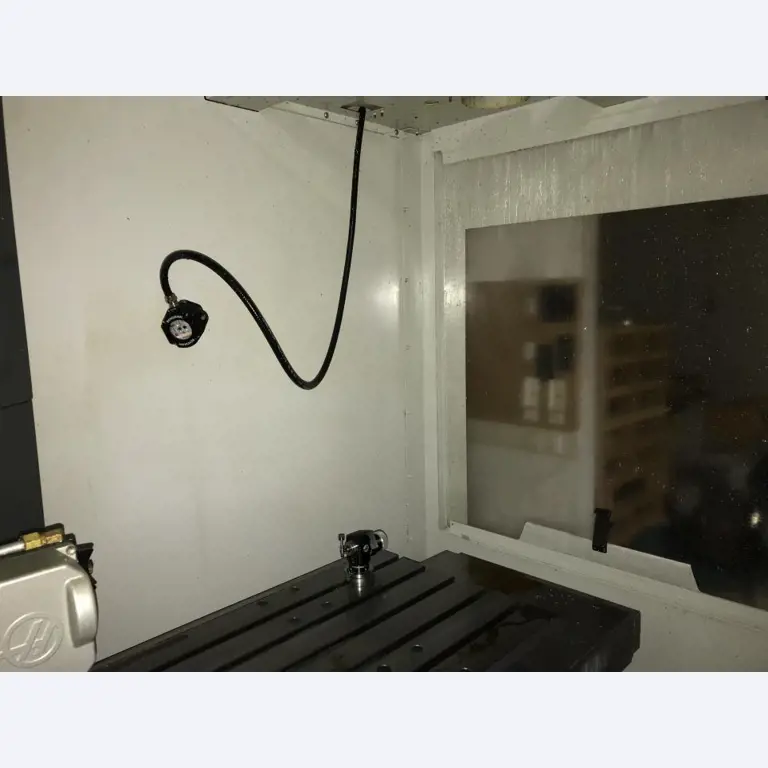

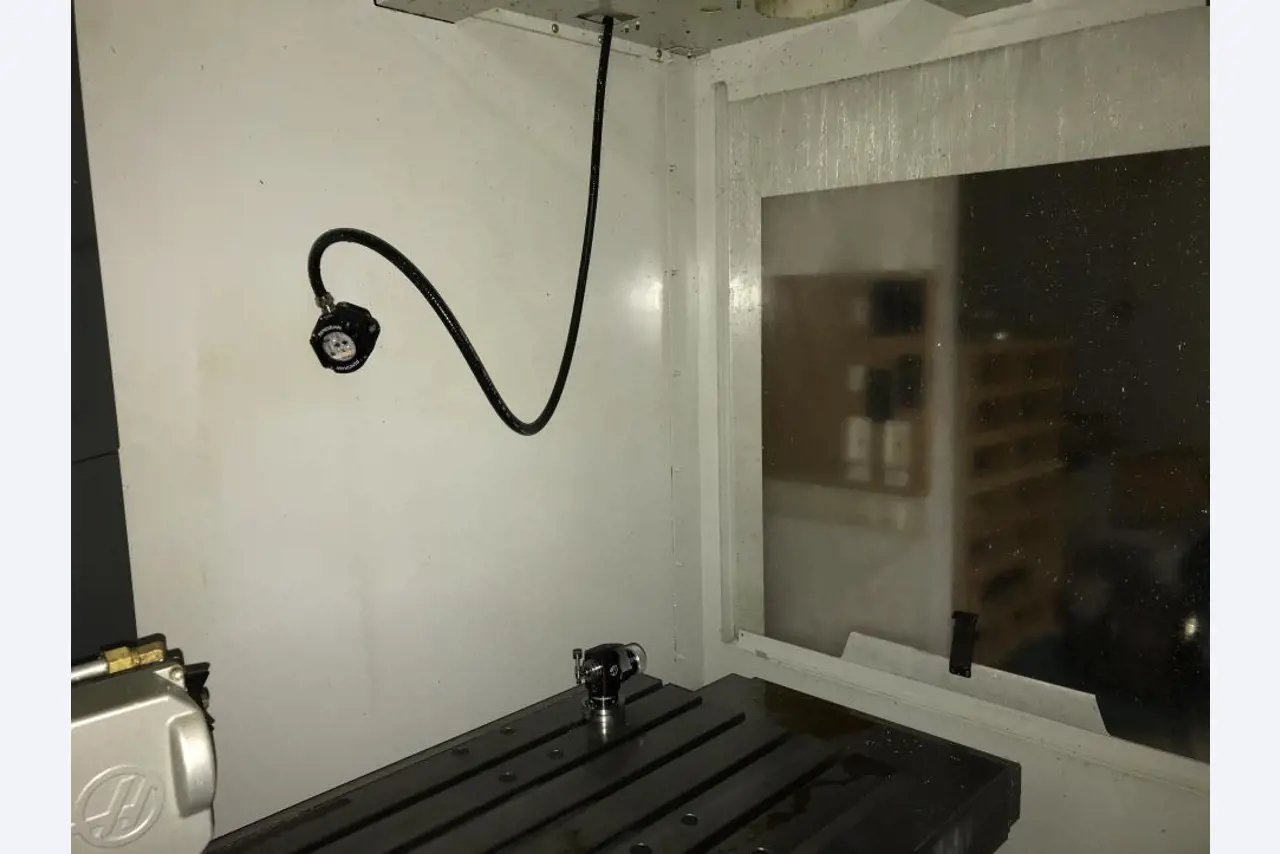

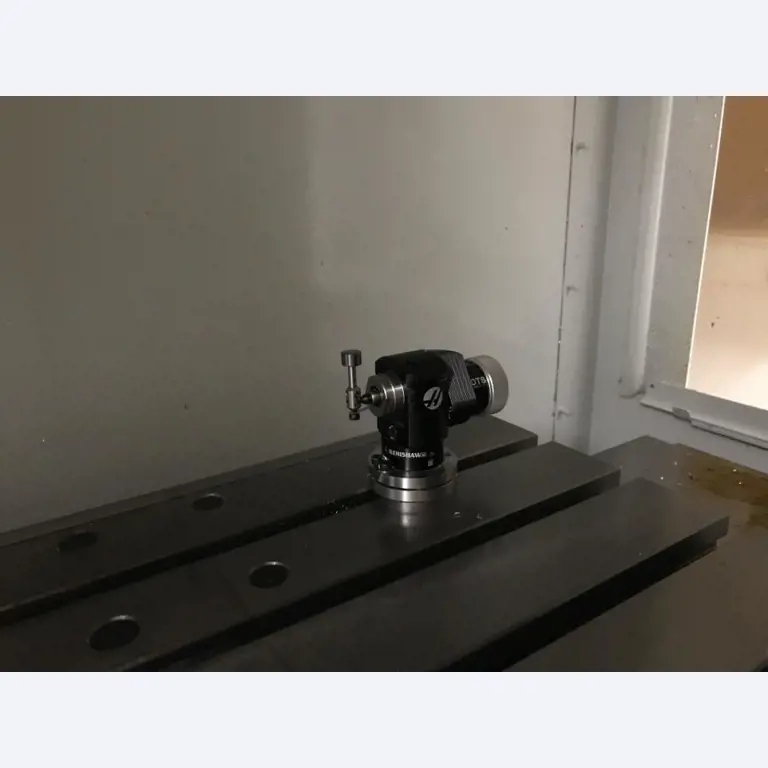

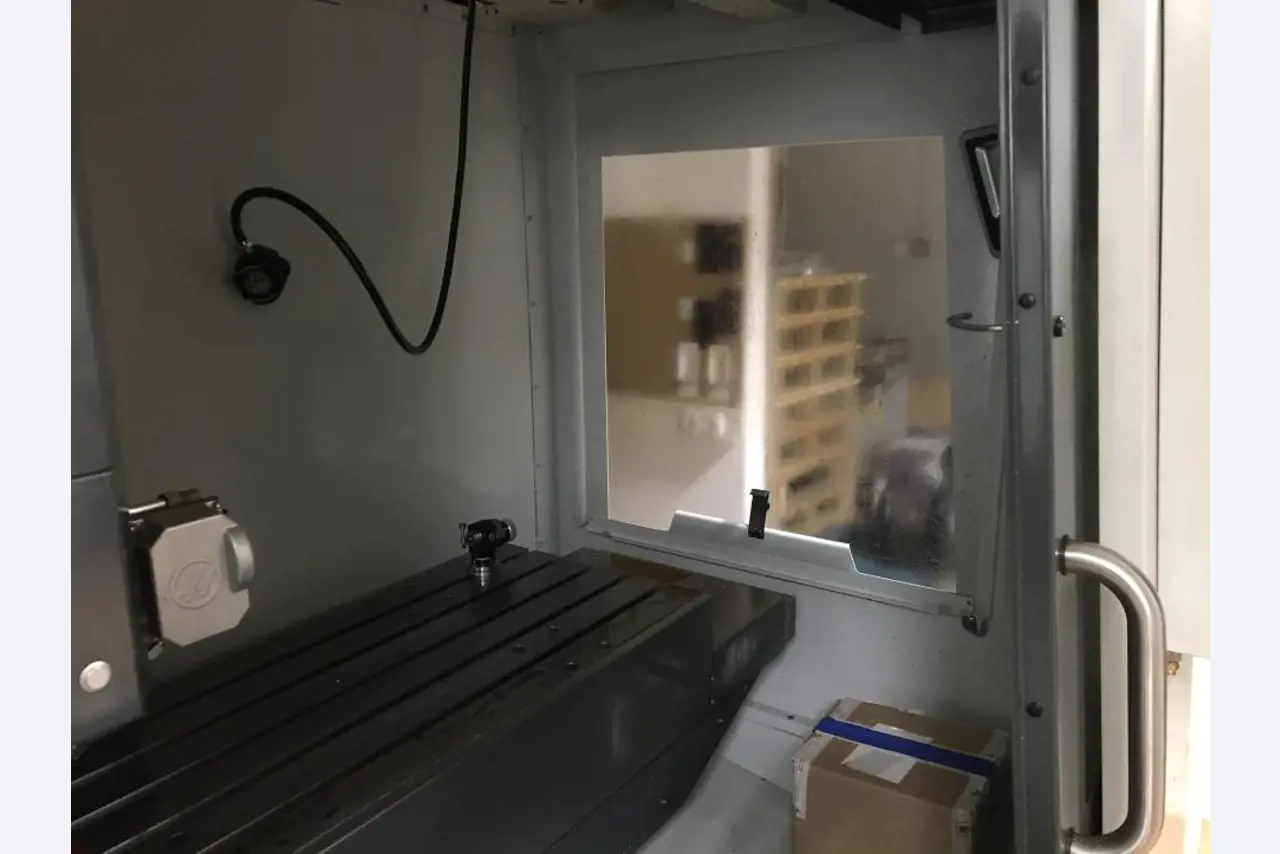

17 TOOL Measurement Renishaw
18 Programmable Coolant nozzle
(19 Workpiece measurement Renishaw)

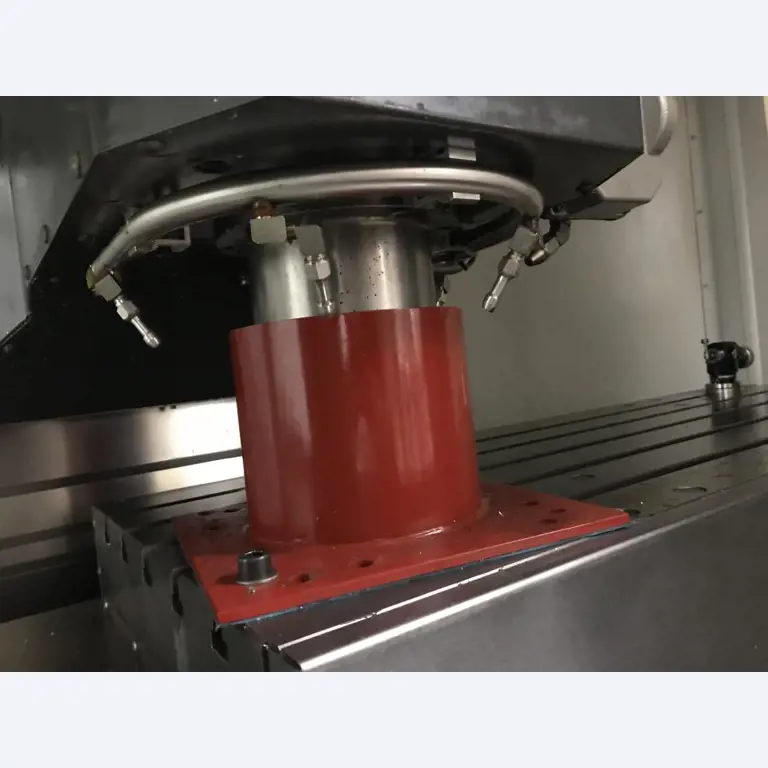

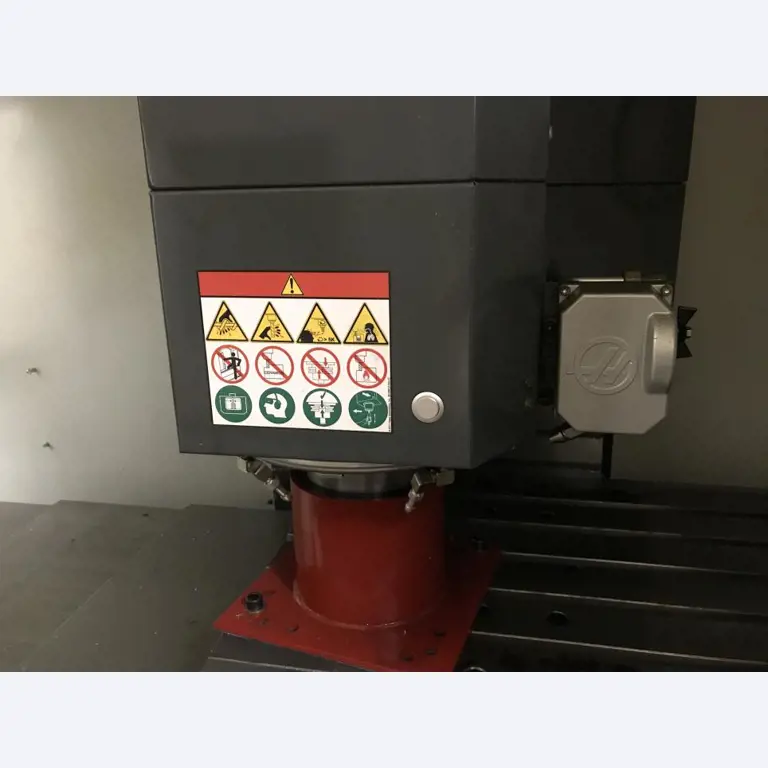

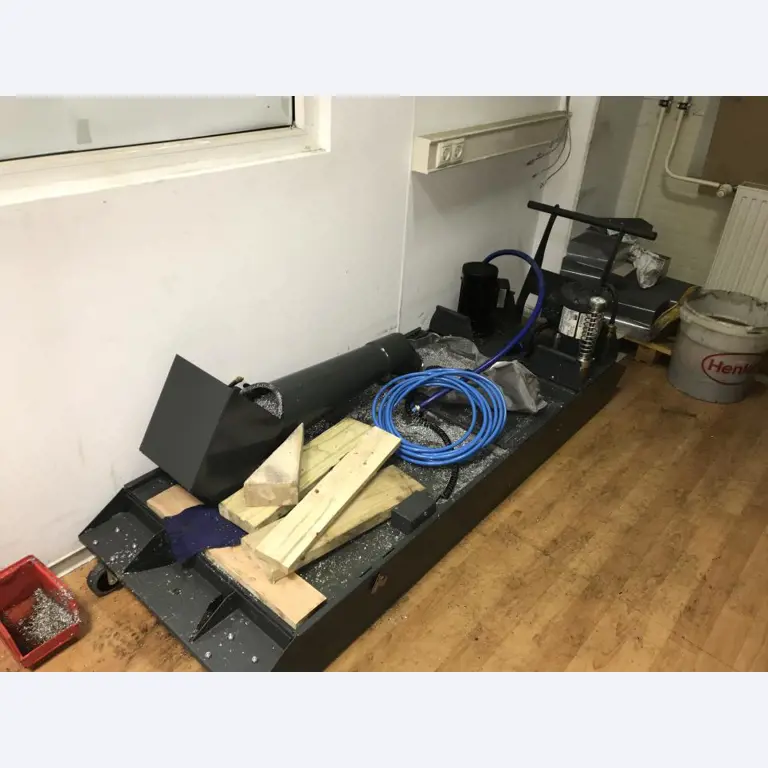

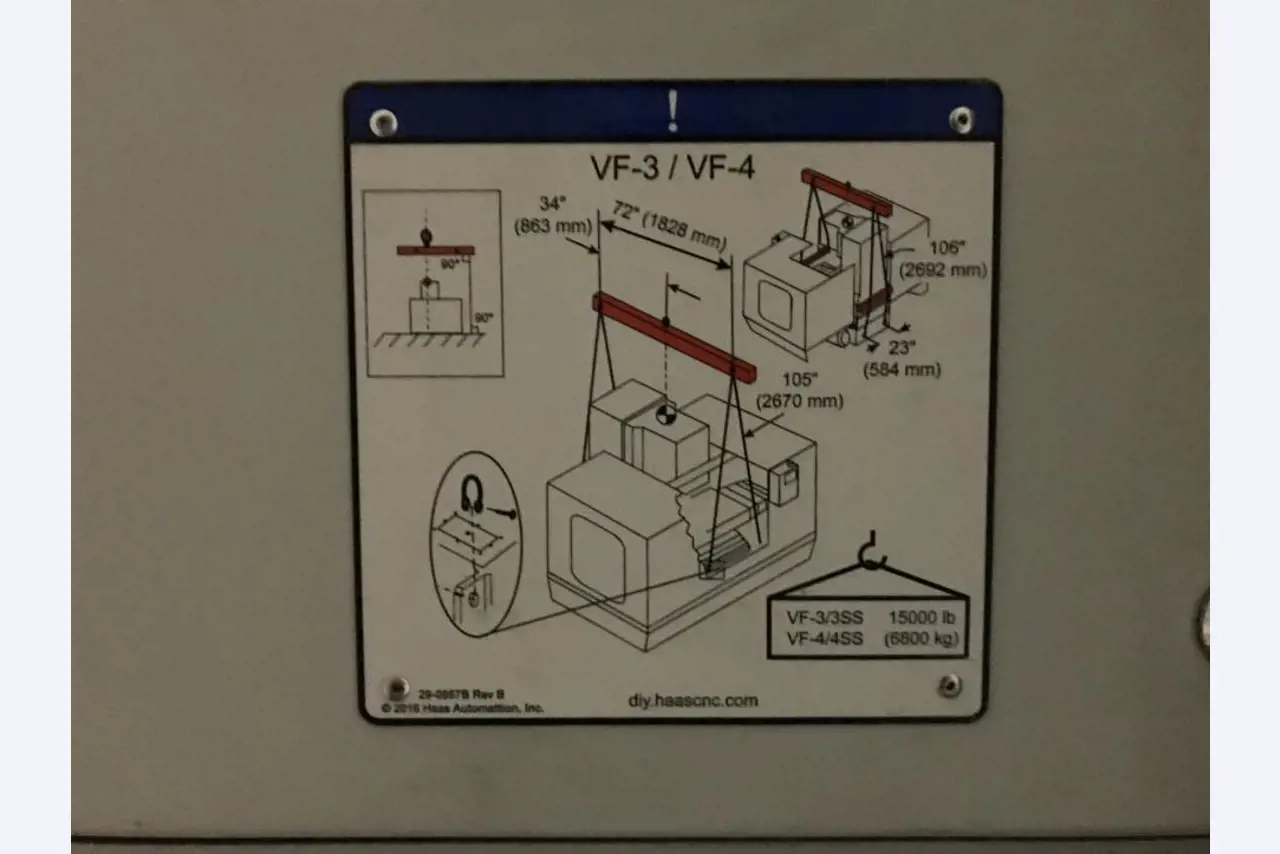

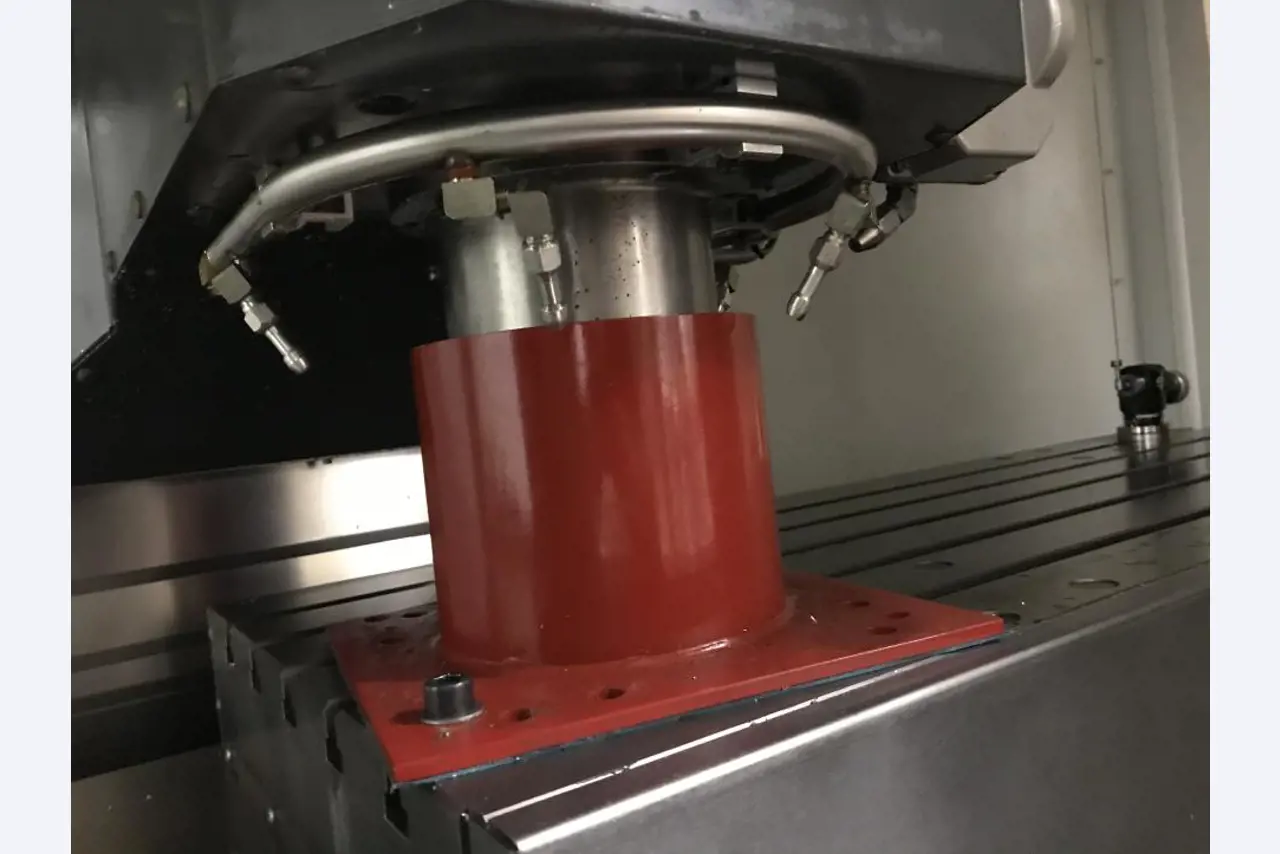

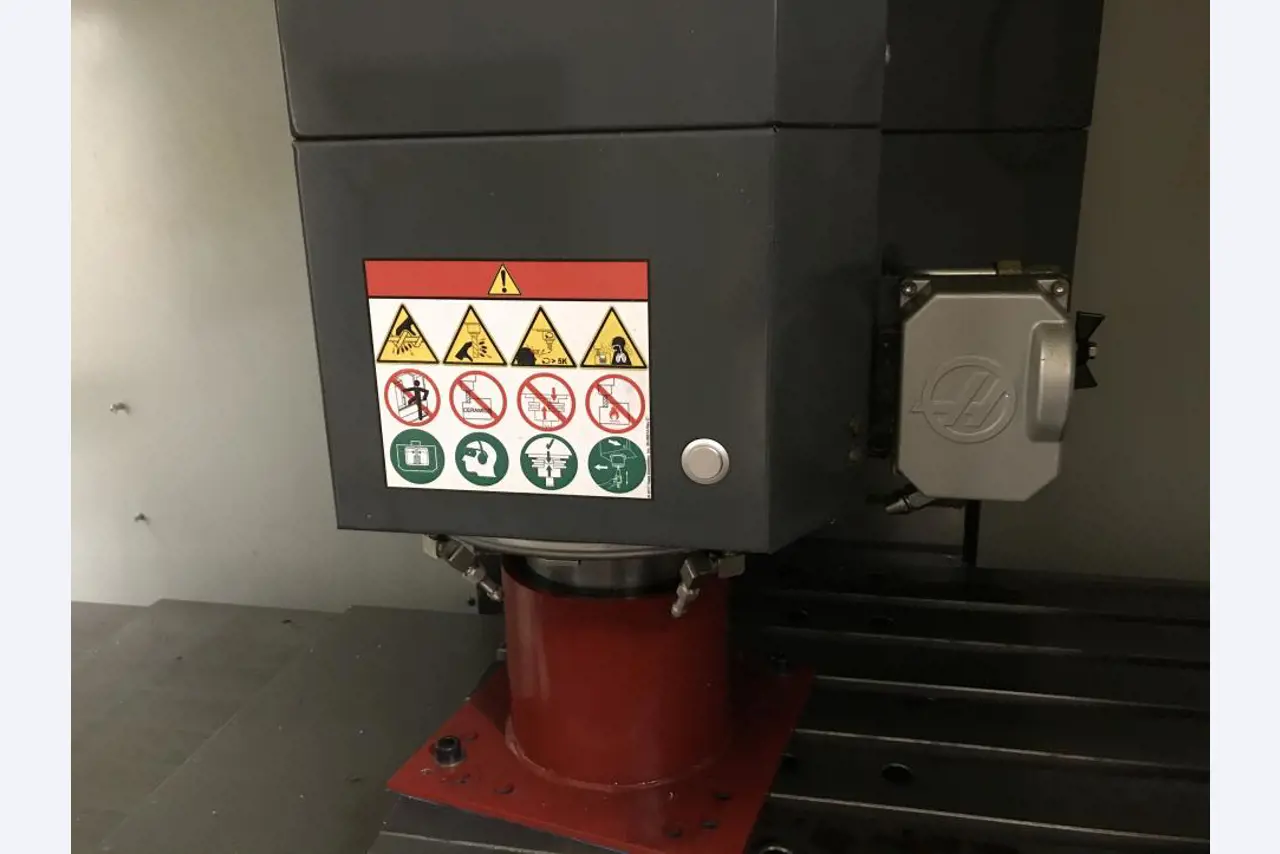

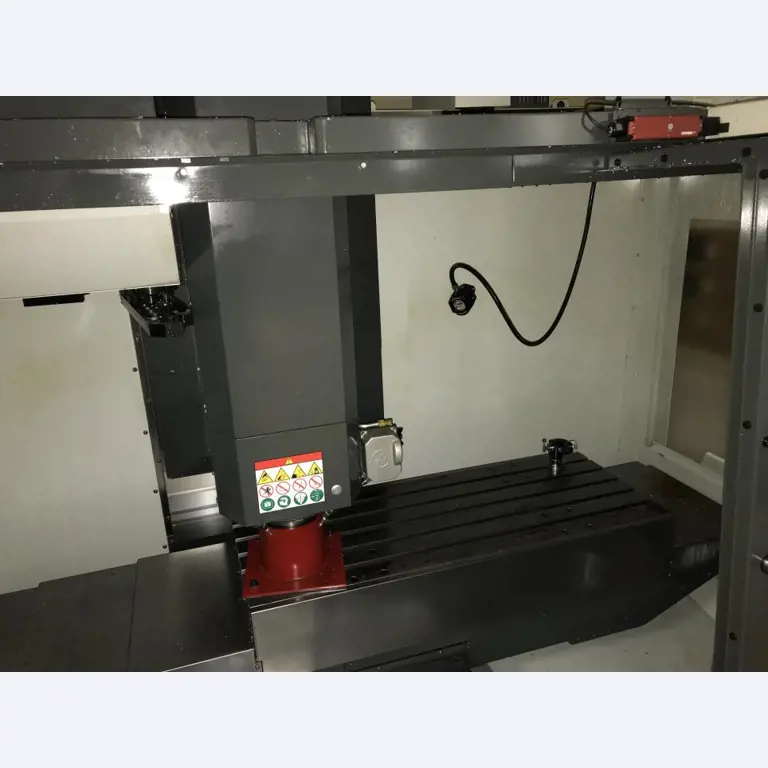

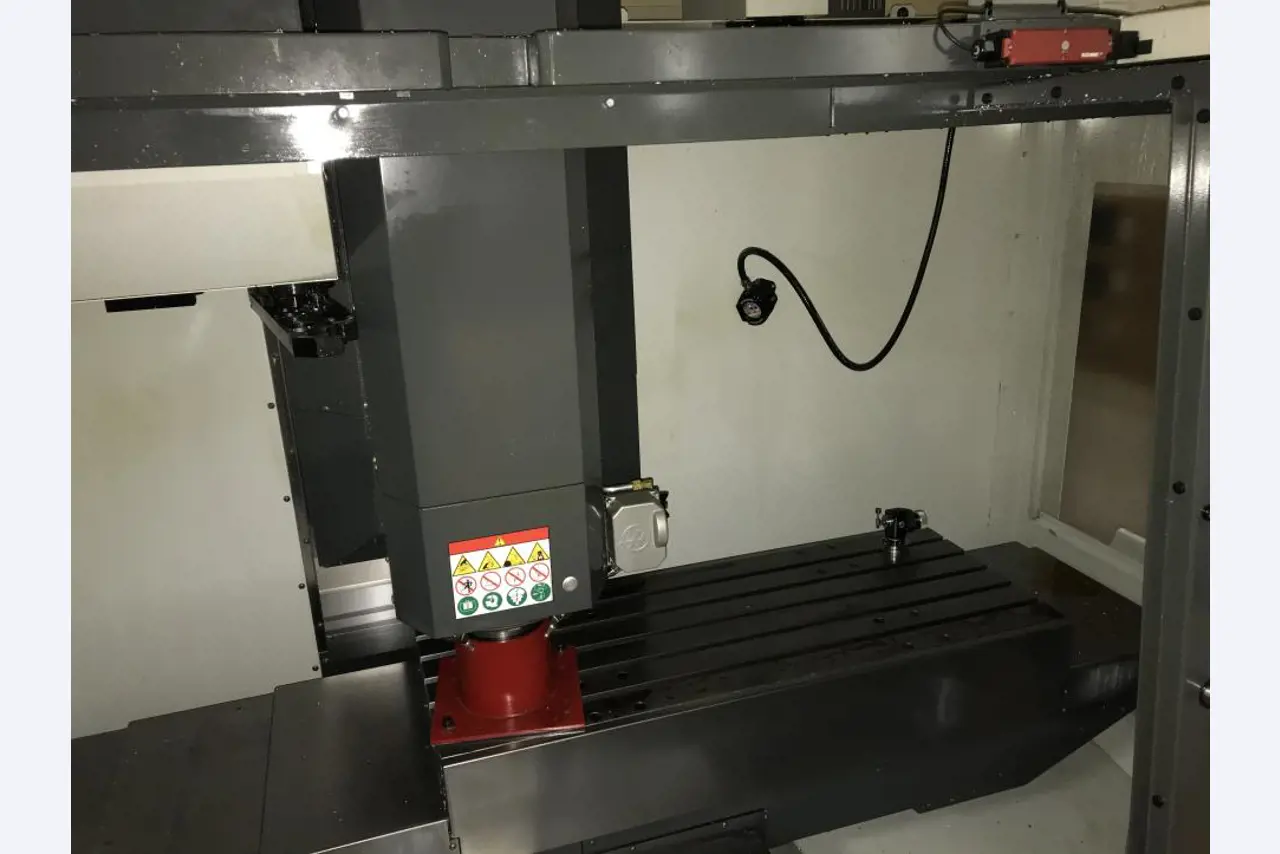

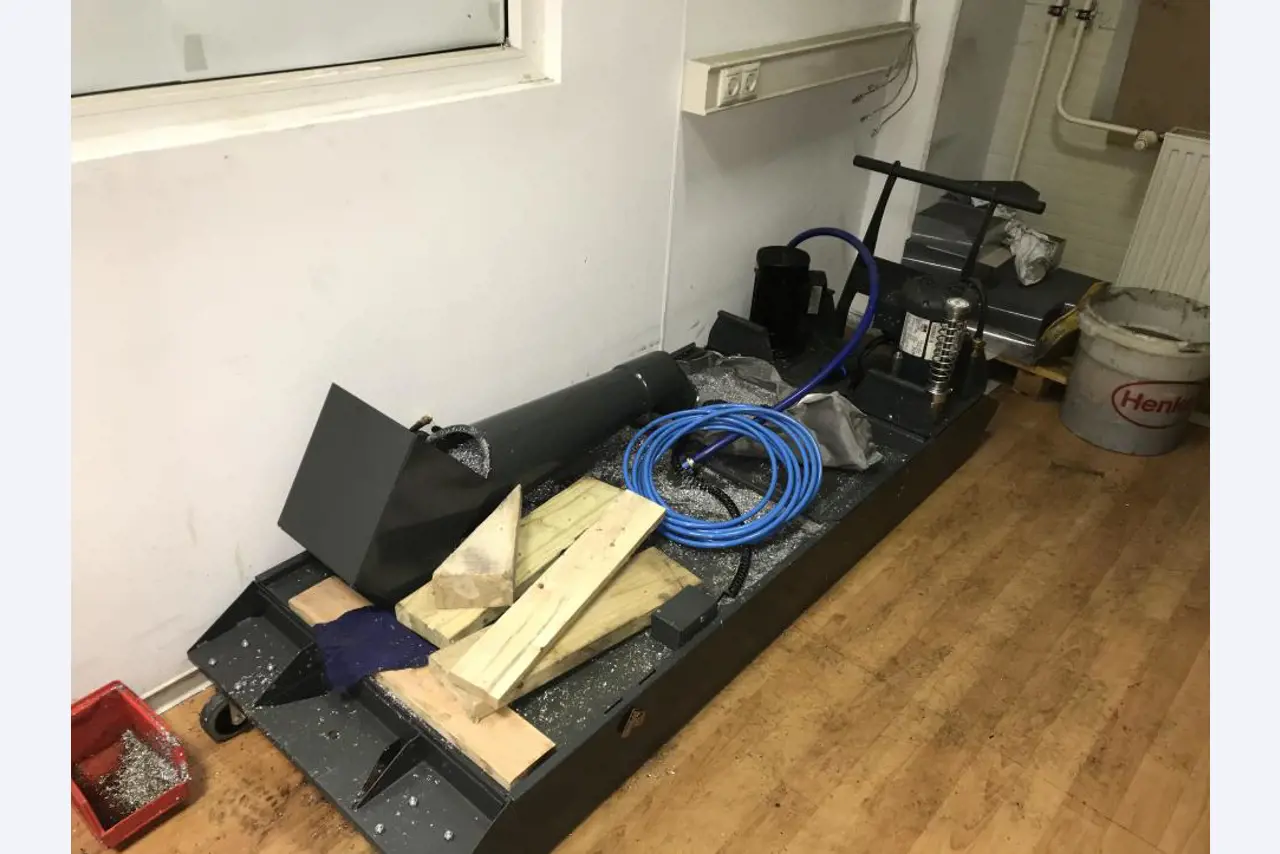

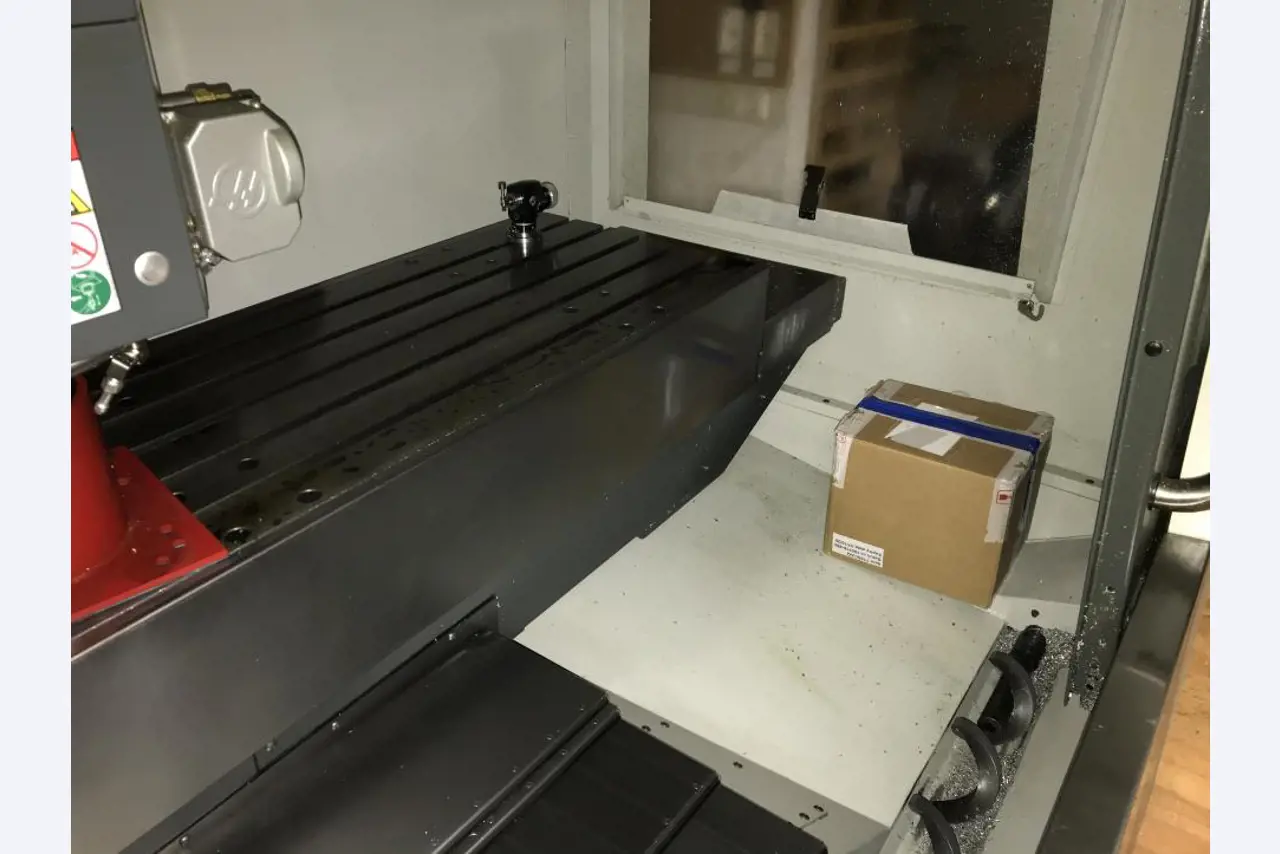

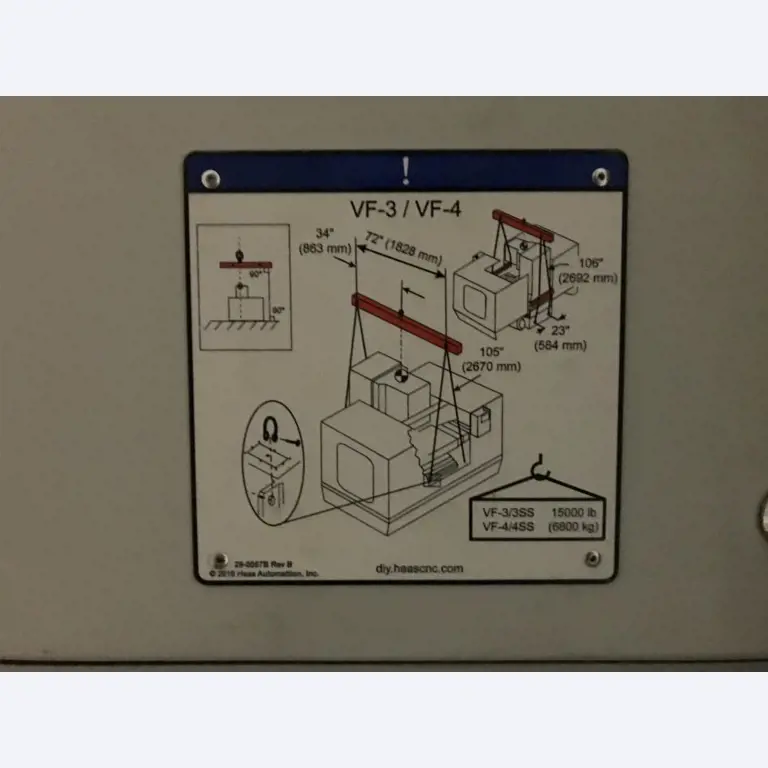

The machine is ready for the transport: the spindle was attached to the machine table, the chip removal and cooling water tray was highlighted, 2 machine feet were removed for transport.

Machine data comply with data sheets and are without guarantee!
