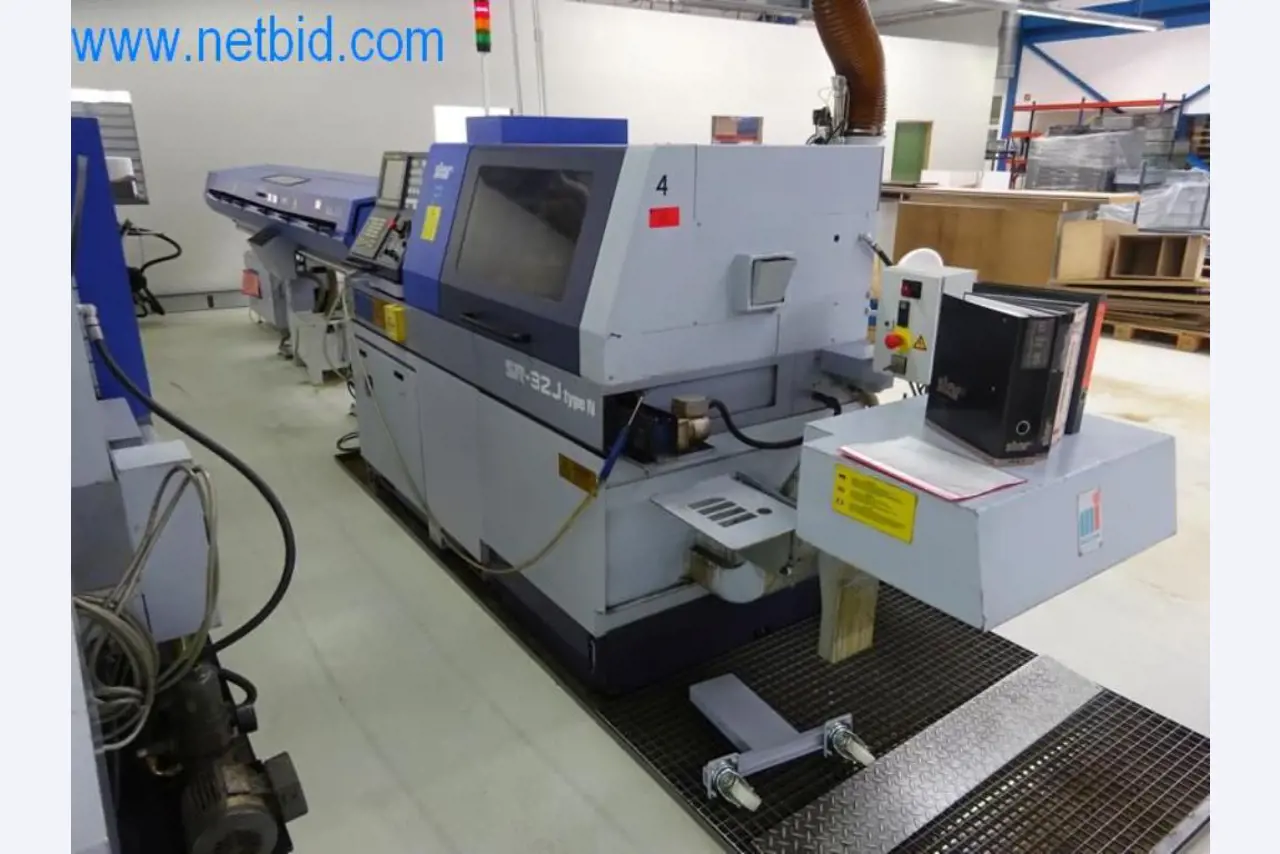

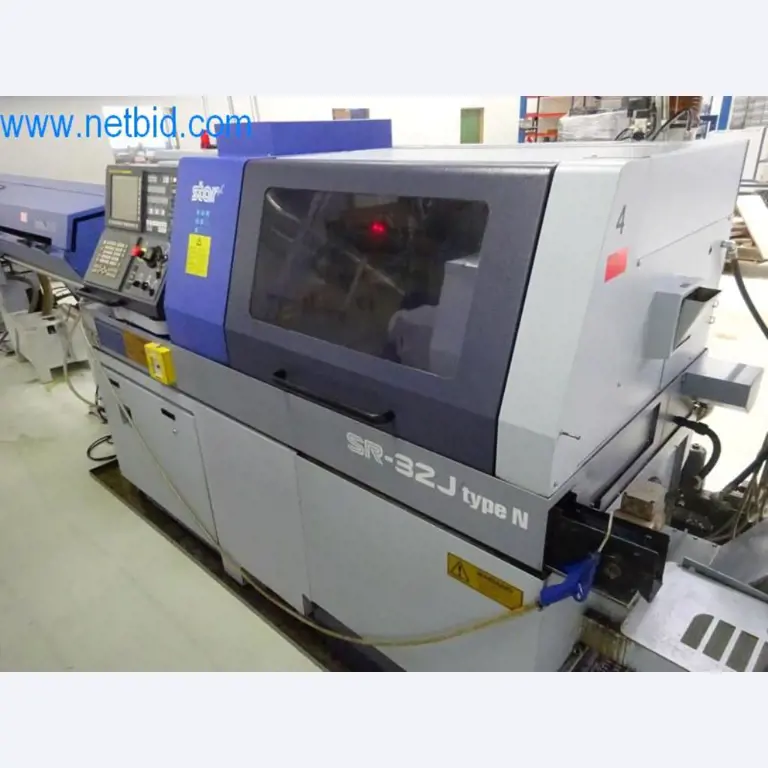

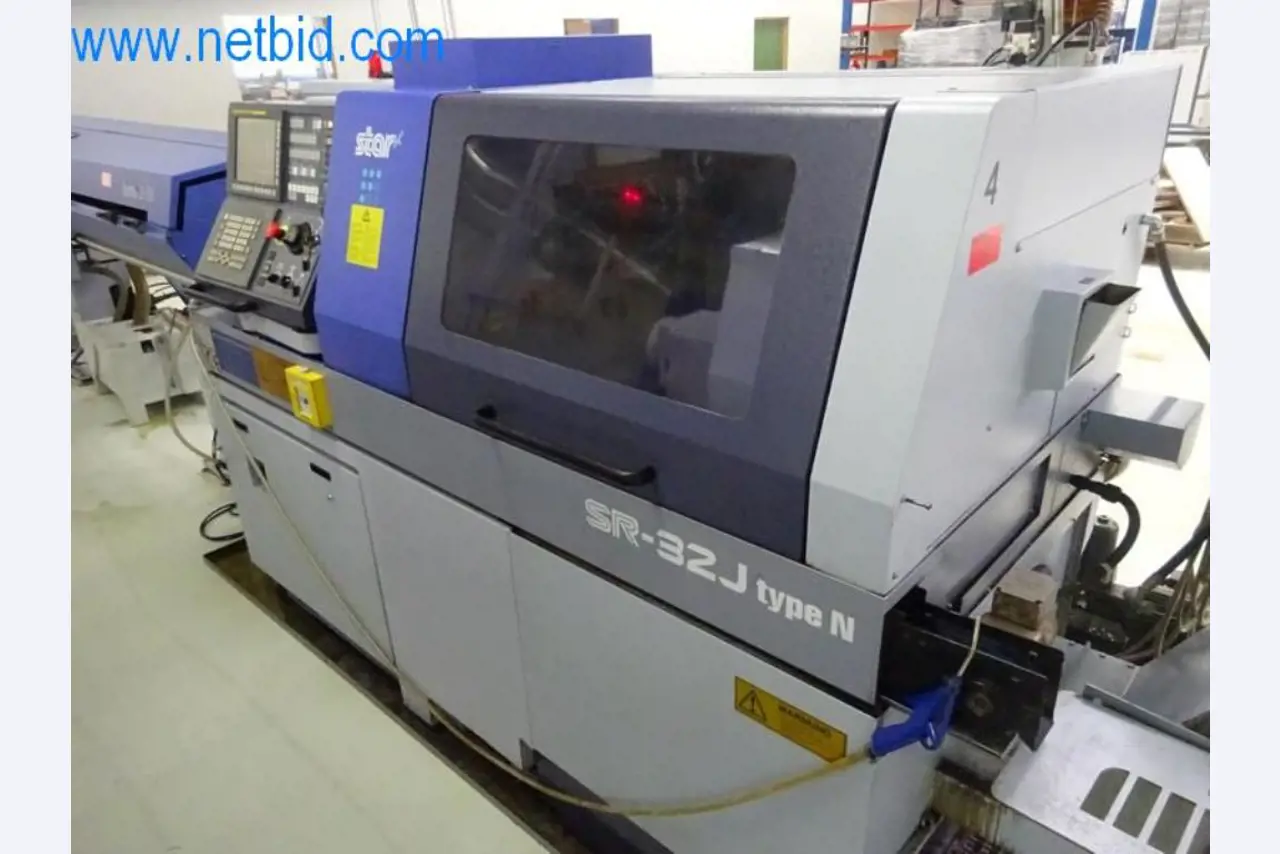

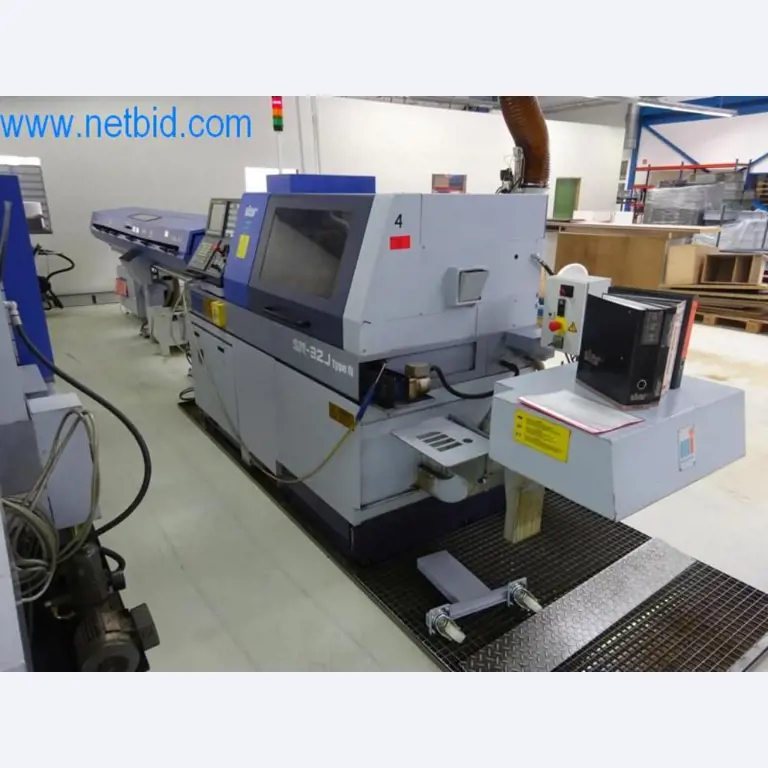

CNC Swiss type lathe Star SR-32J Typ N 670

Auction #15089-18

Share with

This auction has ended.
Well-maintained metalworking machines as well as the operating and office equipment -1
Well-maintained metalworking machines as well as the operating and office equipment -2
Well-maintained metalworking machines as well as the operating and office equipment -3
Well-maintained metalworking machines as well as the operating and office equipment -4
Well-maintained metalworking machines as well as the operating and office equipment -5
Well-maintained metalworking machines as well as the operating and office equipment -6
Well-maintained metalworking machines as well as the operating and office equipment -7
Well-maintained metalworking machines as well as the operating and office equipment -8
Well-maintained metalworking machines as well as the operating and office equipment -9
Well-maintained metalworking machines as well as the operating and office equipment -10
Well-maintained metalworking machines as well as the operating and office equipment -11
Well-maintained metalworking machines as well as the operating and office equipment -12
Well-maintained metalworking machines as well as the operating and office equipment -13
Well-maintained metalworking machines as well as the operating and office equipment -14
Well-maintained metalworking machines as well as the operating and office equipment -15
Well-maintained metalworking machines as well as the operating and office equipment -16
thumbnail-Well-maintained metalworking machines as well as the operating and office equipment -1
thumbnail-Well-maintained metalworking machines as well as the operating and office equipment -2
thumbnail-Well-maintained metalworking machines as well as the operating and office equipment -3
thumbnail-Well-maintained metalworking machines as well as the operating and office equipment -4
thumbnail-Well-maintained metalworking machines as well as the operating and office equipment -5
thumbnail-Well-maintained metalworking machines as well as the operating and office equipment -6
thumbnail-Well-maintained metalworking machines as well as the operating and office equipment -7
thumbnail-Well-maintained metalworking machines as well as the operating and office equipment -8
thumbnail-Well-maintained metalworking machines as well as the operating and office equipment -9
thumbnail-Well-maintained metalworking machines as well as the operating and office equipment -10
thumbnail-Well-maintained metalworking machines as well as the operating and office equipment -11
thumbnail-Well-maintained metalworking machines as well as the operating and office equipment -12
thumbnail-Well-maintained metalworking machines as well as the operating and office equipment -13
thumbnail-Well-maintained metalworking machines as well as the operating and office equipment -14
thumbnail-Well-maintained metalworking machines as well as the operating and office equipment -15
thumbnail-Well-maintained metalworking machines as well as the operating and office equipment -16

Details

Product Type

Star

Type

SR-32J Typ N 670

Construction Year

2014

Description

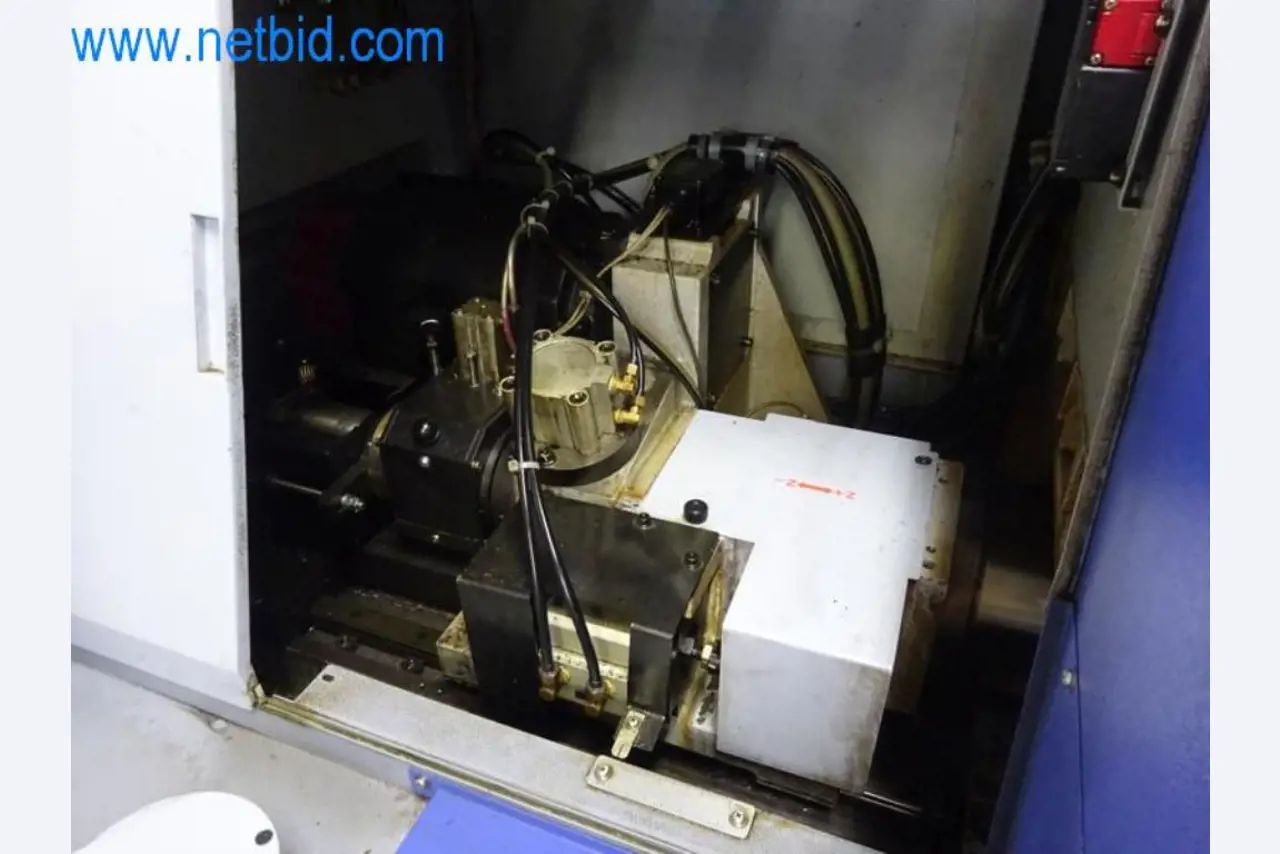

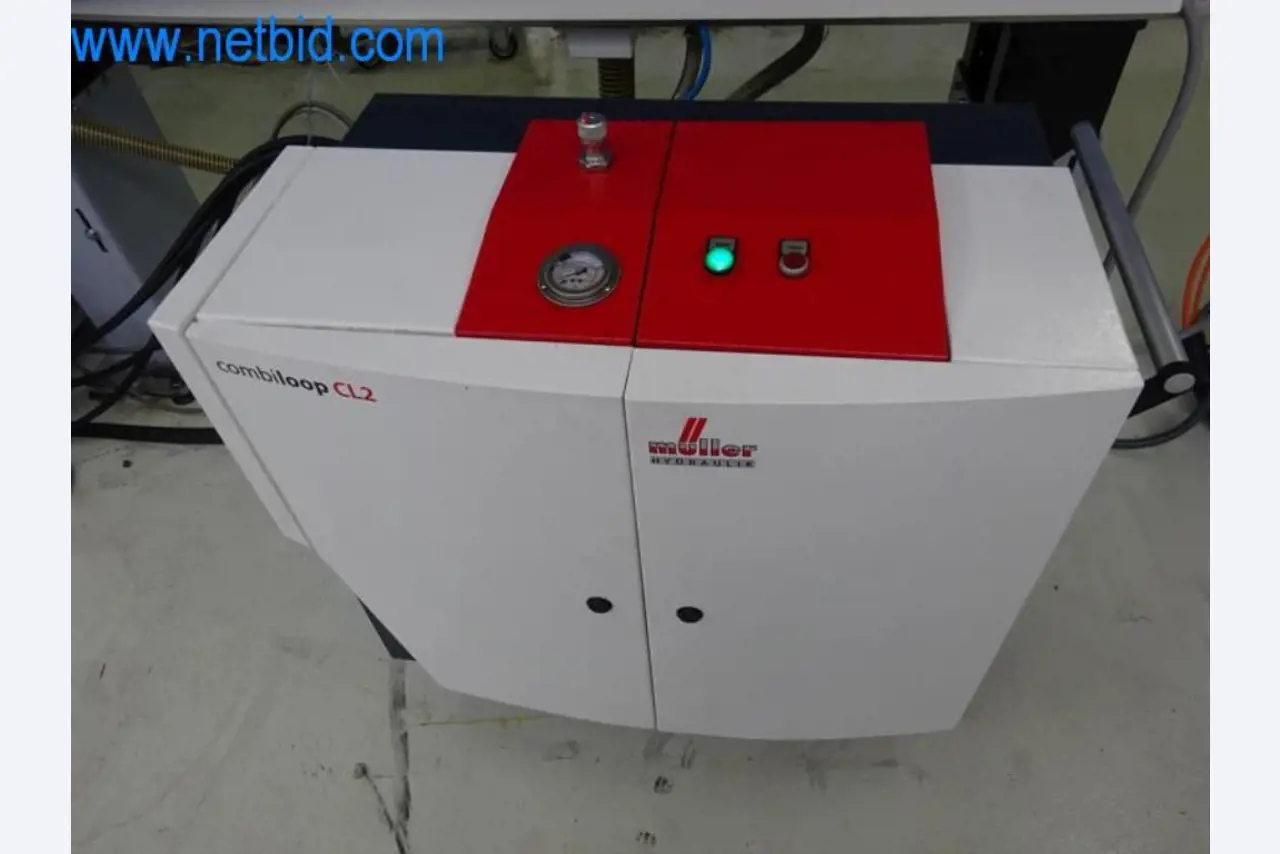

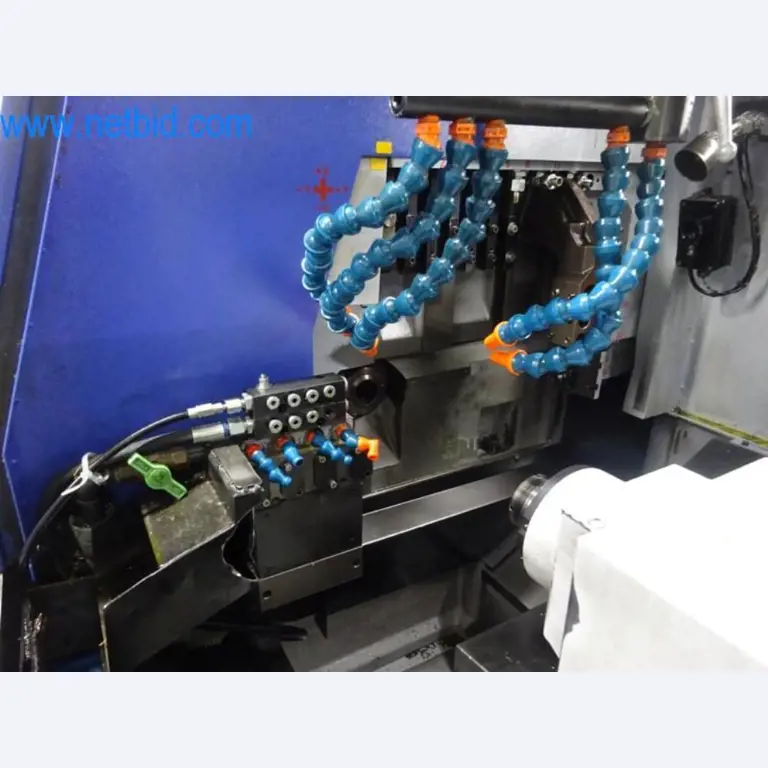

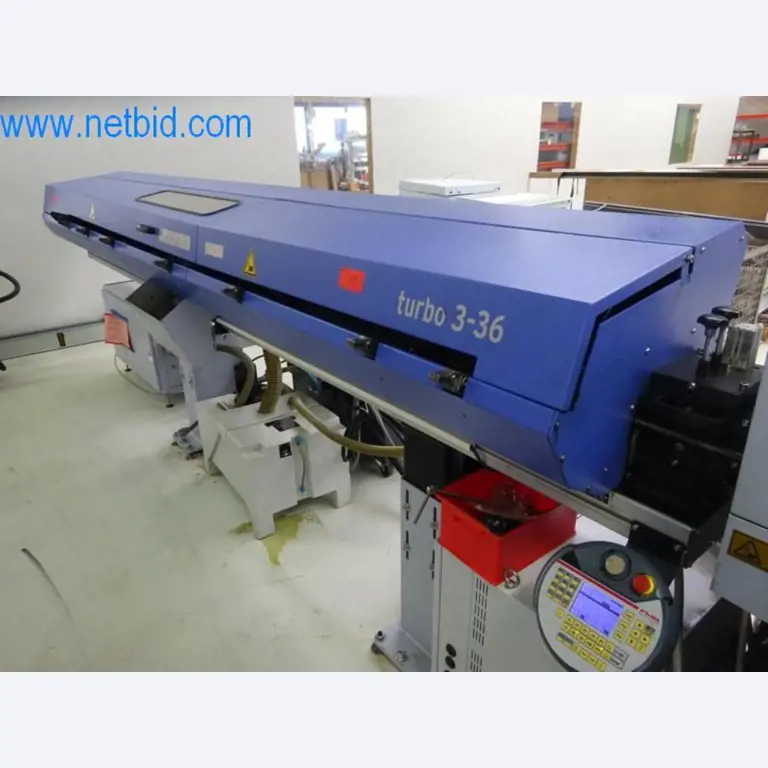

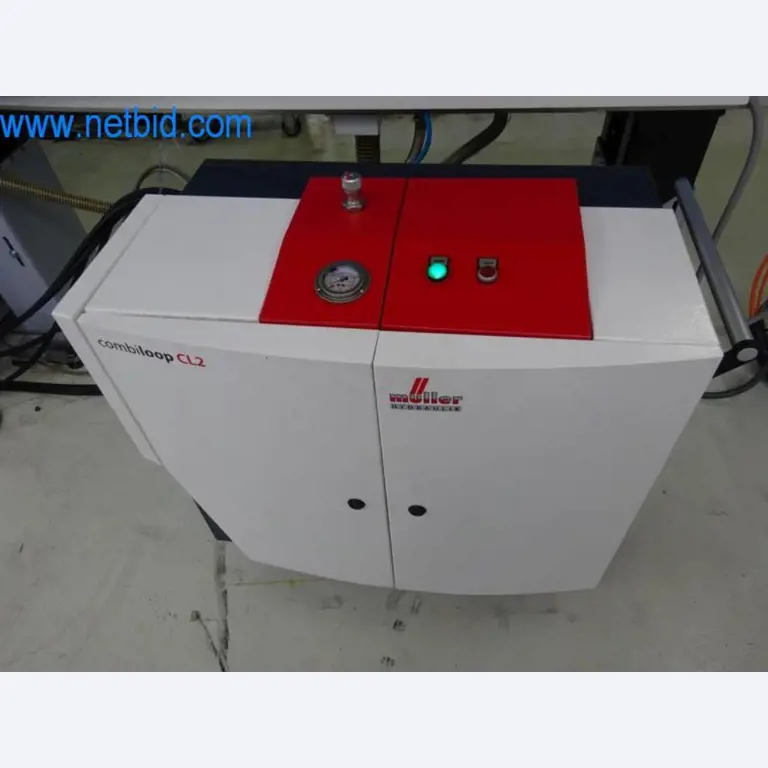

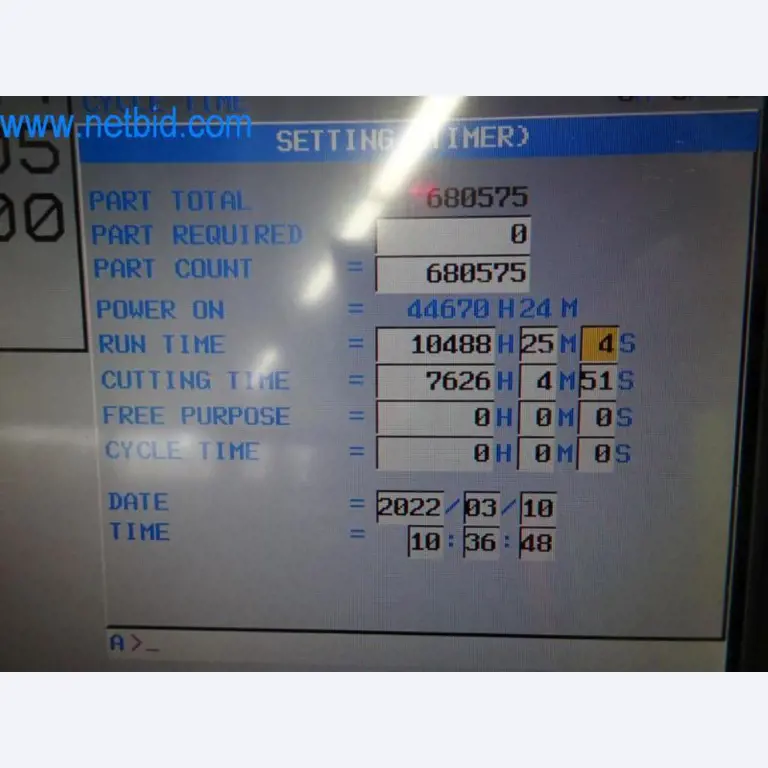

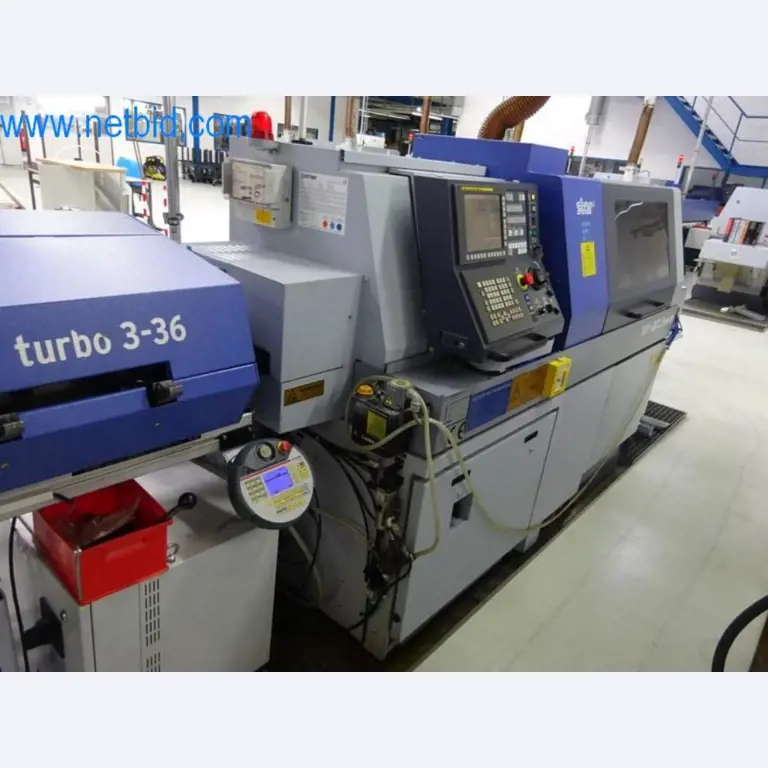

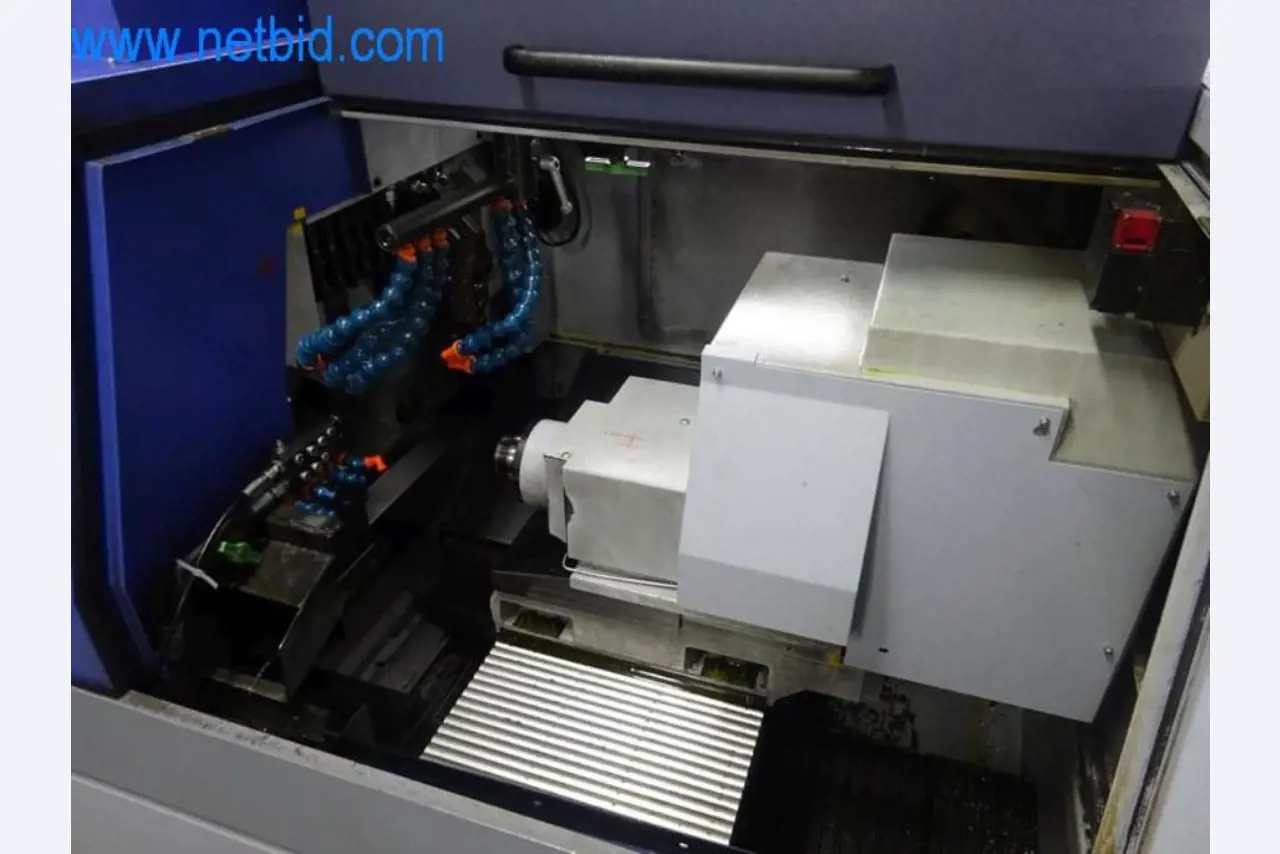

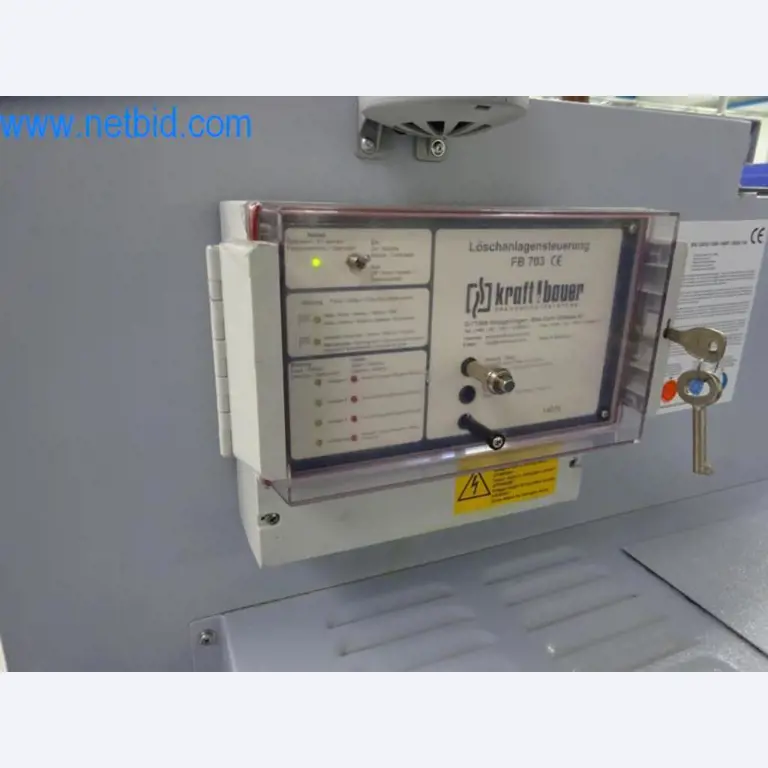

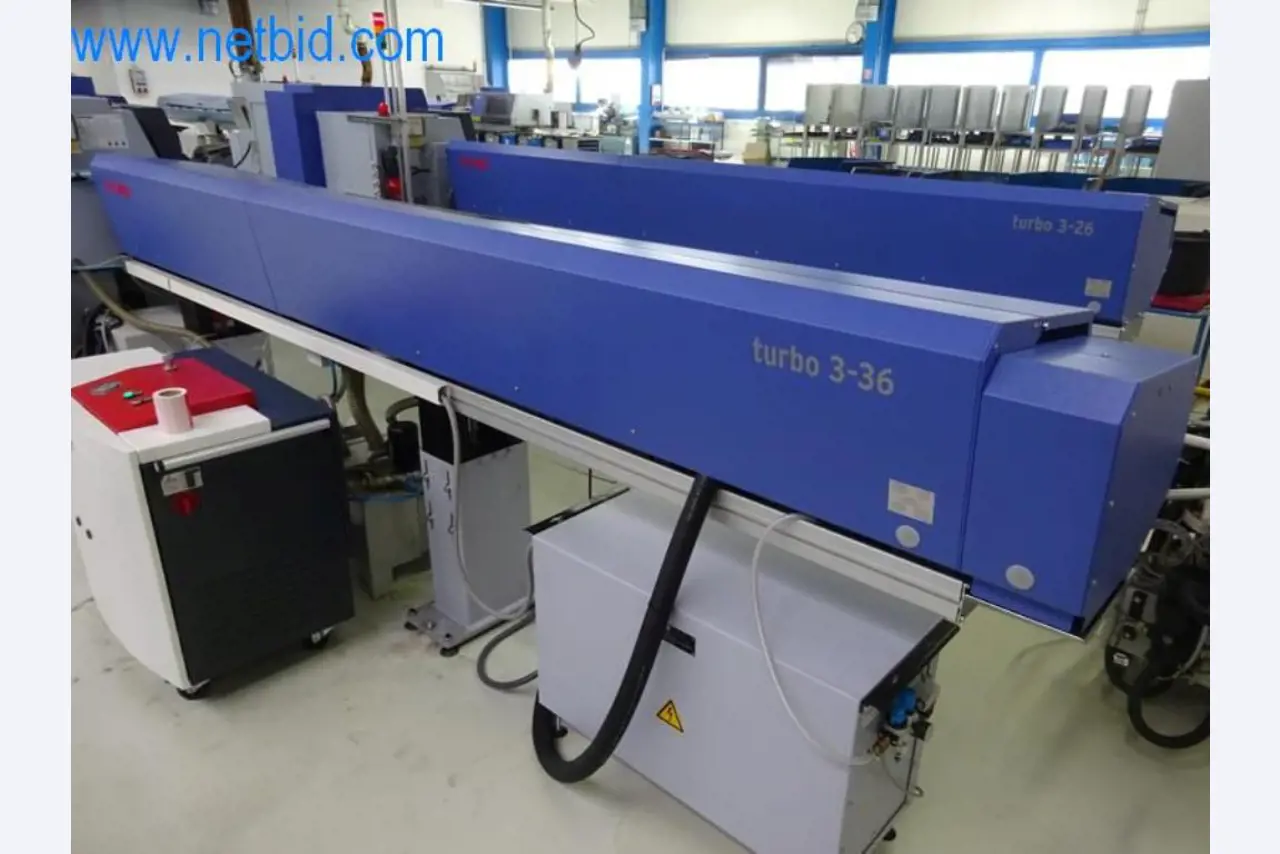

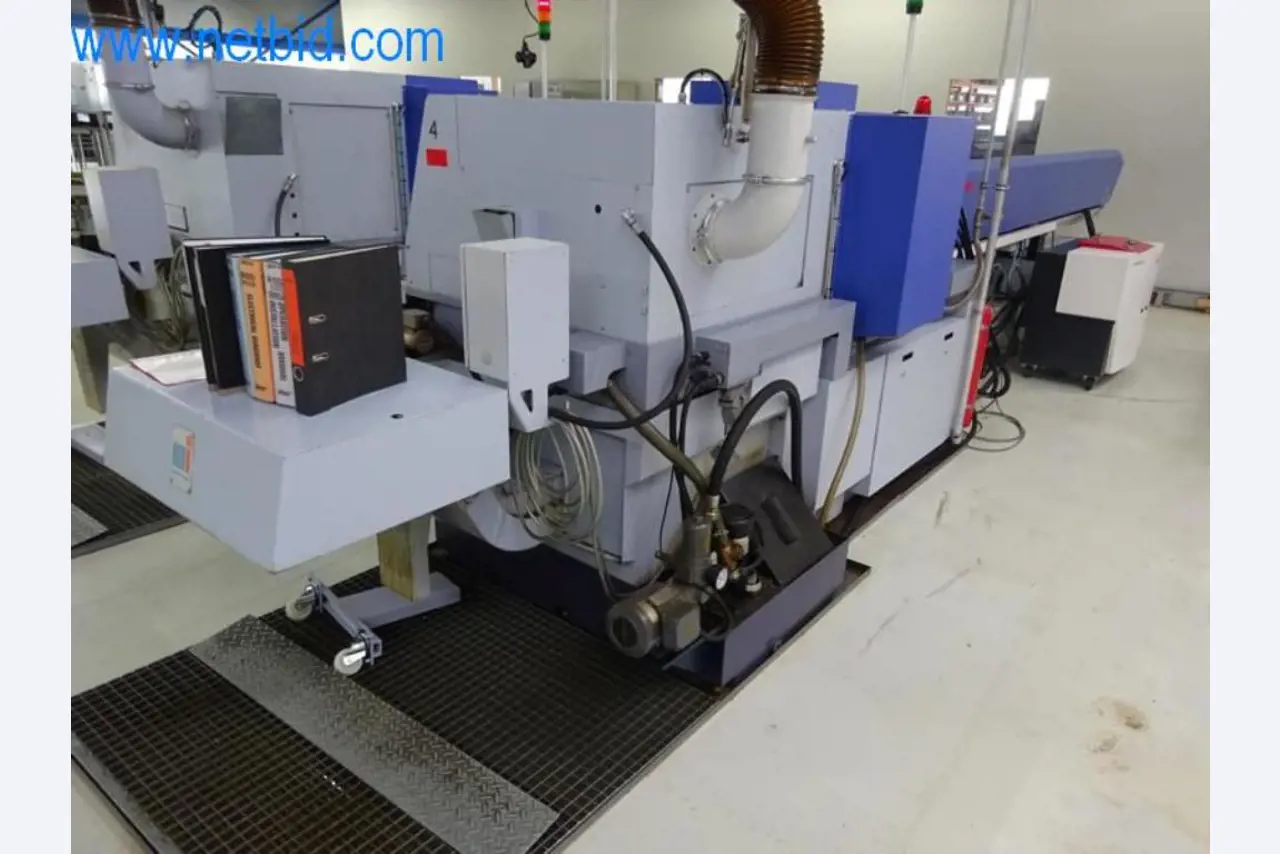

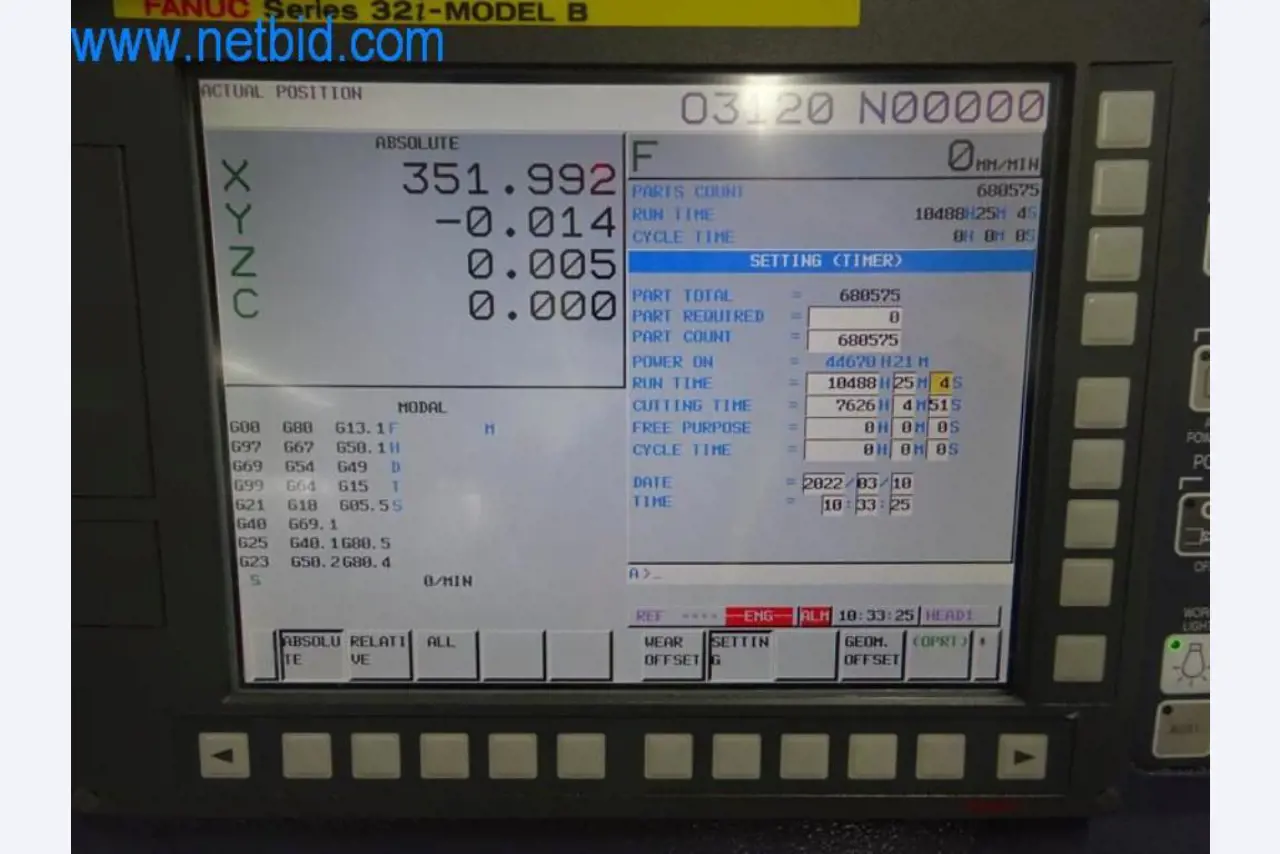

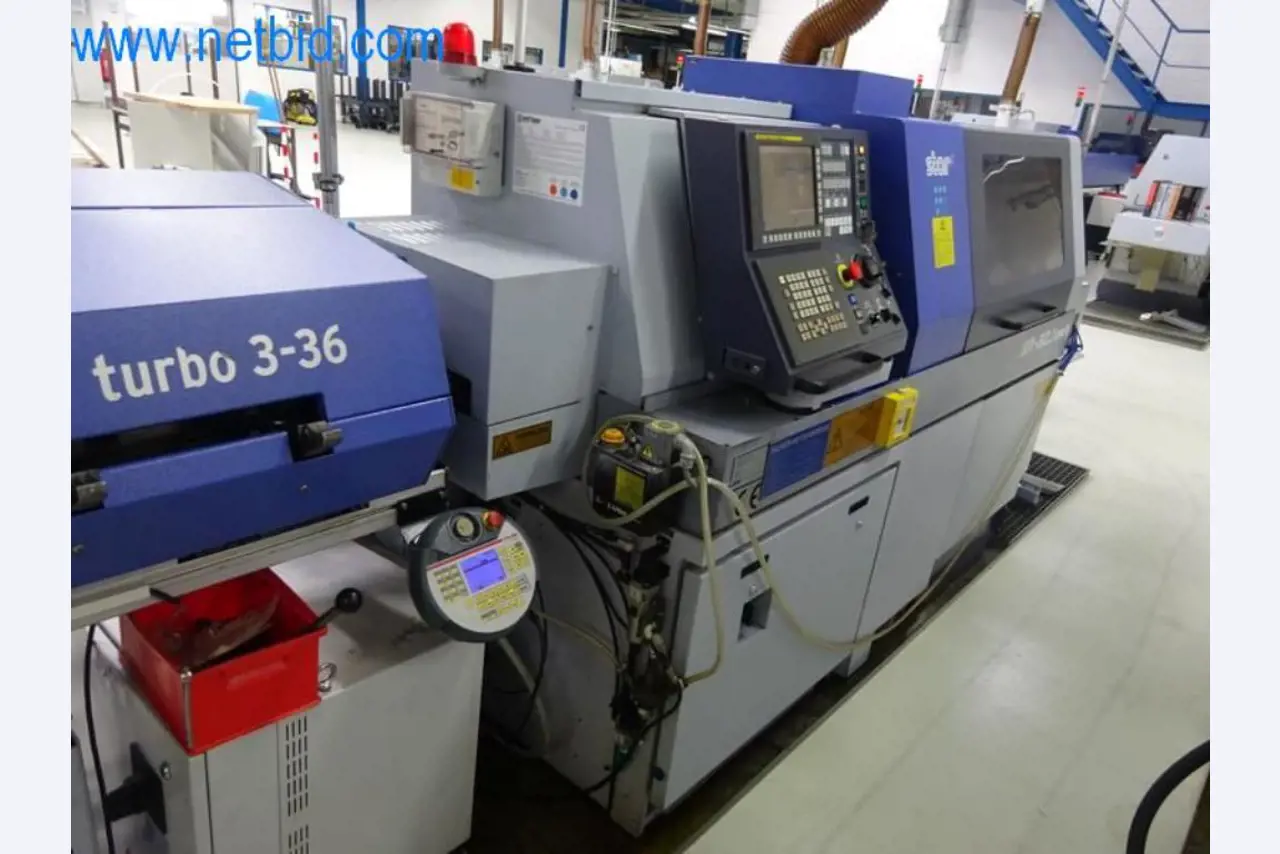

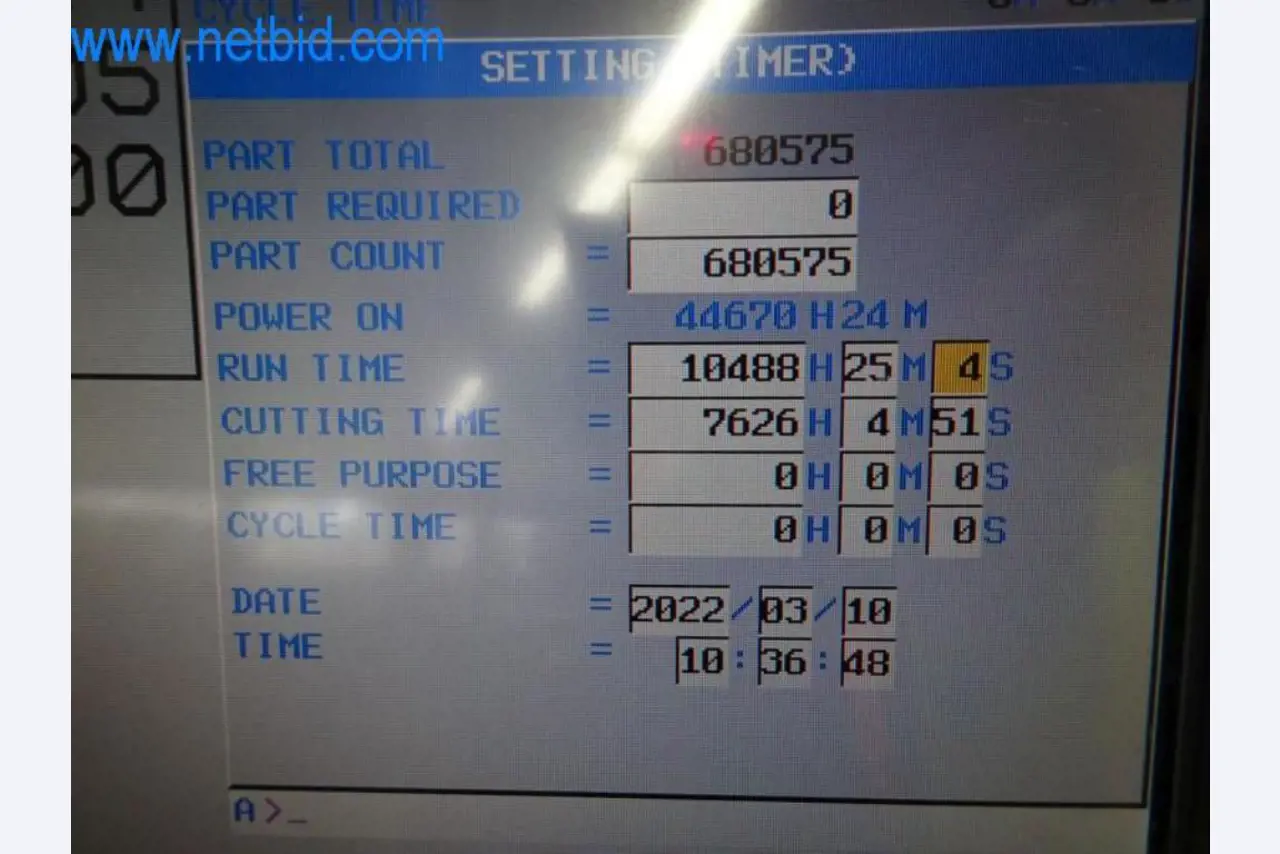

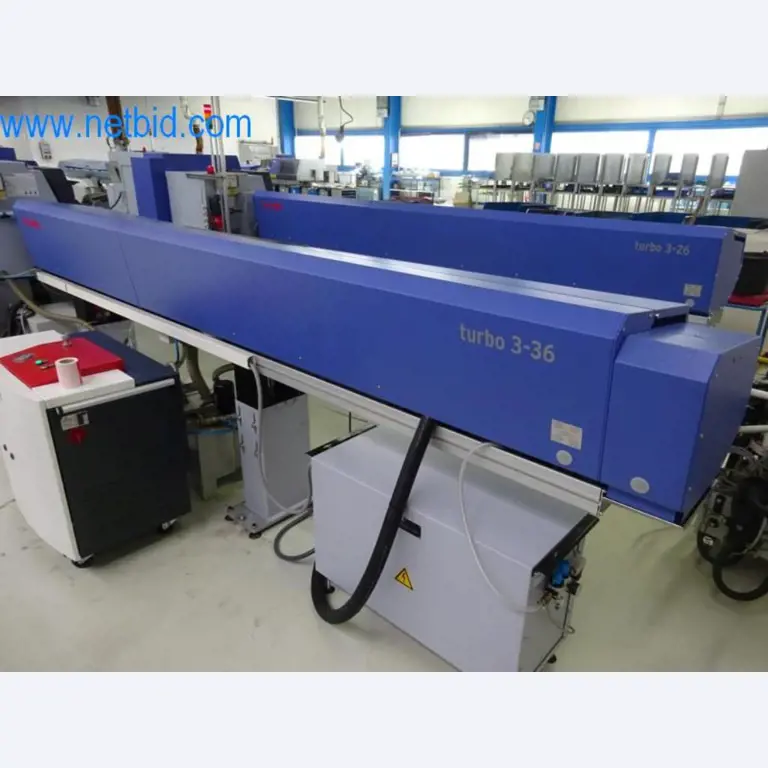

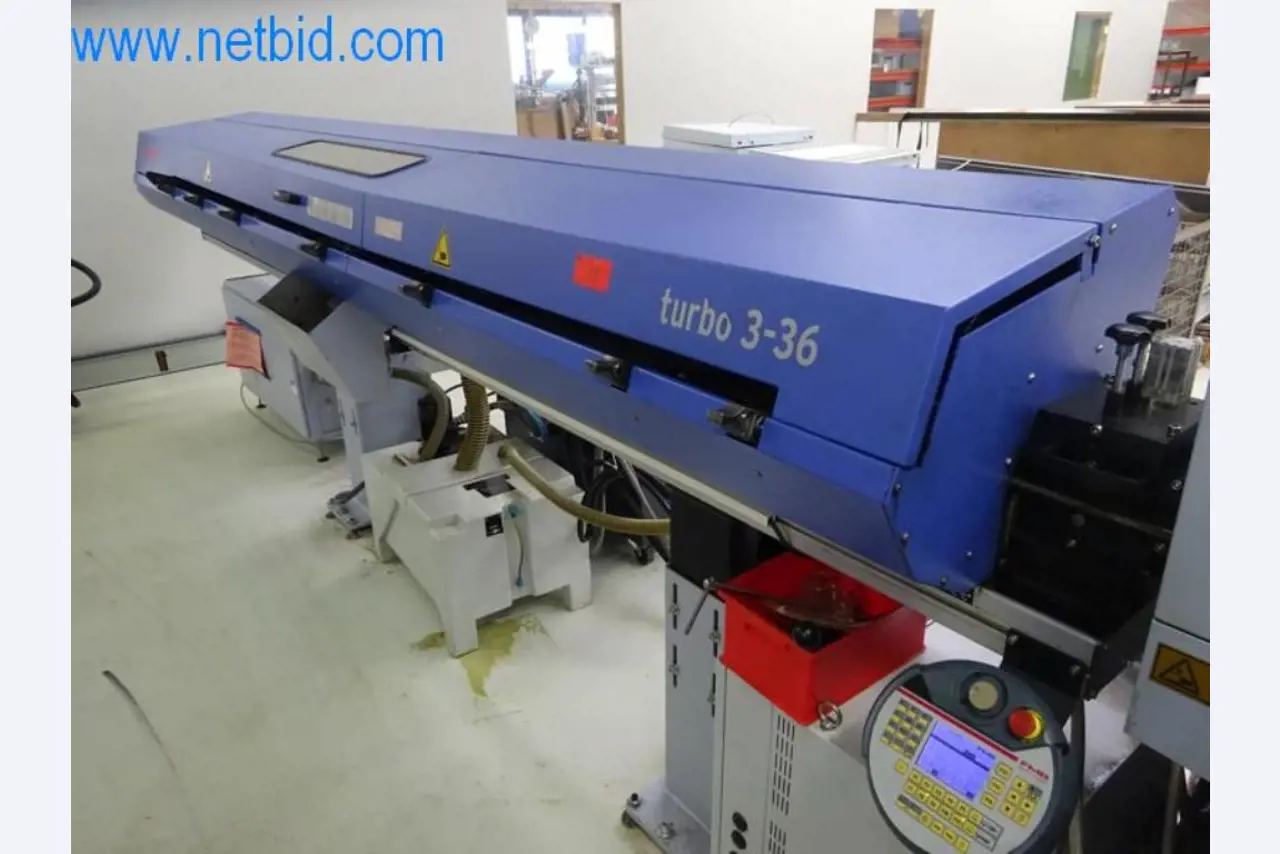

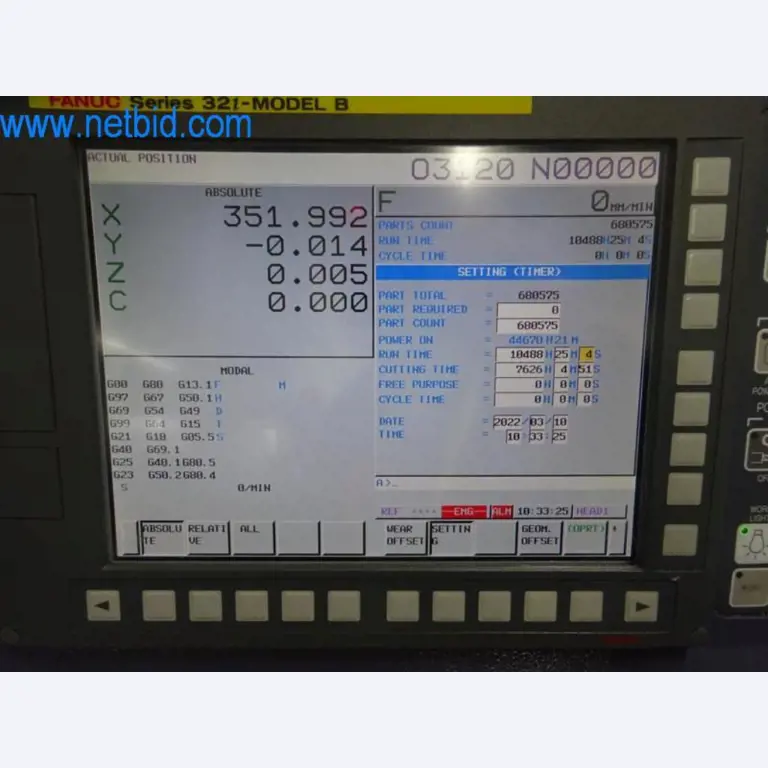

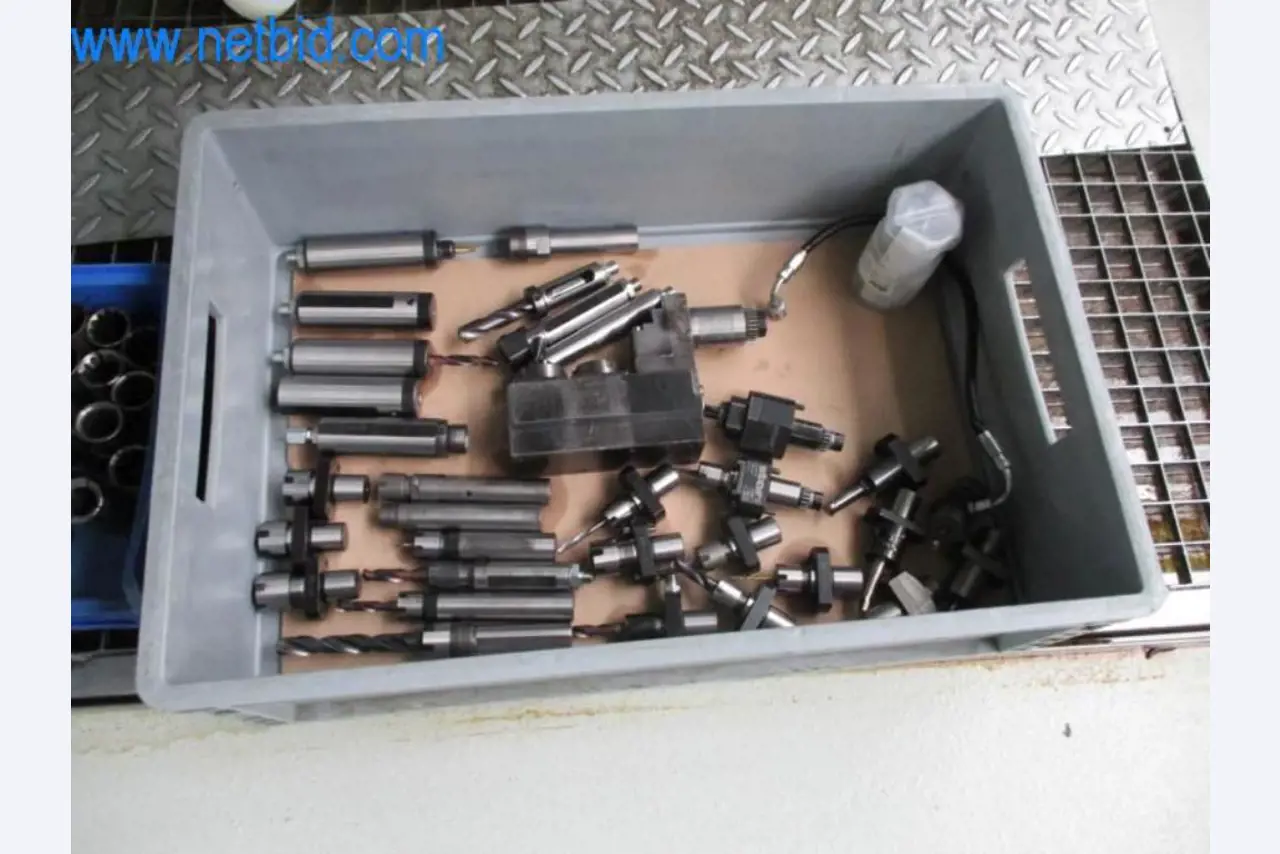

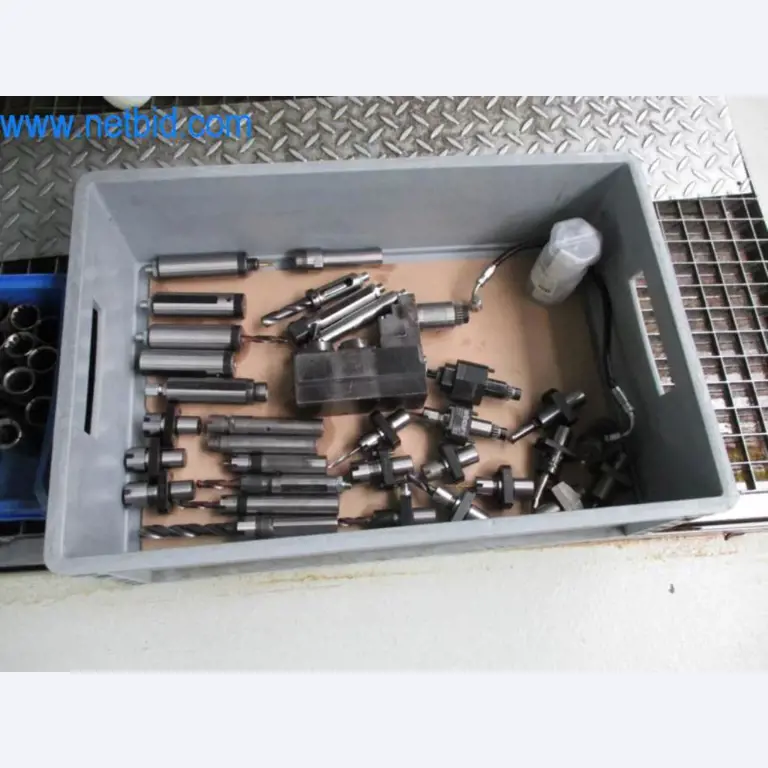

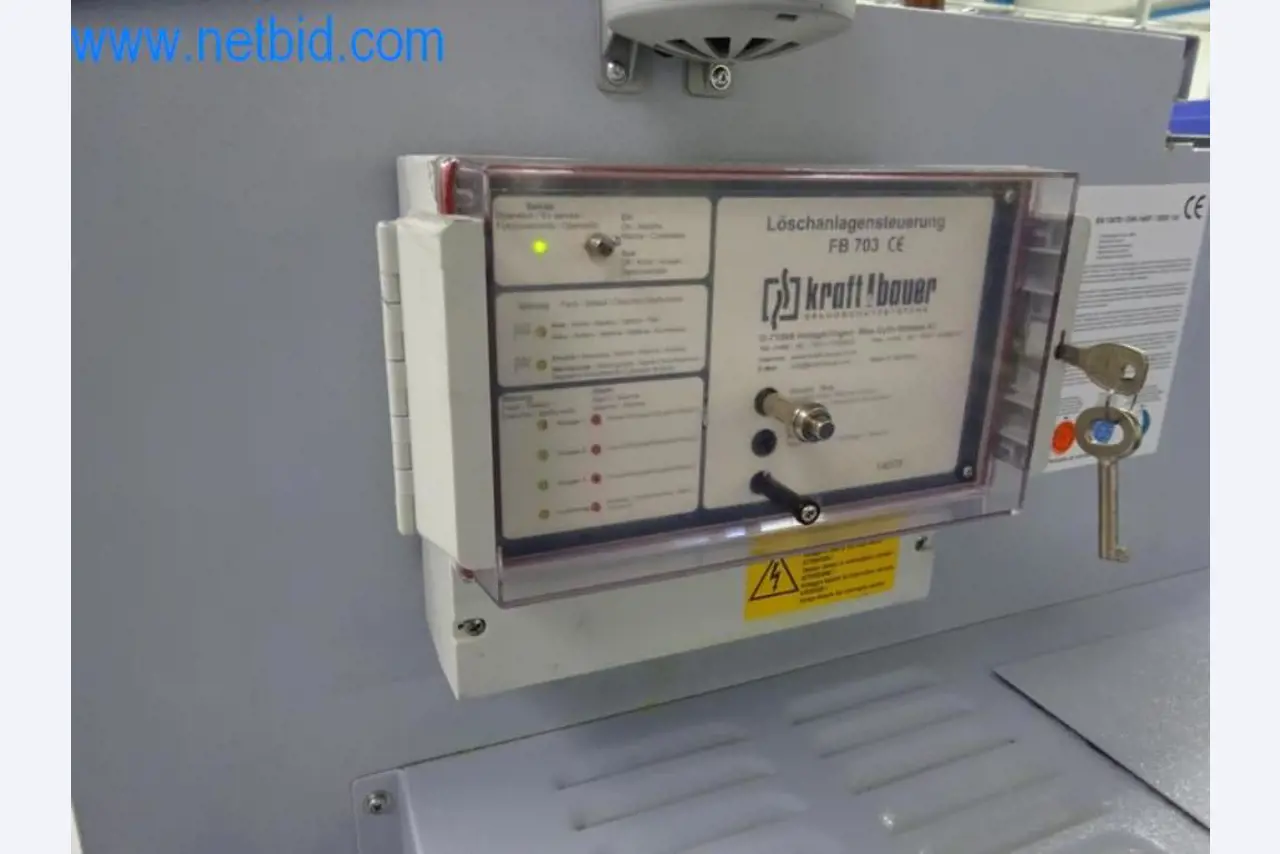

Ser. no. 2705, operating hours power on: 44,670, run time: 10,488, cutting time 7,626, max. machining diam. 32 mm, max. drilling/milling capacity diam. 13 mm/10 mm, rapid feed 24,000 mm/min., spindle speed 350-7,000 rpm, holders for 5 driven tools front, 4 driven tools rear, 6 turning tools, 4 drilling tools, power 6,0 kVA, weight 3.100 kg, control, make Fanuc, type Series 32I model B, outfeed conveyor, chip conveyor, CO2 extinguishing system, autom. bar loader, make FMB, type Turbo3-36/3200A, ser. no. 54-262480 R 1182805, y.o.m. 2014, sep. high pressure unit, make Müller, type Combiloop CL2, y.o.m. 2014, ser. no. CL2269

Location

  • 72510 Stetten am kalten Markt, Steinbeisstr. 1-3/ Fertigung/ Automatensaal 1b
