Injection molding machine - Surcharge under reserve Stork SX 6600-5600

The acceptance of the bid is done with the consent of the owner.

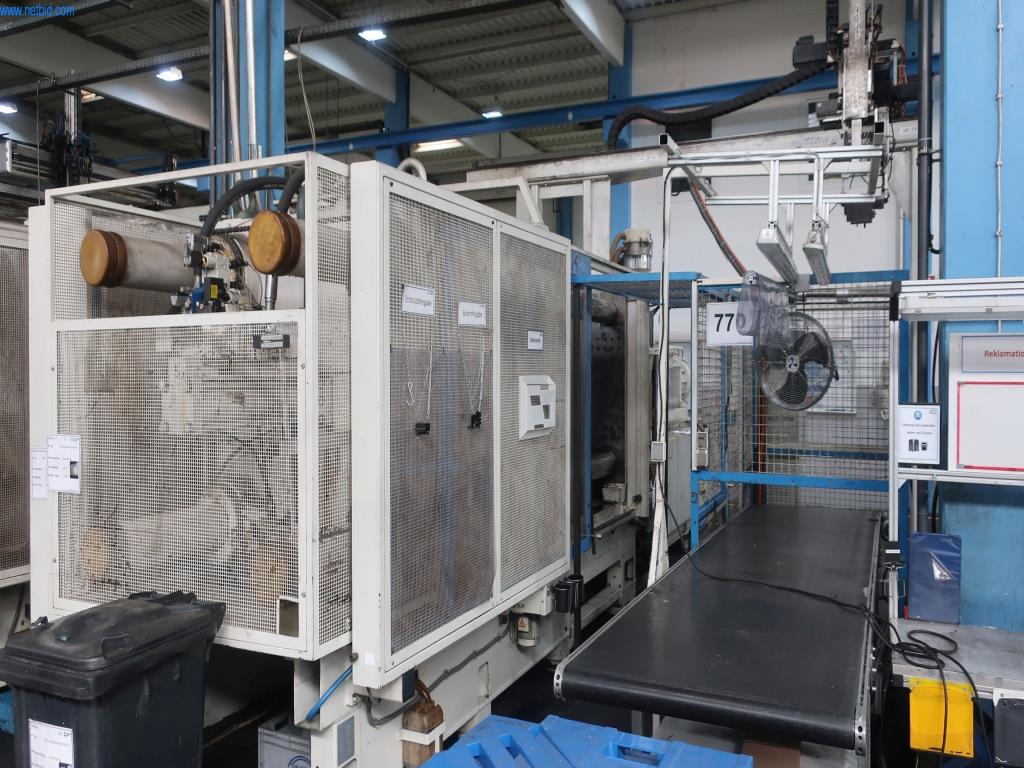

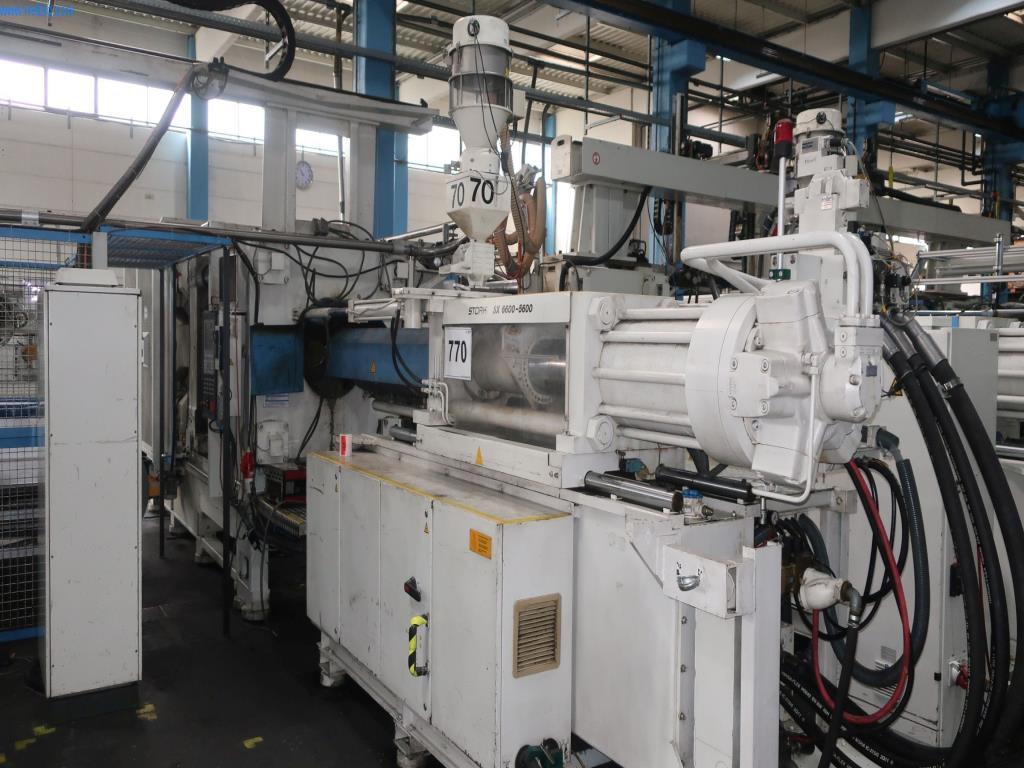

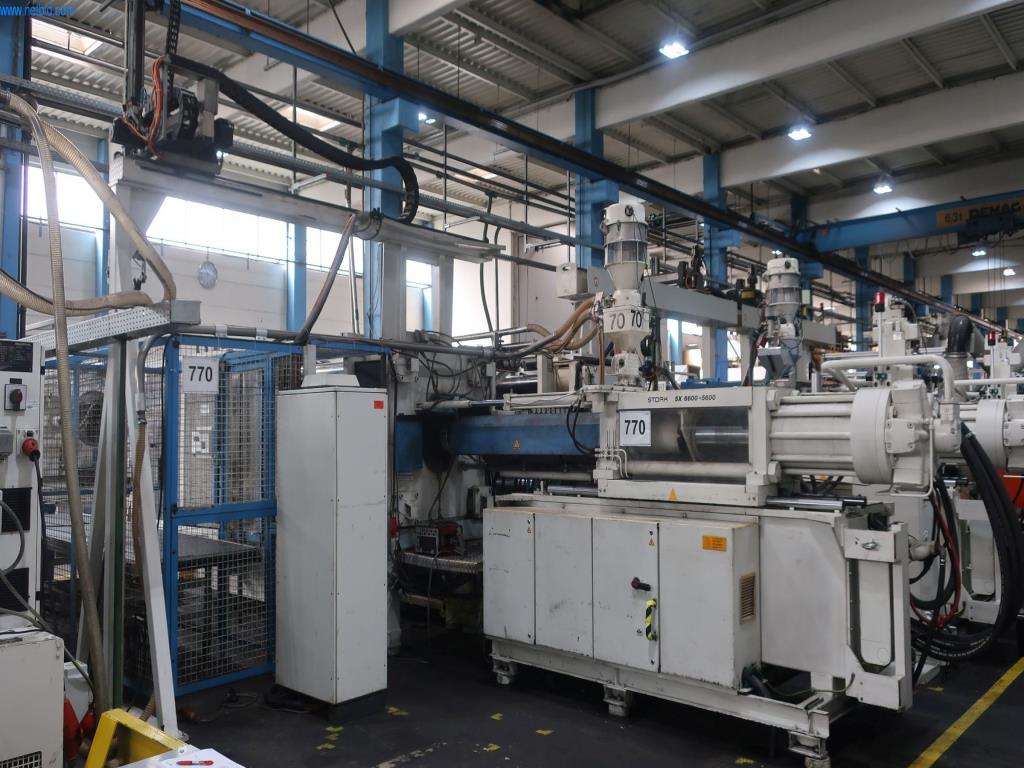

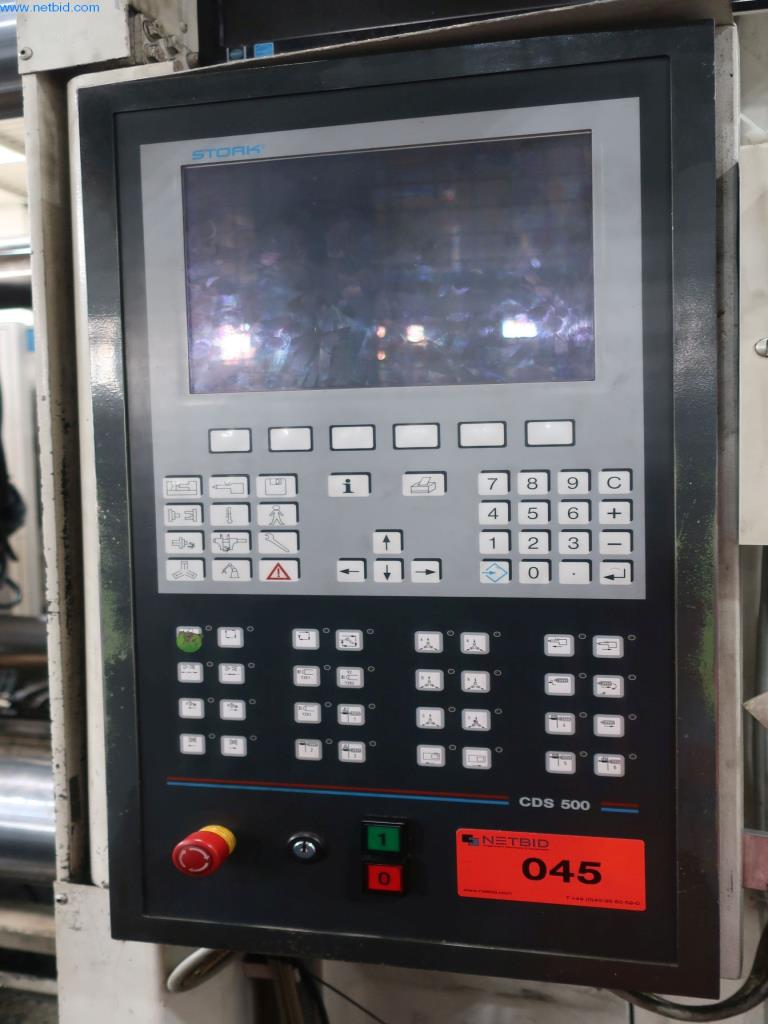

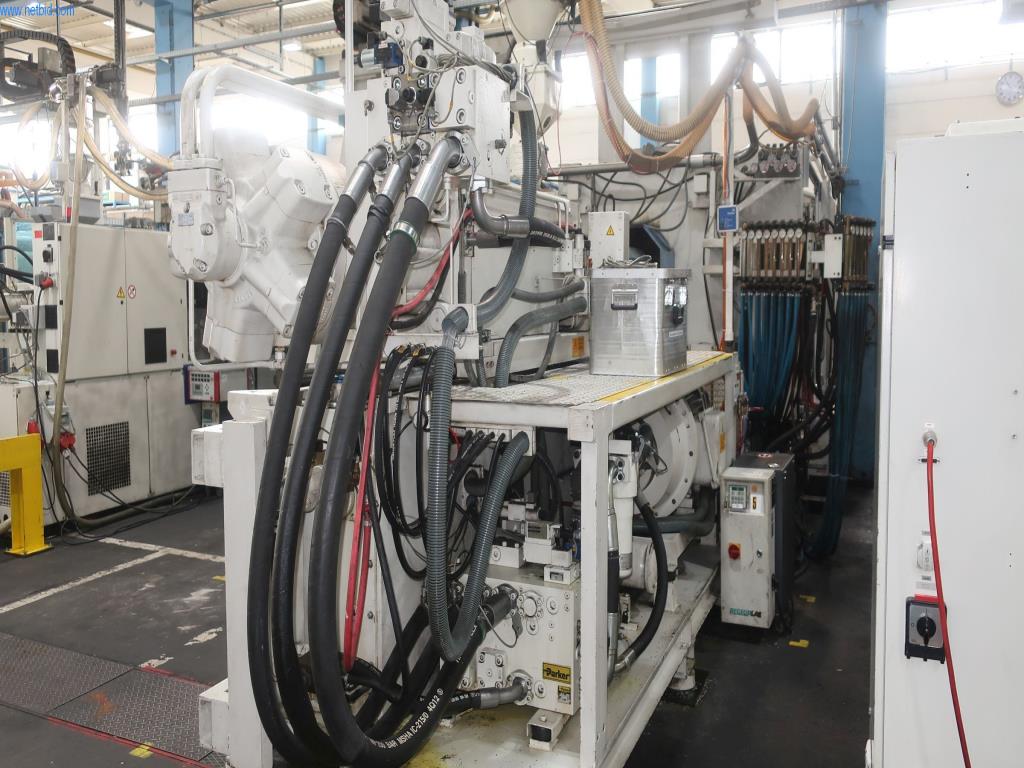

SN X66502, clamping force 6,600 kN, tie bar spacing horizontal/vertical 900/900 mm, clamping platen, horizontal/vertical 1,350/1,440 mm, mold installation height max./min. 900/300 mm, mold opening stroke 940 mm, total mold weight max. 8,600 kg, centering DS/AS 200/125 mm, crosshead thread M20, injection pressure 21.000 N/cm², injection volume 2,494 cm3, screw Ø 84 mm, cascade 6-fold, core pulls FAP/BAP 2/1, heating circuits Ma/PSG 8/0, connected load 330 kW, machine weight 34,300 kg, control system, make Stork, type CDS500, linear demolding robot, make GMW, type GMS2787 Accessories: belt conveyor, belt width 1,000 mm, L 5,000 mm, elevated, mobile, protective housing, hot runner control unit, make PSG, type profiTEMP 12D, SN 3911049-000508, connected load 22 kW, 12-channel, temperature control unit (5), make. Regloplas, type P140/88, SN 242518, nominal temperature 140°C, connected load 7.55 kW, temperature control unit (15), make Regloplas, type 150KL/9/TS22/2K/RT22, SN 141407, nominal temperature 90°C, connected load 10.1 kW, belt conveyor, belt width 1,200 mm, L 6,000 mm, elevated, mobile
