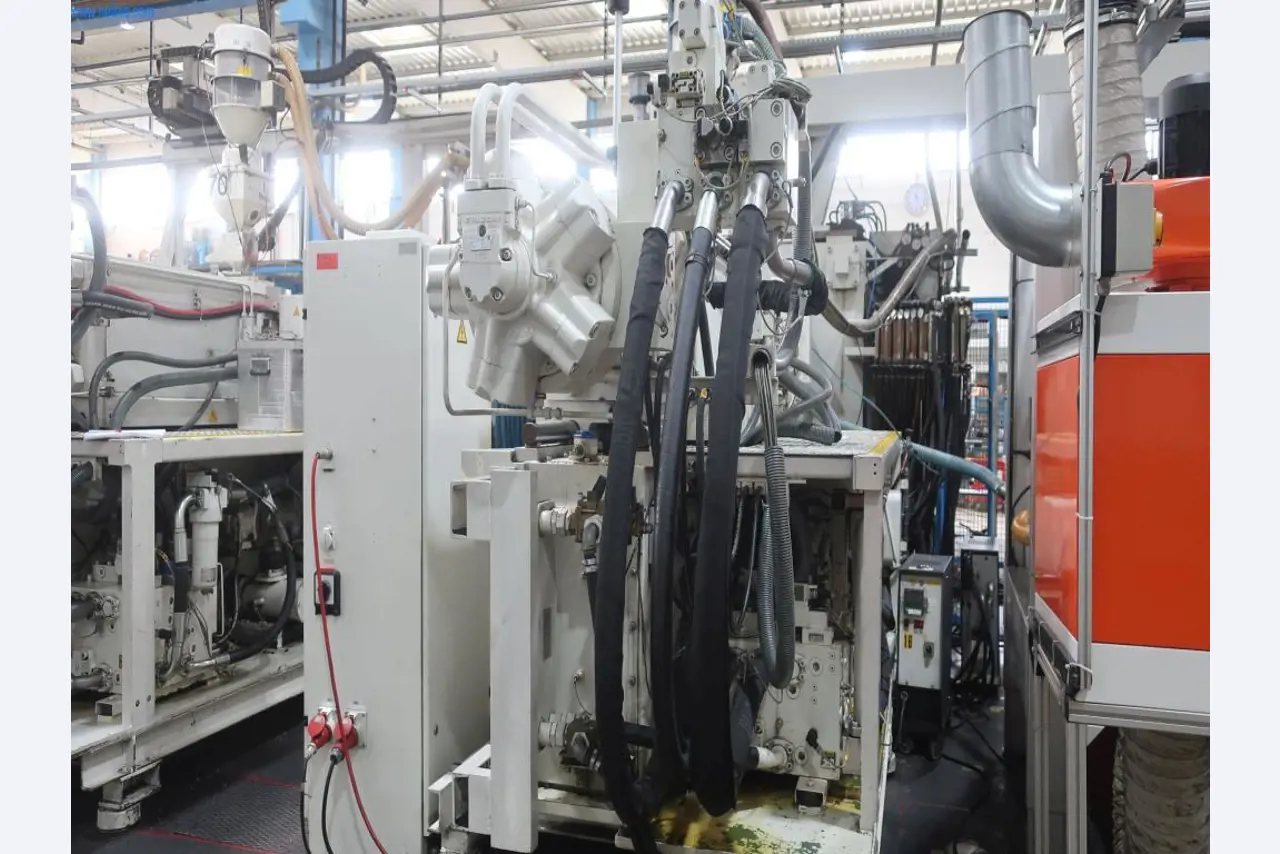

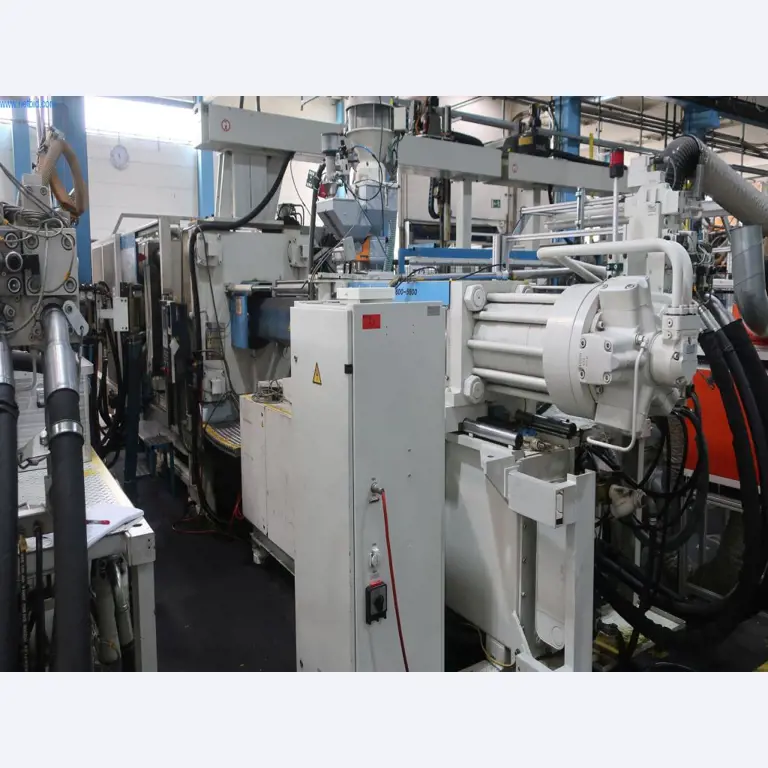

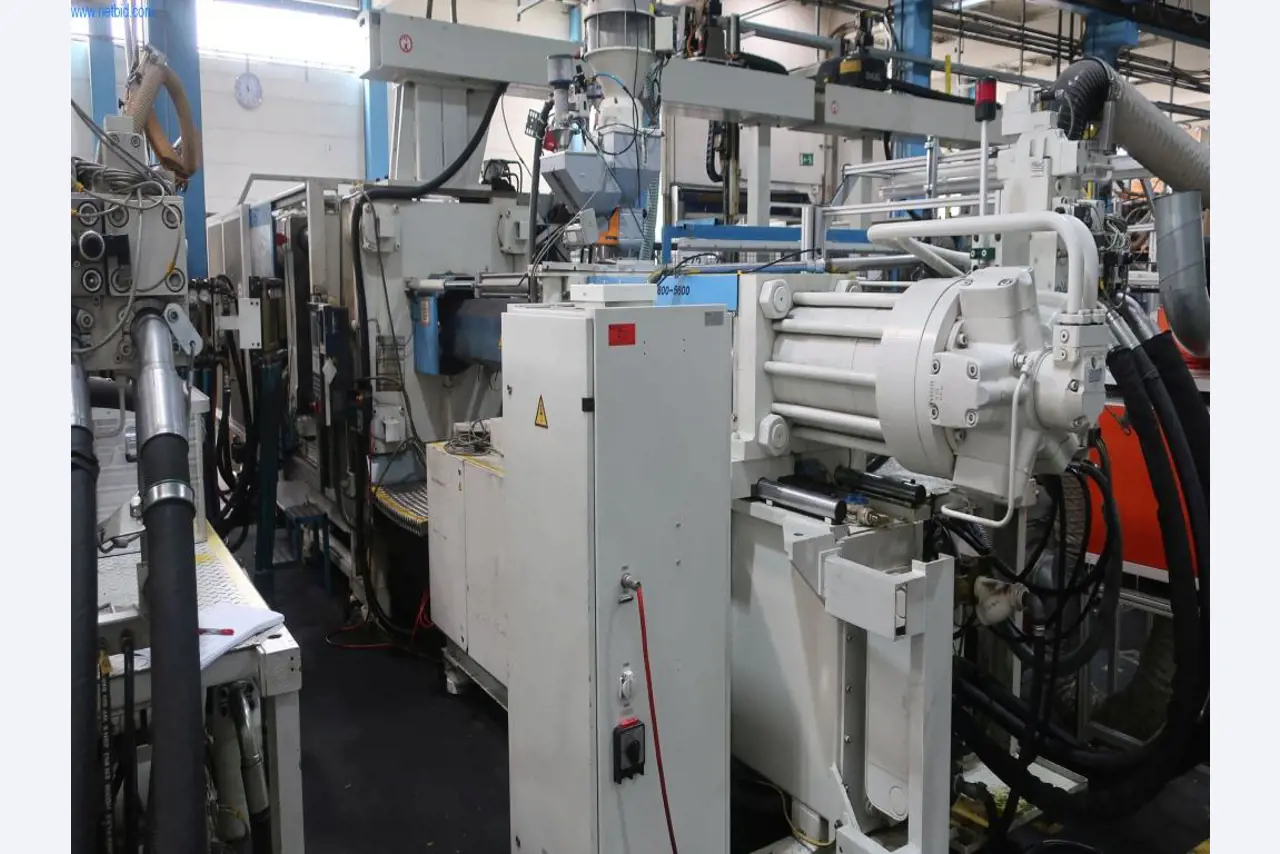

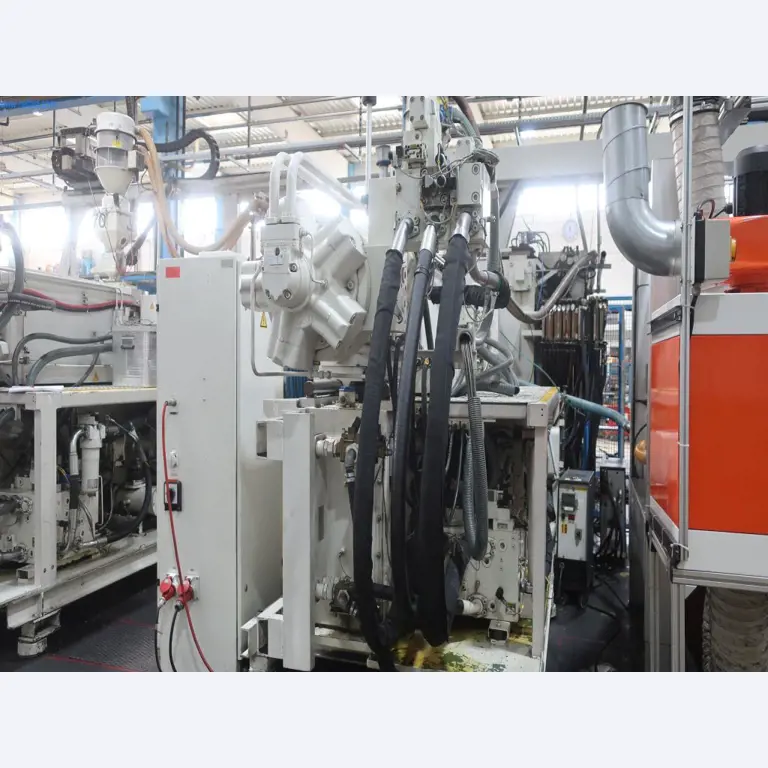

Injection molding machine - Surcharge under reserve Stork SX-N 6600-5600

The acceptance of the bid is done with the consent of the owner.

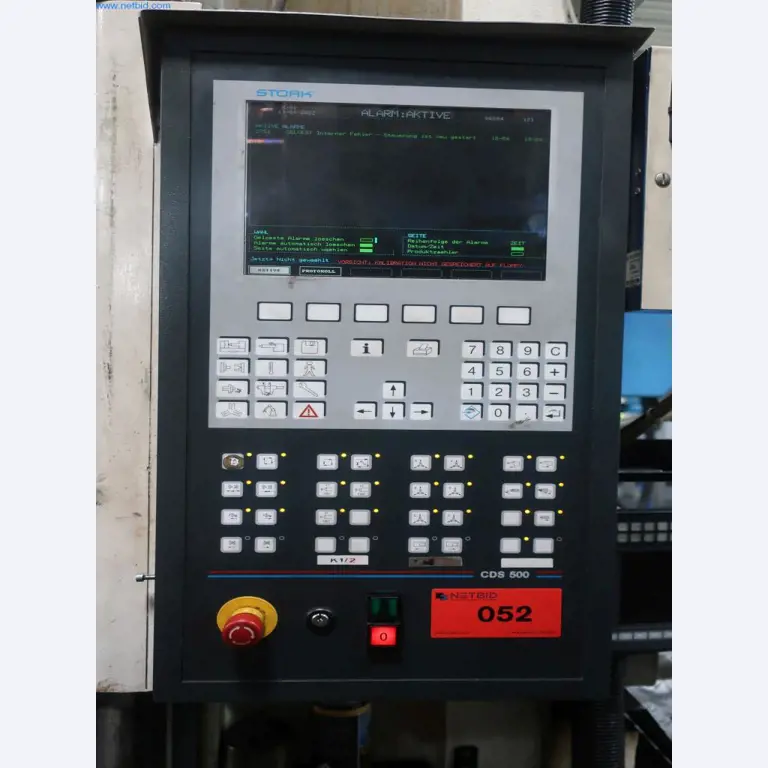

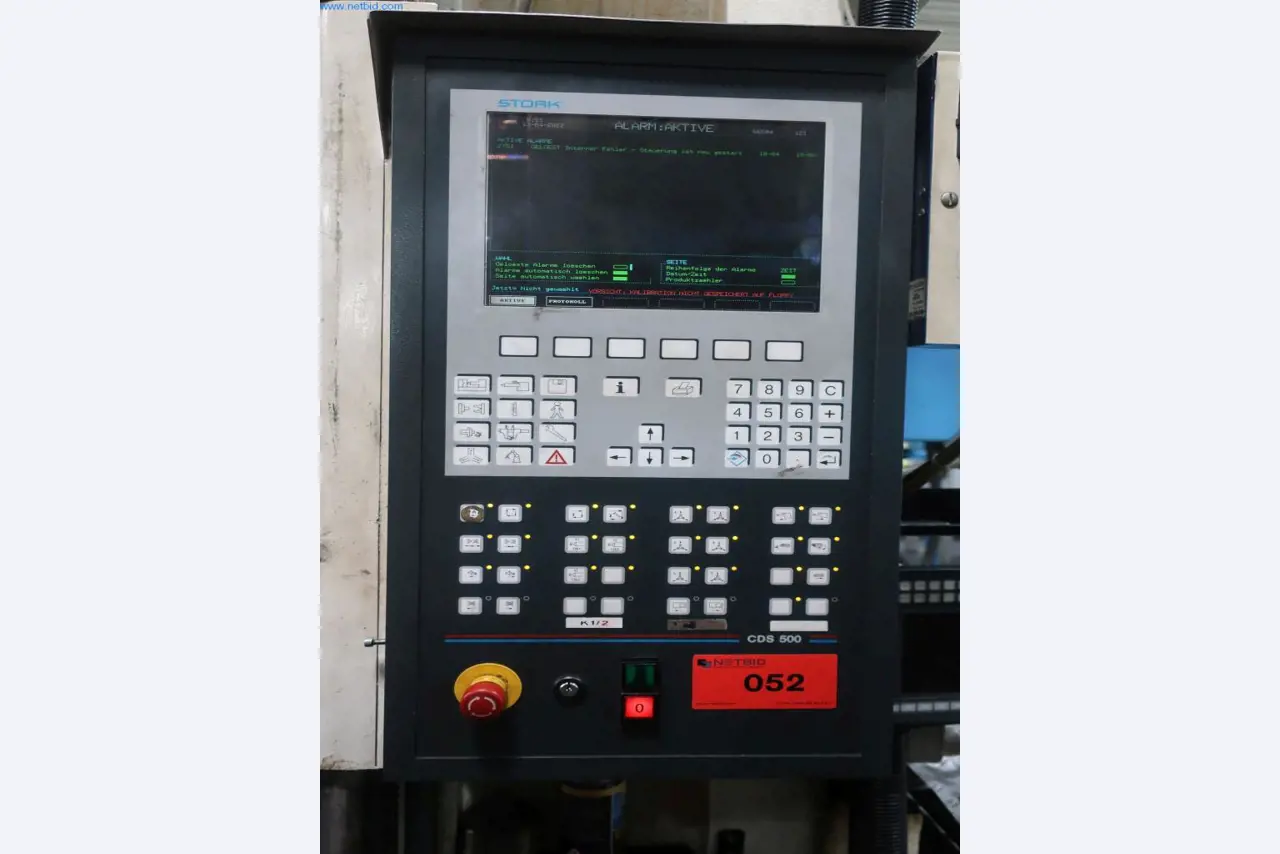

SN X66503, clamping force 6,600 kN, tie bar spacing horizontal/vertical 900/900 mm, clamping platen horizontal/vertical 1,350/4,440 mm, mold installation height max./min. 900/300 mm, mold opening stroke 940 mm, total mold weight max. 8,600 kg, centering DS/AS 200/125 mm, crosshead thread M20, injection pressure 21.000 N/cm², injection volume 2.494 cm³, screw-Ø 84 mm, cascade 4-fold, core pulls FAP/BAP 2/1, heating circuits Ma/PSG 8/0, connected load 330 kW, machine weight 34.300 kg, control, make Stork, type CDS500, linear demolding robot, make Engel, type ERC 84/1-E, year 2003, SN 97607
Accessories: paint dosing unit, make Motan, consisting of: Control unit, type Minicolor S2, SN 07 508 75/03 0014, dosing pot, belt conveyor, belt width approx. 800 mm, L approx. 3,000 mm, belt conveyor, belt width approx. 1,000 mm, L approx. 6,000 mm, elevated, mobile, protective housing, hot runner control unit, make PSG, 24-channel, without type plate, temperature control unit (16), make. Regloplas, type 150KL/9/TS22/1K/RT22, SN 141135, nominal temperature 90°C, connected load 10,1 kW, temperature control unit (4), make Regloplas, type 150KL/9/TS22/2K/RT22, SN 141406, nominal temperature 90°C, connected load 10,1 kW, temperature control unit (35), make Regloplas, type 90S/9/TS22/1K/RT45, SN 10100257, nominal temperature 90°C, connected load 10,1 kW
