Part of the Auction Machines and technical systems in the field of plastic injection molding (1600 - 23000 kN)
Injection molding machine - Surcharge under reserve Engel 11050/1100
LIVE #16329-71
This auction has ended.
Details
Product Type
Engel
Type
11050/1100
Construction Year
2009
Description
The acceptance of the bid is done with the consent of the owner.

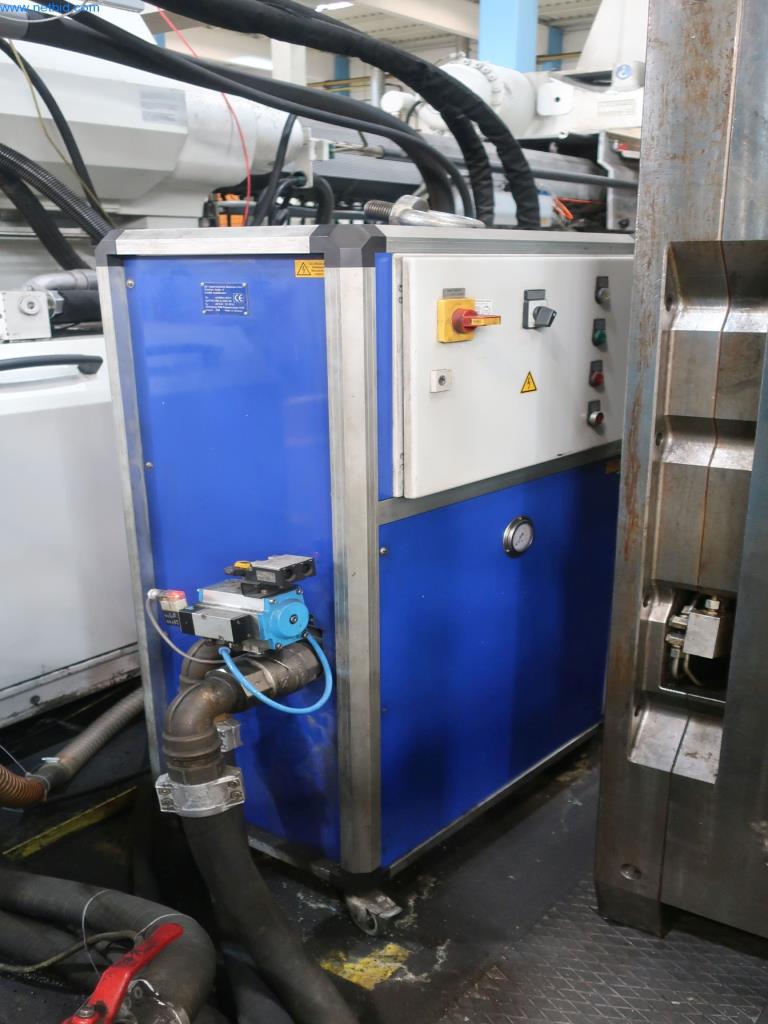

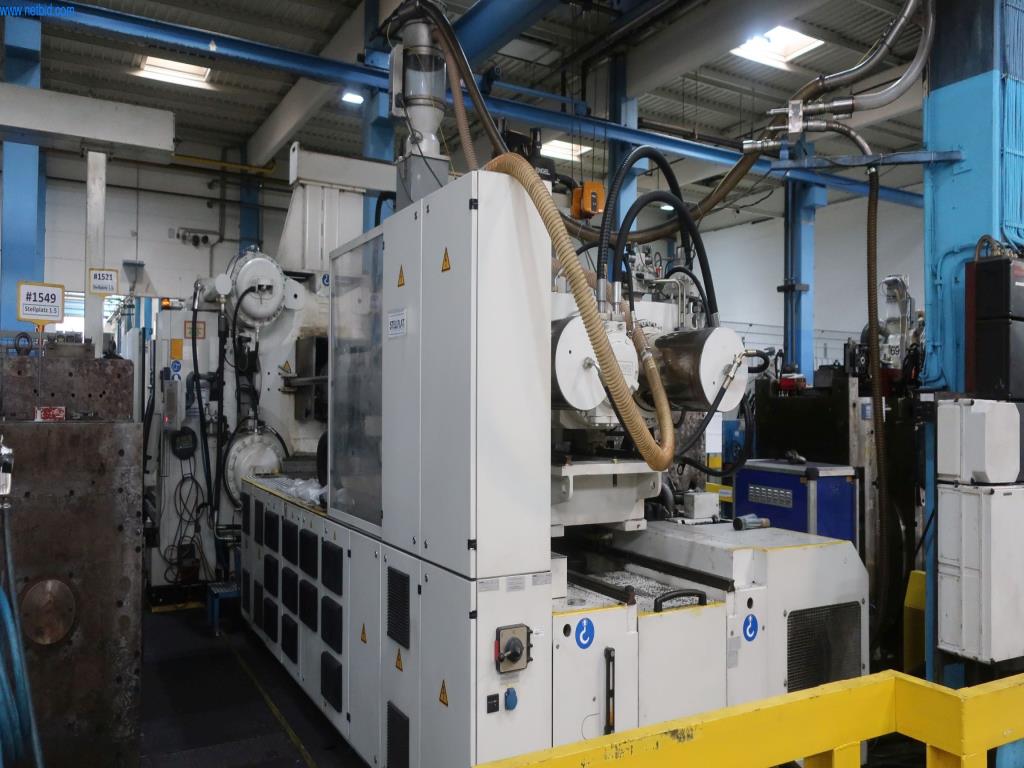

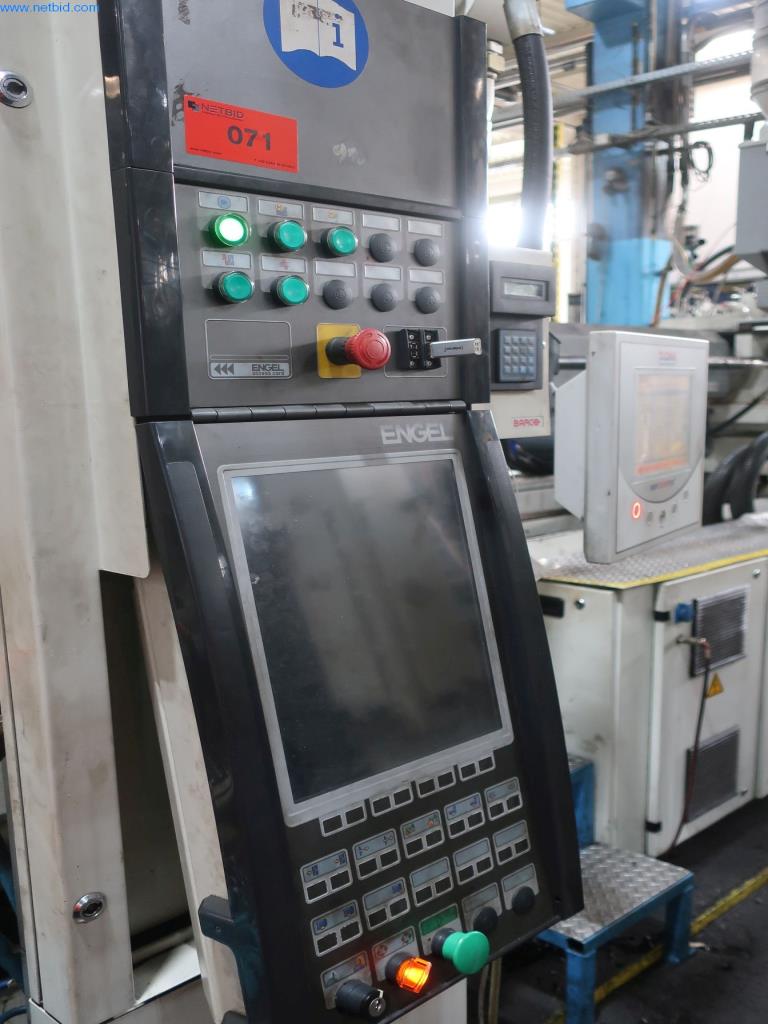

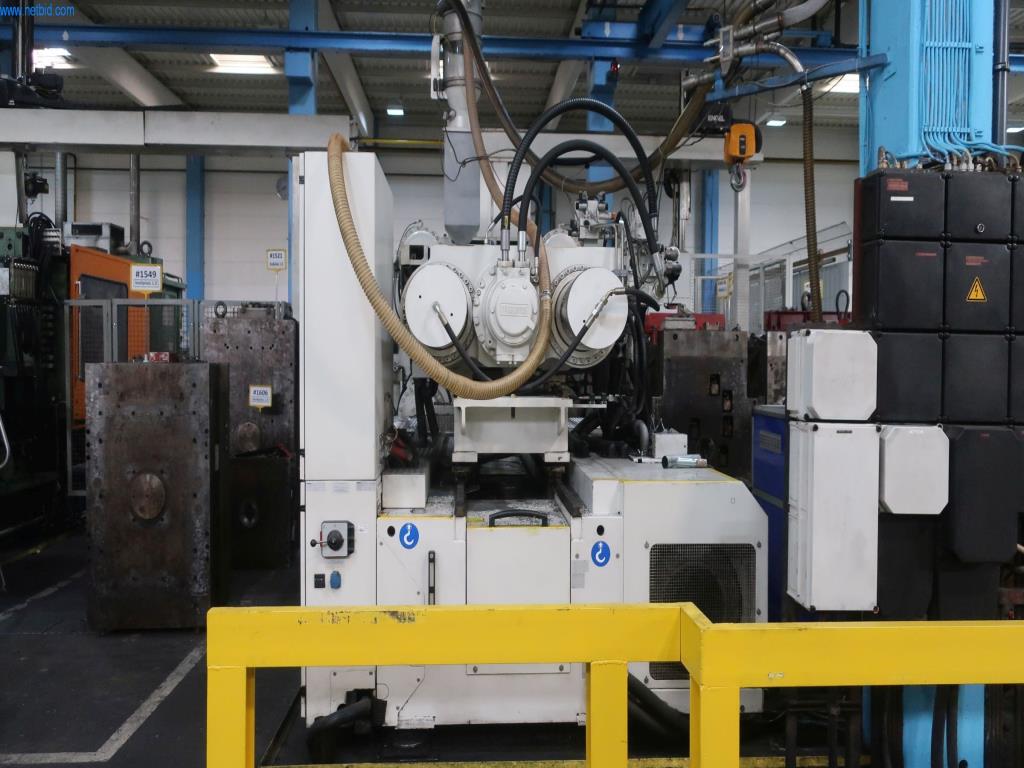

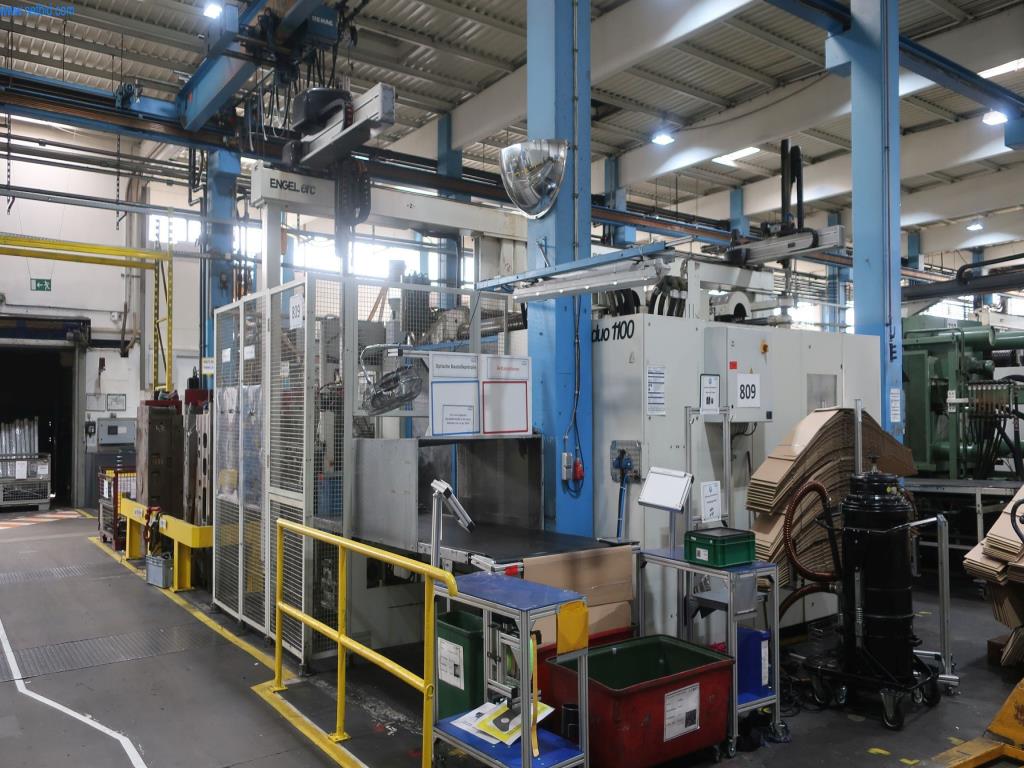

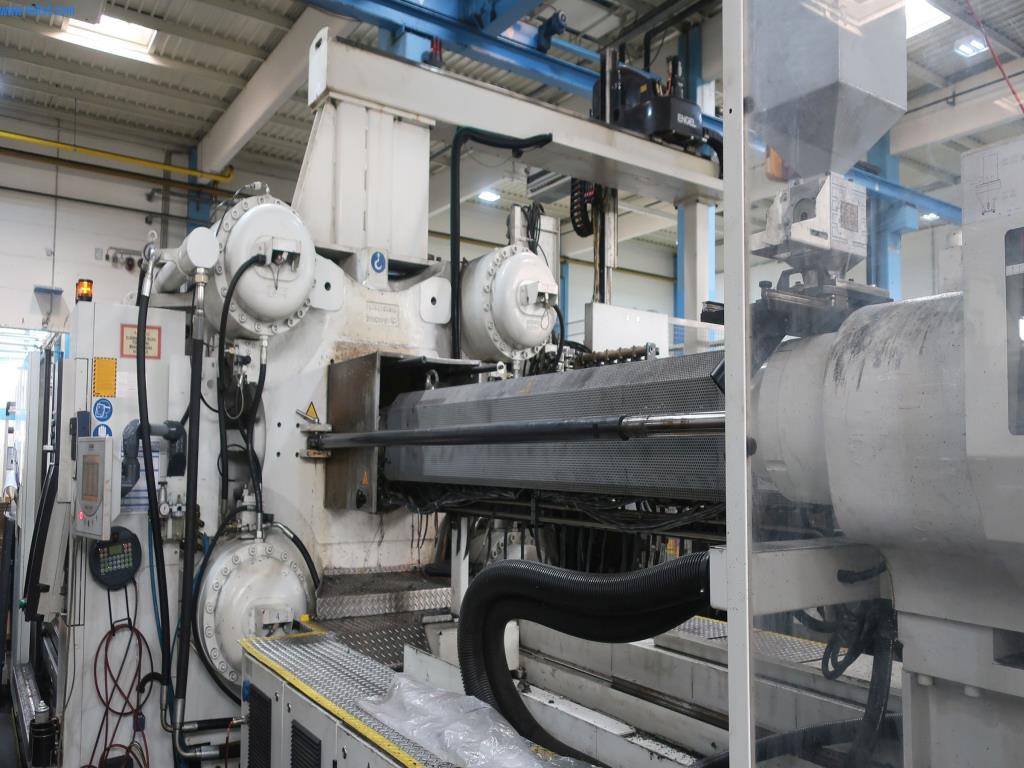

SN 171753, clamping force 11,000 kN, tie bar spacing horizontal/vertical 1,400/1,150 mm, clamping platen horizontal/vertical, 1,850/1,810 mm, mold installation height max./min. 1,200/400 mm, mold opening stroke 1,800 mm, total mold weight max. 21 t, centering DS/AS 250/250 mm, crosshead thread M24, injection pressure 11,700 N/cm², injection volume 8,160 cm3, screw Ø 135 mm, cascade 12-fold, core pulls FAP/BAP 3/3, heating circuits Ma/PSG 64/0, metal separator, integr. mold cooling system, make OMI, type Rhytemper (RHY-STD), SN FC08.1080, year 2008, linear demolding robot, make Engel, type ERC 65/0-F, year 2009, SN 171783, protective housing, control, make Engel, connected load 430 kW, GG 57 t, max. operating hours 66.821. Betriebsstd. 66.821

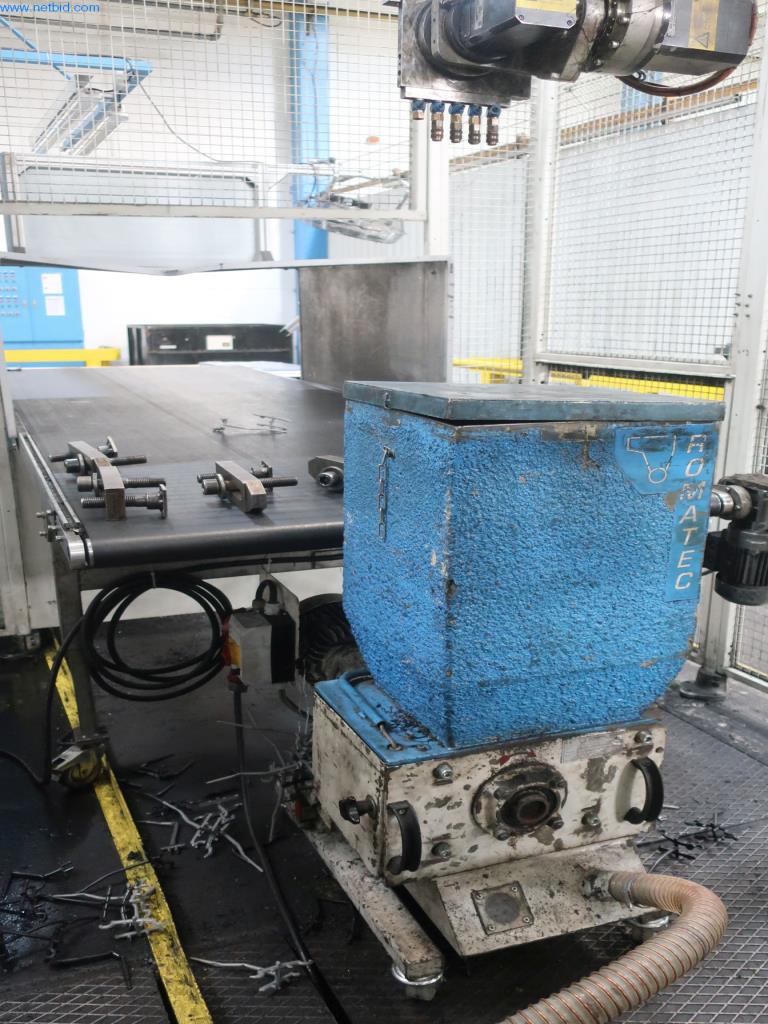

Accessories: belt conveyor, belt width 1,000 mm, L 4,000 mm, elevated, mobile, granulate mill (1), make Romatec, connected load 4.0 kW
SN 171753, clamping force 11,000 kN, tie bar spacing horizontal/vertical 1,400/1,150 mm, clamping platen horizontal/vertical, 1,850/1,810 mm, mold installation height max./min. 1,200/400 mm, mold opening stroke 1,800 mm, total mold weight max. 21 t, centering DS/AS 250/250 mm, crosshead thread M24, injection pressure 11,700 N/cm², injection volume 8,160 cm3, screw Ø 135 mm, cascade 12-fold, core pulls FAP/BAP 3/3, heating circuits Ma/PSG 64/0, metal separator, integr. mold cooling system, make OMI, type Rhytemper (RHY-STD), SN FC08.1080, year 2008, linear demolding robot, make Engel, type ERC 65/0-F, year 2009, SN 171783, protective housing, control, make Engel, connected load 430 kW, GG 57 t, max. operating hours 66.821. Betriebsstd. 66.821
Accessories: belt conveyor, belt width 1,000 mm, L 4,000 mm, elevated, mobile, granulate mill (1), make Romatec, connected load 4.0 kW
Location
- 38228 Salzgitter, John-F.-Kennedy-Str. 50/ Produktionsgebäude/ Halle 1/ Spritzguss (Teambereich Halle 1)
