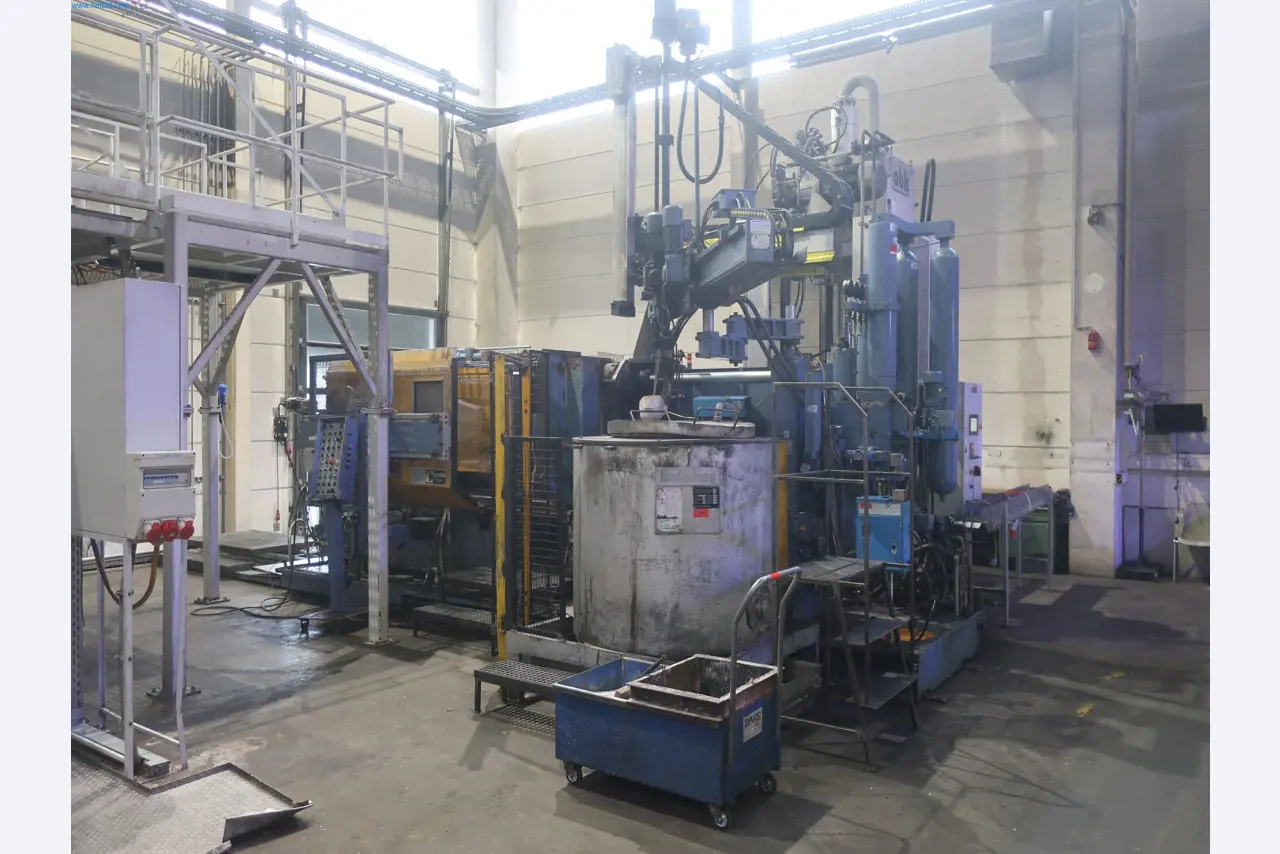

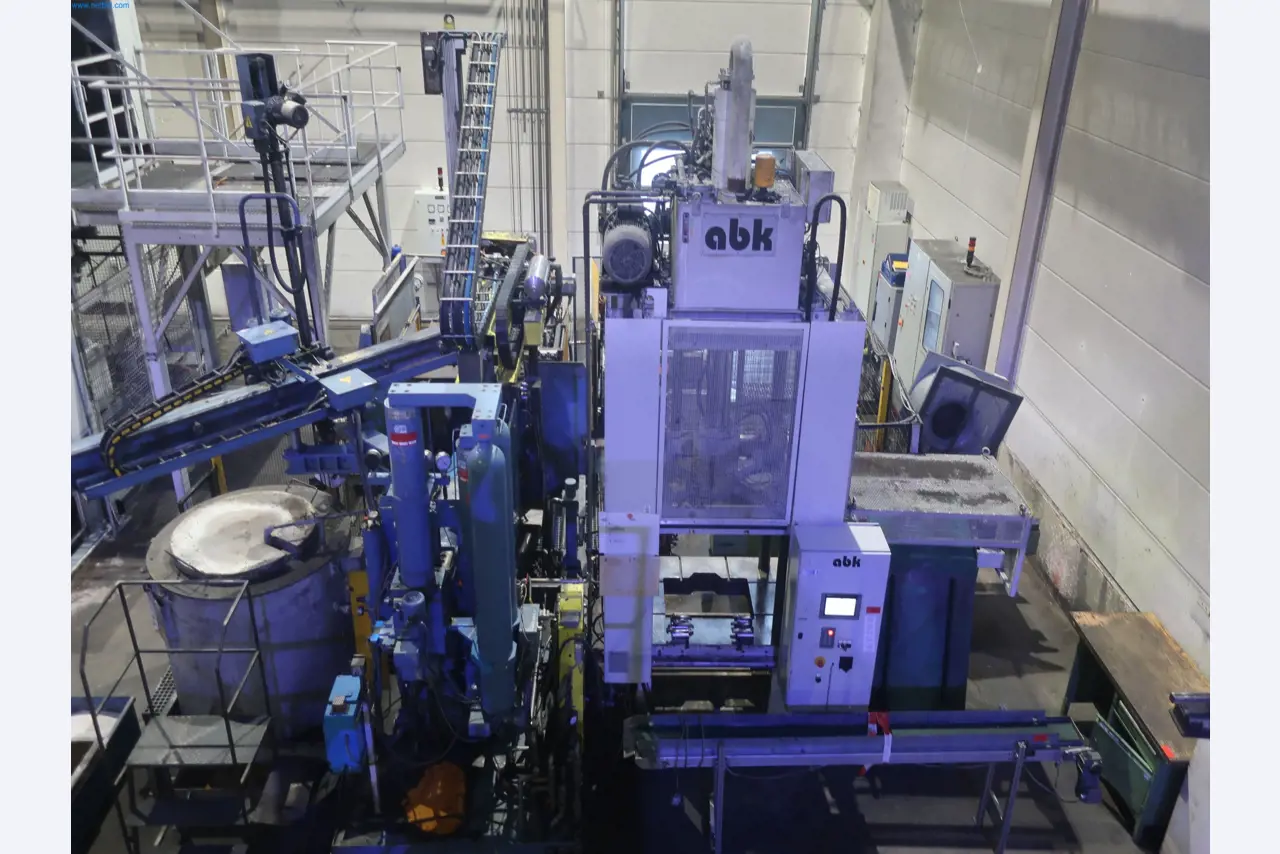

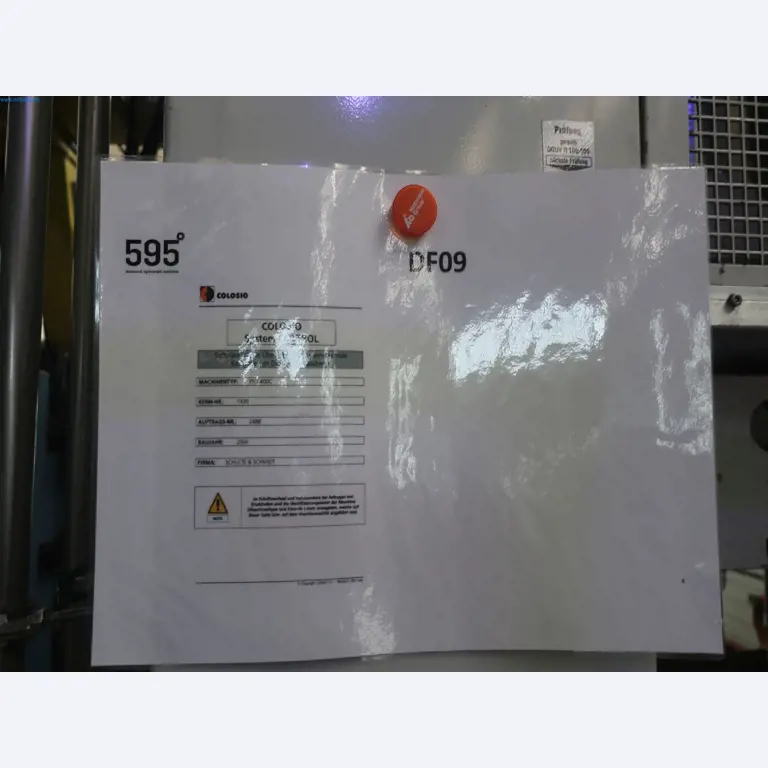

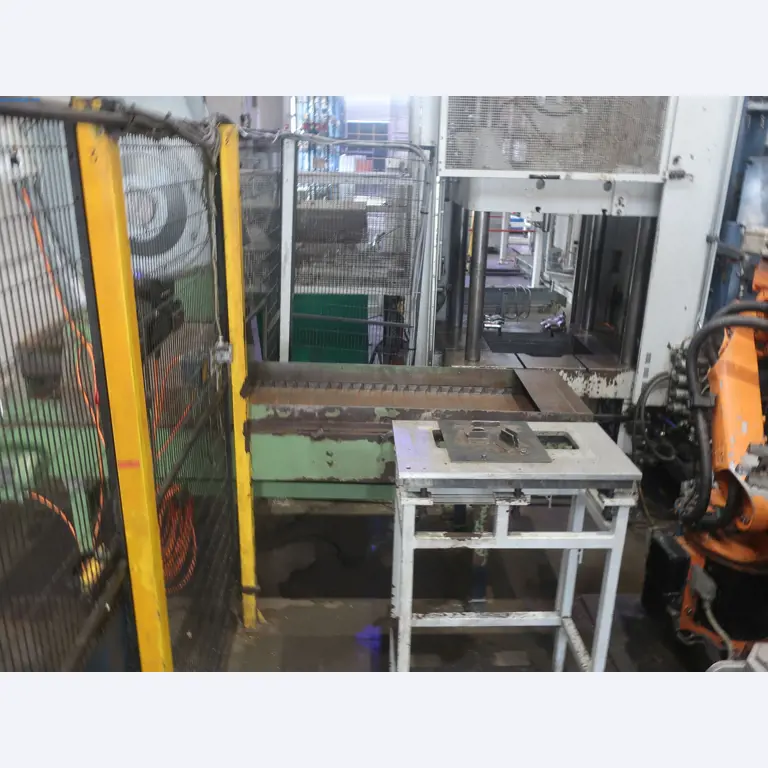

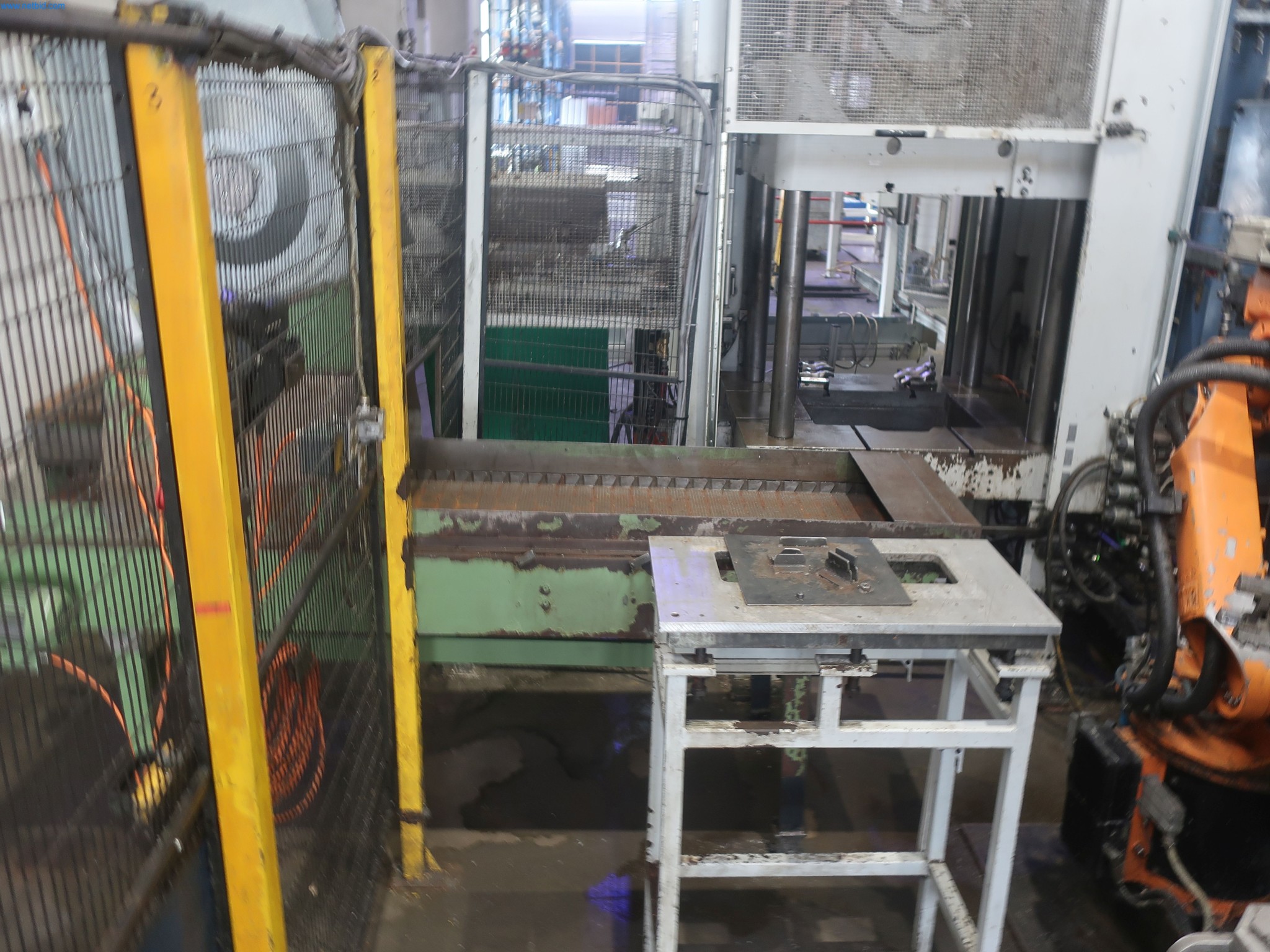

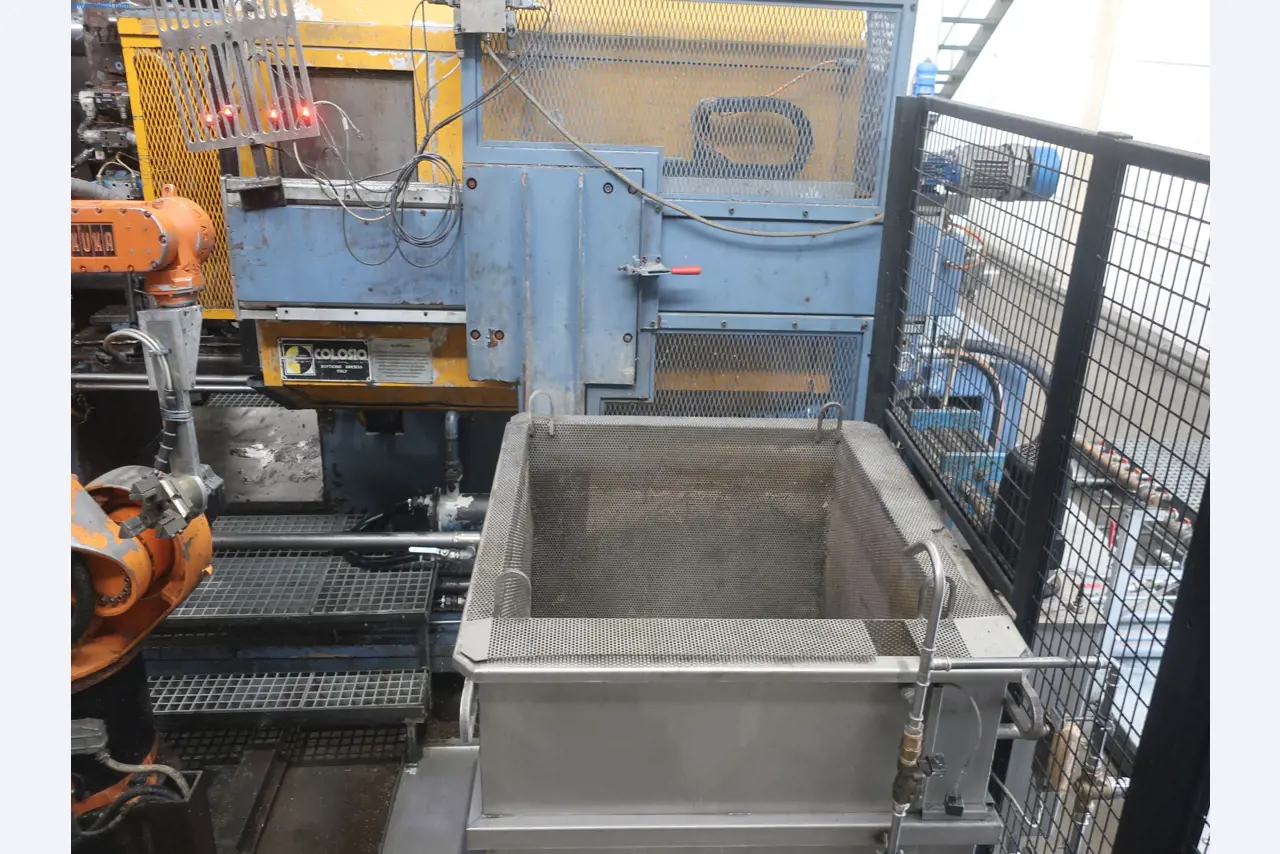

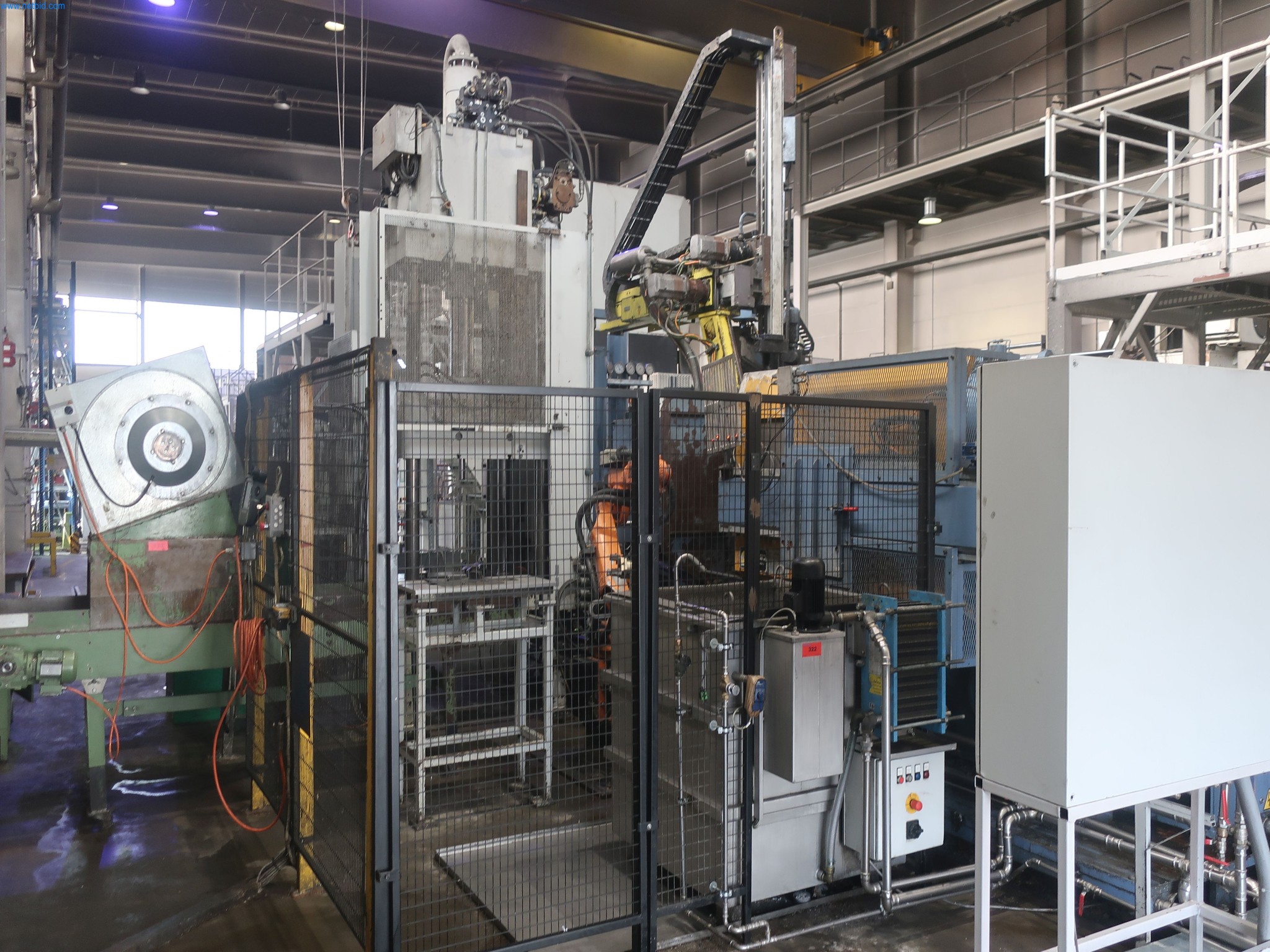

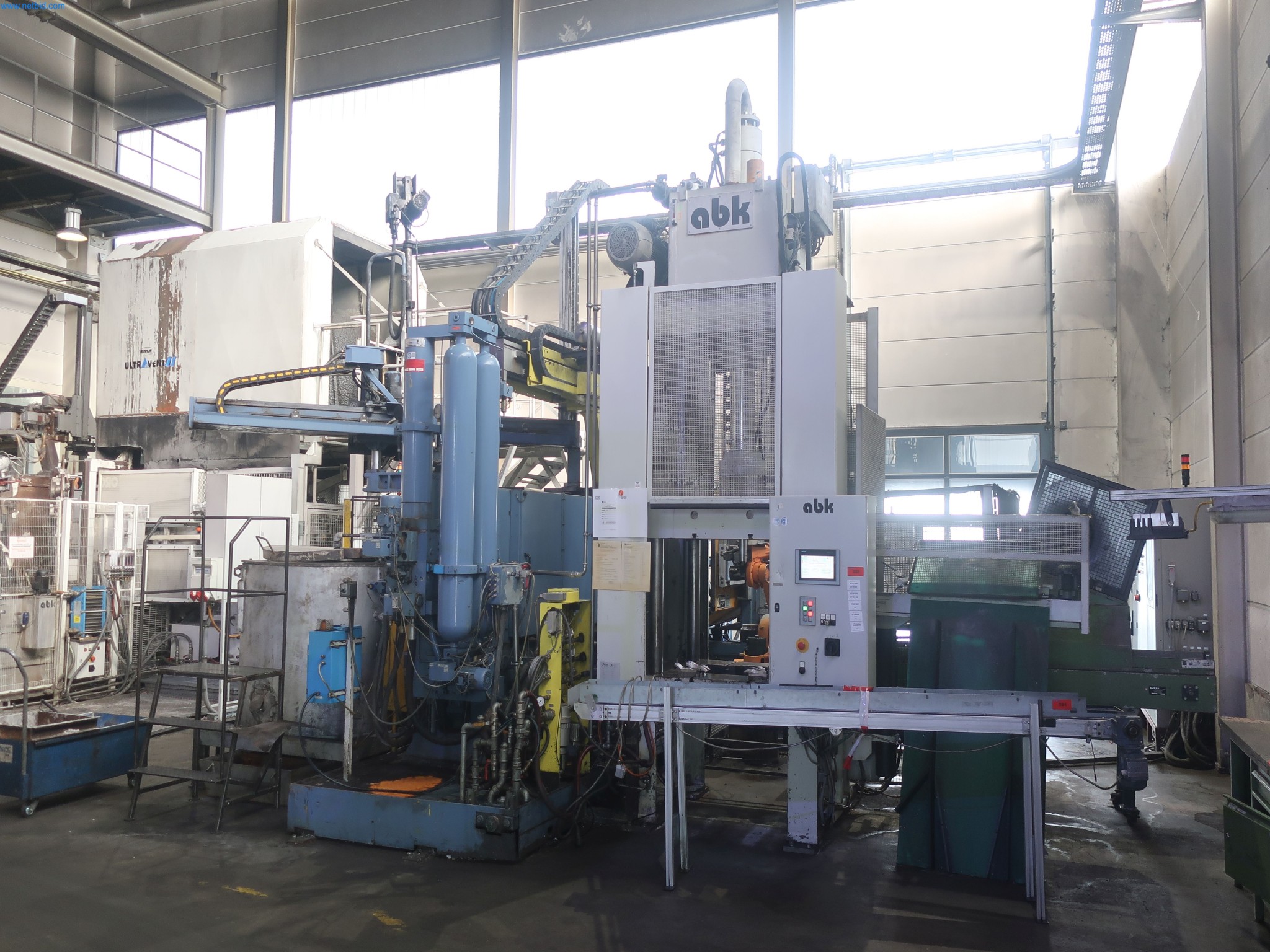

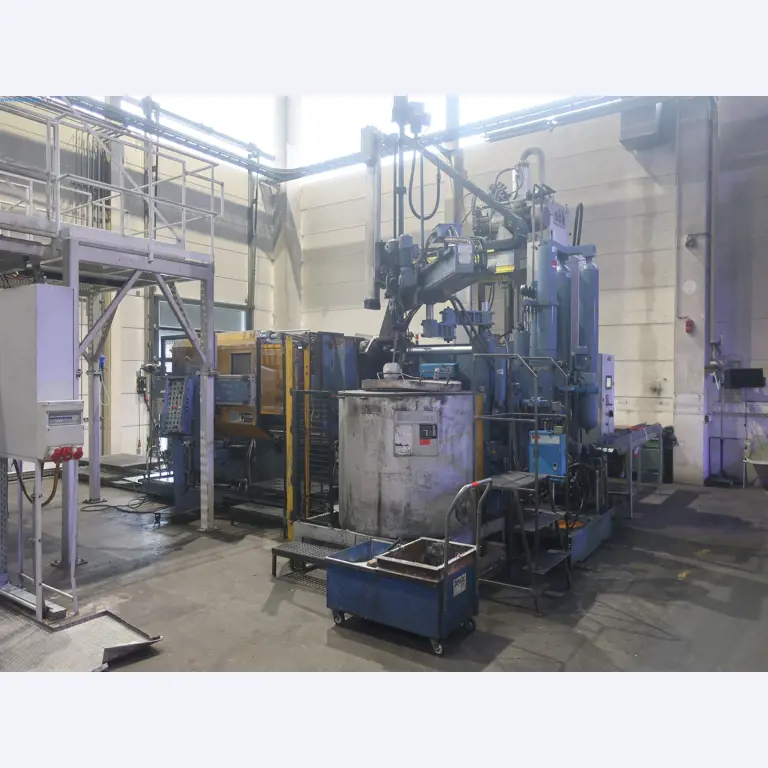

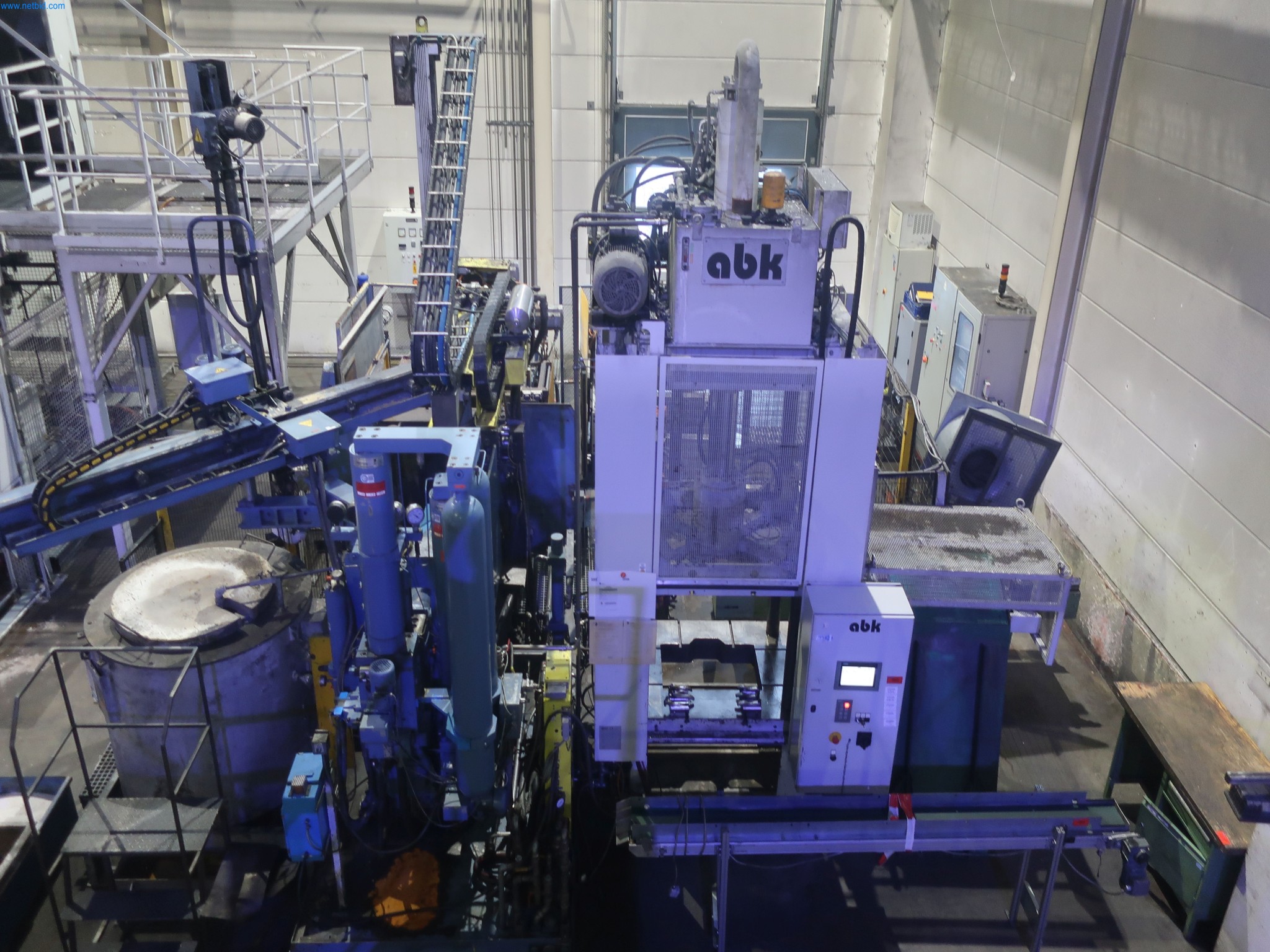

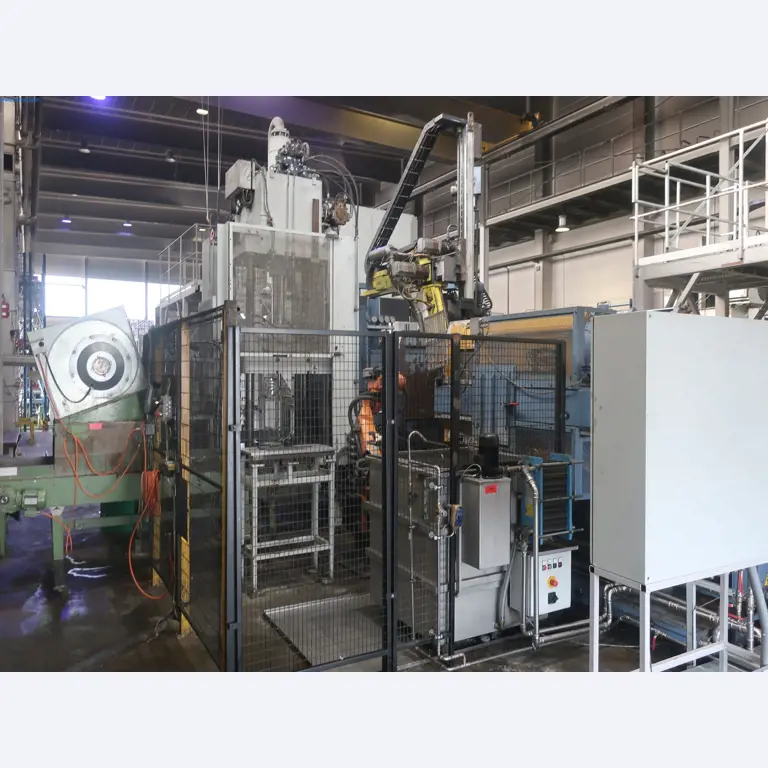

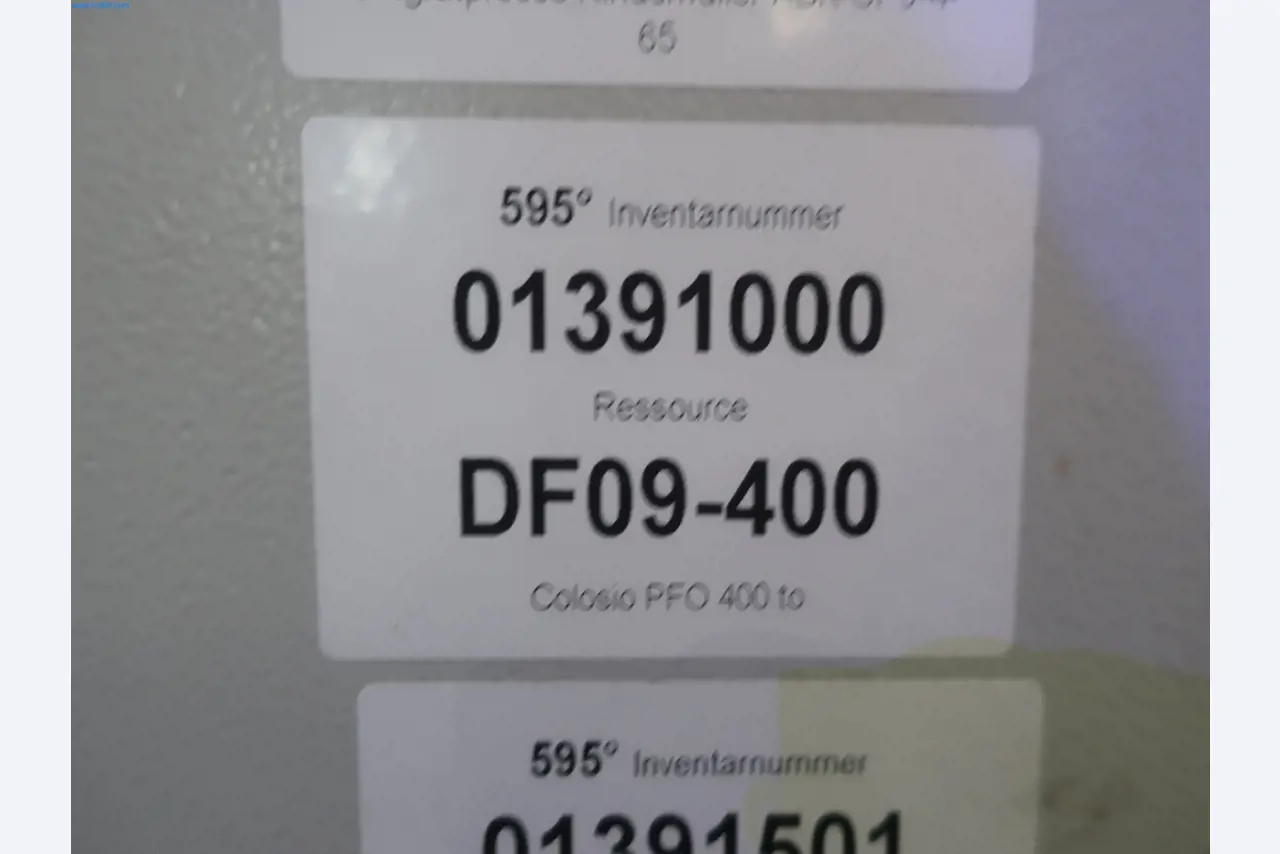

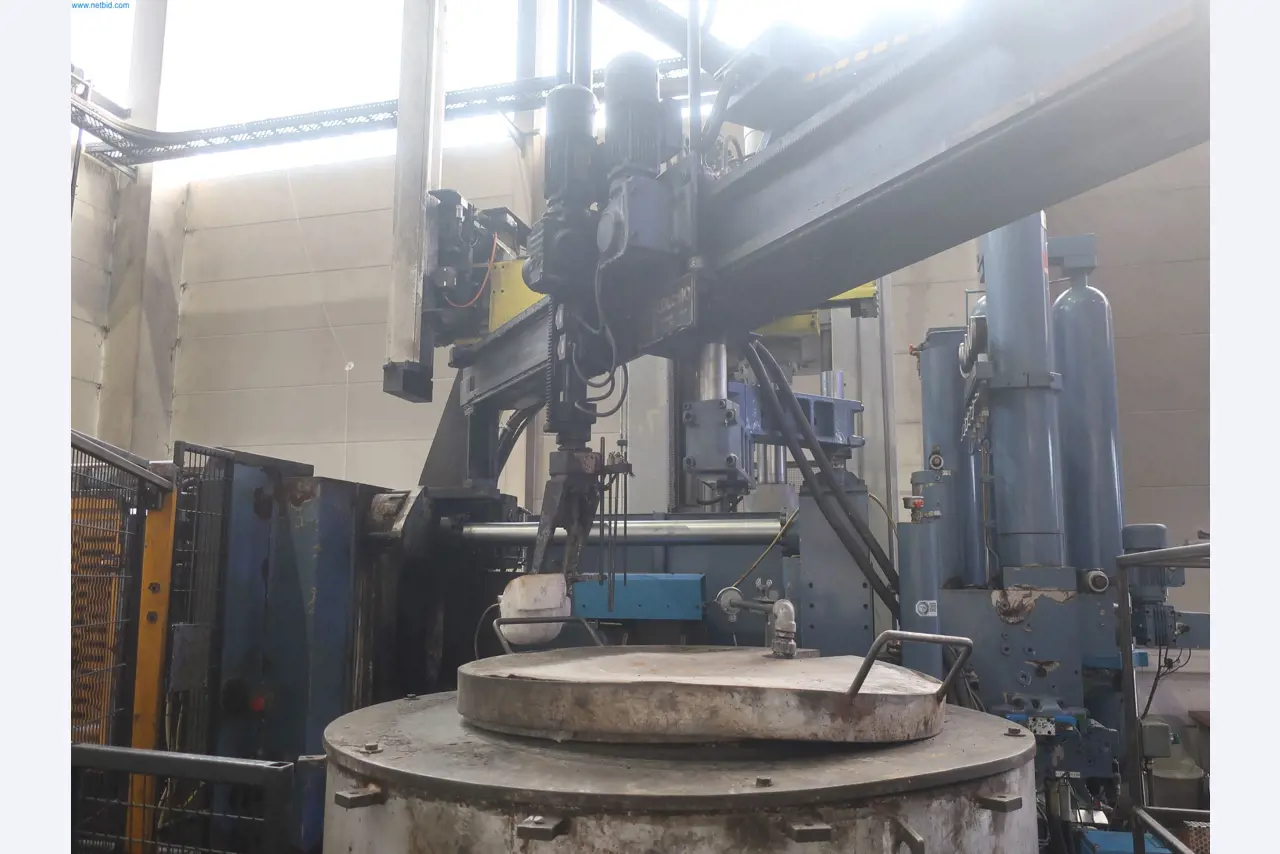

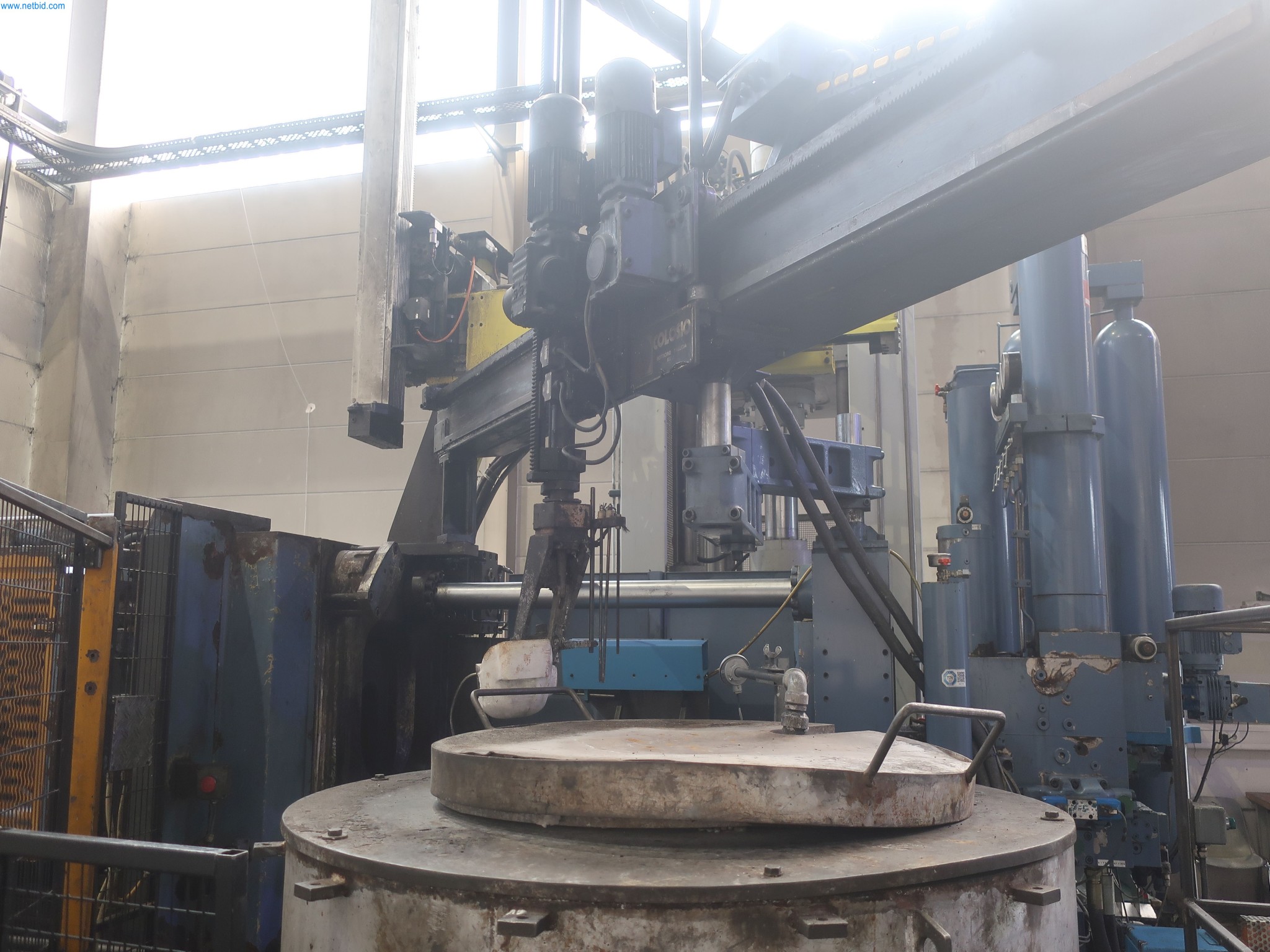

Aluminum die casting cell (DF09) Colosio PFO 400C
LIVE #18322-317
Details
Product Type
Colosio
Type
PFO 400C
Construction Year
2004
Description

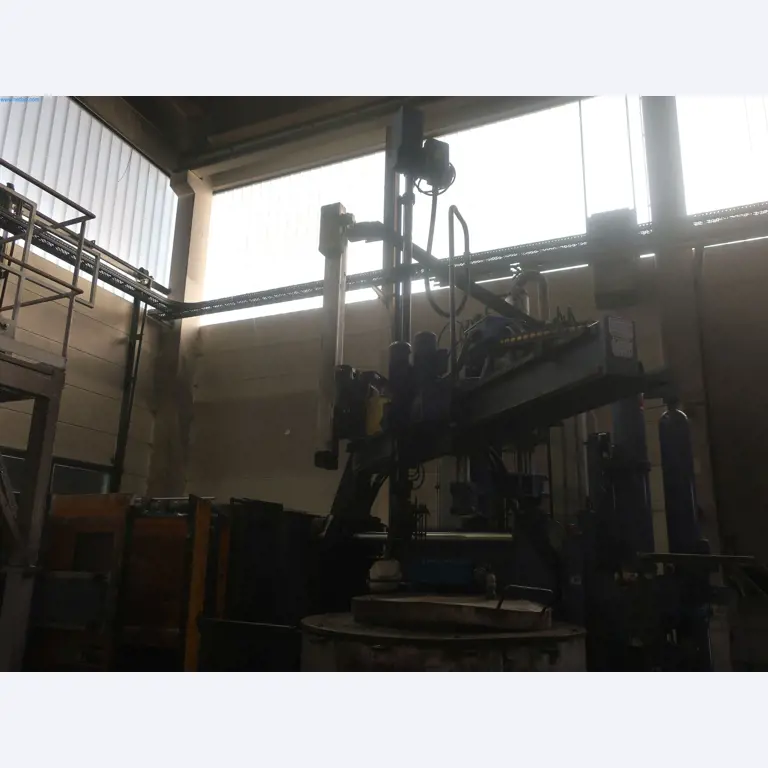

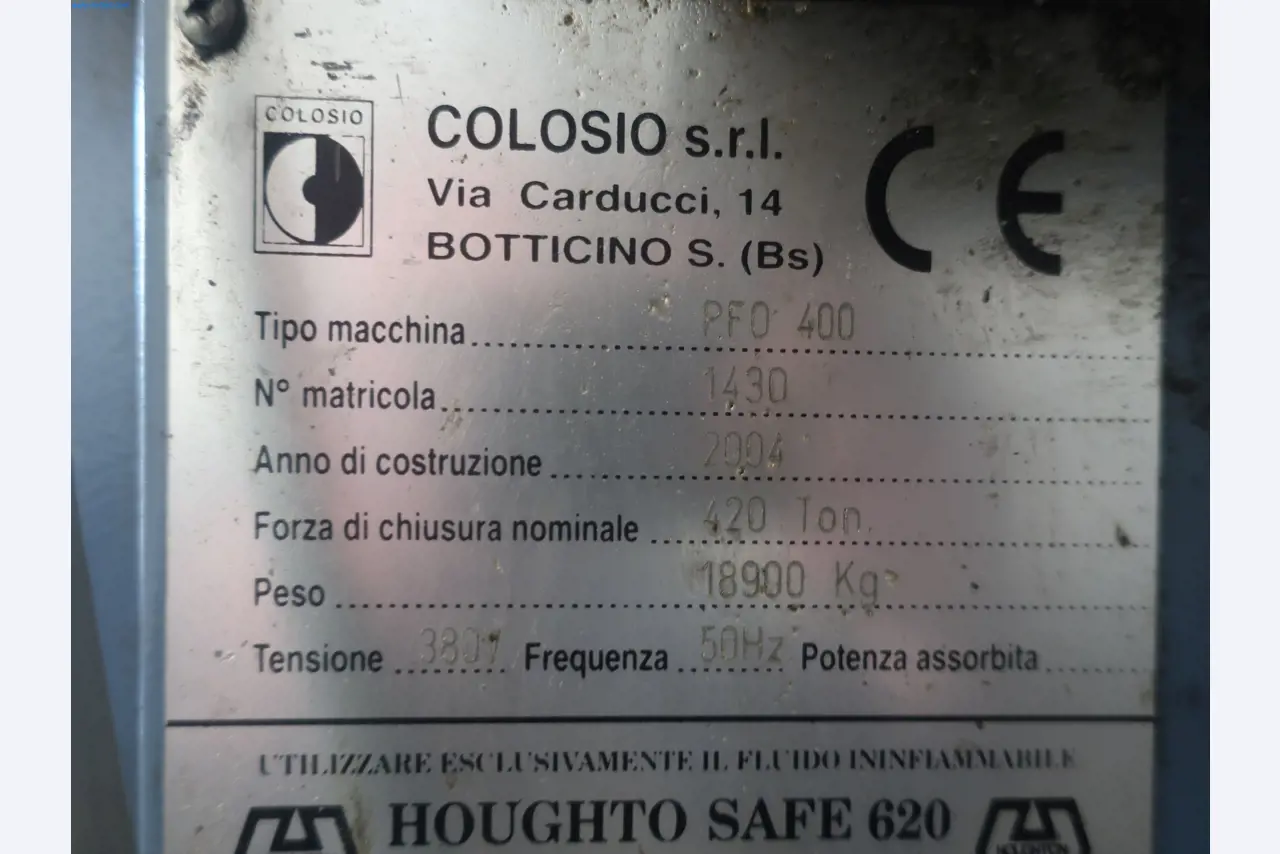

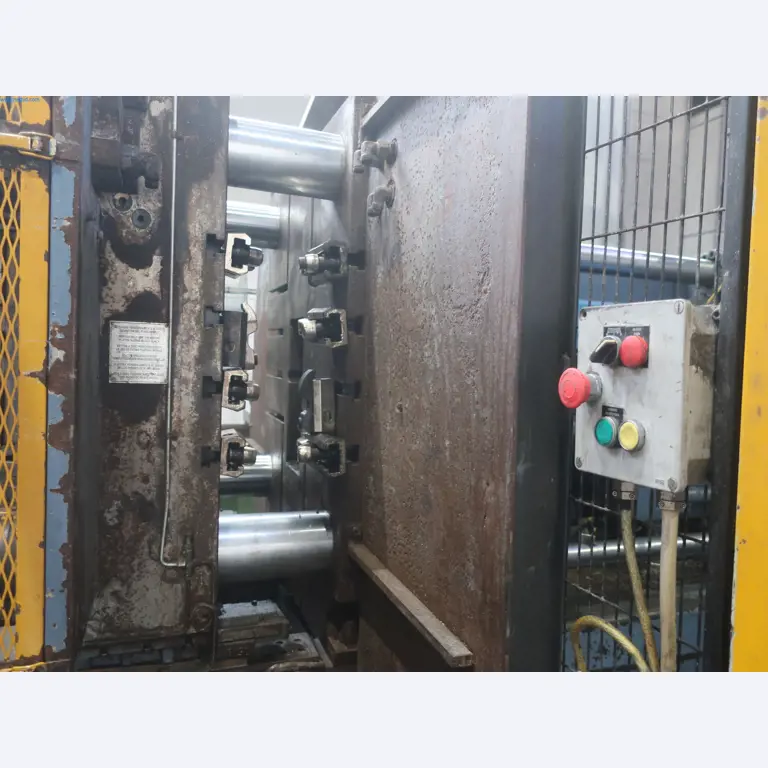

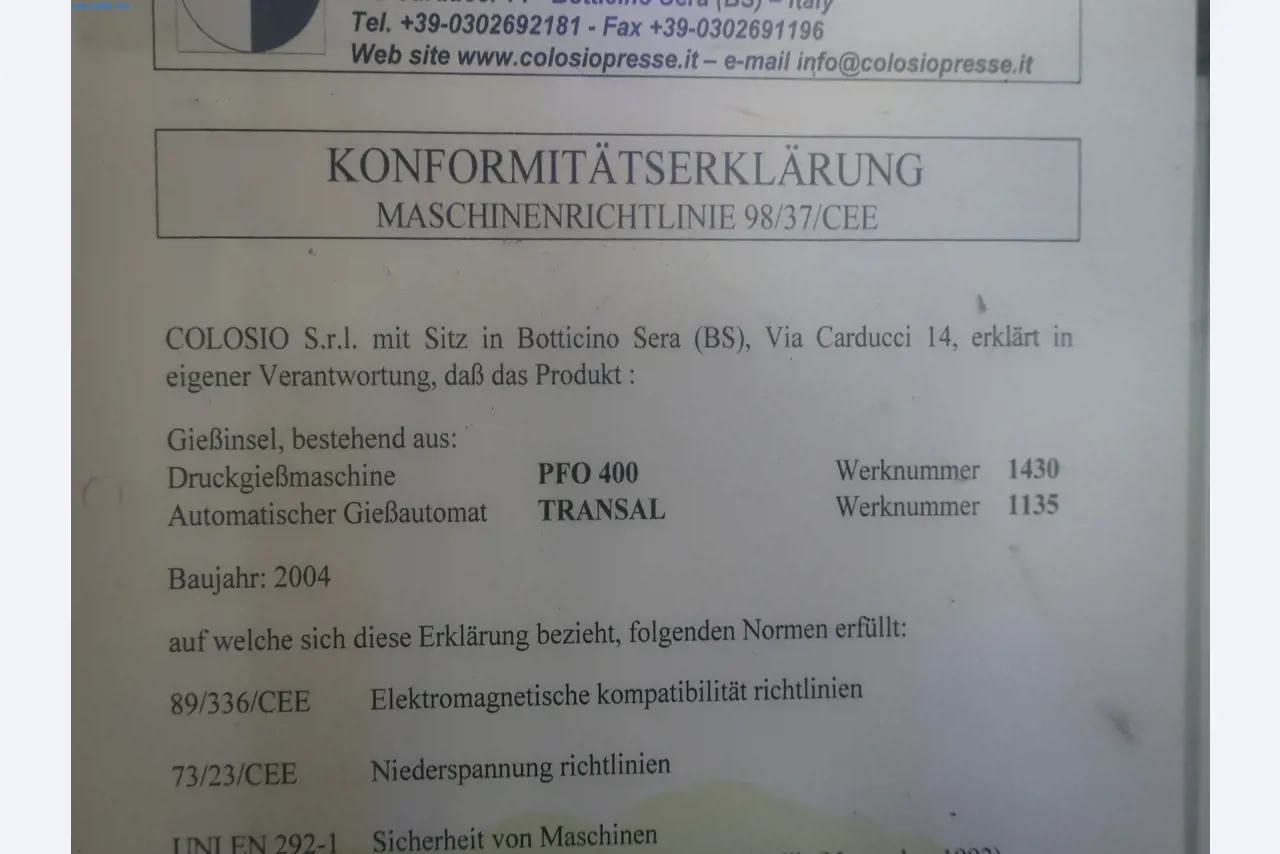

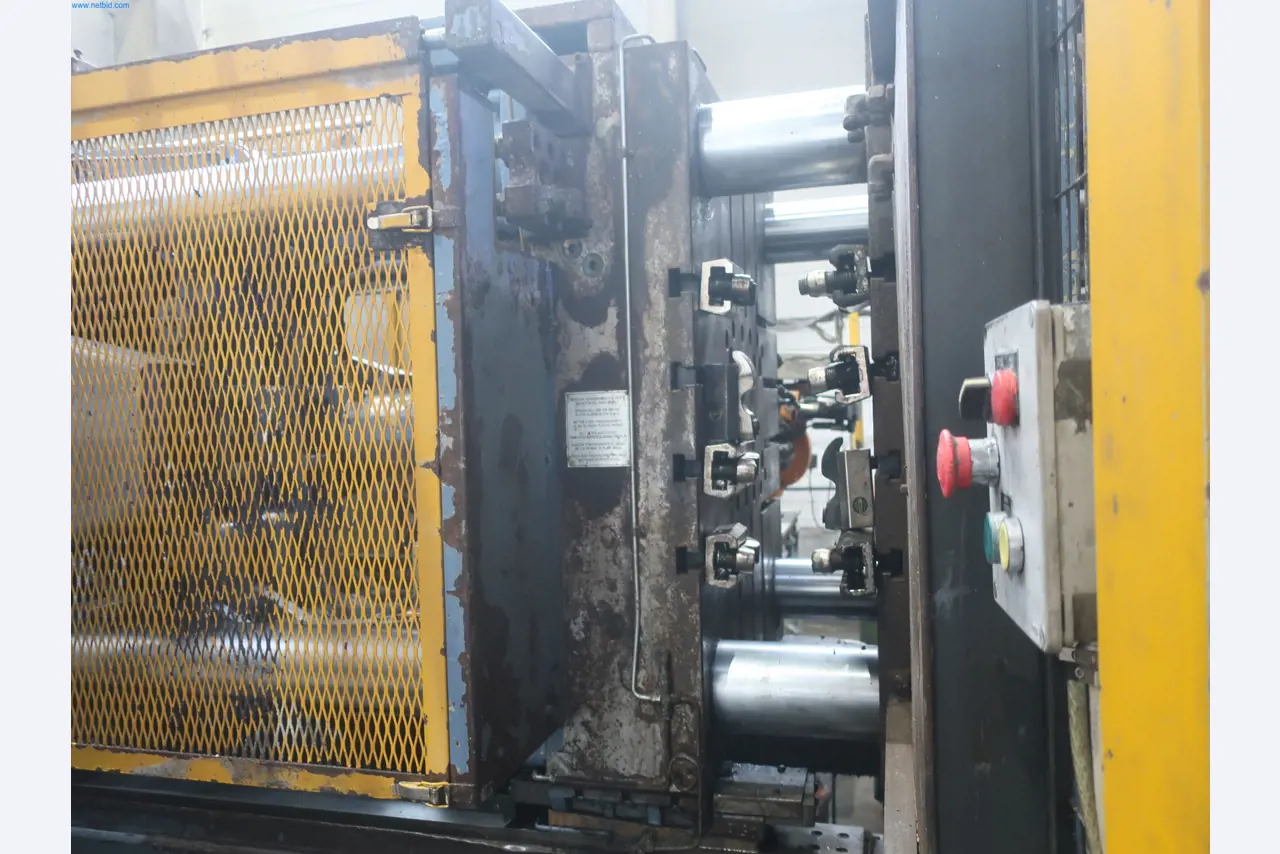

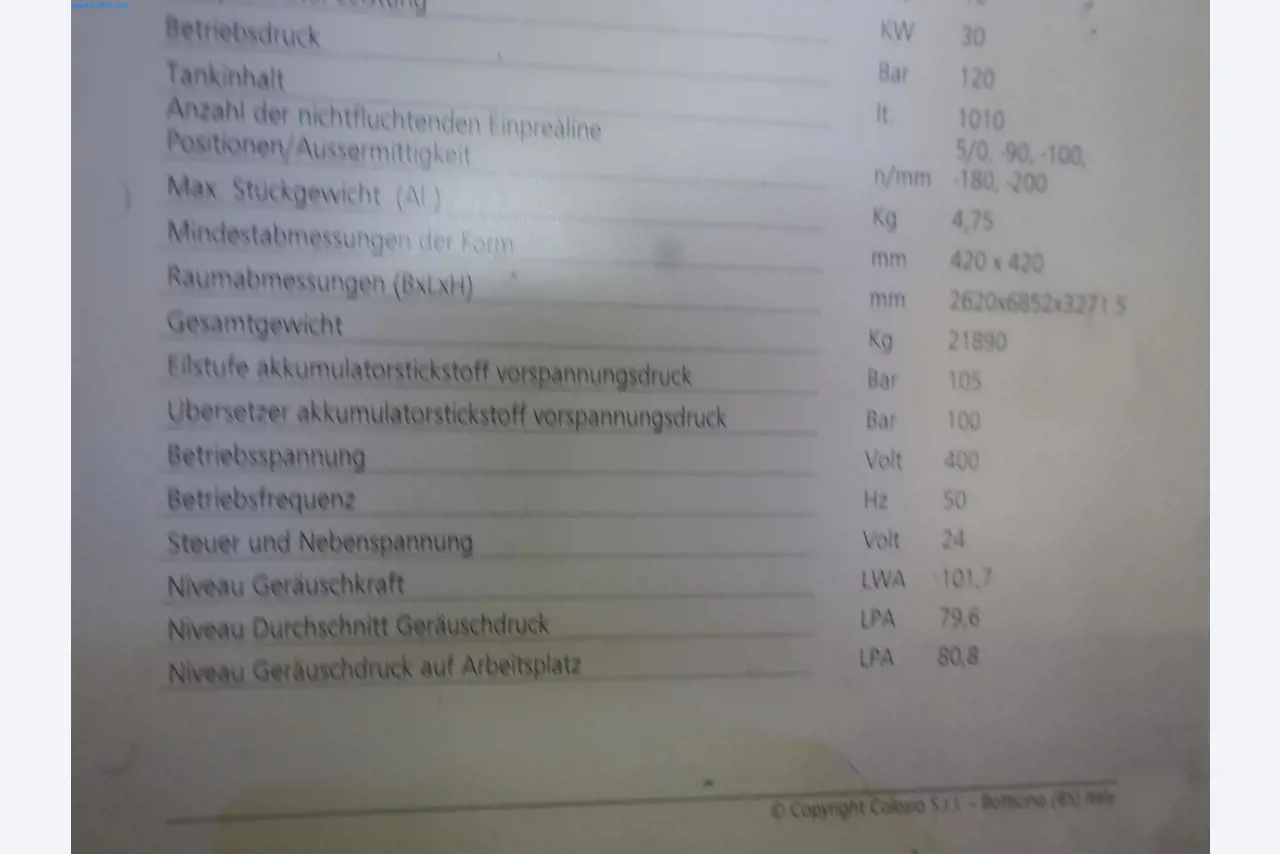

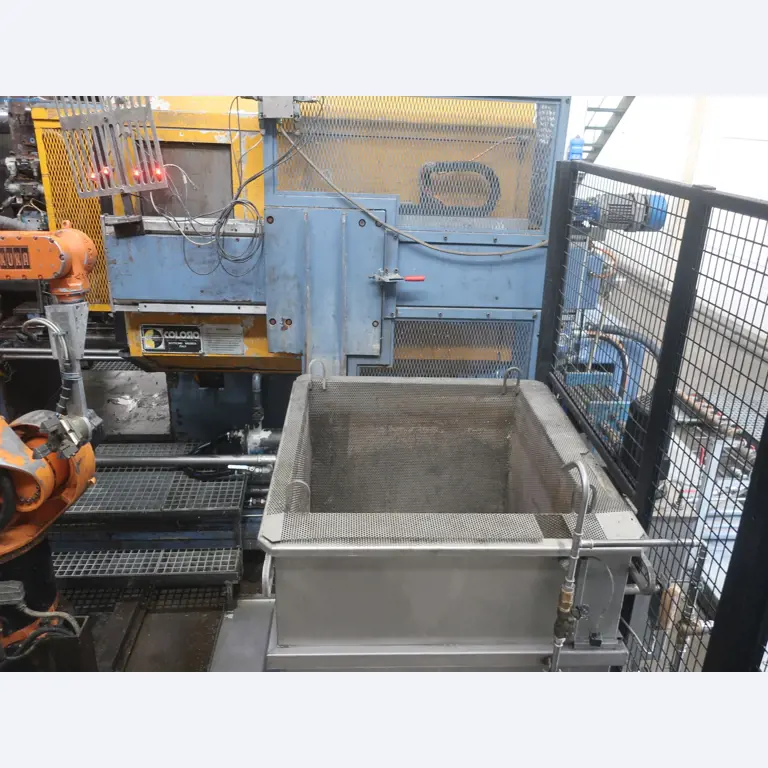

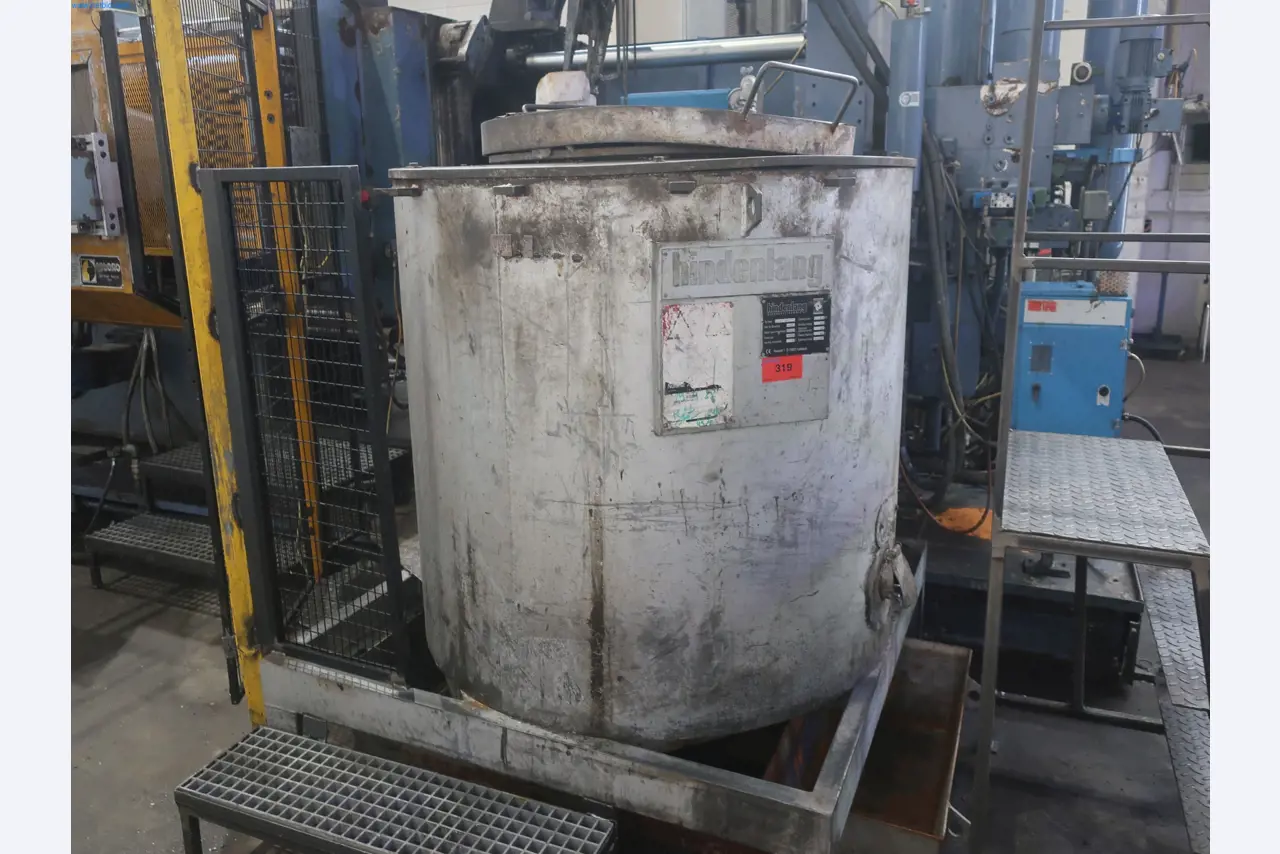

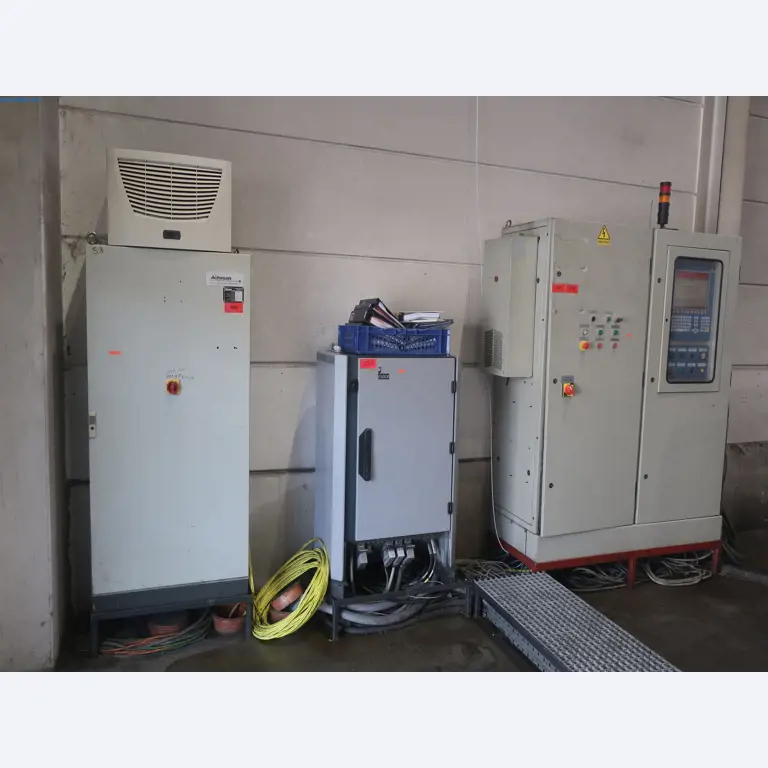

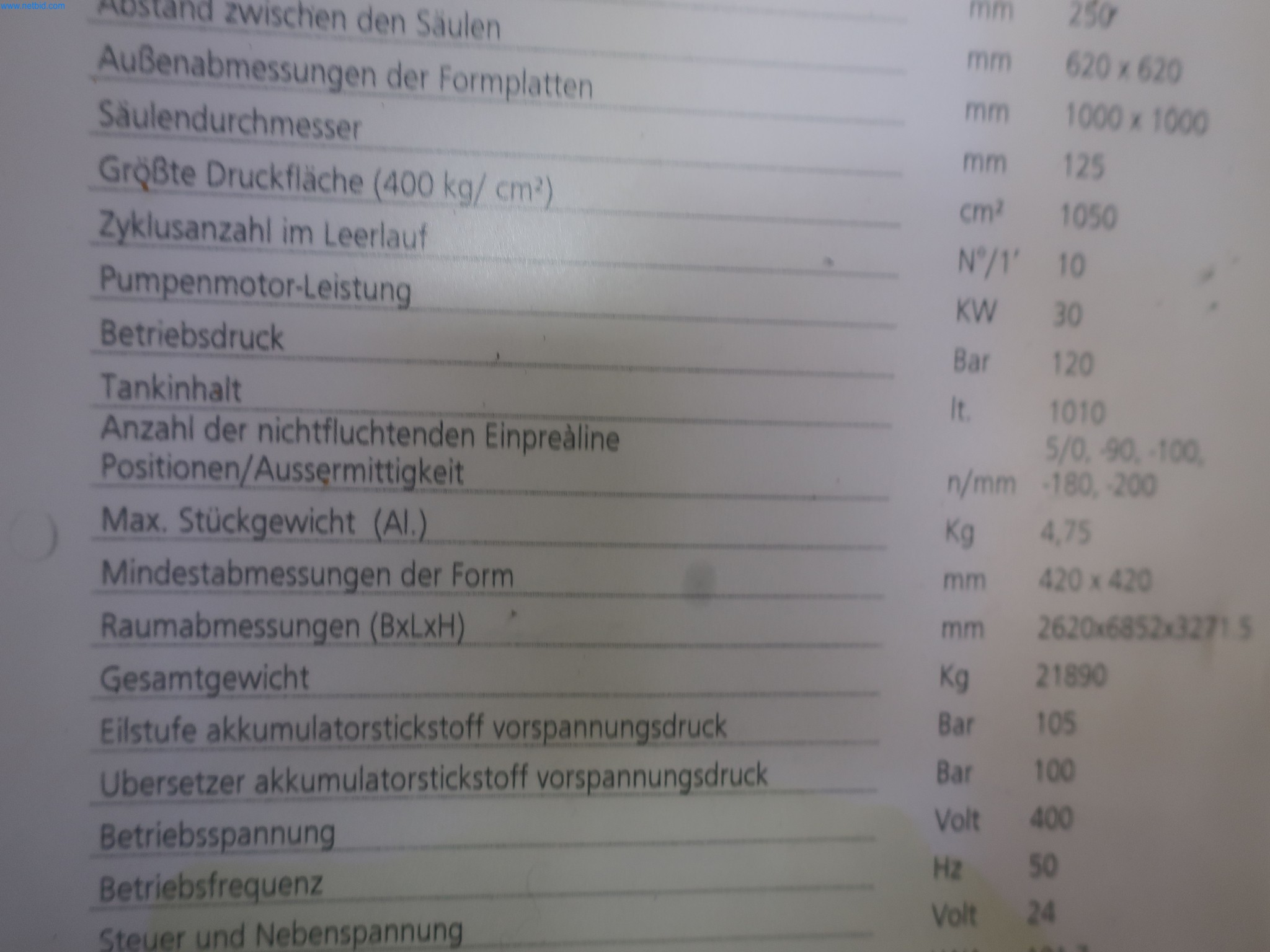

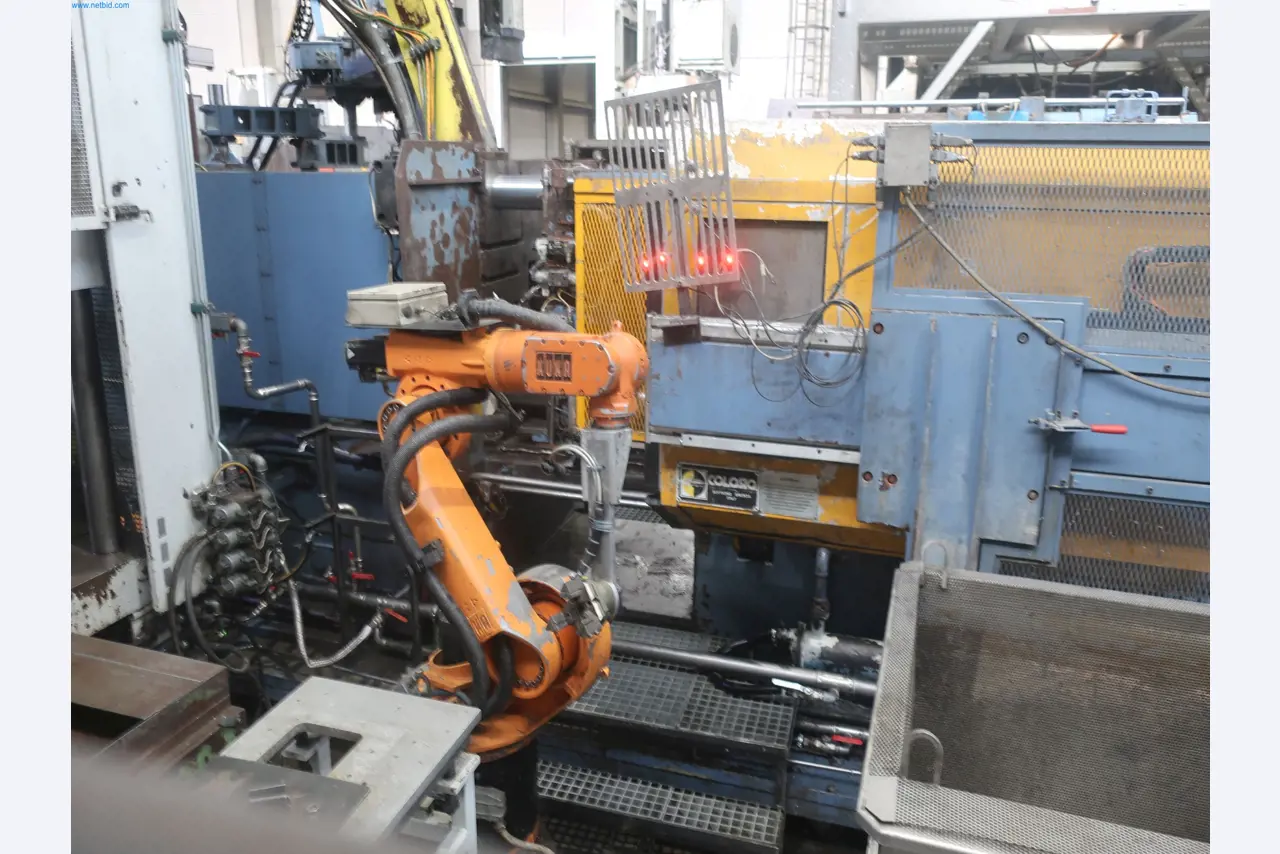

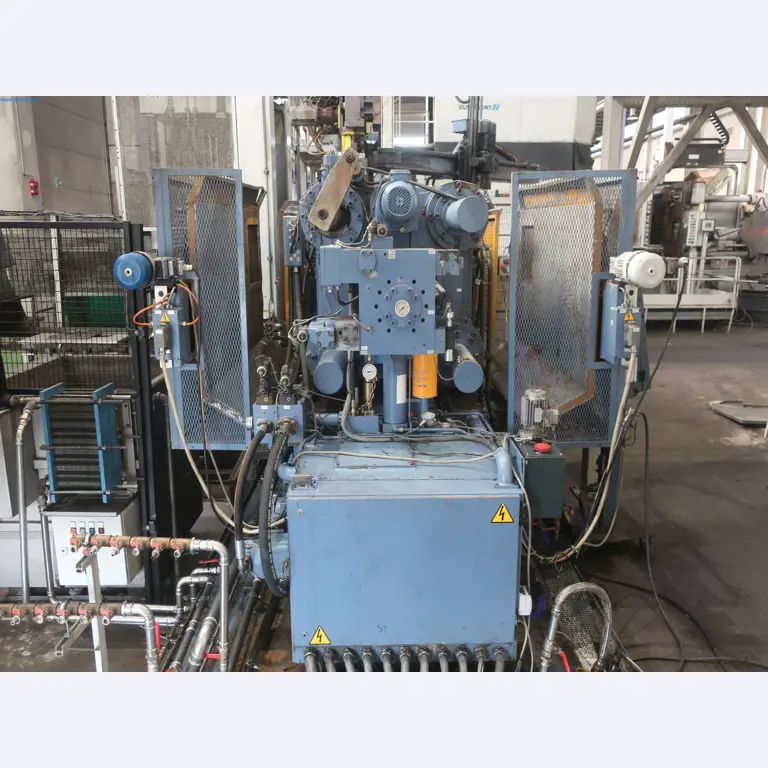

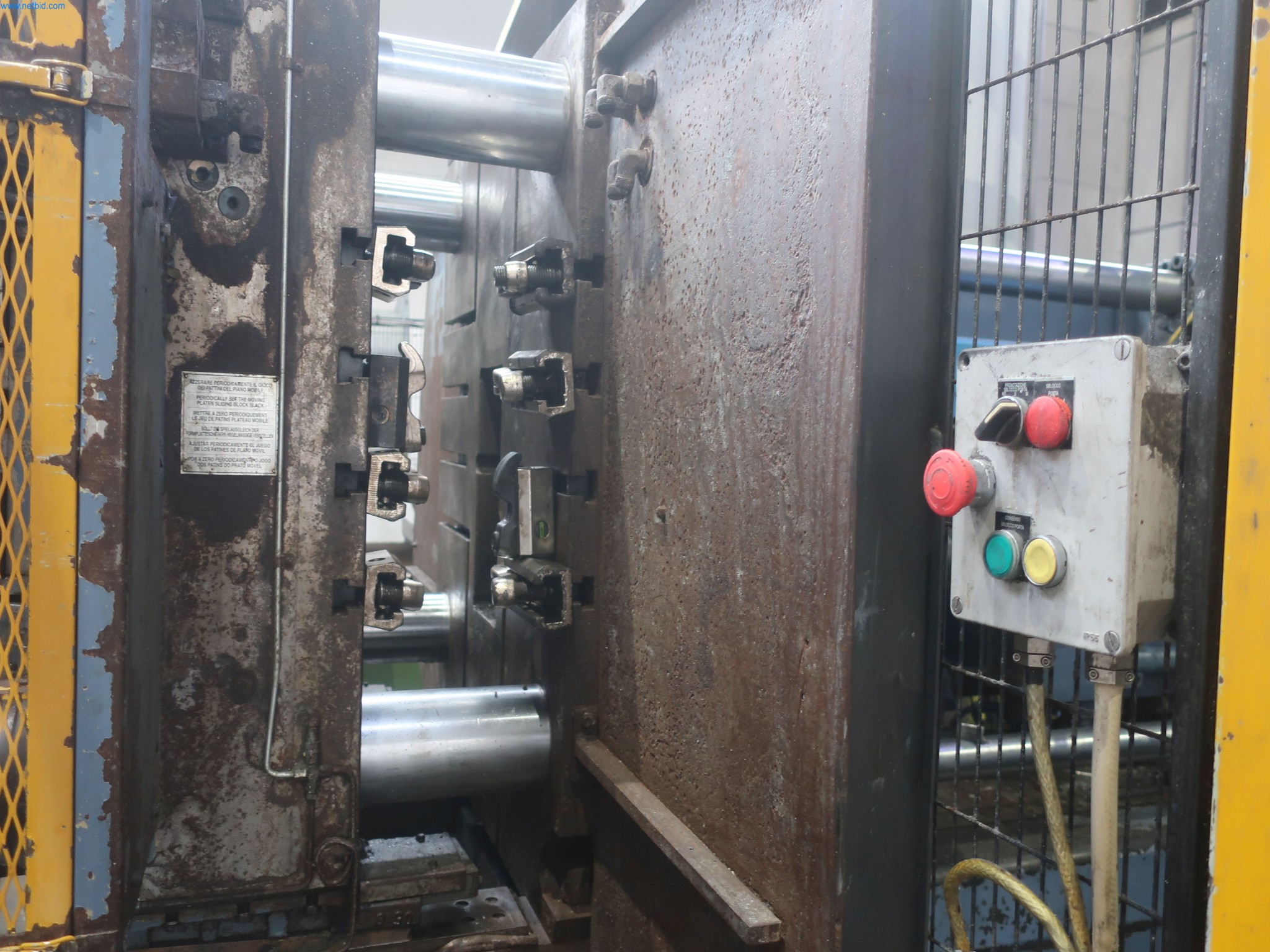

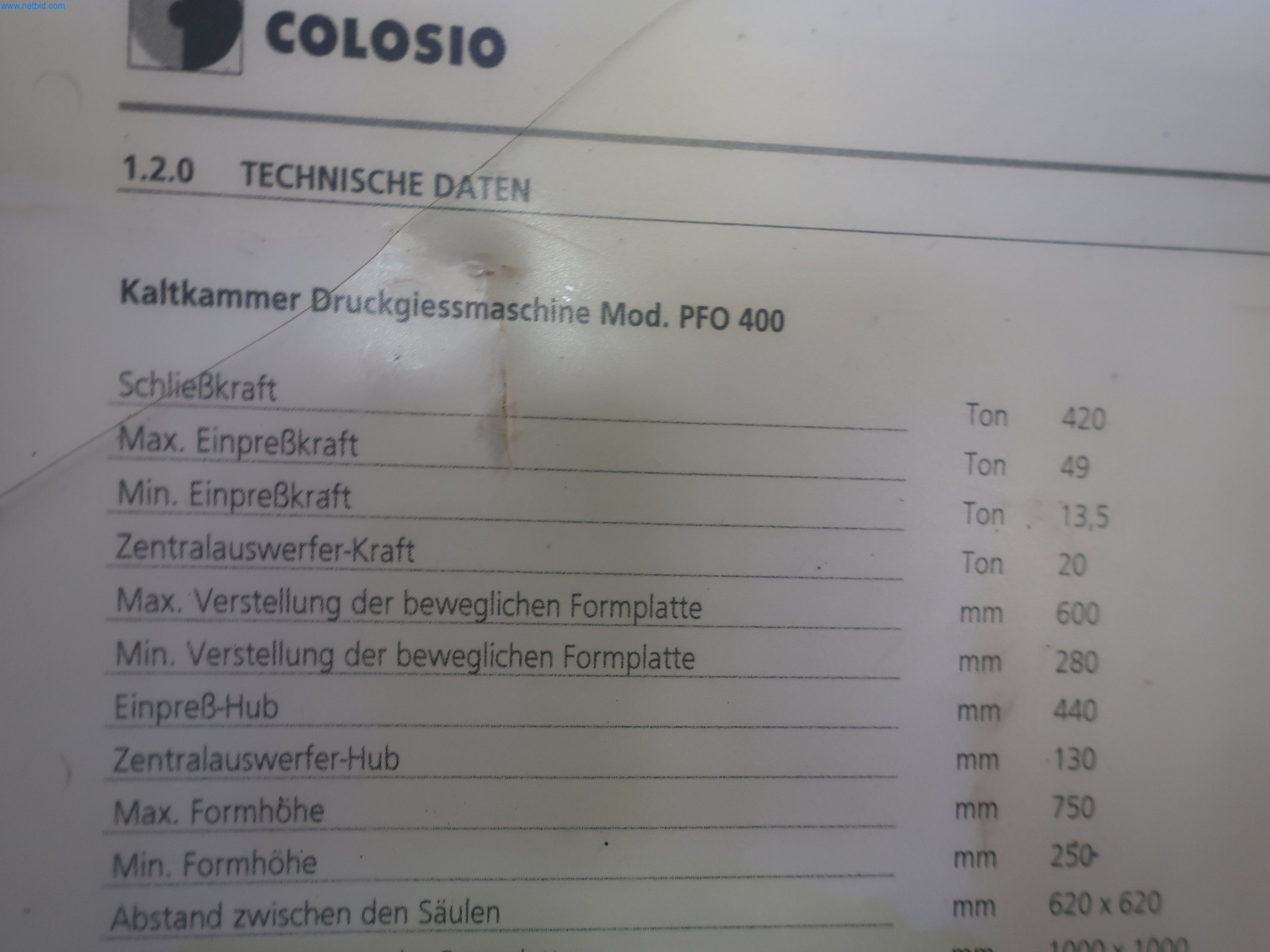

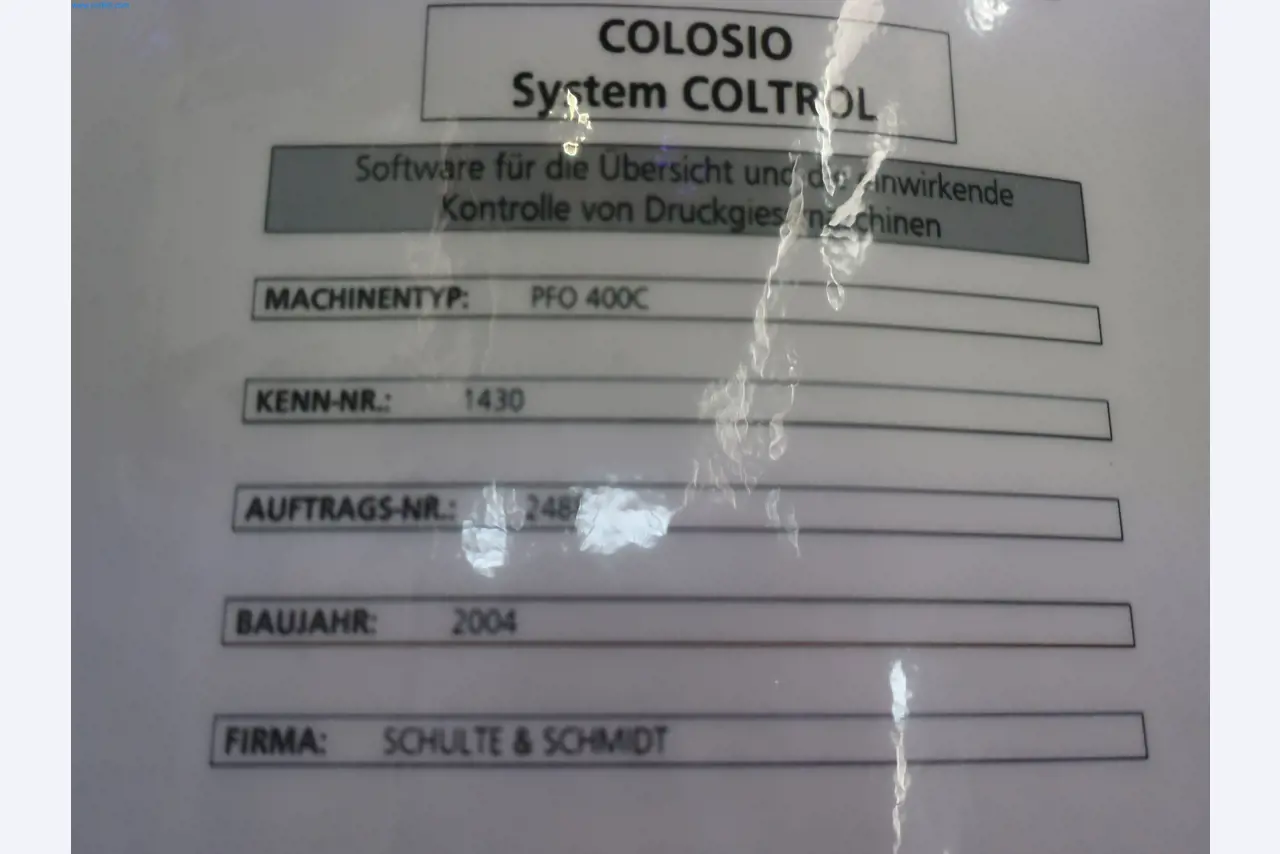

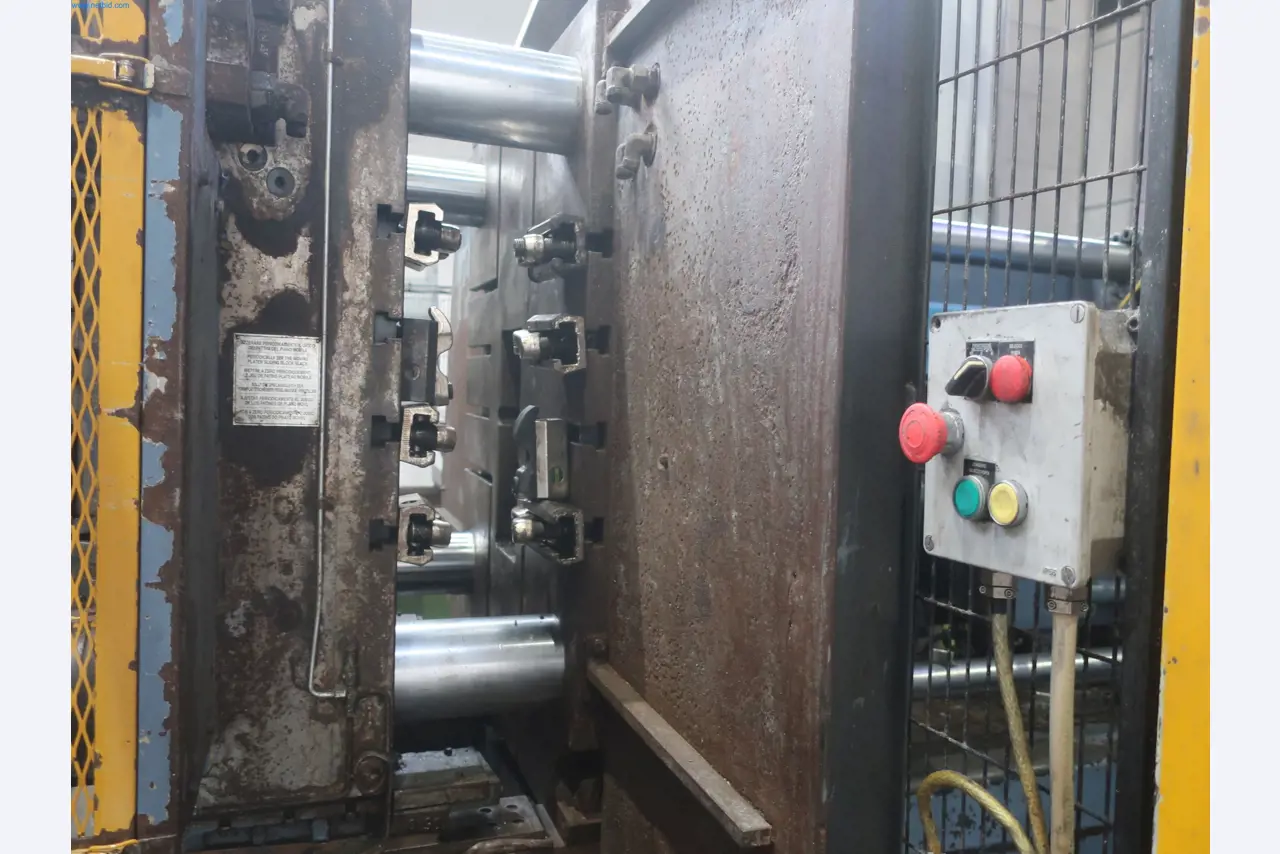

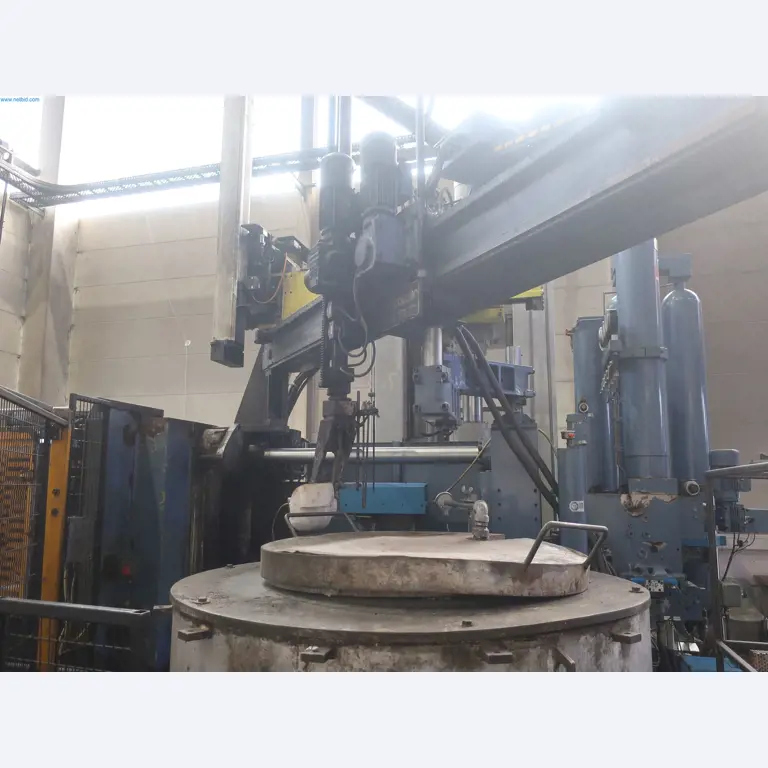

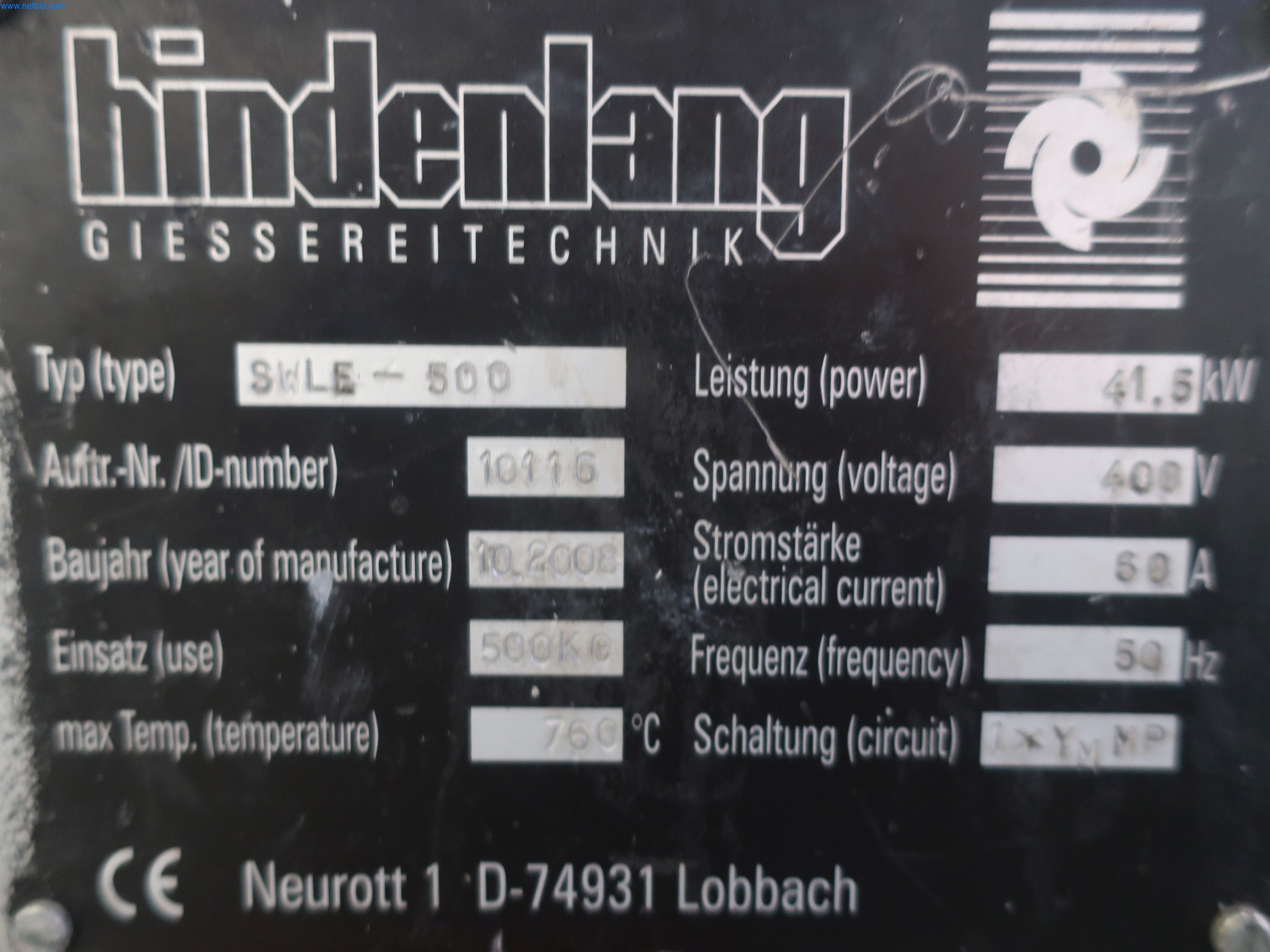

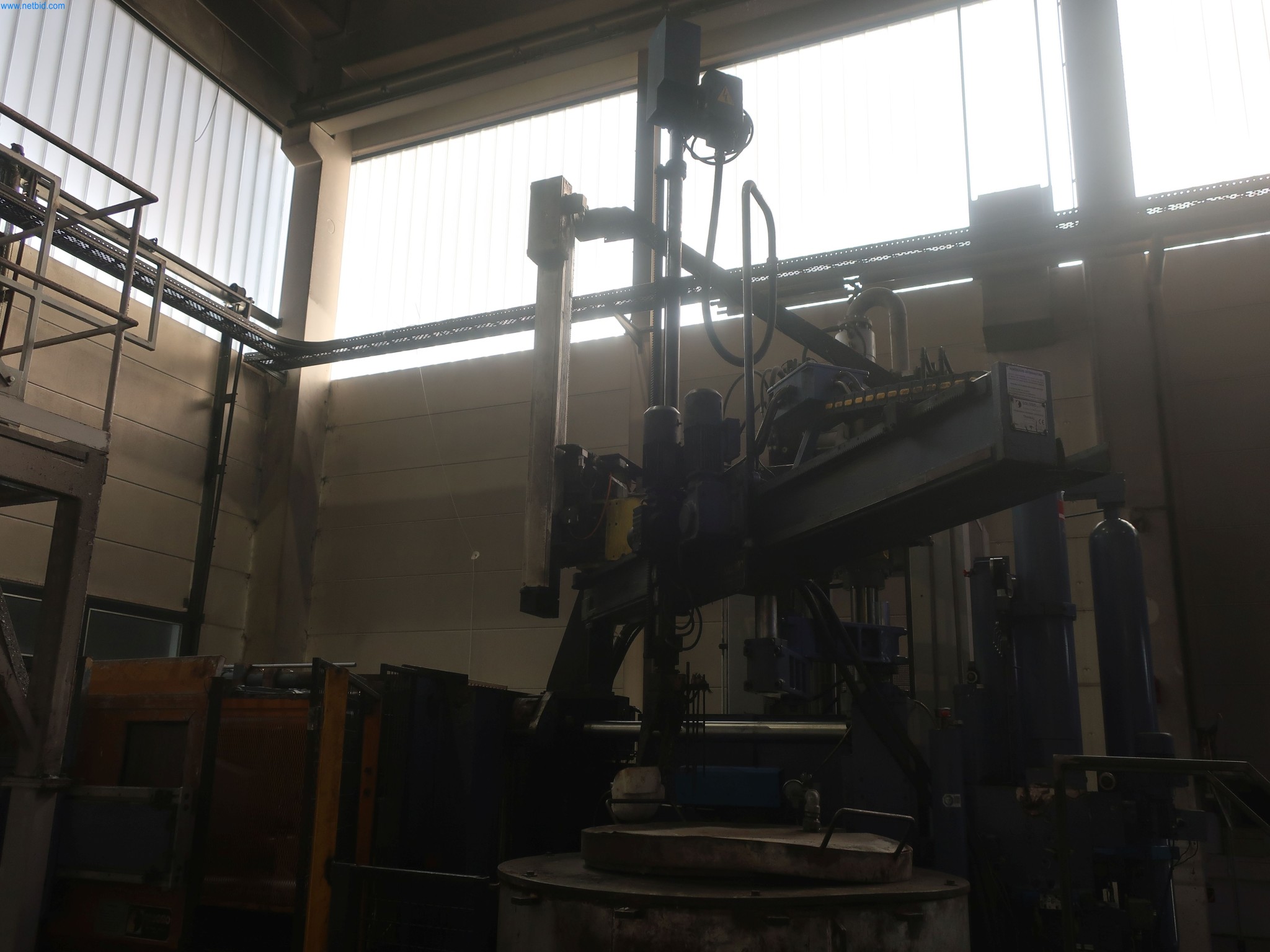

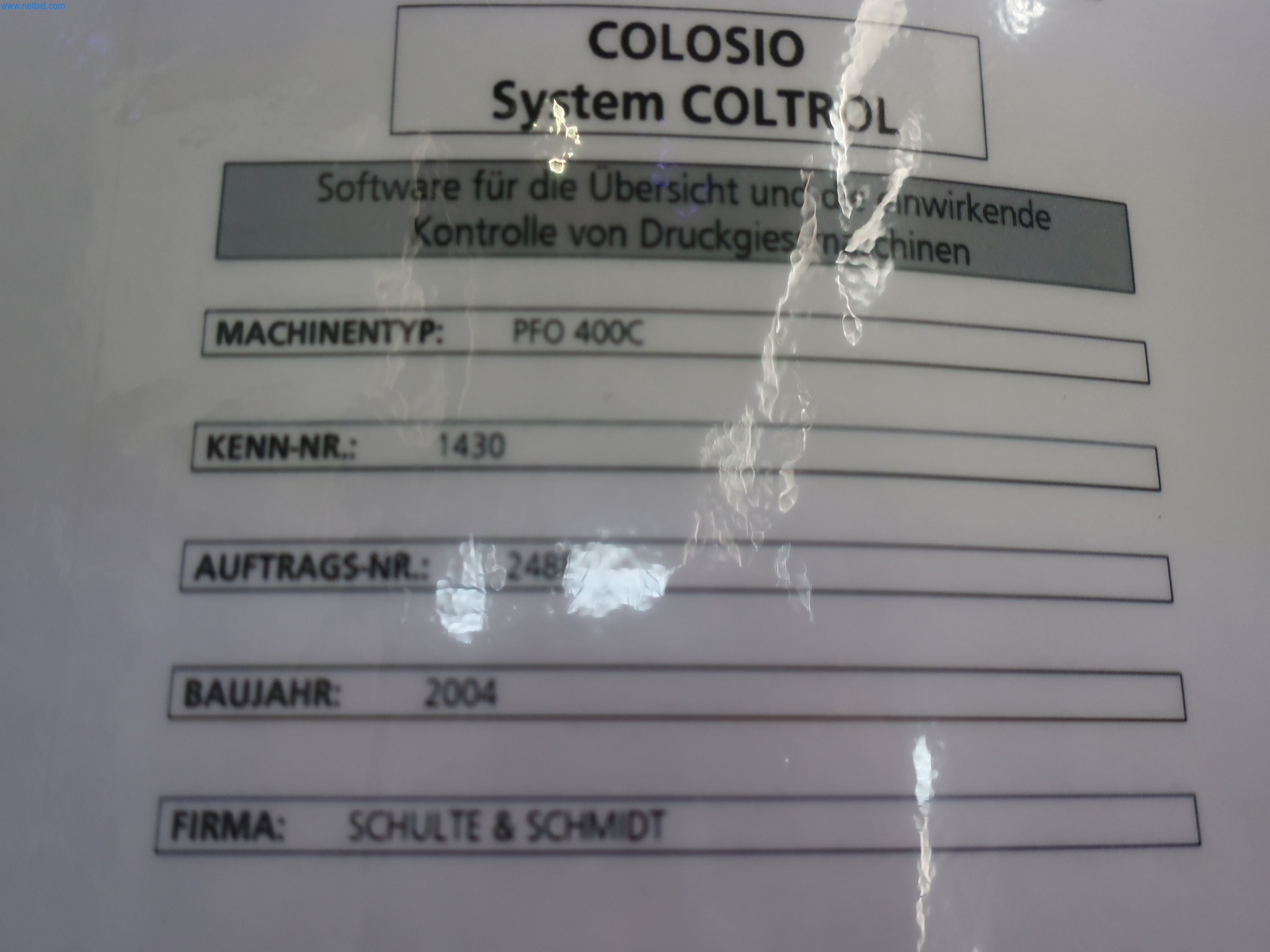

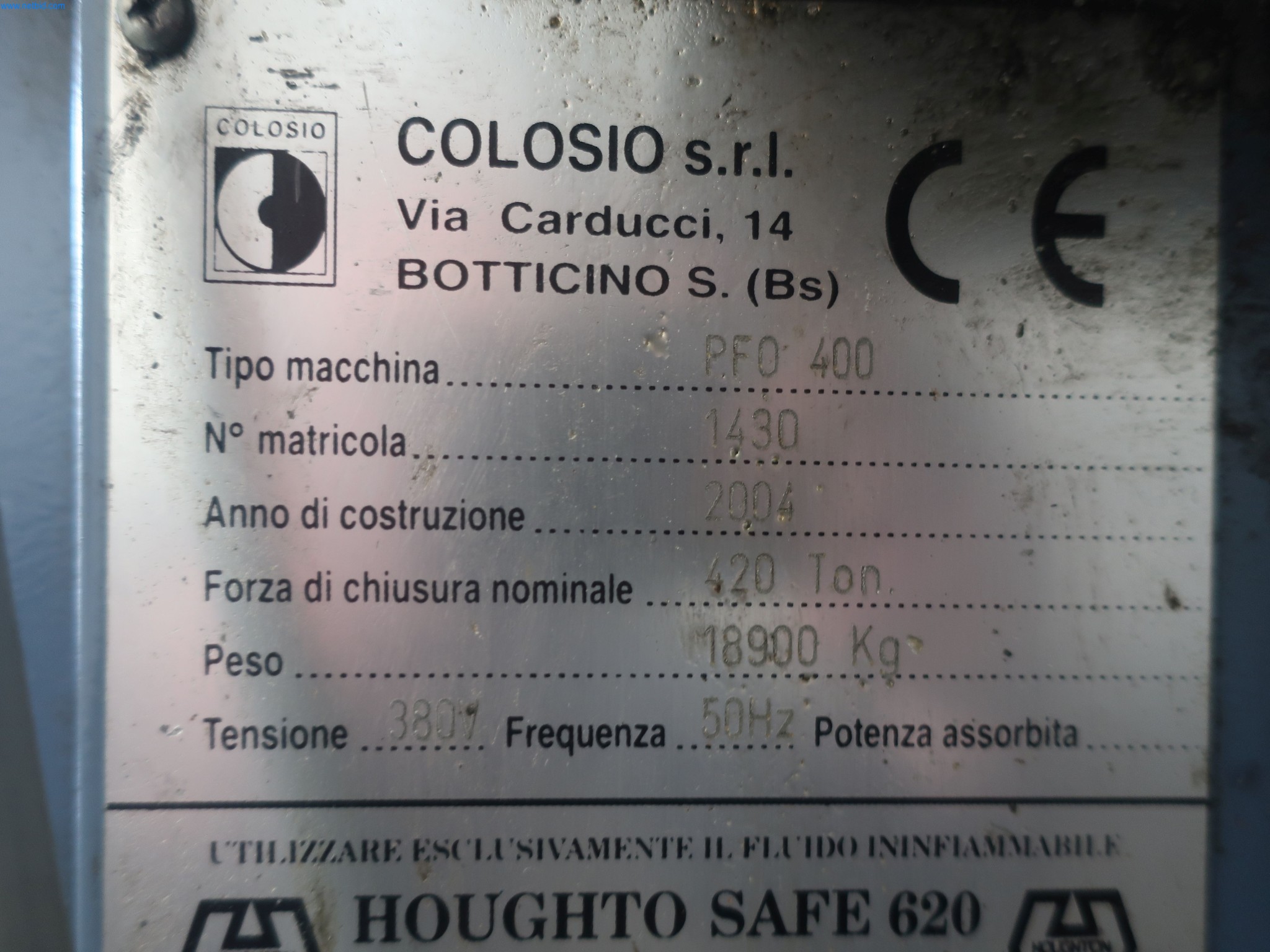

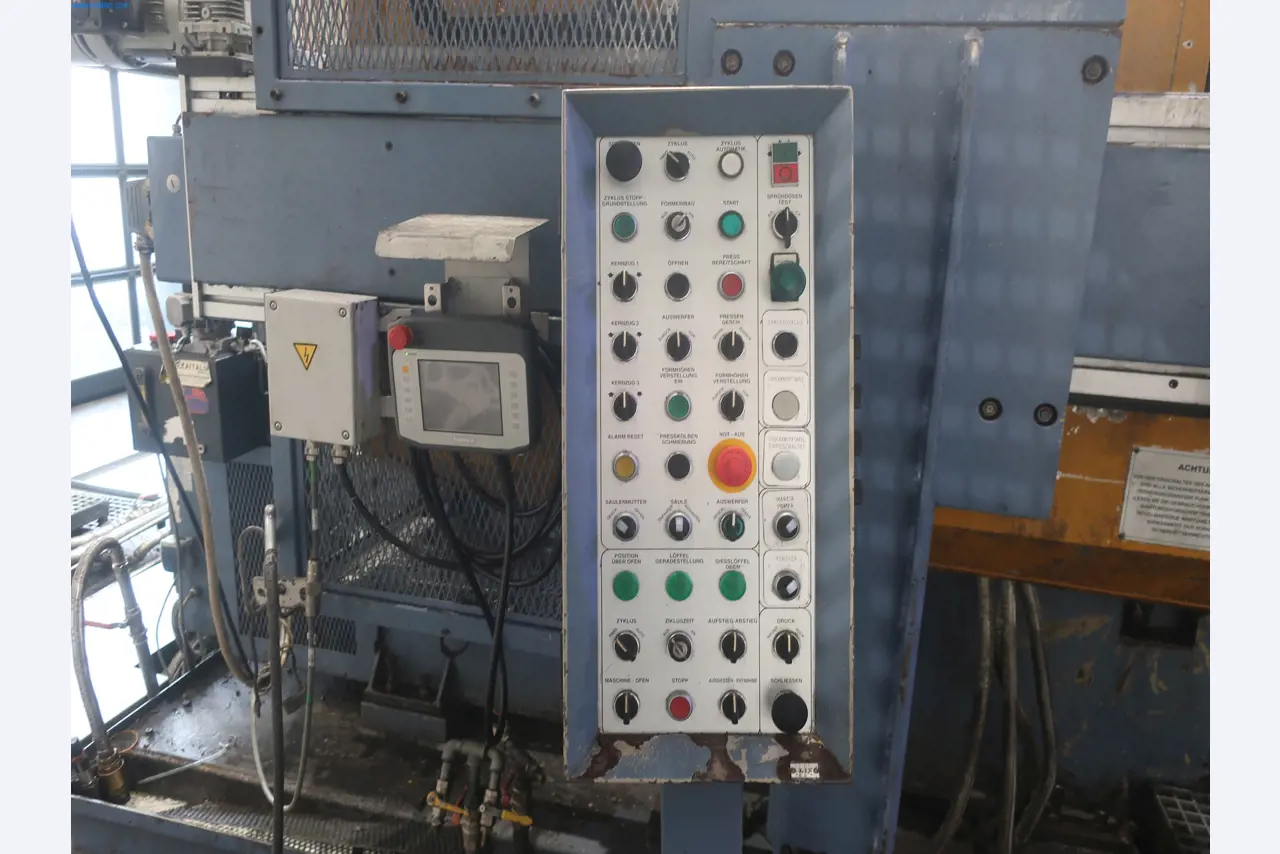

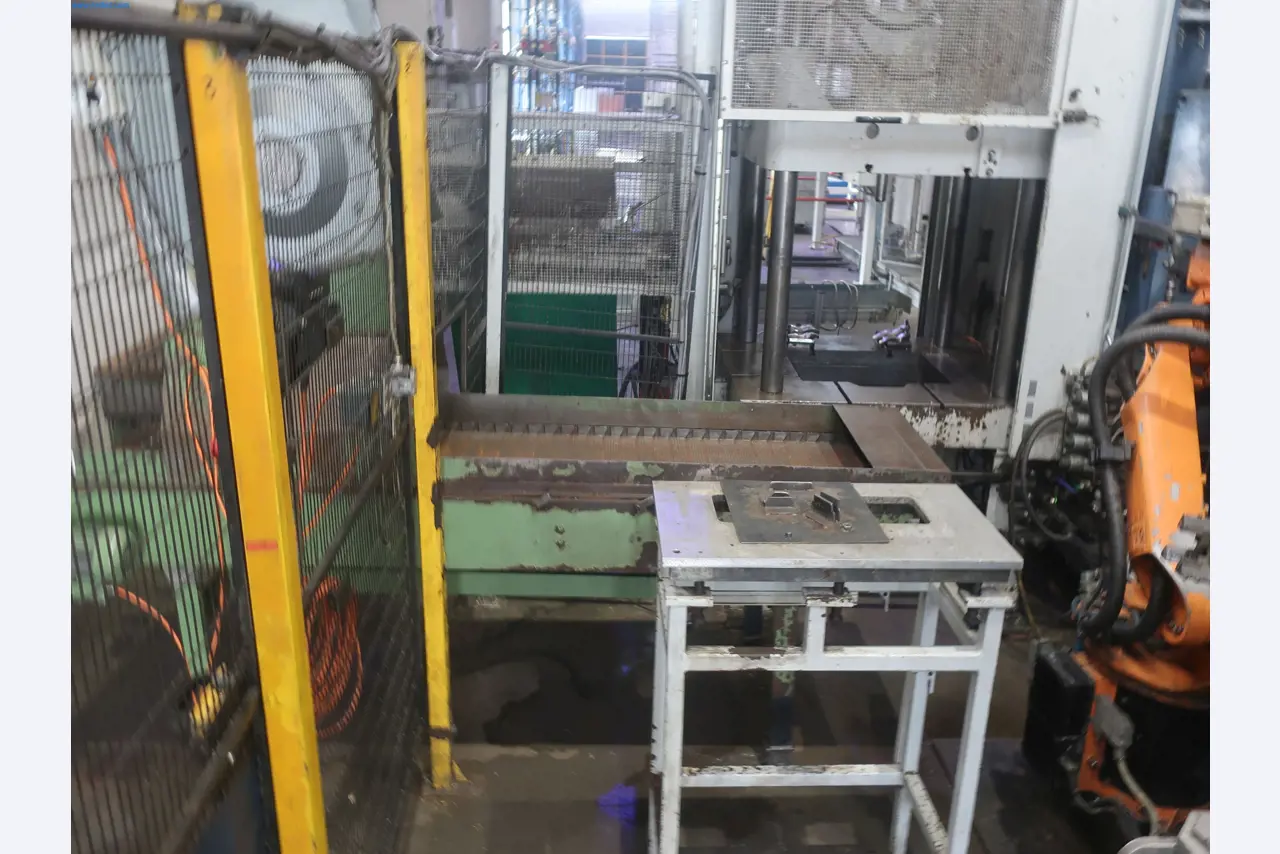

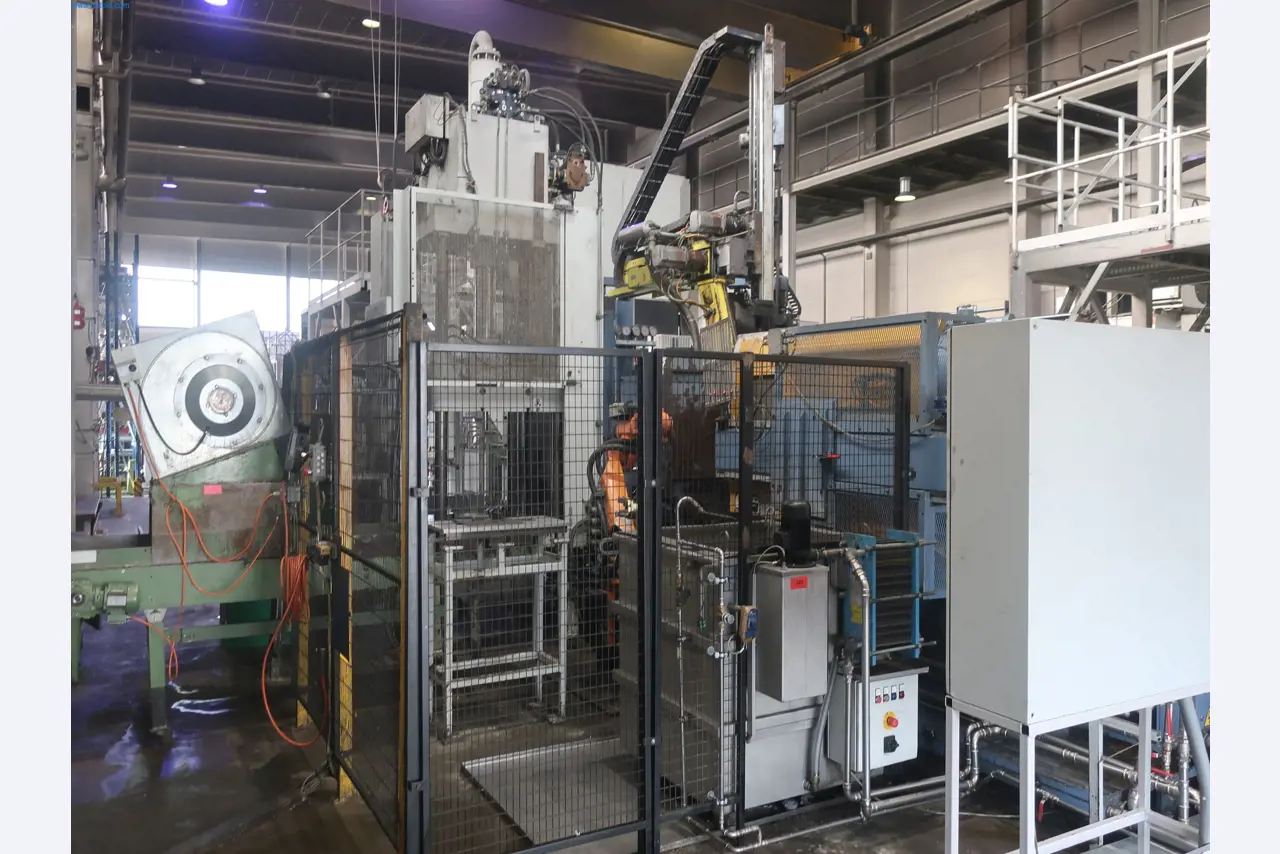

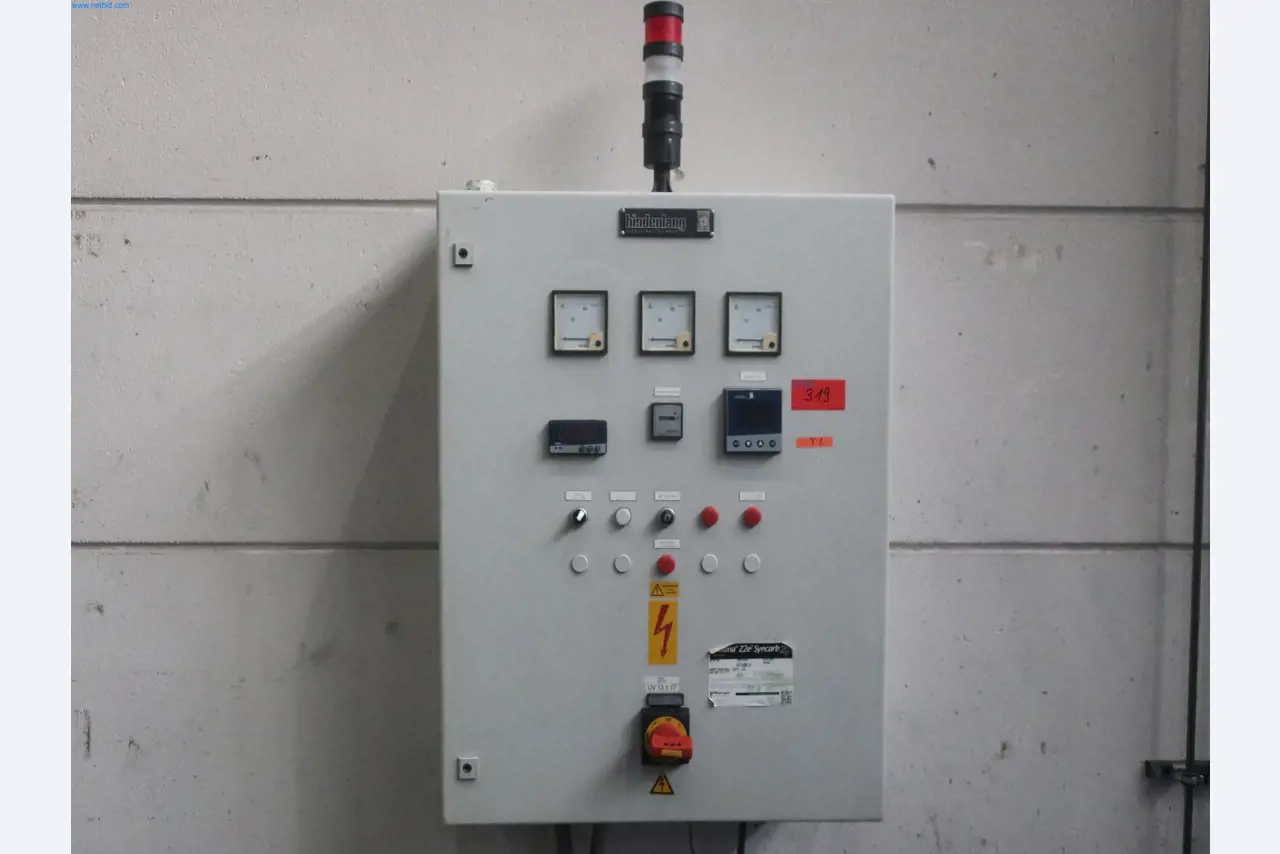

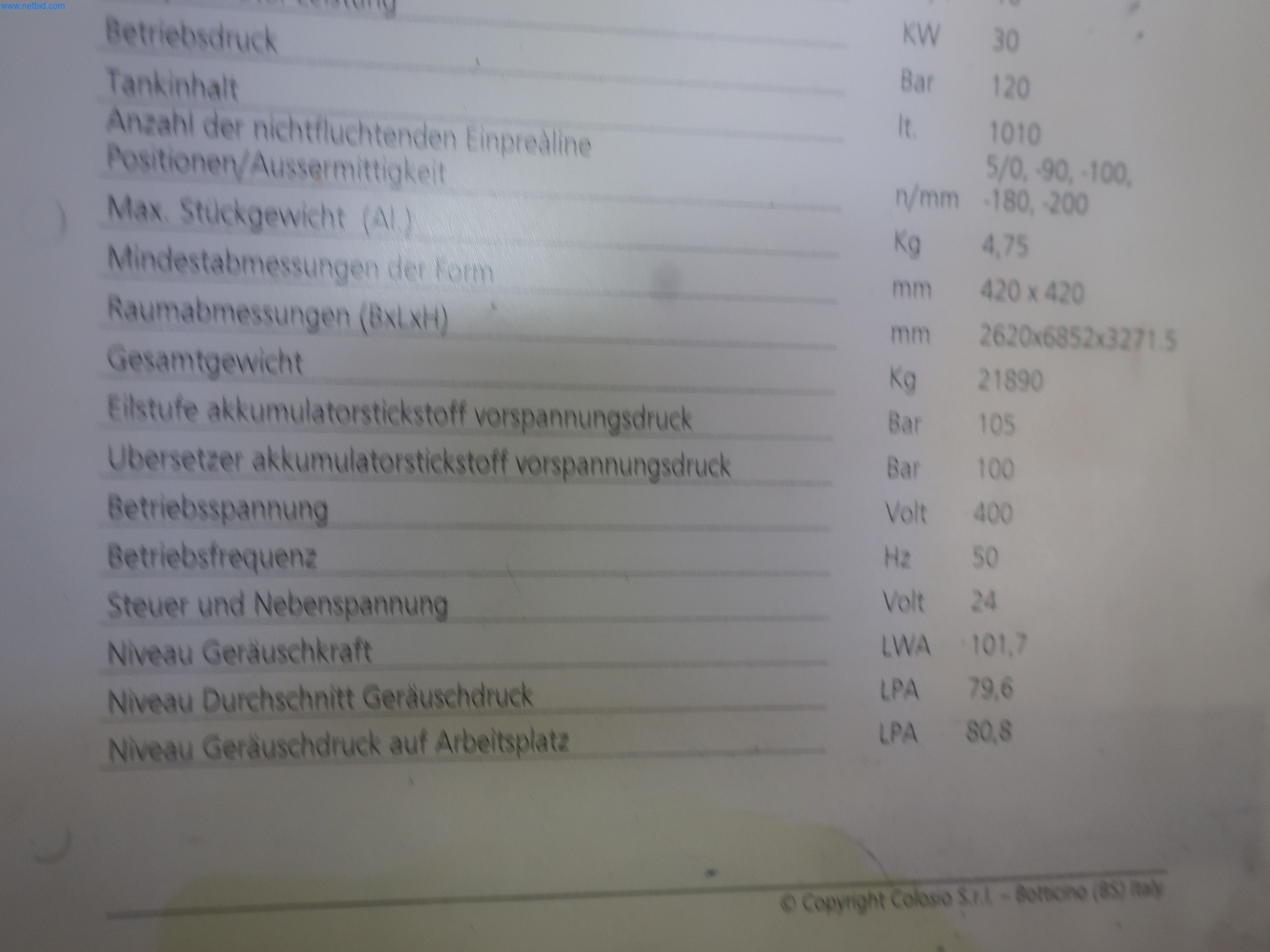

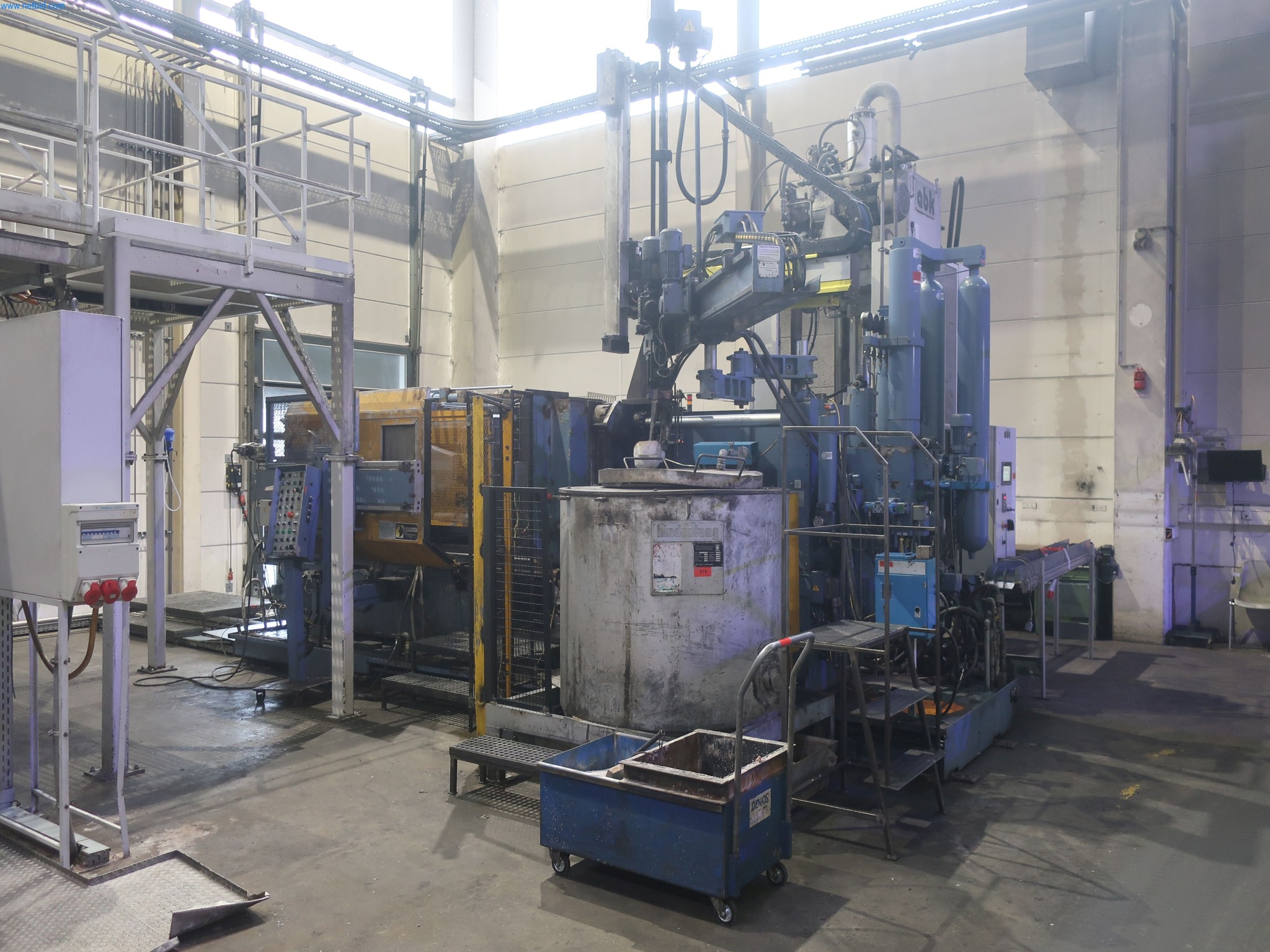

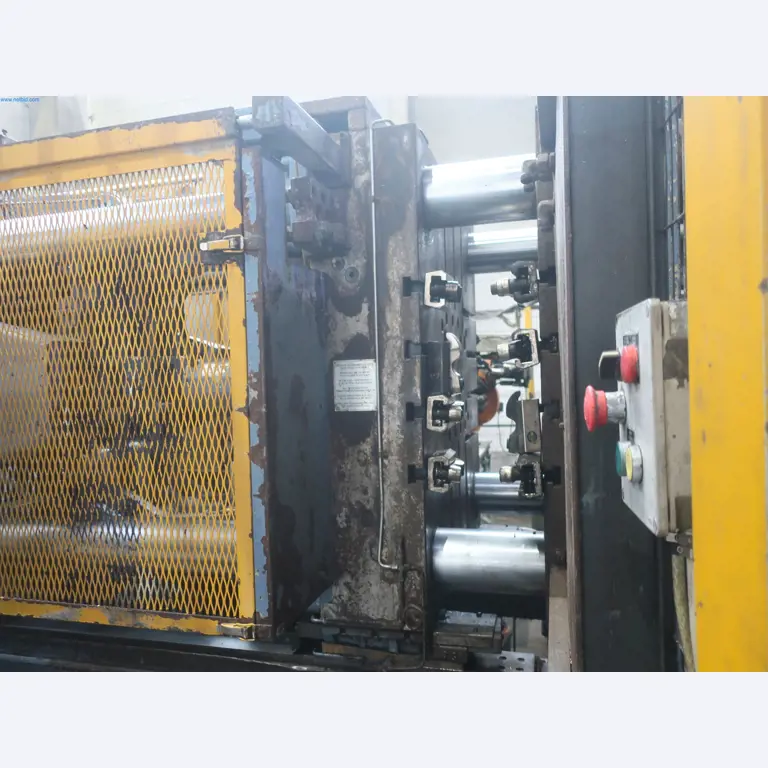

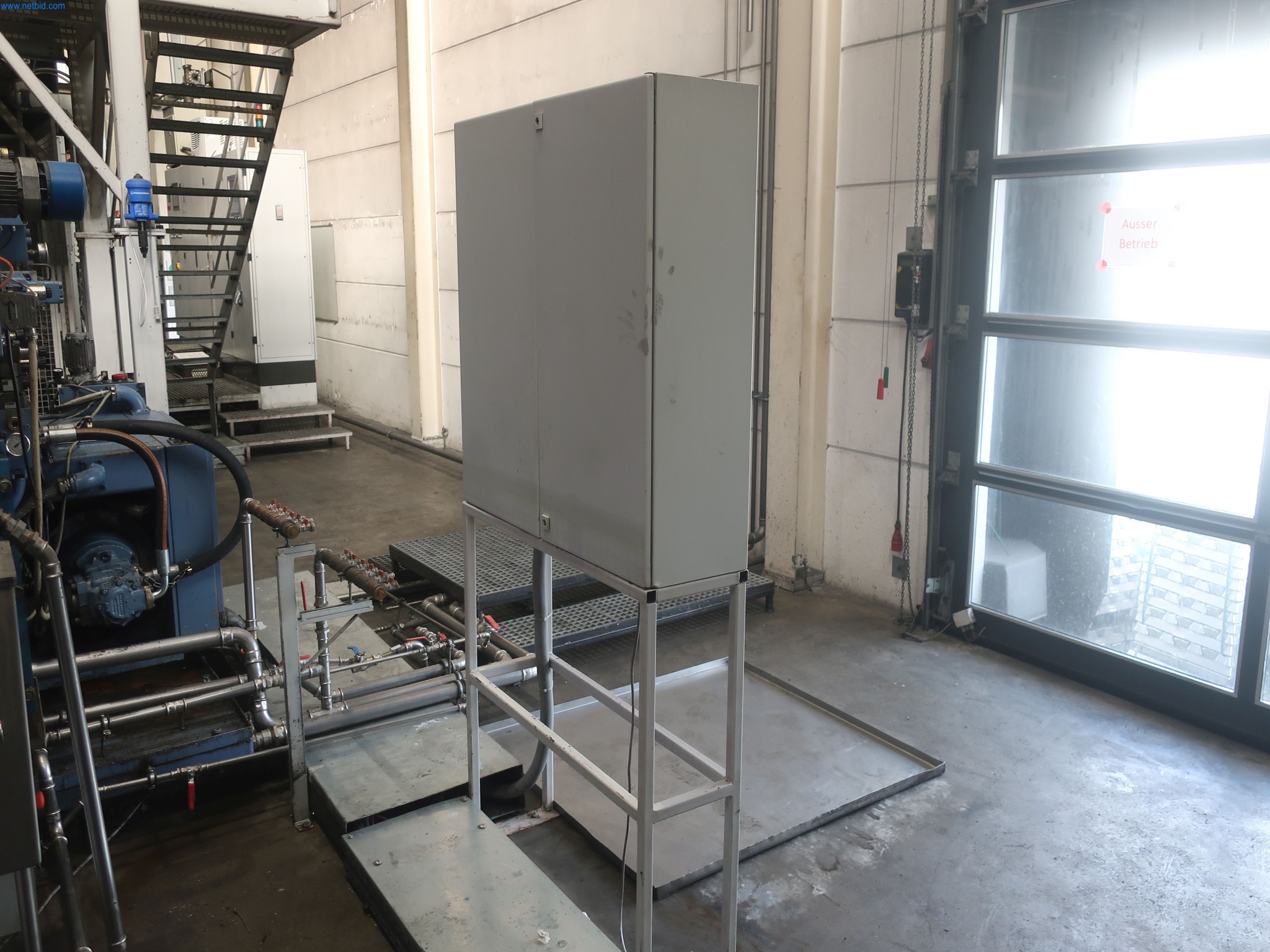

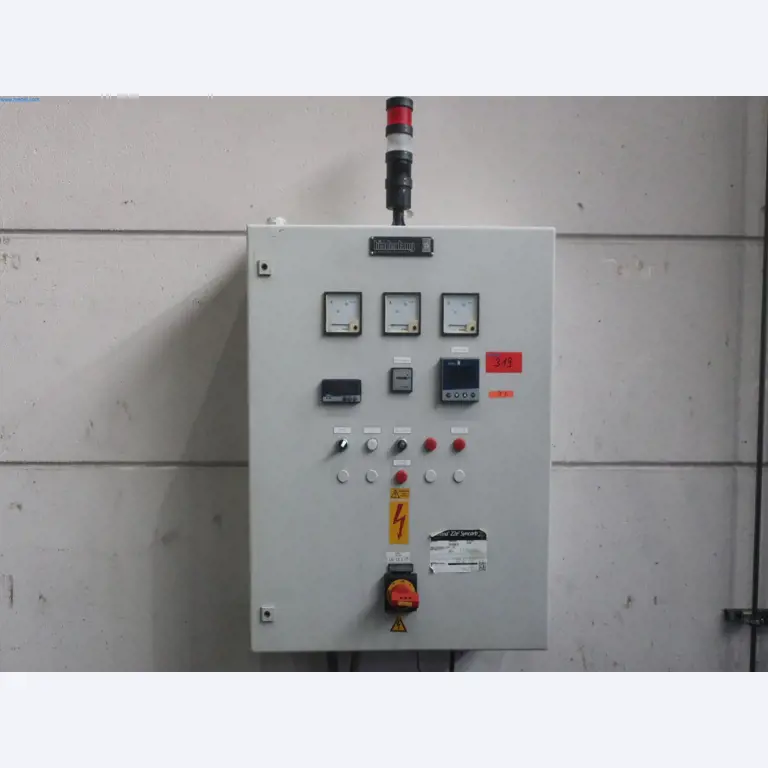

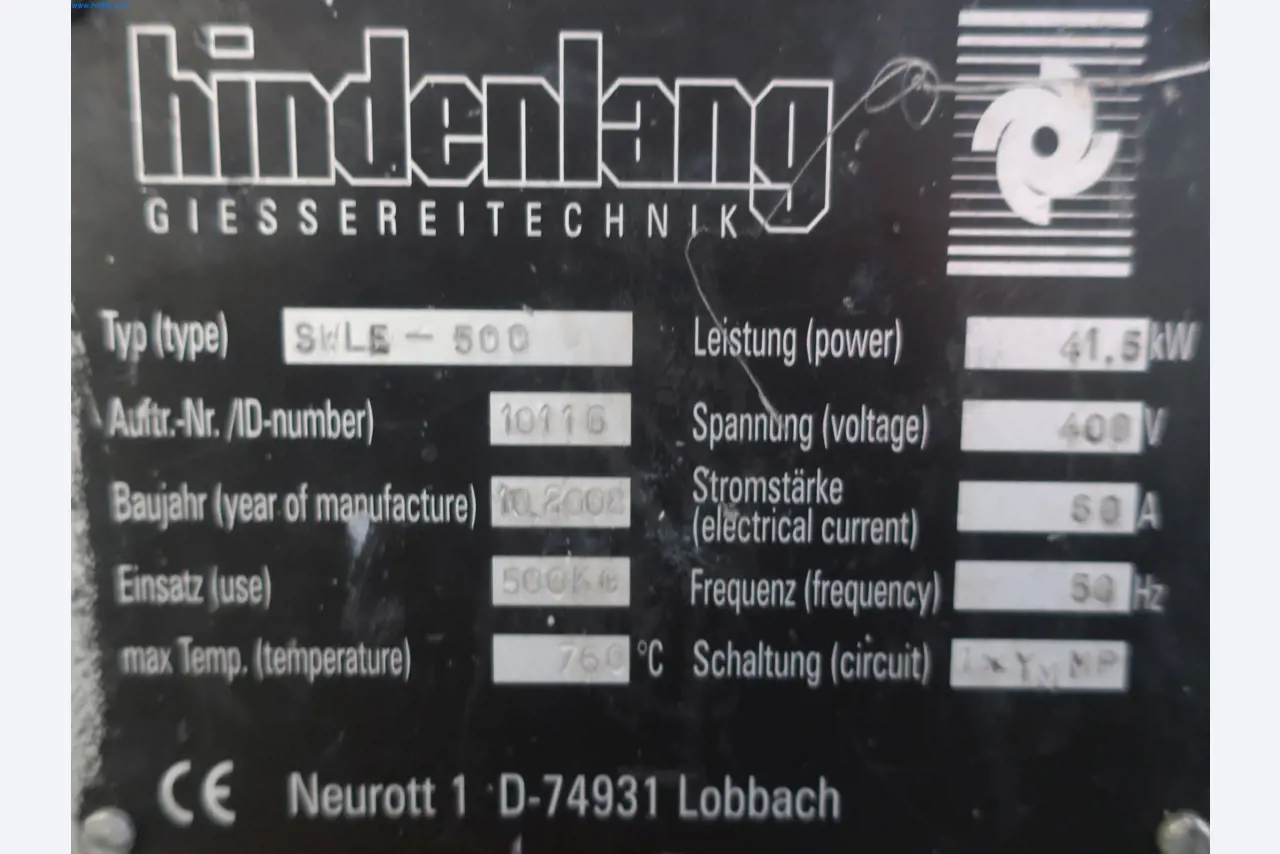

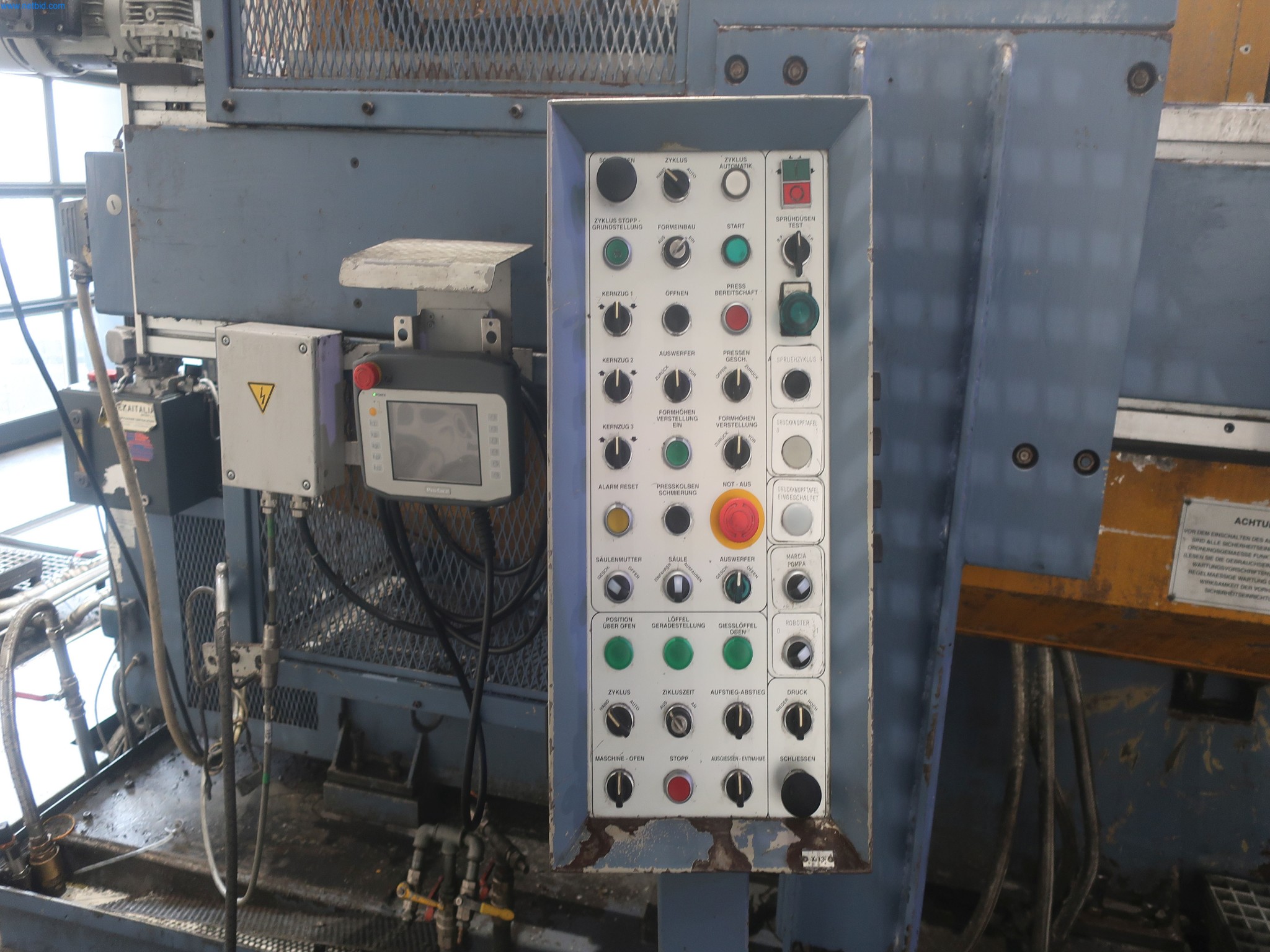

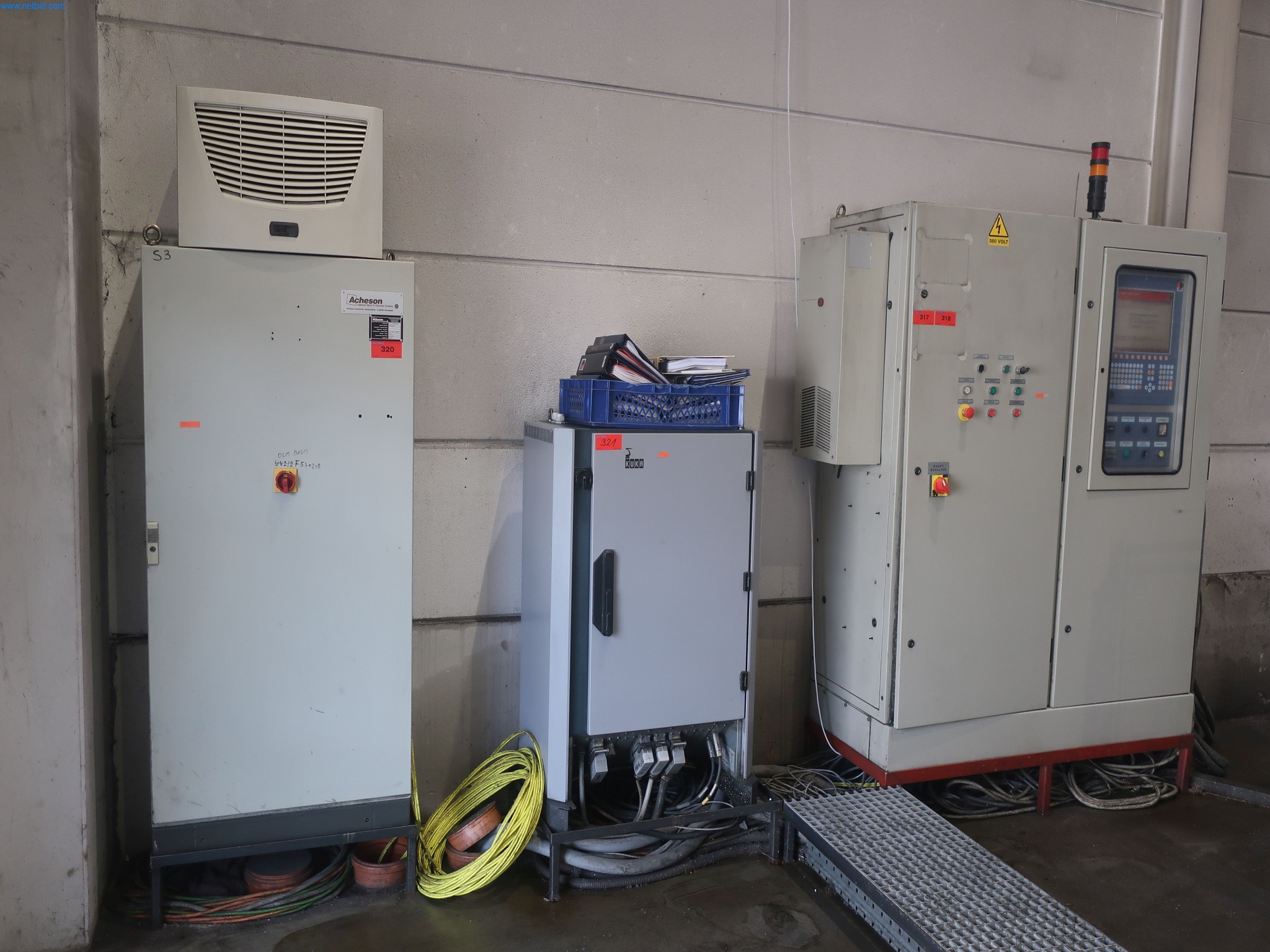

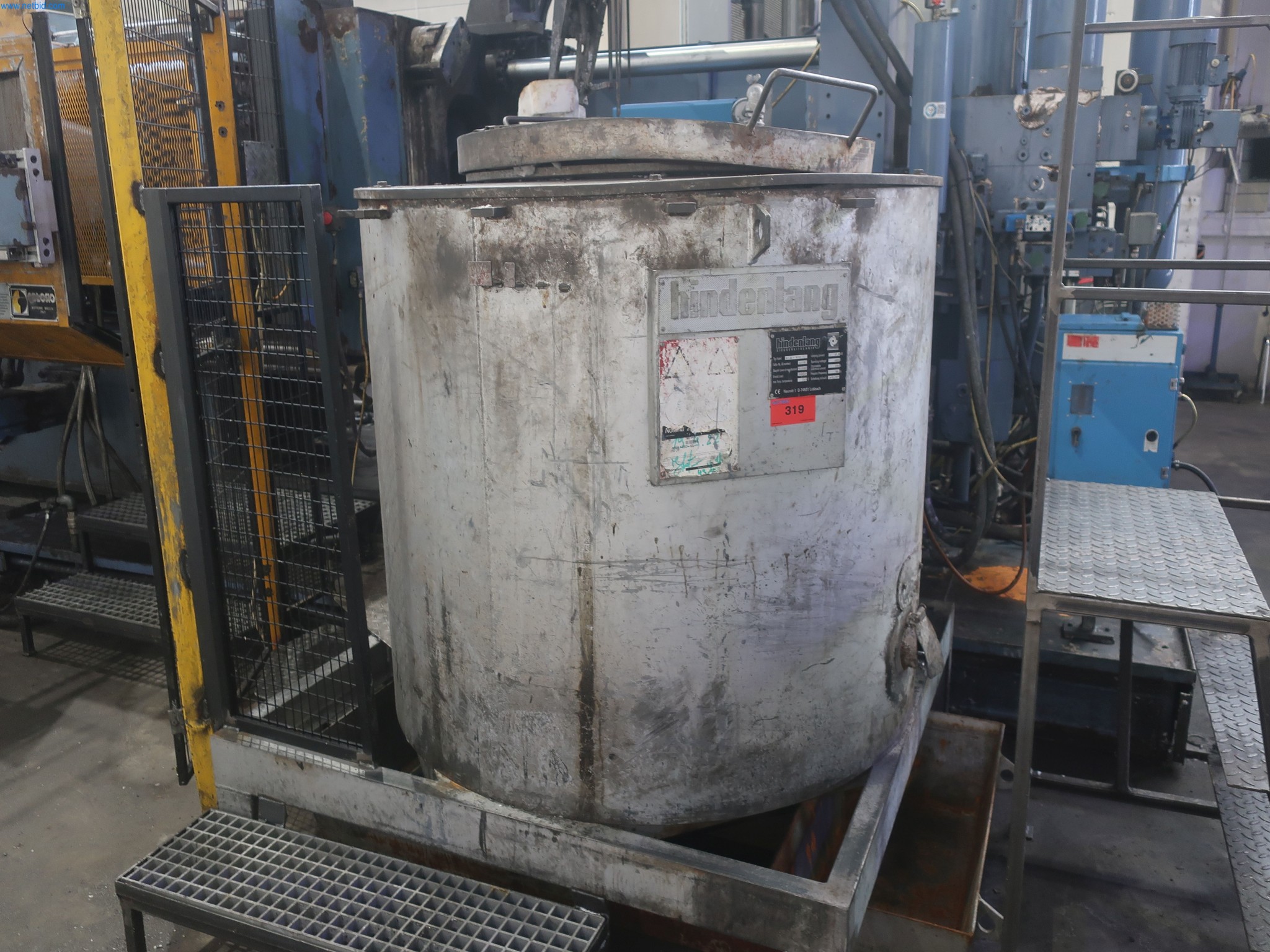

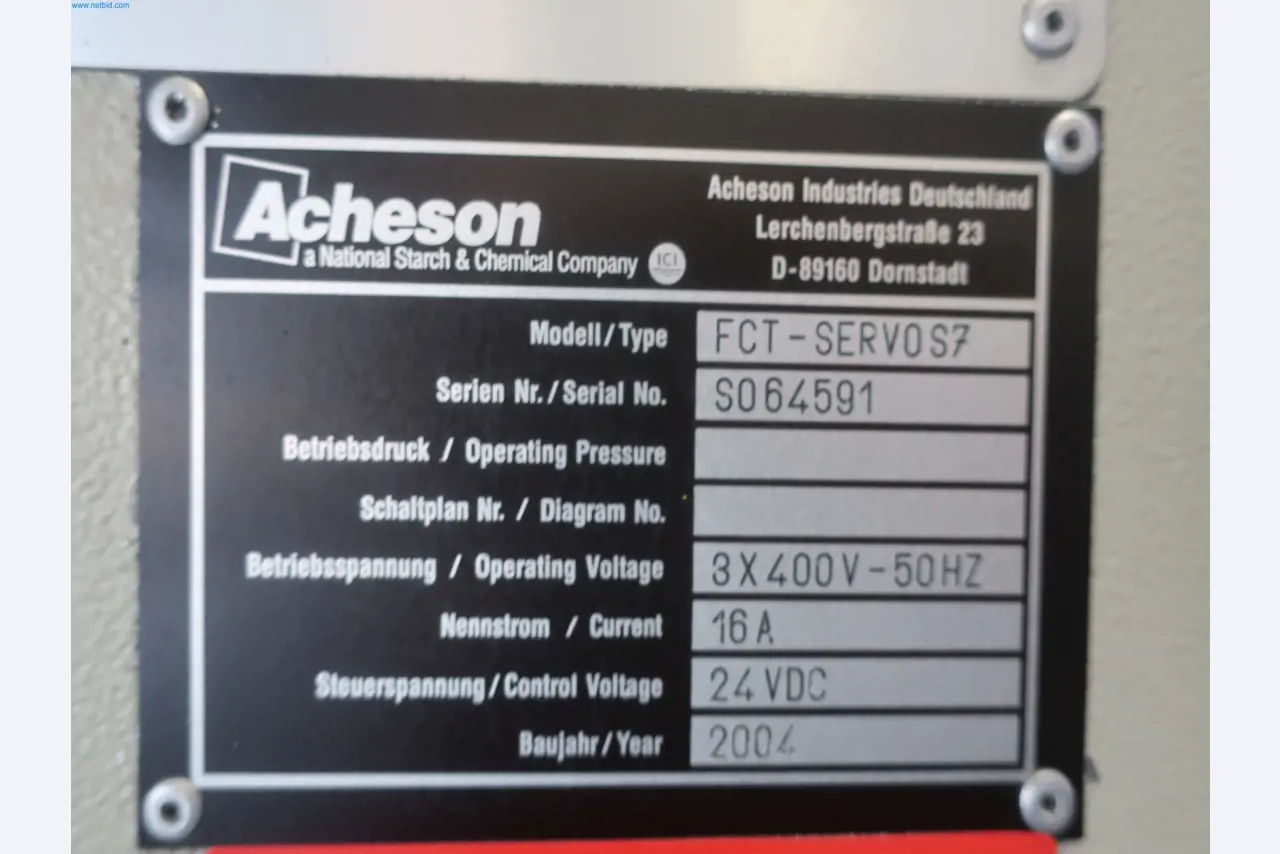

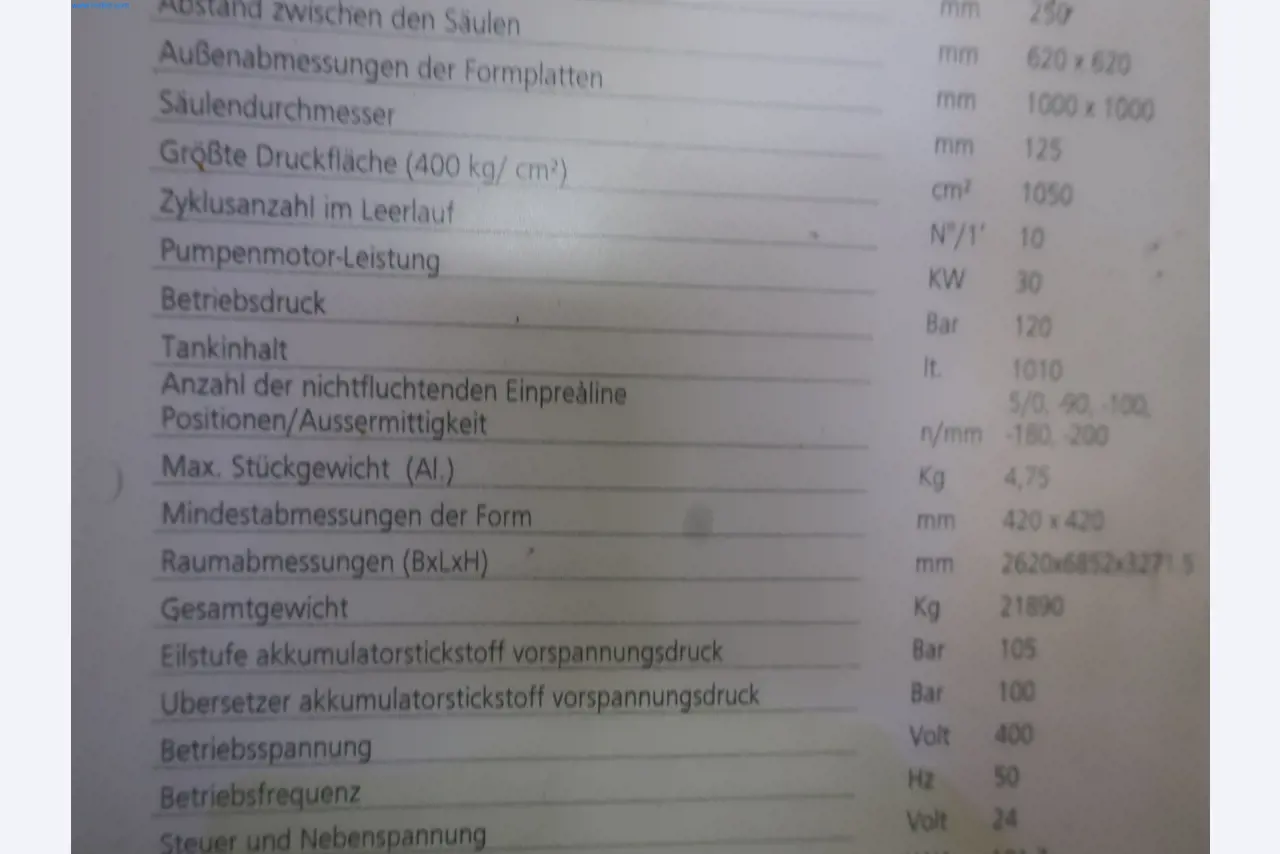

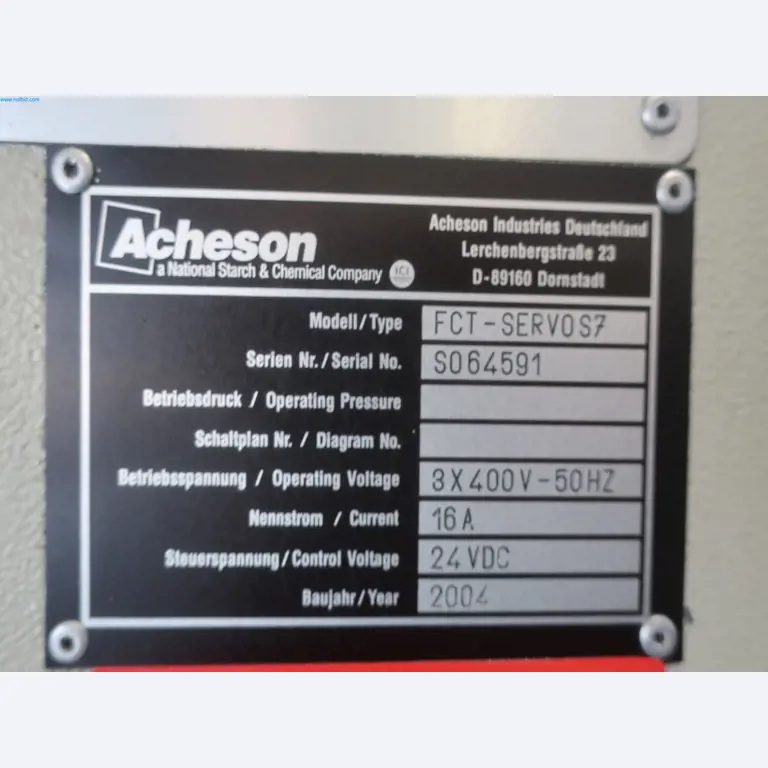

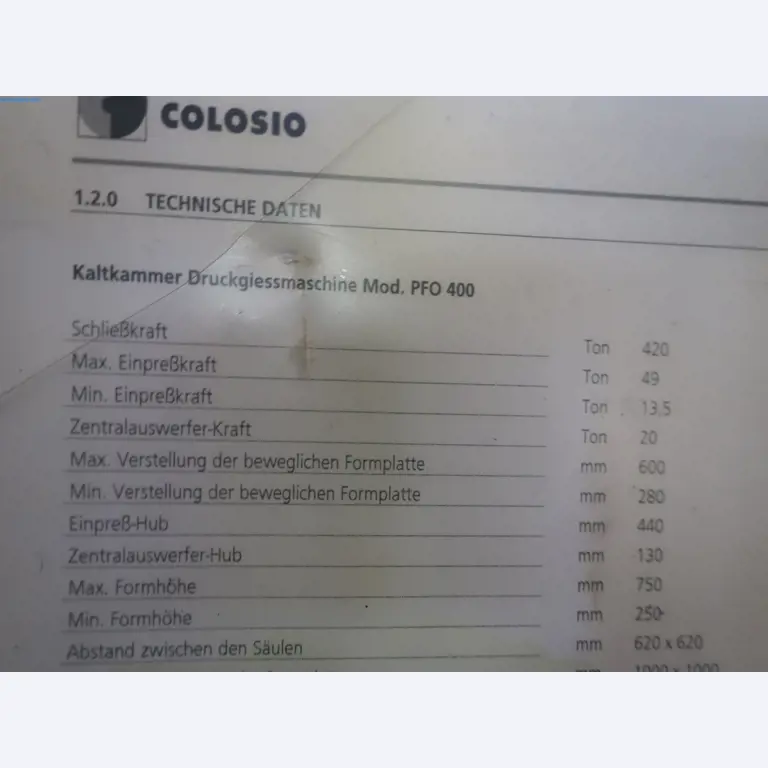

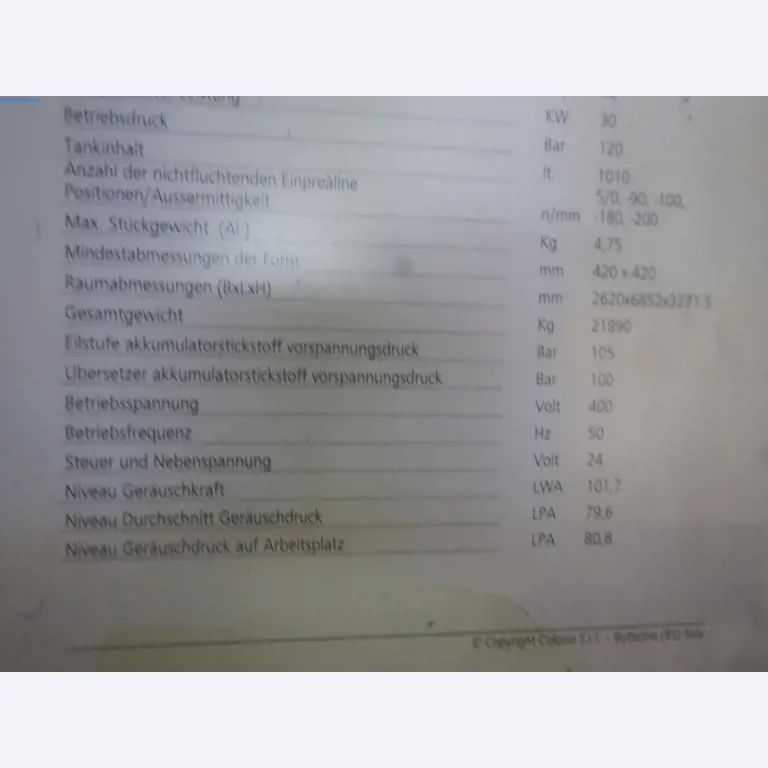

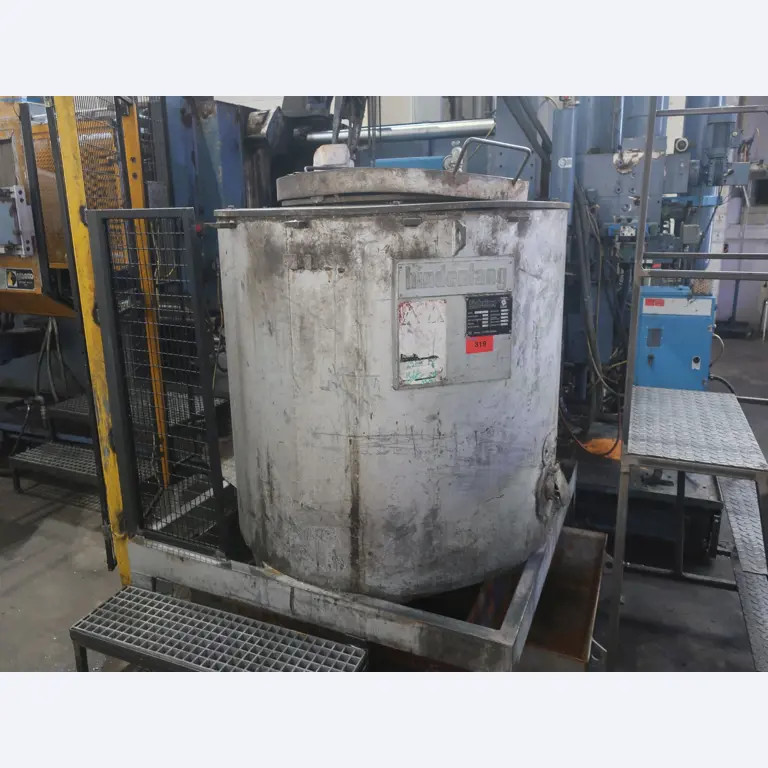

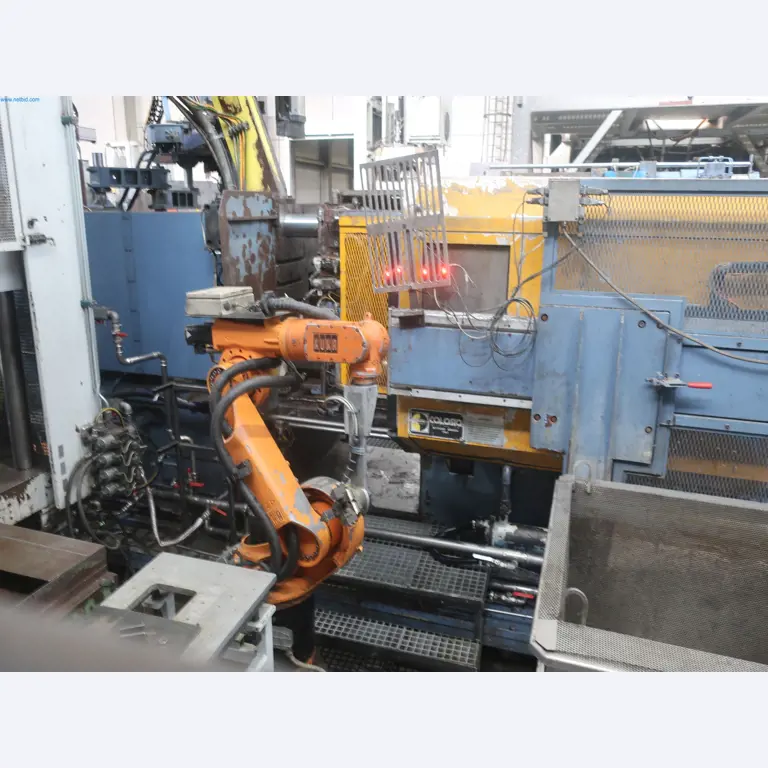

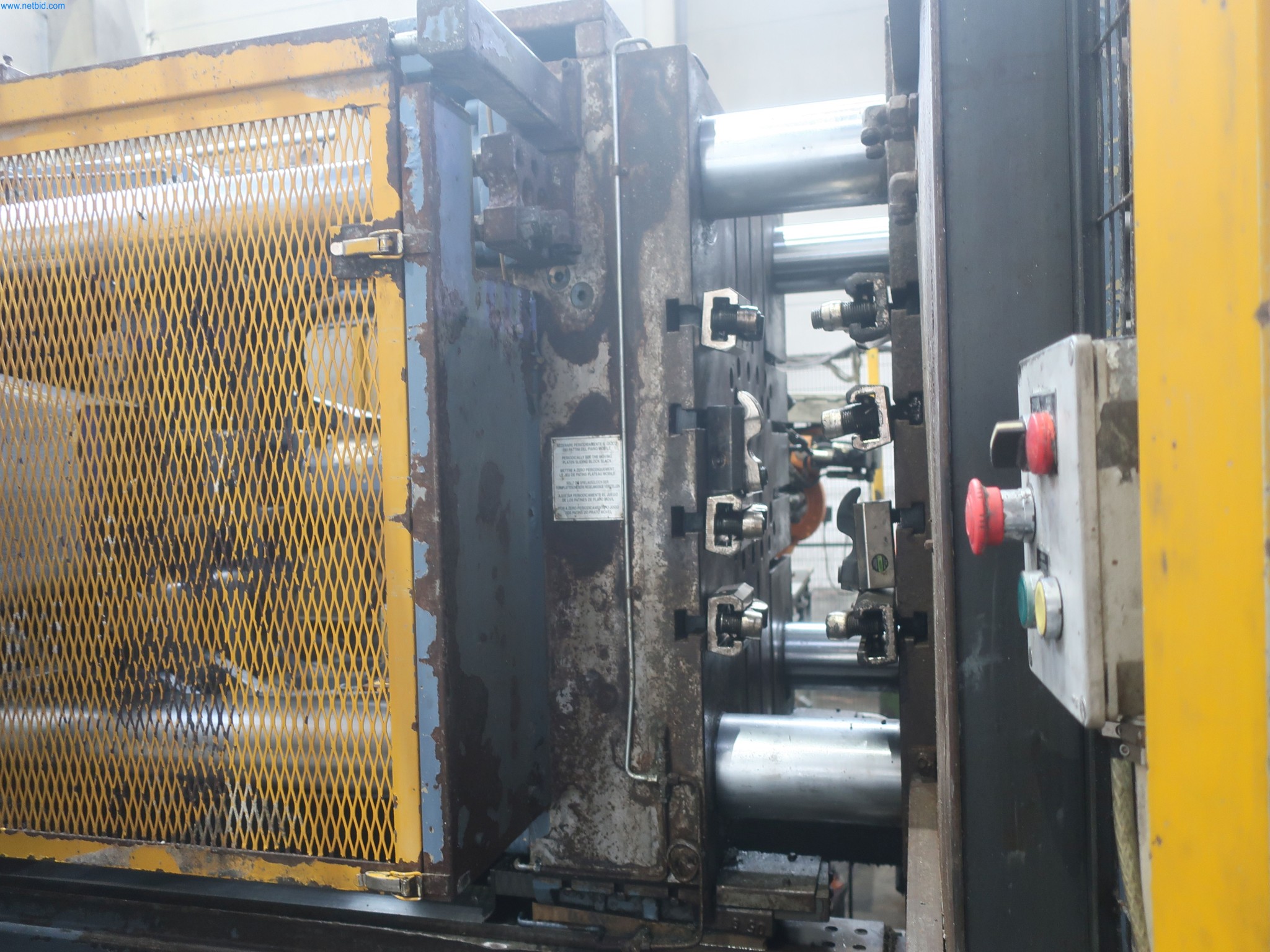

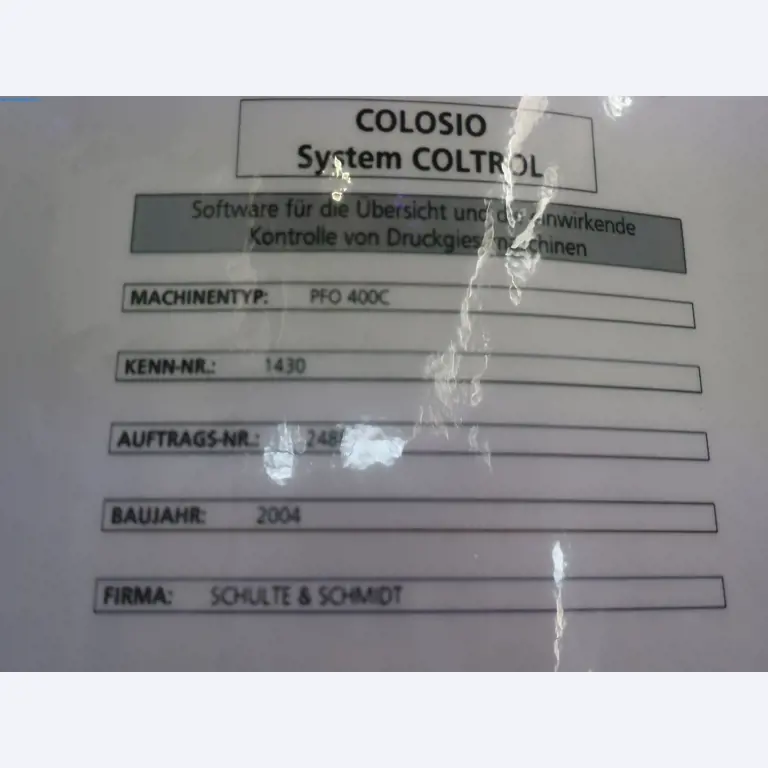

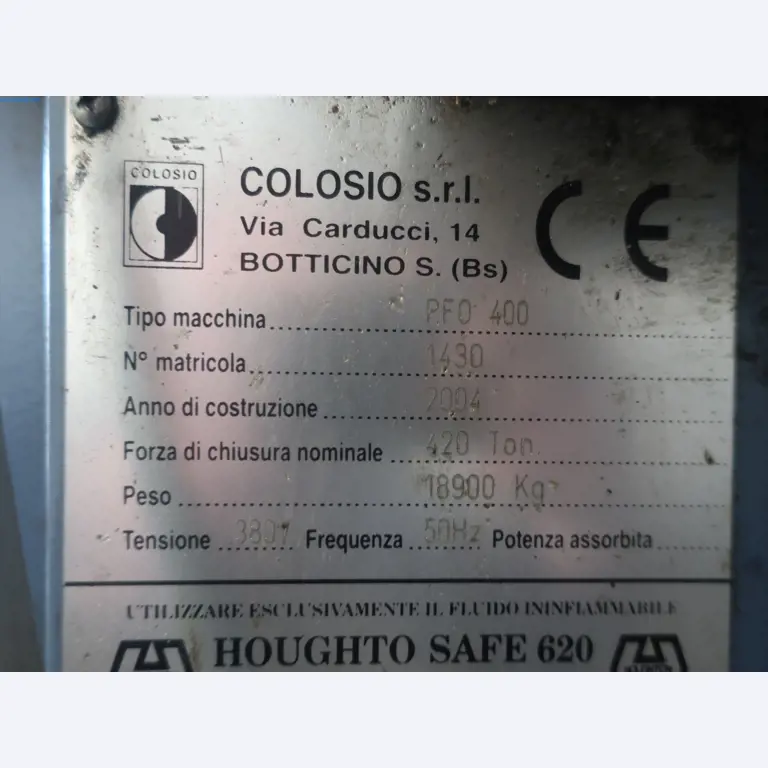

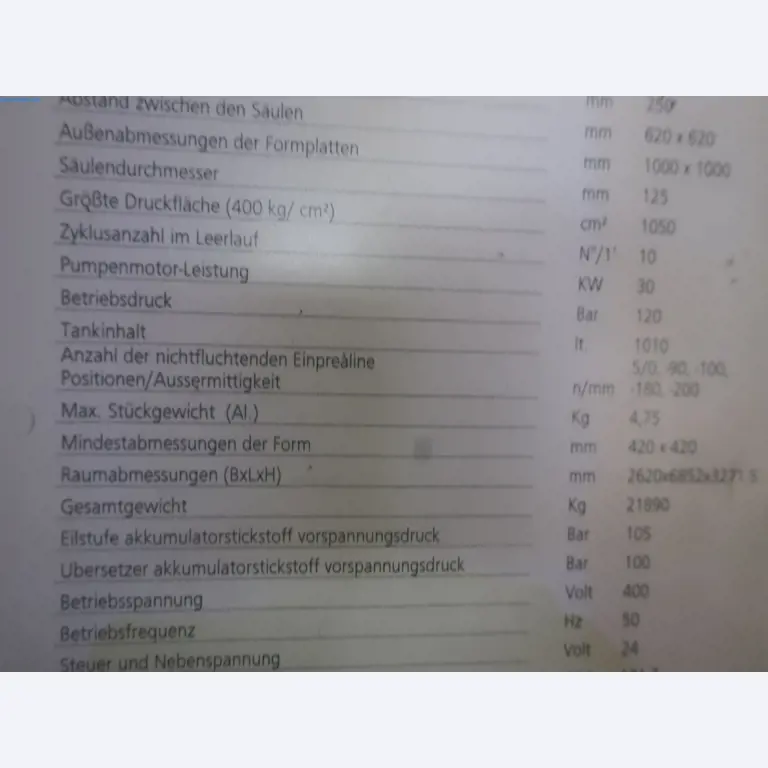

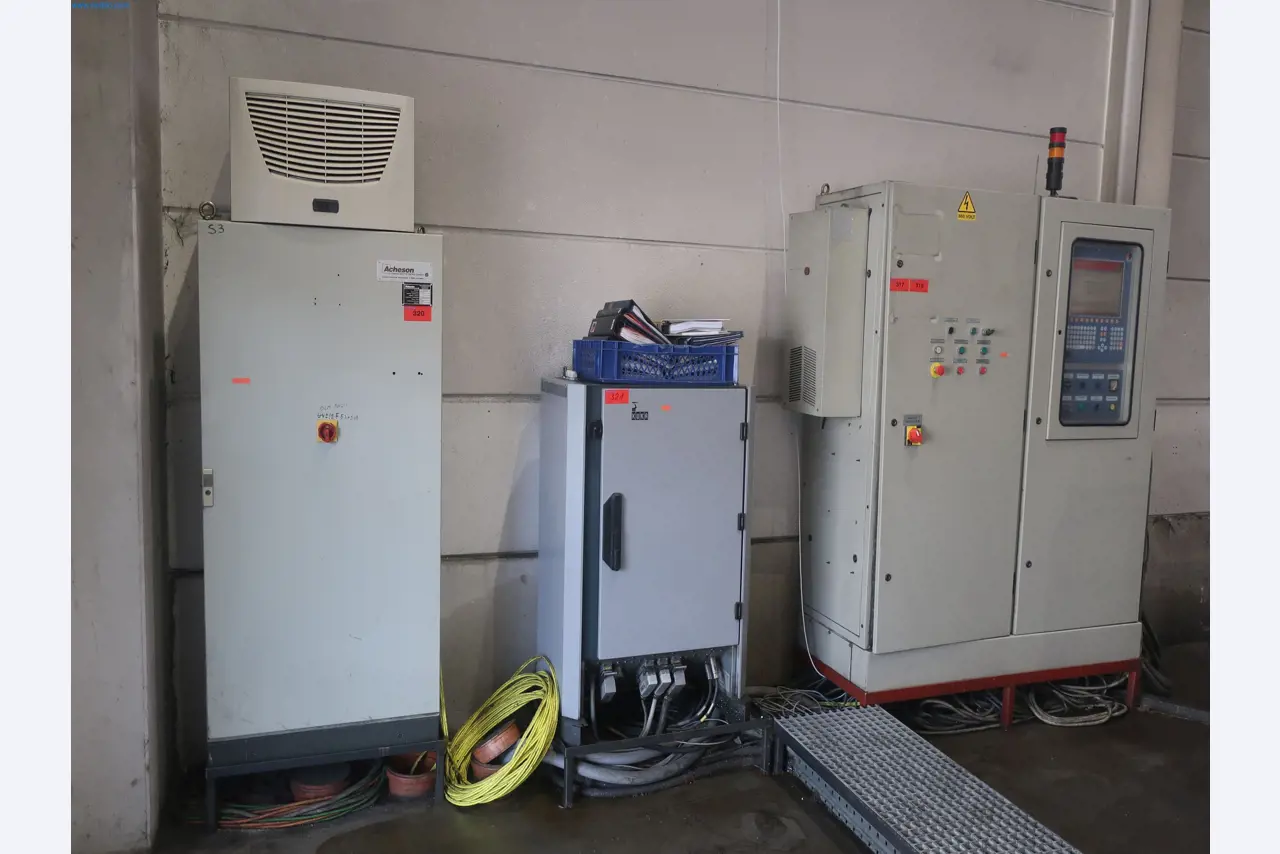

SN: 1430, consisting of: Cold chamber die casting machine, Colosio, type PFO 400C, year 2004, SN 1430, specification: Clamping force 420 t, max./min. press-in force 49/13.5 t, central ejector 20 t, adjustment of the movable mold platen max./min. 600 - 280 mm, press-in stroke 440 mm, central ejector stroke 130 mm, mold height max./min. 750 - 250 mm, distance between the columns 620 x 620 mm, outer dimensions of mold plate 1,000 x 1,000 mm, guide column Ø 125 mm, pressure area (400 kg/cm²) max. 1,050 cm², pump motor power 30 kW, unit weight max. 4.75 kg, minimum mold size 420 x 420 mm, room dimensions 2,620 x 6,852 x 3,271 mm, net weight 21.890 kg, ladle material feed, control system, Colosio, aluminum dosing oven, Hindelang, type SBLE-500, year 2008, SN 10116, specification: application 500 kg, max. temperature 760 °C, power 41.5 kW, w. control cabinet, linear spraying device, Acheson, type FCT-Servo S7, year 2004, SN S064591, w. control cabinet, 6-axis industrial robot, Kuka, w. control cabinet, Kuka, w. control cabinet, FCT-Servo S7, year 2004, SN S064591, w. control cabinet, 6-axis industrial robot, Kuka, w. control cabinet, FCT-Servo S7, year 2004, SN S064591, w. control cabinet Control cabinet, Kuka, quenching tank, w. cooling tunnel and conveyor line, safety fence, w. safety device, knock-off table, trimming press, abk, type SP9-4-65, year 2018, SN 20.0313.000, specification: dead weight 8,000 kg, max. pressure 190 bar, connected load 15 kW, press force 637 kN, belt conveyor line, L approx. 3,000 mm
For further information, please contact Mr. Nicholas Schofield, phone +44 (0) 7785 221 868, Email: nschofield@gordonbrothers.com
For further information, please contact Mr. Nicholas Schofield, phone +44 (0) 7785 221 868, Email: nschofield@gordonbrothers.com
Location
- 92696 Flossenbürg, Floßer Straße 53/ Fertigungshalle 2/ Druckgusshalle
Dates
Inspection
Pickup
Mon, 17.03.2025 - Thu, 20.03.2025
09:00 - 16:00
Fri, 21.03.2025
09:00 - 13:00
Collection must take place within the specified period, deviations are only possible by arrangement.
Auction Terms
Please note that we require registration to visit the Windischeschenbach (92670) and Sonneberg (96515) storage sites, as these are approx. 0.5 and 2.5 hours´ drive from the main site in Flossenbürg (92696).
There are pallet trucks and forklift trucks on site that can be used for loading after consultation and presentation of a certificate of competence.
Sonnenberg: 3.5t, for larger machines there is a forklift rental on site
Windischeschenbach: 3.5t
For large machines, please get in touch with your local contact person in good time.
There are pallet trucks and forklift trucks on site that can be used for loading after consultation and presentation of a certificate of competence.
Sonnenberg: 3.5t, for larger machines there is a forklift rental on site
Windischeschenbach: 3.5t
For large machines, please get in touch with your local contact person in good time.
